User Manual for Yongnuo YN128 II Portable LED Beauty Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN128 II Portable LED Beauty
- Product category: On Camera Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Lights
 |
User manual for the Yongnuo YN128 II Portable LED Beauty contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

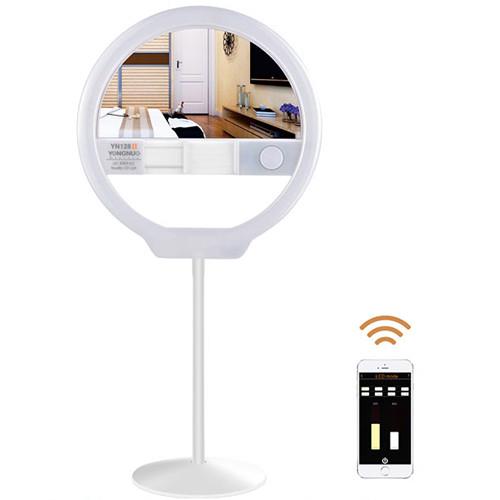

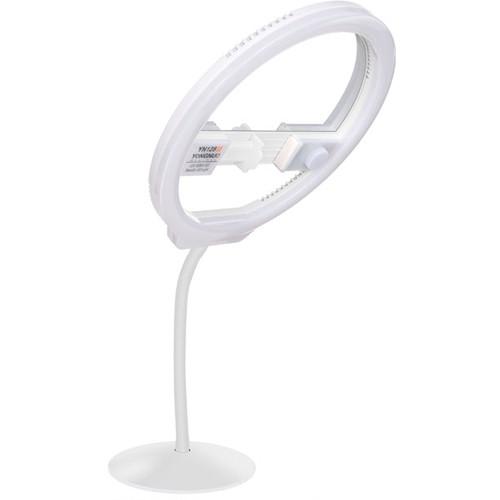

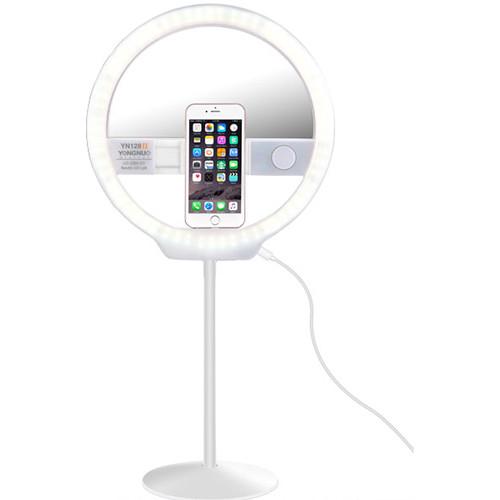

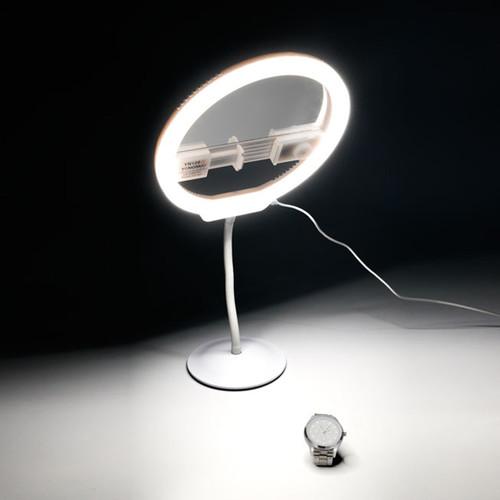

Product description The Yongnuo YN128 II Portable LED Beauty Light, in white, is conveniently designed as an all-in-one type fill light for vloggers. It holds a smartphone in the center, features a mirror in the center, and provides 3200-5500K adjustable color temperature with a TLCI/CRI rating of 95+. Measuring about 11" in width, it supports nearly any phone. Moreover, it has a gooseneck-style adjustable stand so you can point it exactly where you need to without adding additional support accessories. The stand can be removed to reveal a 1/4"-20 thread on the bottom of the light used for mounting the light on various other supports.
This compact light provides a wide-angle light output with a beam angle of 110°, and allows the subject's skin tones to appear natural while also emphasizing the three-dimensional aspect of the face. Other than for vlogging, the YN128 II can be used to light up an interview subject's face as well as for product photography.
Although this light offers a control knob on the front for adjusting color temperature and brightness, it can also be controlled by a companion iOS/Android app. For power, the light offers a USB port that allows you to connect it to a standard USB charger or your computer's USB interface. - All-in-One Style Light for Vloggers
-
- Holds a smartphone in the center (supports nearly all phones)
- Features a center mirror
- Included gooseneck-style adjustable stand secures into 1/4"-20 thread on the bottom
- 3200-5500K adjustable color temperature
- TLCI/CRI rating of 95+
- 110° wide beam angle
- Controllable via a front panel knob, as well as via an iOS/Android app from up to 49' away
- USB power interface
- Can also be used for interviews and product photography
- Helps avoid corrugation and stroboscopic flash artifacts
- Supports an optional 10.8" circular blue light filter for use as an eye light
In the Box Yongnuo YN128 II Portable LED Beauty Light (White) Gooseneck-Style, Adjustable Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN128 II Portable LED Beauty Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN128II Specs | | | Beam Angle | 110° | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | TLCI 95
CRI 95 | | Lumens | 1024 | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 128 | | | | Max Power Consumption | 7.6 W | | Power Input Connector | Micro-USB | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 11.2 x 10.9 x 2.4" / 28.5 x 27.6 x 6 cm Without stand | | Weight | 2.24 lb / 1016 g | | | | Package Weight | 2.57 lb | | Box Dimensions (LxWxH) | 11.4 x 11.15 x 2.5" |
