User Manual for Yongnuo YN260C Bi-Color RGB LED Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN260C Bi-Color RGB LED Light
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
 |
User manual for the Yongnuo YN260C Bi-Color RGB LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

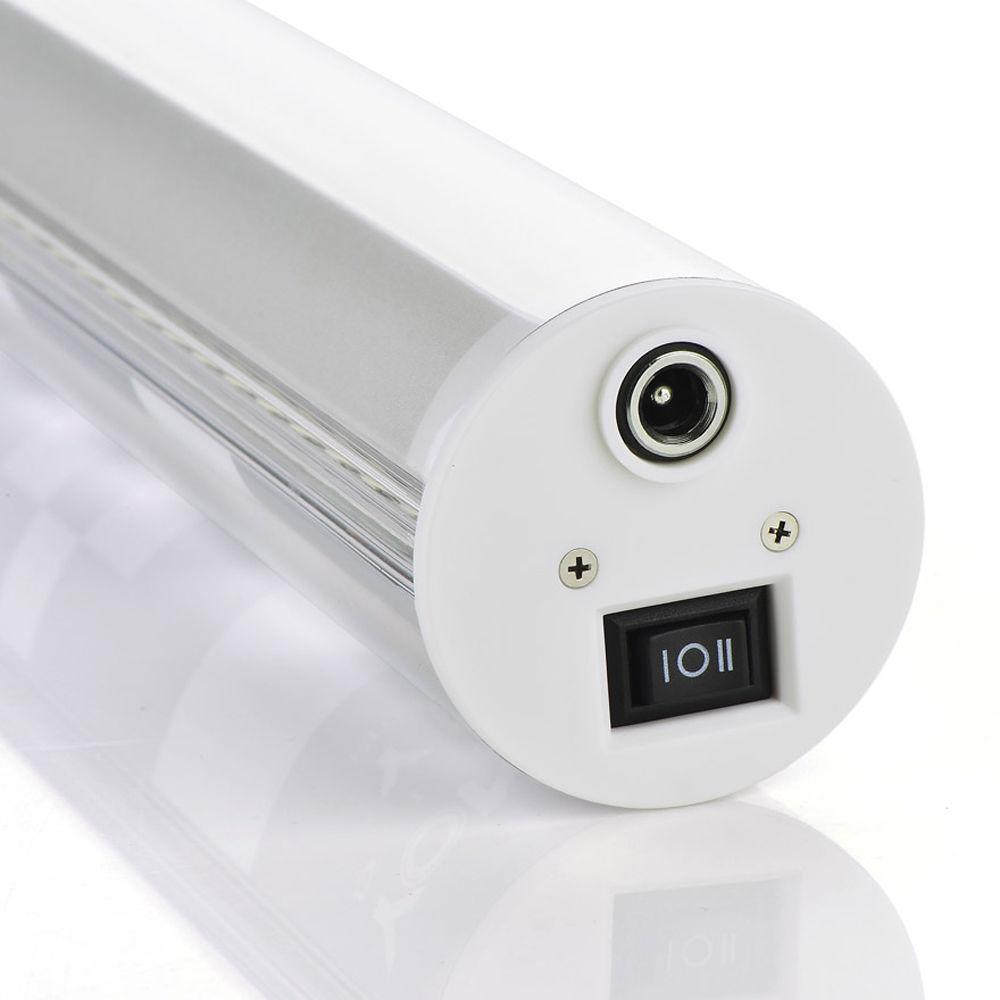

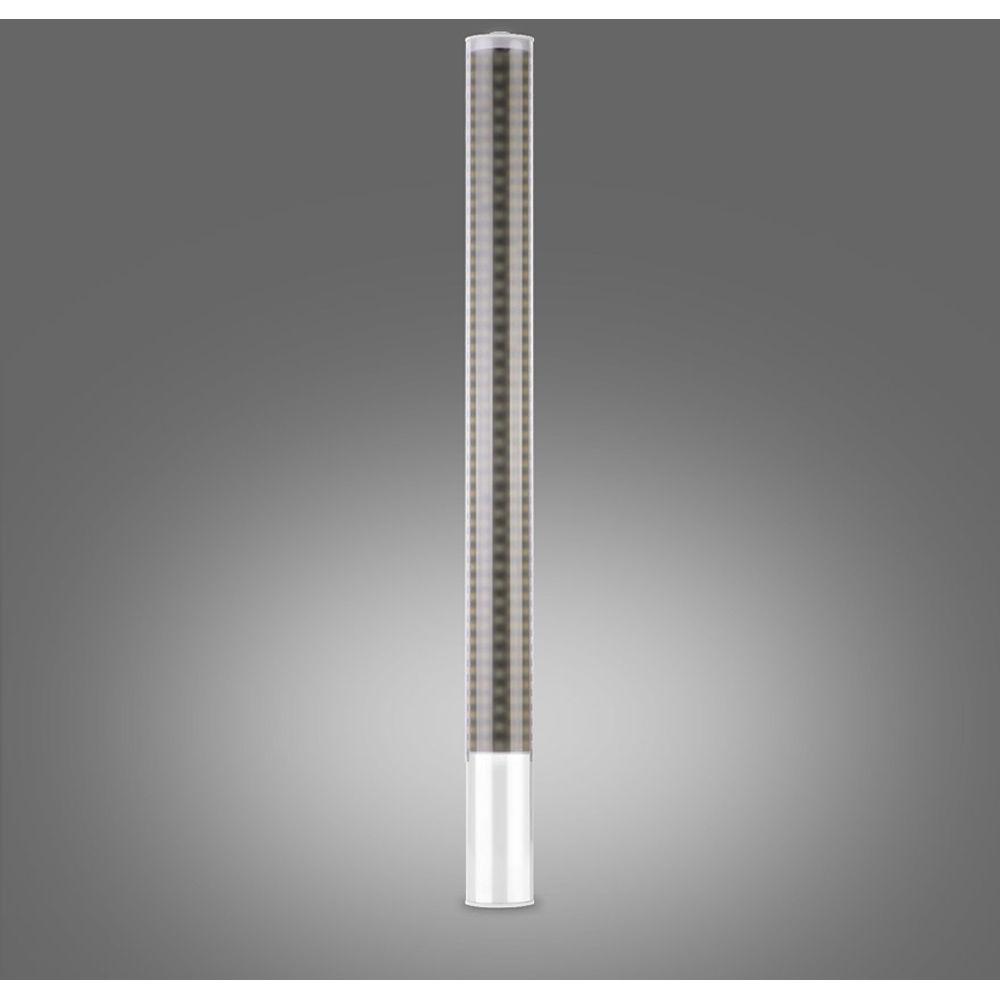

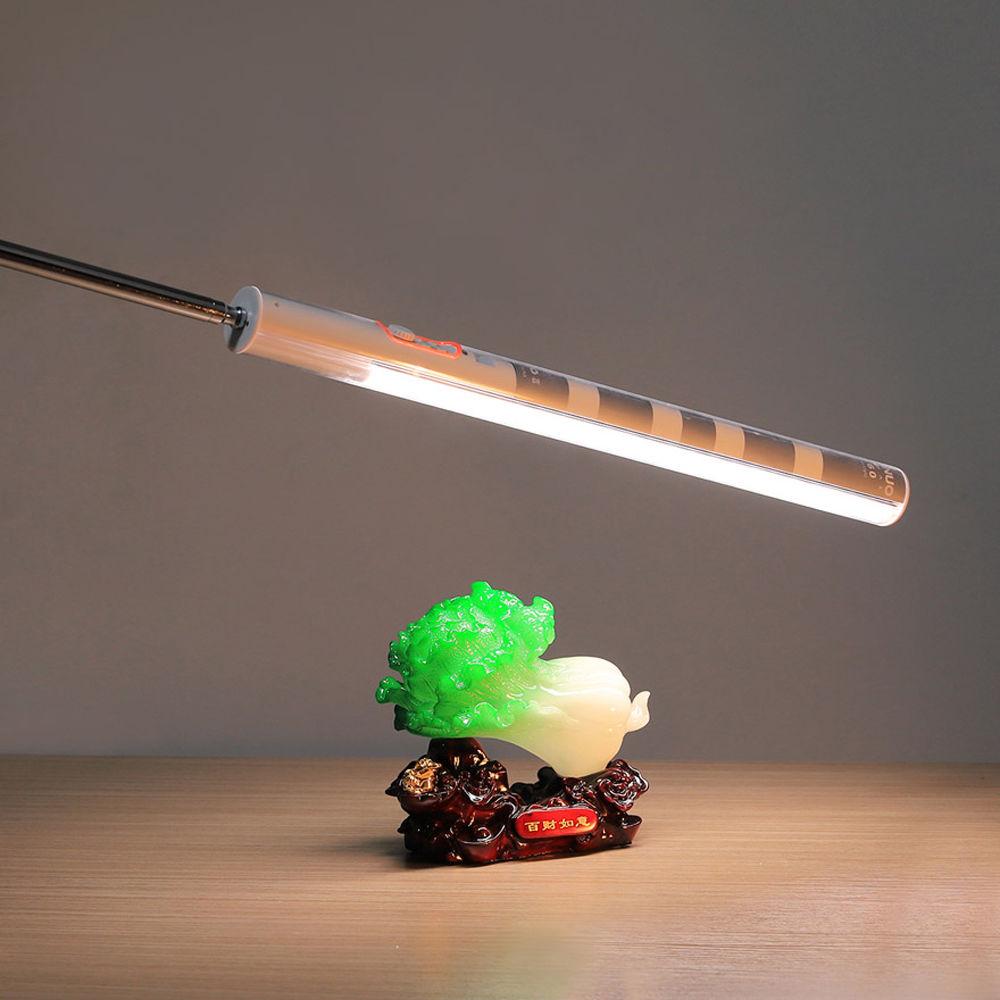

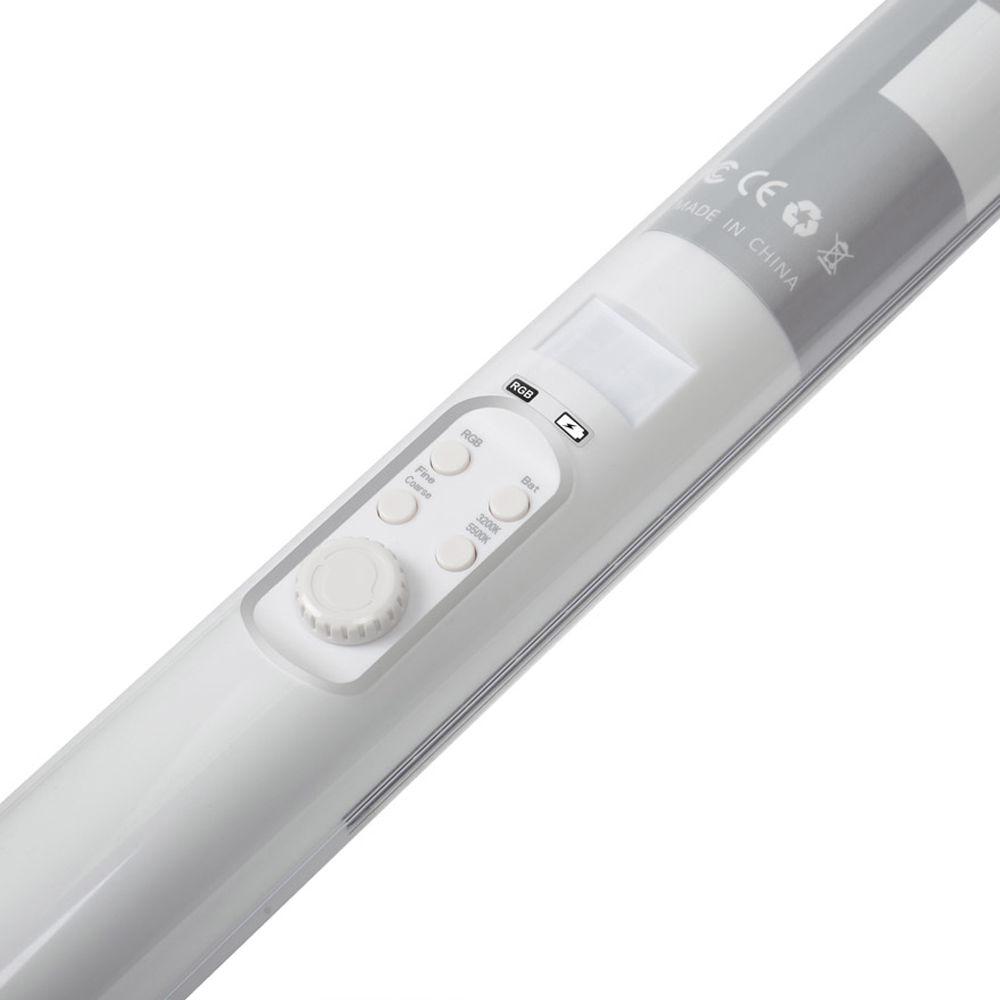

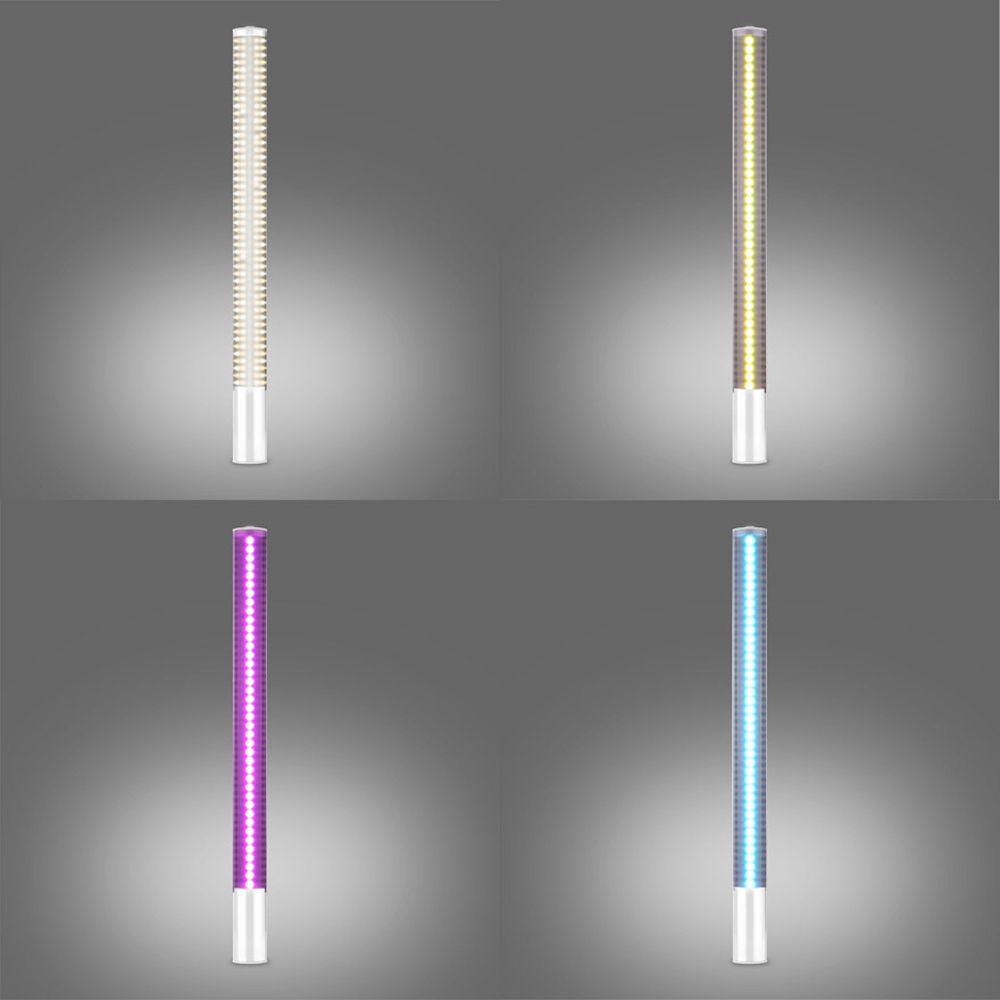

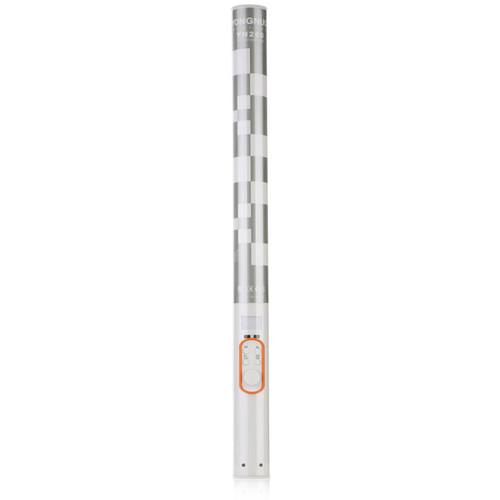

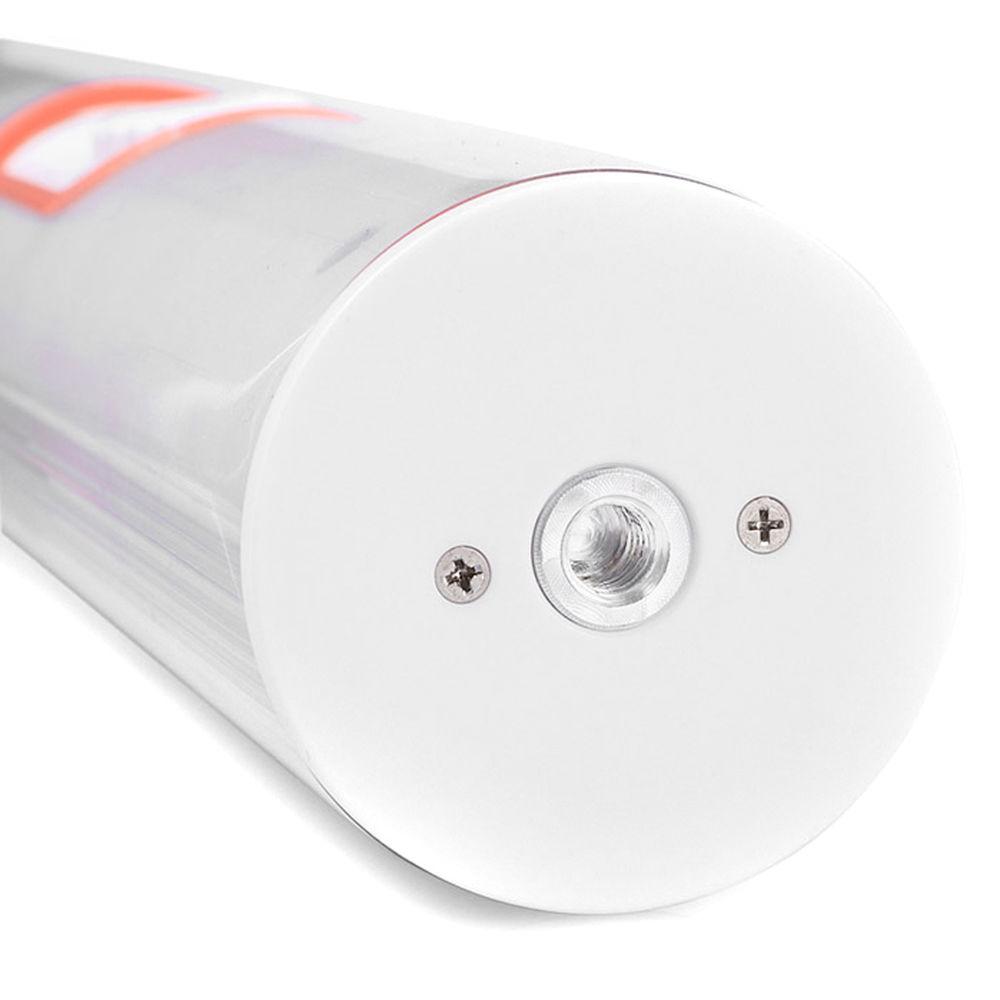

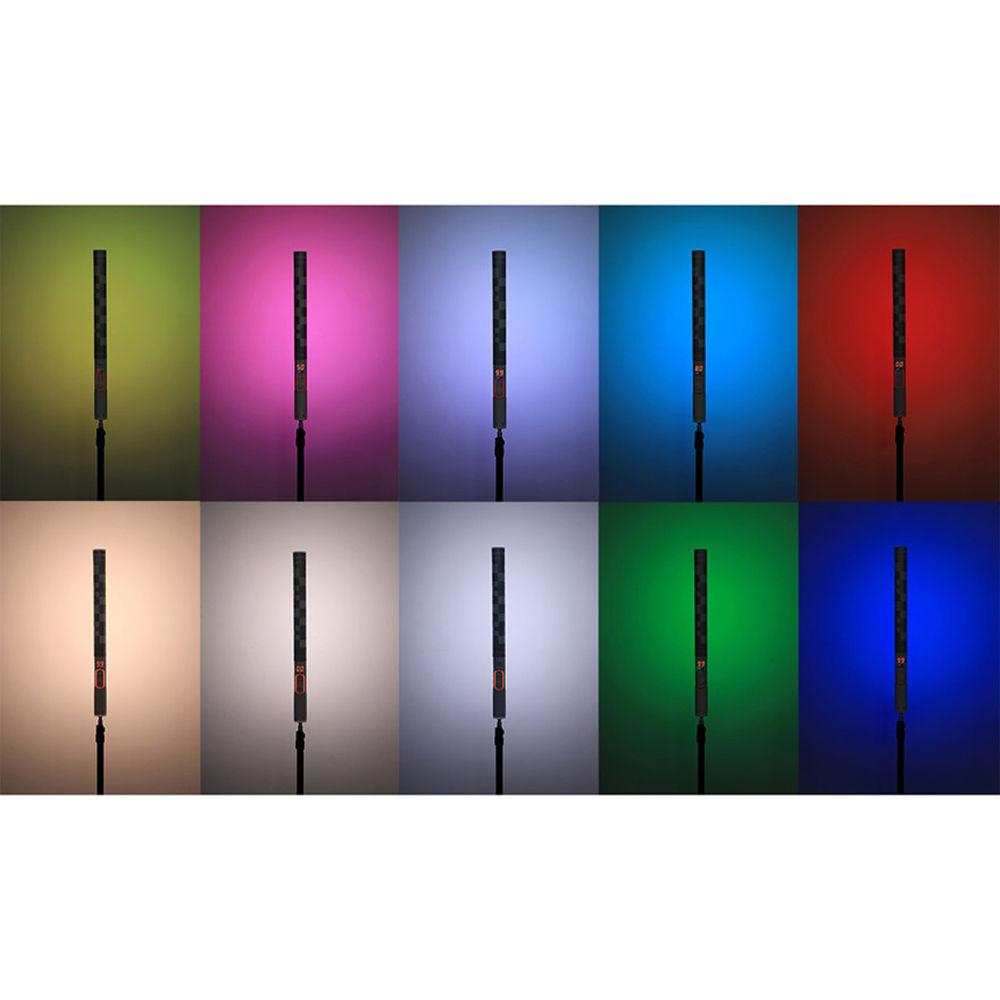

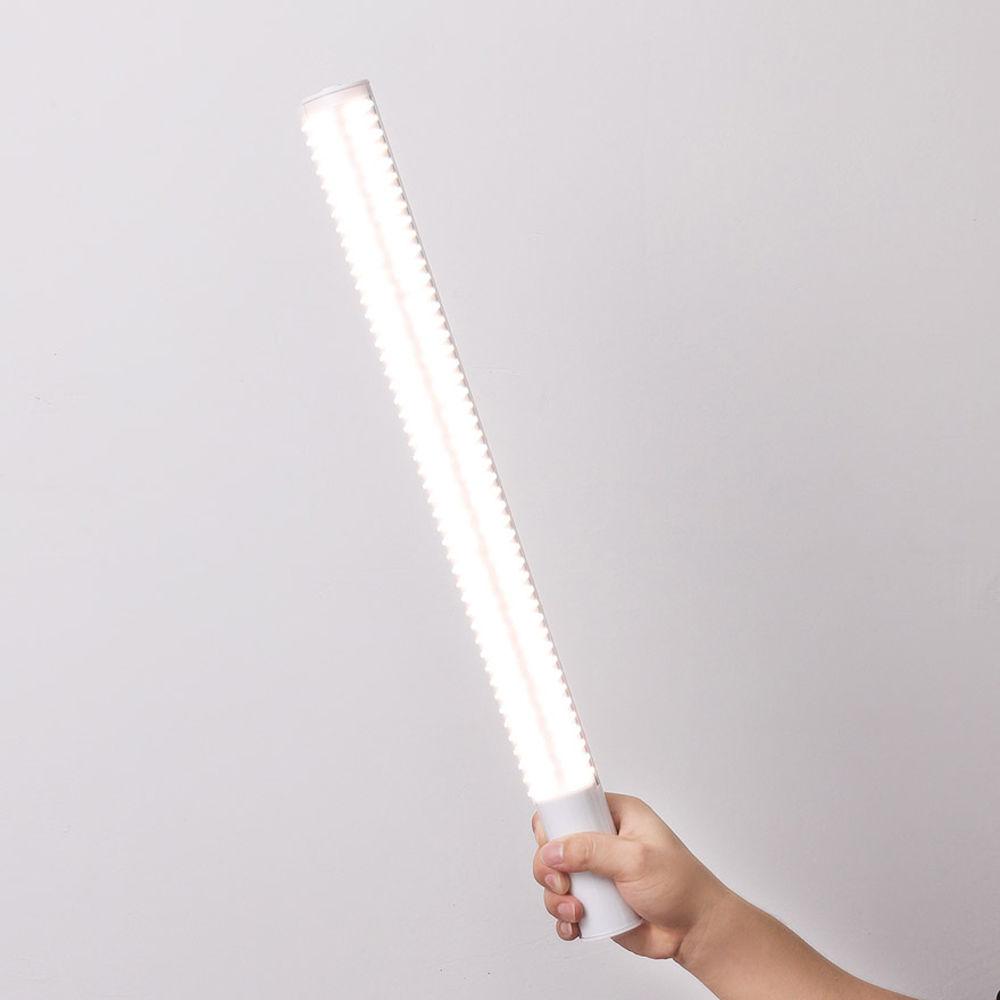

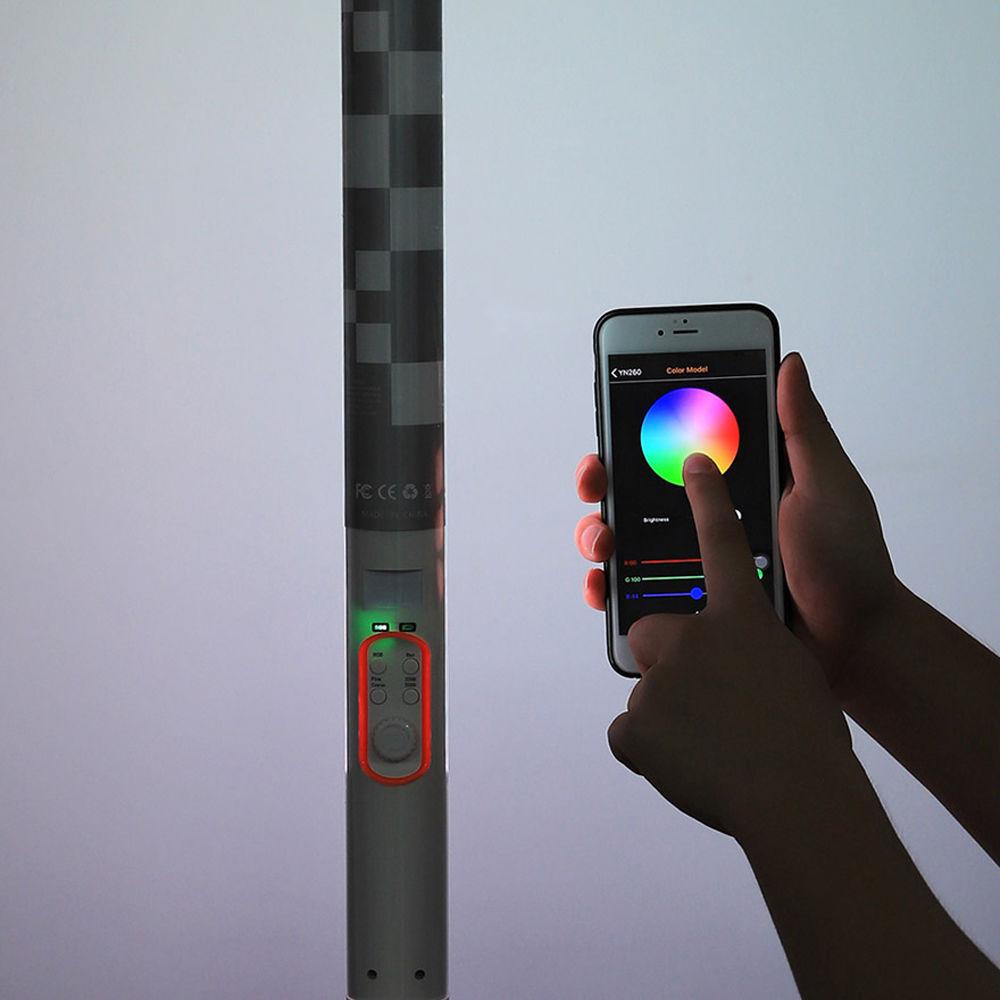

Product description With an eye-catching 23.4" long wand-like design and wide 120-degree beam spread, the YN260C Bi-Color RGB LED Light from Yongnuo will help you tap into your creative potential to fashion a distinct look, while providing freedom from the electrical outlet. The YN260C has the unique ability to switch between either 192 variable color temperature LEDs and 40 RGB SMD LEDs, enabling either a white light mode capable of 3200 to 5500K or a full color RGB mode that is able to render literally millions of color combinations and can be configured via a mobile app. The fixture has rated outputs of 2400 lumens for white light and 494 lumens for RGB. Light intensity is also variable in 10% increments in Coarse Mode or in 1% increments in Fine Mode. The YN260C has an integrated lithium-ion battery with a high capacity of 5200mAh that will give you a run time of up to two hours. It can also run on AC power with an optional adapter. In the Box Yongnuo YN260C Bi-Color RGB LED Light Charging Cable Storage Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN260C Bi-Color RGB LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN260 Specs | | | Beam Angle | 110° | | Color Temperature | 3200 to 5500K | | Dimming | Yes, 1 to 100% (Stepped) | | Display | None | | Lumens | 2400 2400 Lumens for White Light, 494 Lumens for RGB | | Number of LEDs | 232 | | Fixture Dimensions | 23.4 x 2.8 x 2.8" / 595.0 x 70.0 x 70.0 mm | | Fixture Weight | 2.49 lb / 1134 g | | | | Yoke Mount | None | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | Bluetooth | | Wireless Range | 49.2' / 15 m | | | | DC Input Power | 12 VDC at 2 A | | Power Source | AC Adapter, Integrated Battery | | Max Power Consumption | 18 W | | | | Run Time | 2 Hours at Full Power | | Charging Time | 1.3 Hours To 80% Capacity | | | | Package Weight | 1.84 lb | | Box Dimensions (LxWxH) | 24.2 x 2.8 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
