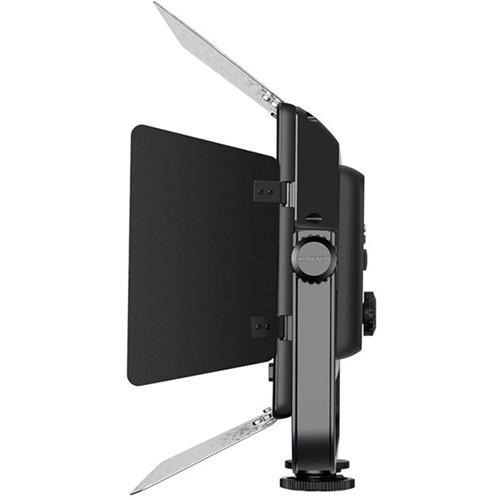

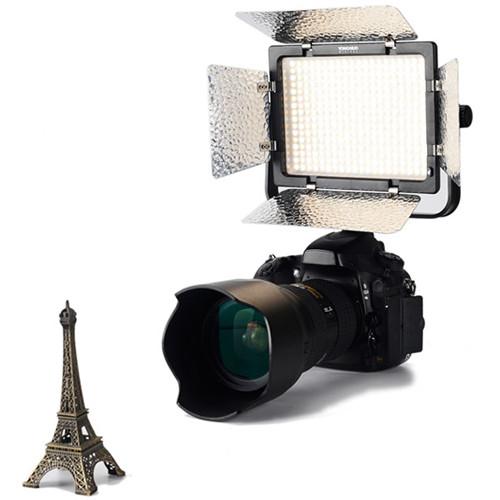

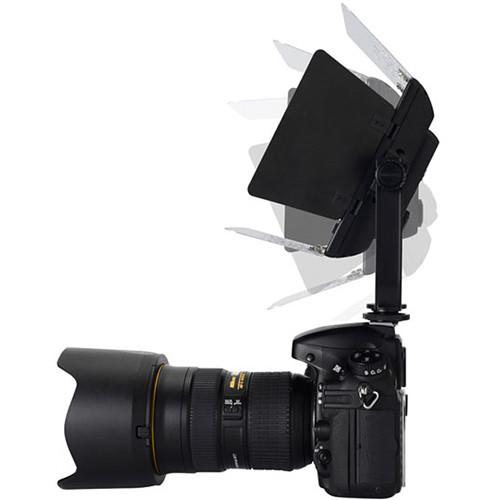

User Manual for Yongnuo YN320 LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN320 LED On-Camera Light
- Product category: On Camera Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Lights
 |
User manual for the Yongnuo YN320 LED On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

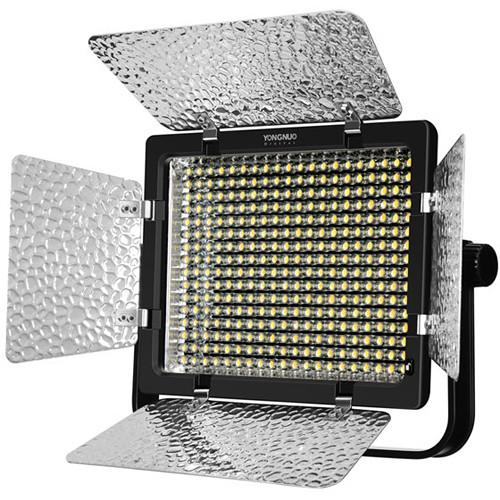

Product description Illuminate your scene with the YN320 LED On-Camera Light from Yongnuo. Packing 320 LEDs into a compact fixture, this daylight-balanced on-camera light boasts a bright output of up to 2480 lumens. Plus, the light output has a CRI rating of 95 or better, providing good color reproduction. Two dimming modes are available—coarse and fine.
While you can control the light manually, there are also two ways to control and adjust it remotely. The included 8-channel remote allows you to control up to eight different lights, or group multiple lights to have the same settings. You can also accomplish this with your iOS or Android mobile device by using the downloadable Bluetooth-based app.

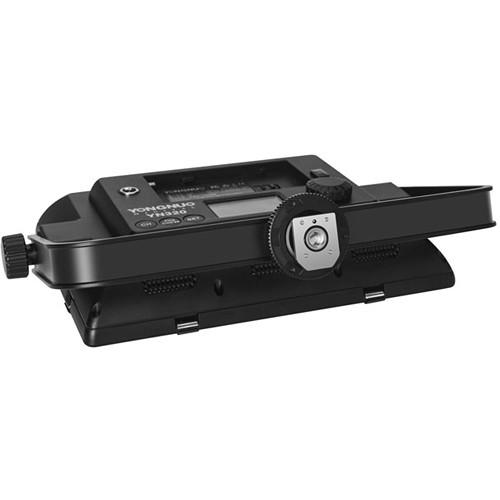

The YN320 is powered by an L-series type NP-F750 battery (available separately), which yields approximately two hours of runtime at maximum brightness. Alternatively, the light can be run from a 12 VDC power supply (available separately), which is a convenient option for prolonged shooting sessions. A screen display at the back of the unit allows you to monitor brightness, battery level, and assigned channel. The fixture is held steady by an integrated U-type bracket. In the Box Yongnuo YN320 LED On-Camera Light (5500K) Remote Control 2 x Color Temperature Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN320 LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN320W Specs | | | Beam Angle | 55° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Lumens | 2480 | | Dimming | Yes | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 320 (Daylight) | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 12 VDC at 2 A | | Power Source | AC Adapter, External Battery | | | | Wireless Range | 49.2' / 15 m | | | | Dimensions | 9.9 x 7.9 x 2.4" / 25.2 x 20 x 6.2 cm | | Weight | 1.72 lb / 780 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.3 x 8.0 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
