User Manual for Yongnuo YN360 II LED Light Wand Click to enlarge the picture
Contents of the user manual for the Yongnuo YN360 II LED Light Wand
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
 |
User manual for the Yongnuo YN360 II LED Light Wand contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

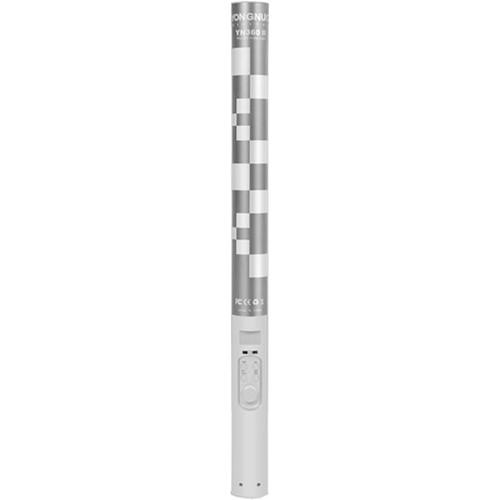

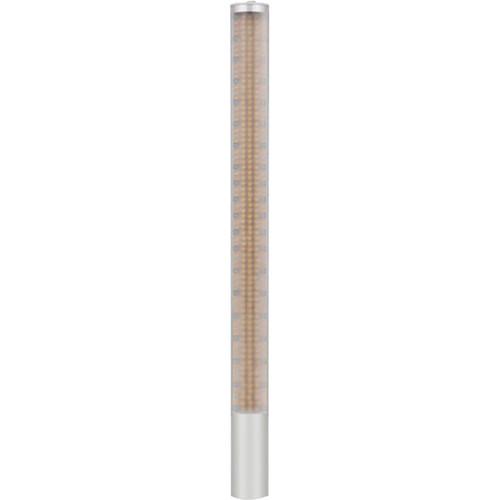

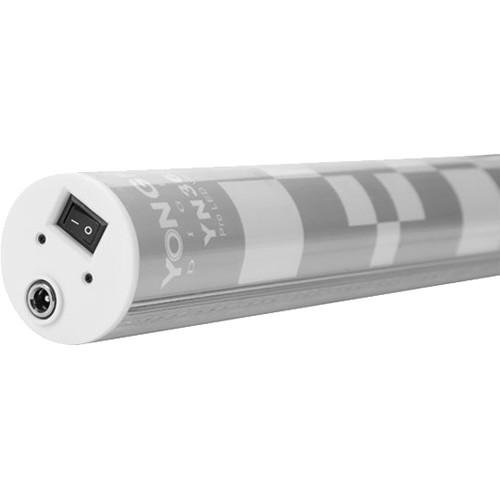

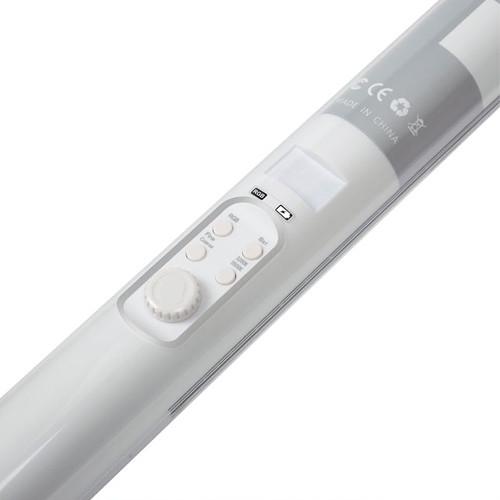

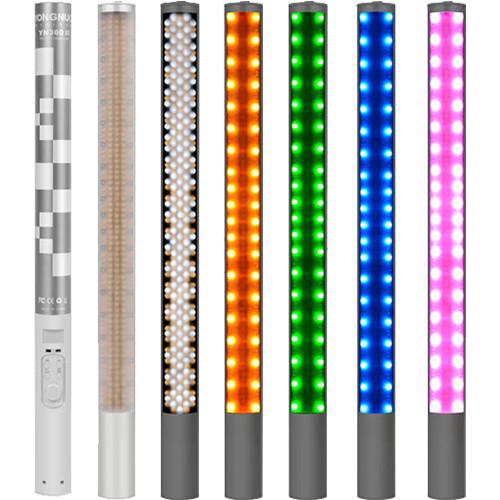

Product description With a unique 18.1" long design, the YN360 II LED Light Wand from Yongnuo will help you create a distinct look as well as operate in tight spaces with relative ease. This model offers a unique ability to switch between either 320 variable color temperature LEDs or 40 RGB SMD LEDs, enabling either a white light mode capable of being set from 3200-5500K or a Full Color RGB mode that can be configured via a mobile app. The light also has an integrated lithium-ion battery with a high capacity of 5200mAh for keeping the light powered for hours.
Users will enjoy a beam angle of 55° when using the color temperature mode or 110° for the RGB settings. Also, the fixture has rated outputs of 2560 lumens for white light and 494 lumens for RGB, and the power can be adjusted in both coarse and fine settings for faster or more precise control. Additionally, it can run on an optional 12 VDC power supply. In the Box Yongnuo YN360 II LED Light Wand (3200-5500K) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN360 II LED Light Wand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN360 II Specs | Light Source | 320 White LEDs
40 RGB SMD LEDs | | CRI | 95 | | Color Temperature | 3200-5500K
RGB | | Beam Angle | Color Temperature Mode: 55°
RGB Mode: 110° | | Output | Color Temperature Mode: 2560 lumens
RGB Mode: 494 lumens | | Wireless Control | Mobile app up to 49' / 15 m | | Power Source | Integrated rechargeable lithium-ion battery (5200 mAh)
Optional 12 VDC, 2 A power supply | | Power Consumption | Color Temperature Mode: 19 W
RGB Mode: 8 W | | Mounting | 1/4"-20 thread | | Dimensions | 23.4 x 4.5 x 2.0" / 59.5 x 11.5 x 5.0 cm | | Weight | 2.5 lb / 1134 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 23.4 x 4.7 x 2.1" |
