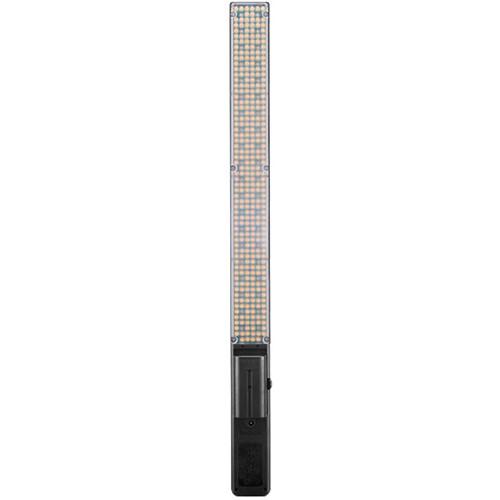

User Manual for Yongnuo YN360W Handheld Pro LED Video Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN360W Handheld Pro LED Video
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
|
User manual for the Yongnuo YN360W Handheld Pro LED Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|
Product description The YN360W LED On-Camera Video Light is one of a series of on-camera LED lights from Yongnuo Digital. This compact unit features two output modes. The first mode provides 5500K output and offers two dimming modes (rough and fine). The second mode allows you to control the 40 RGB LEDs, adjusting the balance of the red, blue, and green LEDs.
The YN360W On-Camera Light also features Bluetooth-based mobile-phone remote control (via the downloadable app), which allows you to independently control up to eight fixtures or a group of fixtures. Designed to work with most DSLRs and small camcorders, the YN360W LED On-Camera Light can be powered using an optional Sony NP-F series battery or via an optional AC adapter. Please note that neither a battery or AC adapter is included with this item. A push-button, numerical LED display shows the remaining battery power. An included storage bag contains your lights and accessories during storage and transportation. - 320 daylight-balanced (5500K) LEDs
- The fixture can output in either 5500K or RGB, but does not function in both modes at once
- Power using an NP-F series battery or via an optional AC adapter (not included)
- 8-channel IR remote control and mobile phone RC work up to 49' away
- Push-button remaining battery charge LED display
- Dimmer adjusts in 10% increments in Coarse Mode, and in 1% increments in Fine Mode. This allows you to quickly rough in your dimming for example to 50%, then fine tune it up or down from there
- Mounts via 1/4"-20 threaded mounting screw
- Power/luminance adjustment knob
- The color filter attaches magnetically to the fixture
In the Box Yongnuo YN360W Handheld Pro LED Video Light (RGB and 5500K) Orange Filter Storage Bag Limited 1-Year Warranty User Manual PDF 7.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN360W Handheld Pro LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN360 Specs | | | Beam Angle | 55°
110° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Display | None | | Lumens | 2560 | | Number of LEDs | 360 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 23.0 x 1.9 x 0.9" / 58.3 x 4.8 x 2.4 cm | | Fixture Weight | 17.2 oz / 489 g | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | Remote Control Type | Bluetooth | | Wireless Range | 49' / 15 m | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 8 VDC at 5 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 18 W | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 25.0 x 2.9 x 2.8" |
