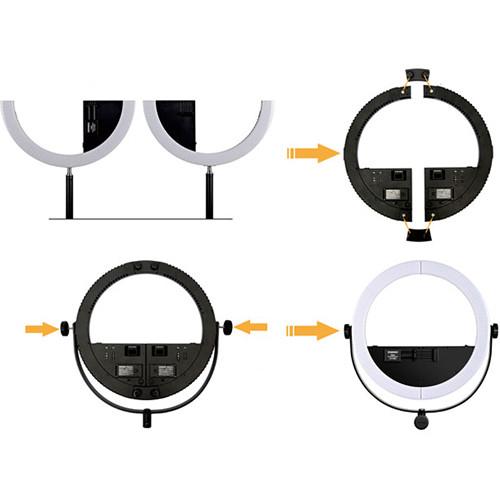

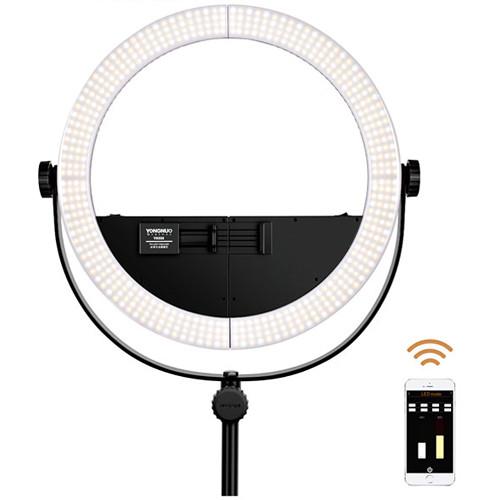

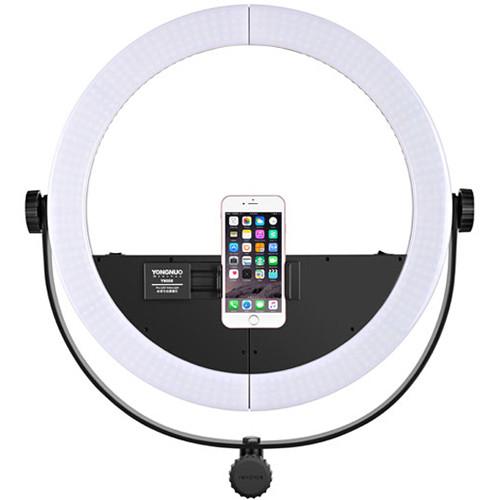

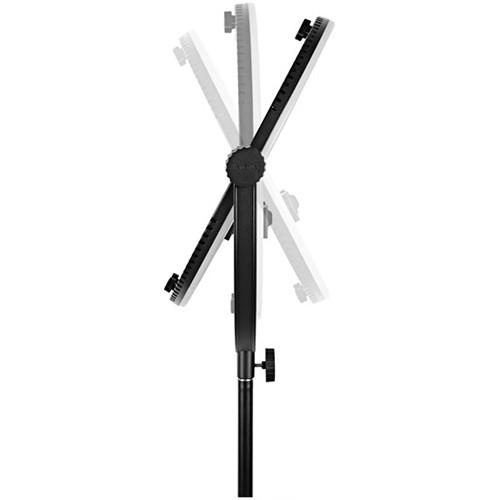

Product description The Yongnuo YN508 Daylight-Balanced LED Ring Light is literally two lights in one. The break-apart design lets you split the light into two half circles with 240 LED bulbs each, or you can use them together to create the classic halo-in-the-eyes portrait look. The integrated smartphone clamp allows you to easily place your smartphone in the center of the light. An included yoke supports the ring light to permit you to mount it on a stand to tilt the light up or down. Control over the light's brightness is via Yongnuo's free smartphone app, an optional wireless remote control, or locally on the unit itself.
The YN508W supports worldwide power. It features two independent L-series battery plates and two independent power ports for available power supplies. Each battery plate or power port provides power to half of the fixture, and it can run on 2 separately purchased, multi-voltage power adapters. Two fully-charged NP-F750 batteries will give you approximately 150 minutes of run time at maximum brightness. - The ring light can be split into two independent units: each with a battery plate, power port, info display, and local dimming control buttons.
- Each half of the ring light can run for about 150 minutes from a single Yongnuo NPF-750 battery.
- The fixture includes two attachment plates and eight screws that enable securely combining the two half circles into a solid ring light.
In the Box Yongnuo YN508 Daylight-Balanced LED Ring Light Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN508 Daylight-Balanced LED Ring Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN508W Specs | | | Beam Angle | 55° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 at 5500K | | Lumens | 3840 | | Dimming | Yes, 0 to 100% (Stepped) | | Display | LCD | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 480 (Daylight) | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Power Input Connector | Barrel / Coax | | | | Wireless Protocol | Wi-Fi (Unspecified Type) | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 8 / 8 | | Wireless Range | 49.2' / 15 m | | | | Dimensions | 16.9 x 3.3 x 12.6" / 430 x 85 x 320 mm | | Weight | 3.67 lb / 1670 g | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 17.0 x 13.0 x 3.0" |
