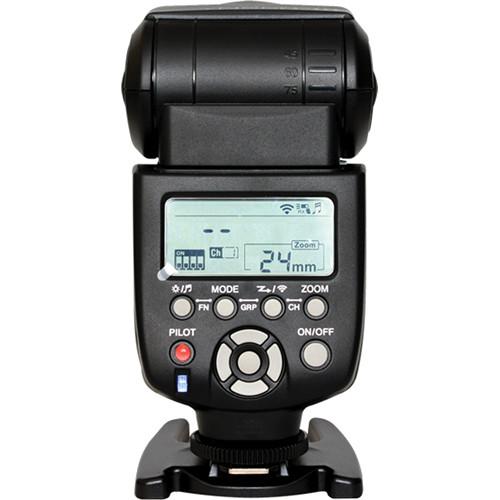

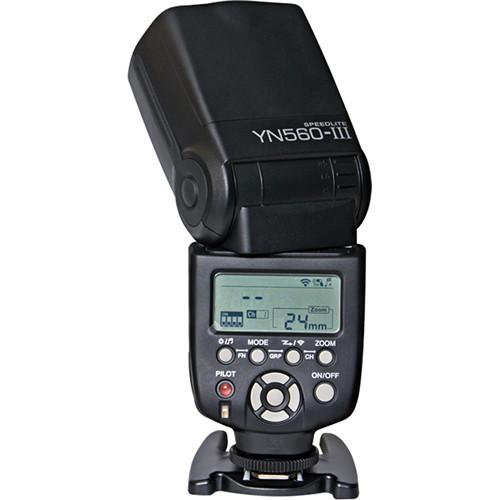

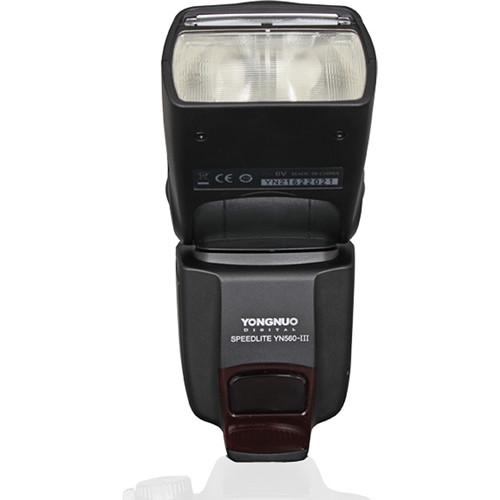

User Manual for Yongnuo YN560-III Speedlite Click to enlarge the picture
Contents of the user manual for the Yongnuo YN560-III Speedlite
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo YN560-III Speedlite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|
Product description Featuring a 2.4 GHz wireless radio receiver, the Yongnuo YN560-III Speedlite is a long range manual flash unit capable of being triggered from up to 300' away with the YN560-TX, RF-603, and RF-602 wireless transmitters. The YN560-III is powerful with a guide number of 190' at ISO 100 and 105mm. The unit is also quite versatile with a zoom range of 24-105mm, which is able to be expanded to 18mm with the built-in wide-angle diffuser. Additionally, this output can be adjusted from 1/1 to 1/128 power in 1/3 and 1/2 EV steps.
Full bounce and swivel lighting is possible due to -7 to 90° tilt and 270° of rotation with the locking flash head. The flash can also be triggered optically with either instant sync or skip pre-flash options for simpler off-camera firing. A built-in PC sync port further enhances the flash's connectivity and a Multi mode allows for stroboscopic lighting effects. The flash runs on 4 AA batteries and has a recycle time of about 3 seconds. It comes with a protective case and a stand. - Supports the YN560-TX, RF-603, and RF-602 wireless transmitters and can operate on any of the 16 available channels
- Metal hot shoe for standard on-camera triggering
- Large LCD screen for viewing settings and making adjustments
- Socket for SF-18C or SF-17C external power pack
- Audible flash ready indicators
- 100-1500 flashes from one set of batteries
- Automatically saves your current settings
- Color temperature of 5600K
- Eight levels of flash output from 1/1 to 1/128 with 29 individual settings
- Optical triggering range of 66-82' indoors or 33-49' outdoors
In the Box Yongnuo YN560-III Speedlite Case Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN560-III Speedlite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-560-III Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 105 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -7 to +90° | | Swivel Head | Yes, 270° | | Coverage | 18 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.4 x 7.5 x 3.1" / 60.0 x 190.0 x 78.0 mm | | Weight | 12.35 oz / 350 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.4 x 3.8 x 3.1" |
