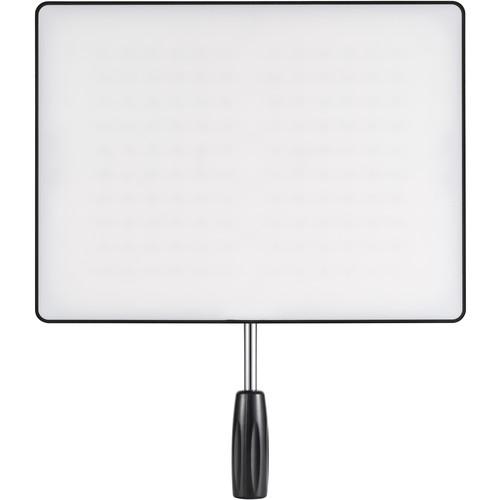

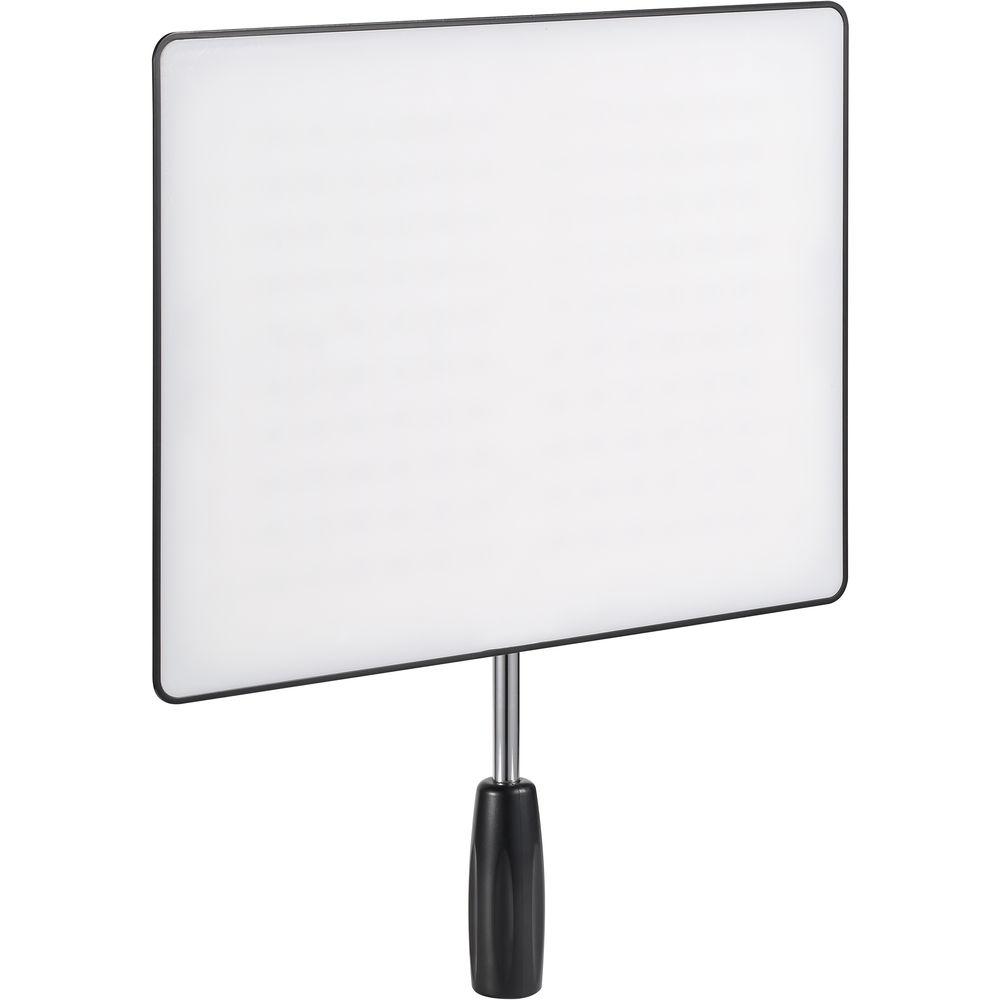

Product description The YN600Air Daylight-Balanced On-Camera LED Light from Yongnuo features a slim, lightweight design that features 192 daylight-balanced LEDs outputting light with a color temperature of 5500K and a CRI rating of 95 or better. You can dim the fixture using Yongnuo's coarse and fine dimming function. An integrated digital readout displays your dimming level.

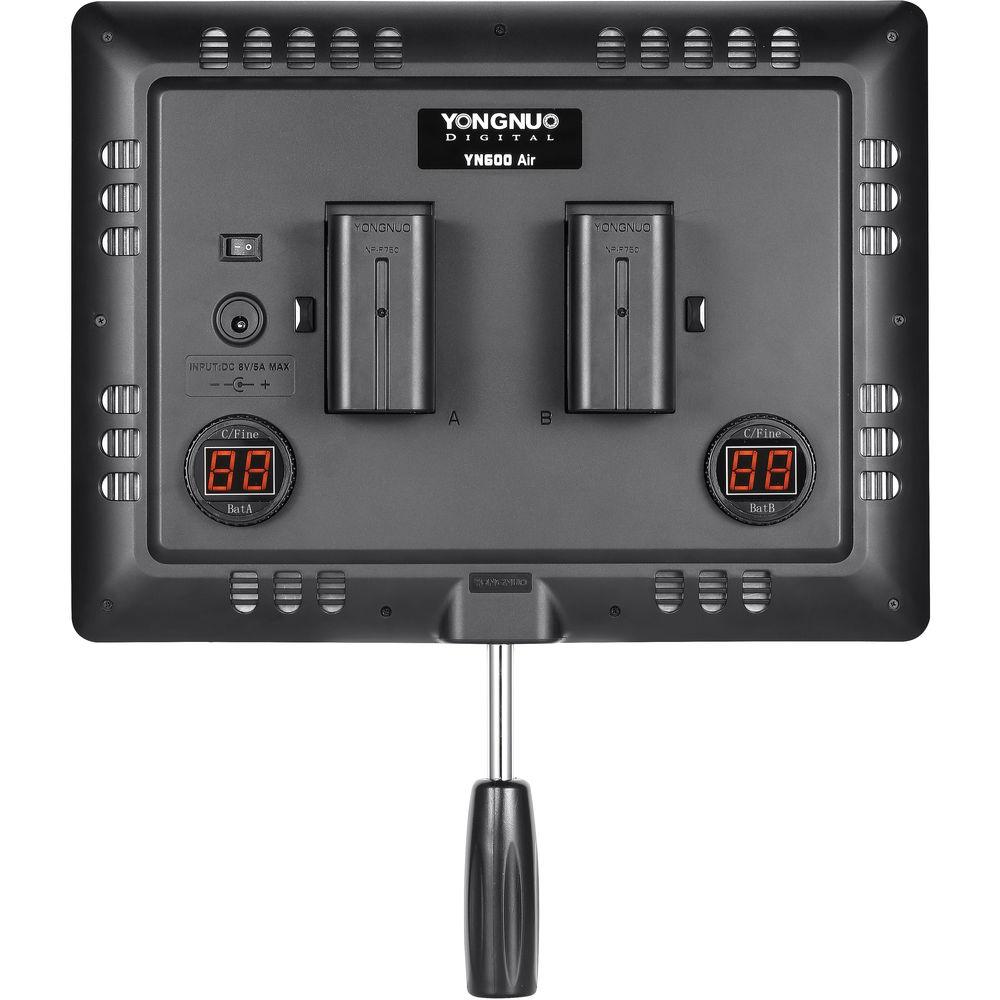

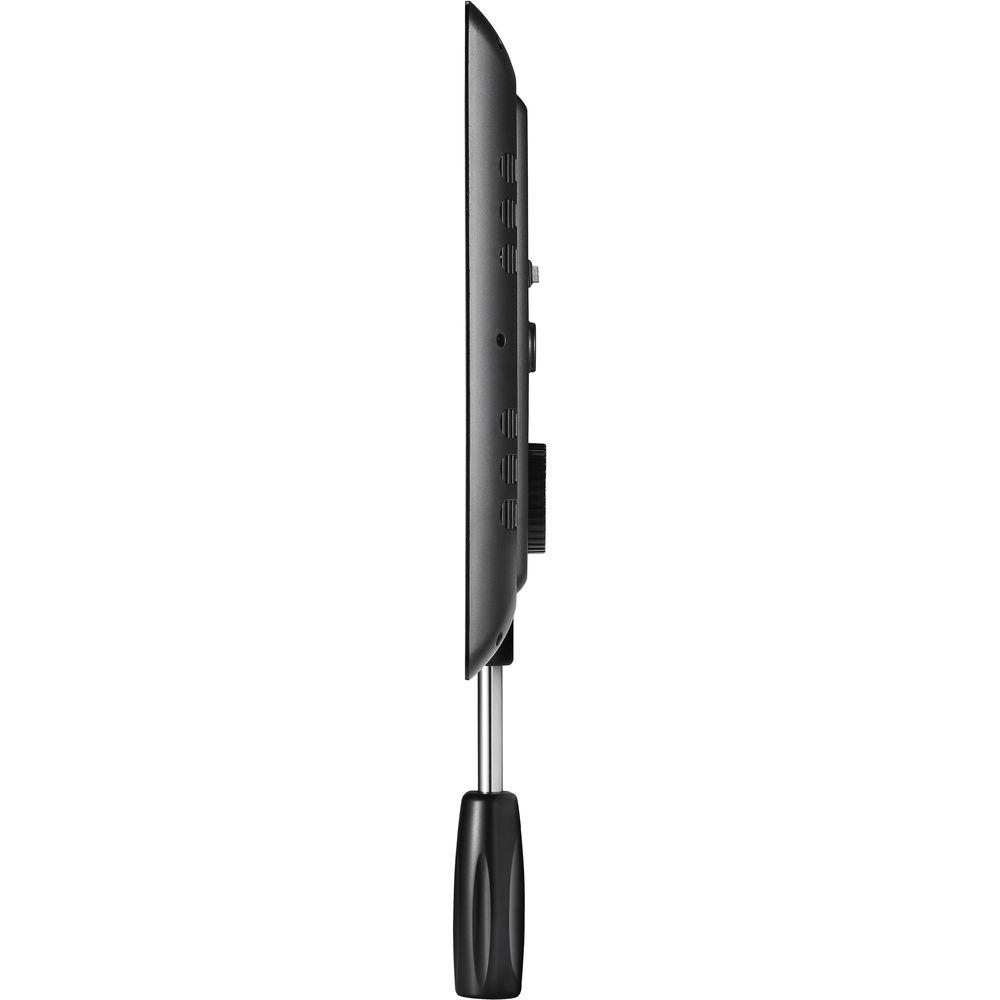

The fixture features a large surface that emits a wide soft light output suitable for a soft key or fill light. At only 0.87" thick without batteries, the fixture is suitable for use as an on-camera light via the 1/4"-20 threaded mounting hole, mounted on a light stand, or as a hand held light using the included handle. The unit incorporates two NP-F-series battery plates. Please note that a single battery only powers half of the LEDs, full functionality requires either an AC adapter or two NP-F batteries (not included). A coaxial power connector allows you to power the fixture via an optional AC to DC power adapter. Included with the light fixture is a handy storage bag. - The fixture features a daylight balanced output with a CRI of at least 95 and a 110° beam angle
- Each battery powers half of the fixture's LEDs, requiring two batteries to fully power the unit
- A digital readout shows you the lights dimming level
- The coarse tune dimming setting enables dimming in 10% increments from 0 to 90, while the fine tune dimming setting works in 1% increments from 0 to 9
In the Box Yongnuo YN600Air Daylight-Balanced On-Camera LED Light Handle Storage Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN600Air Daylight-Balanced On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN600 Air Specs | | | Beam Angle | 110° | | Color Accuracy Standard | CRI 95 | | Lumens | 4000 | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 192 | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | Max Power Consumption | 40 W | | Power Source | AC Adapter, External Battery | | | | Dimensions | 13.2 x 10 x 2.2" / 335 x 255 x 55 mm | | Weight | 38.2 oz / 1084 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 13.5 x 10.1 x 2.3" |
