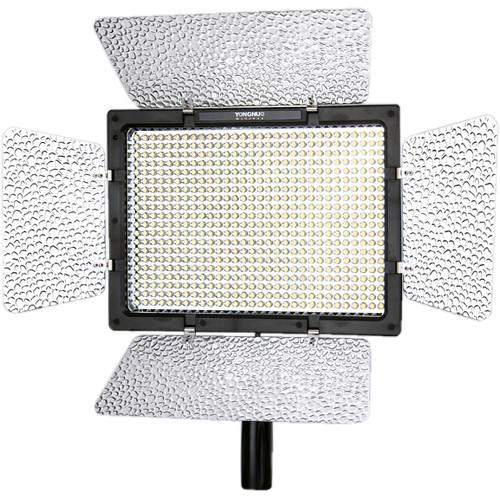

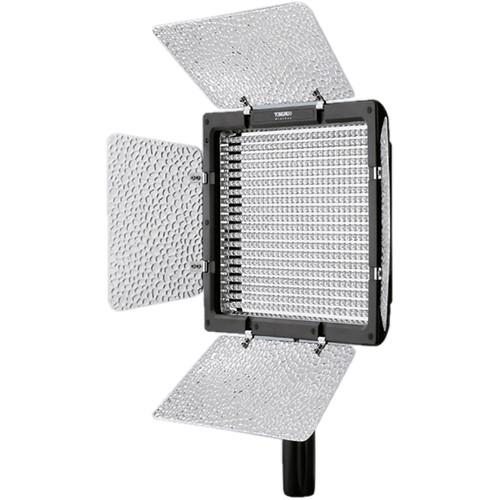

Product description The YN600LW Daylight-Balanced On-Camera LED Light from Yongnuo features a slim, lightweight design that employs 600 daylight-balanced LEDs for output with a color temperature of 5500K and a CRI rating of 90, indicating accuracy in color rendering. Two CT filters are included to facilitate creating a warm quality of light. You can dim the fixture locally using Yongnuo's coarse and fine dimming function, or with the included wireless remote control. An integrated digital readout displays your dimming level.

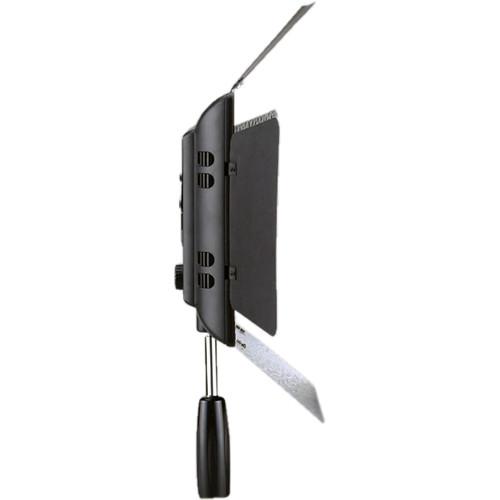

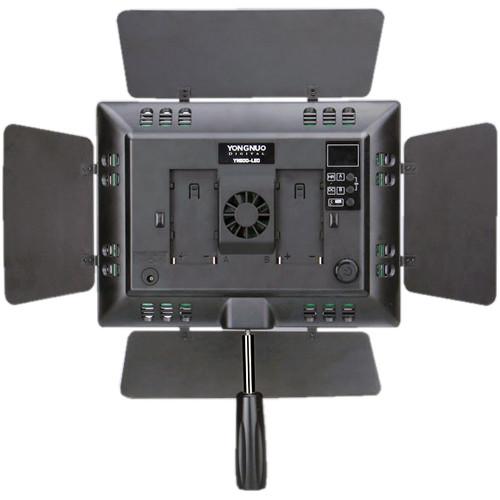

The fixture features a large surface that emits a soft light output suitable for a soft key or fill light. At only 1.6" thick without batteries, the fixture is suitable for use as an on-camera light via the fixture's threaded receptacle, or it can be mounted on a light stand, or used handheld with included handle. The YN600LW incorporates two NP-F-series battery plates. Full functionality requires either a separately purchased AC adapter or two optional NP-F batteries. Two 5800 mAh batteries such as the NP-F750 will give you 130 minutes of run time. In the Box Yongnuo YN600LW Daylight-Balanced On-Camera LED Light Handle 2 x CT Filters 4-Way Barndoors Wireless Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN600LW Daylight-Balanced On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN600 Specs | | | Beam Angle | 55° | | Color Temperature | 5500K | | Cooling System | Fan | | Dimming | Yes | | Lumens | 4680 | | Number of LEDs | 600 (Daylight) | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 10.2 x 7.4 x 1.6" / 260.0 x 188.0 x 40.0 mm | | Fixture Weight | 2.77 lb / 1260 g (Including Barndoors) | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | IR | | Wireless Range | 26.2' / 8 m | | | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery Purchased Separately | | Max Power Consumption | 36 W | | | | Package Weight | 2.79 lb | | Box Dimensions (LxWxH) | 11.75 x 8.7 x 2.75" |
