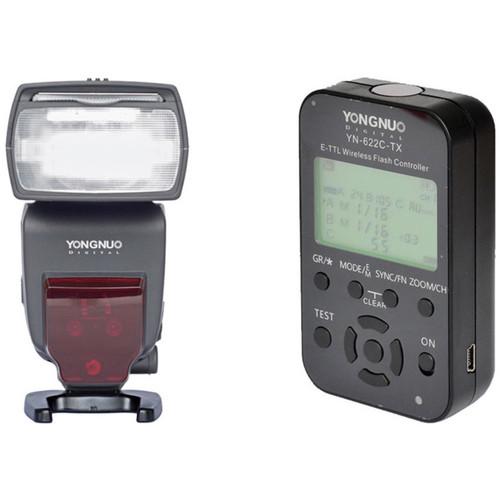

User Manual for Yongnuo YN685 Wireless TTL Speedlite and Wireless Flash Controller Kit for Canon Cameras

• Product category: On Camera Flashes Yongnuo
• Brand: Yongnuo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Yongnuo On Camera Flashes

Product description

• Yongnuo YN685 Wireless TTL Speedlite for Canon Cameras With a built-in YN-622C radio receiver, the YN685 Wireless TTL Speedlite from Yongnuo offers complete radio slave functionality with both the YN-622C and RF-603/YN-560 radio systems for maximum compatibility with your existing gear. The flash is also compatible with Canon's E-TTL / E-TTL II flash system when mounted to the camera and has a powerful guide number of 197' at ISO 100 and 200mm. Benefiting this power is a wide zoom range which will cover 20-200mm in full frame, and a diffuser for wide angle lenses. It also features full bounce with tilt up to 90° and rotation of 180° to the left or right.

  Operation is simplified with a clear LCD screen on the back, a dial, and a selection of buttons. The head also offers a pull-out bounce panel for reflecting some light forward when using the tilt functionality. Full sync options are available as well, with high-speed, 1st & 2nd curtain sync. It runs conveniently on 4 AA batteries, has a recycle time of three seconds at full power, and includes an HV power port for battery packs. Additionally, it has a PC sync port.
  • Compatible with YN-622C, YN-622C-TX, YN560 IV flash, YN560-TX, RF-605, RF-603 III, and RF-603 transmitter systems
  • High-speed sync to 1/8000 second
  • Flash exposure compensation and bracketing in 1/3 EV increments from -3 to +3 EV
  • Manual power output from 1/128 to 1/1
  • Heat protection
  • Sound prompts
  • Custom functions and auto save settings
  • Locking metal foot
• Yongnuo YN-622C-TX E-TTL II Wireless Flash Controller for Canon Control multiple flashes equipped with the YN-622C E-TTL II transceiver with the YN-622C-TX E-TTL II Wireless Flash Controller from Yongnuo. Compatible with Canon E-TTL II cameras, this controller slides directly into the hot shoe and utilizes a 2.4 GHz frequency with a range of 328' to trigger the remote flashes. The controller also has TTL, manual, and multi flash modes available for full creative control. Additionally, it can utilize 7 channels and 3 groups for setting up multiple flash units easily and efficiently.

  The YN-622C-TX utilizes an LCD screen to display settings and allow users to make adjustments. On the device is also an AF assist beam to help in low-light conditions. Multiple sync modes are available for more specific needs or effects, including 1st and 2nd curtain sync. A high speed sync mode will help in bright lighting conditions and for stopping motion with a maximum speed of 1/8000 second. A built-in mini-USB port enables firmware updates to be installed, and the device runs on 2 AA batteries.

• YN685 Wireless TTL Speedlite for Canon Cameras vqrzvxwbybeedvbfcuueyeax
• Mini Stand
• Protecting Bag
• Limited 1-Year Warranty

• YN-622C-TX E-TTL II Wireless Flash Controller for Canon

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Yongnuo YN685 Wireless TTL Speedlite for Canon Cameras

  Mount	Shoe
  Guide No.	196.85' / 60 m ISO 100 at 200 mm Position
  Exposure Control	E-TTL / E-TTL II, Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	20 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	PC
  Recycle Time	Approximately 3 Seconds
  Flash Duration	200 to 20,000 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: RF Distance: Up to 328.08' / 100 m
  Wireless Communication Channels	7 Channels
  Wireless Groups	6 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.6 x 3.0 x 8.3" / 67.0 x 77.0 x 210.0 mm
  Weight	15.03 oz / 426 g

  Box Dimensions (LxWxH)	8.7 x 4.1 x 3.8"

• Yongnuo YN-622C-TX E-TTL II Wireless Flash Controller for Canon

  Channels	7
  Groups	3 (A, B, C)
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	Manual, Multi, TTL
  Sync Speed	1/8000 Sec

  Ports	1 x PC Sync 1 x 2.5 mm (Camera Shutter) 1 x Mini-USB

  Bottom Mount	Hot Foot

  Battery Type	2 x AA

  Dimensions	3.5 x 2.1 x 1.5" / 9 x 5.3 x 3.9 cm (Transmitter)
  Weight	2.9 oz / 82.2 g

  Box Dimensions (LxWxH)	5.4 x 4.2 x 2.1"
