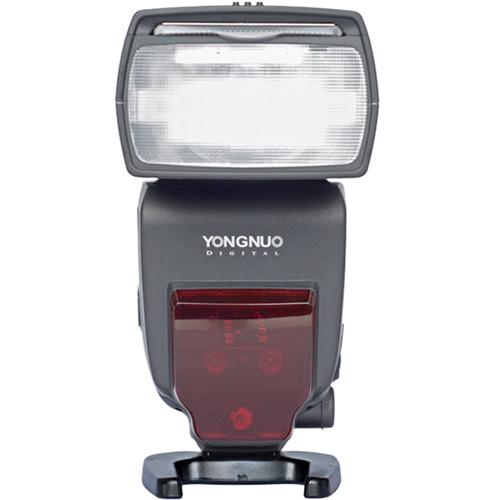

User Manual for Yongnuo YN685 Wireless TTL Speedlite for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Yongnuo YN685 Wireless TTL Speedlite for
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo YN685 Wireless TTL Speedlite for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More With a built-in YN-622C radio receiver, the YN685 Wireless TTL Speedlite from Yongnuo offers complete radio slave functionality with both the YN-622C and RF-603/YN-560 radio systems for maximum compatibility with your existing gear. The flash is also compatible with Canon's E-TTL / E-TTL II flash system when mounted to the camera and has a powerful guide number of 197' at ISO 100 and 200mm. Benefiting this power is a wide zoom range which will cover 20-200mm in full frame, and a diffuser for wide angle lenses. It also features full bounce with tilt up to 90° and rotation of 180° to the left or right.

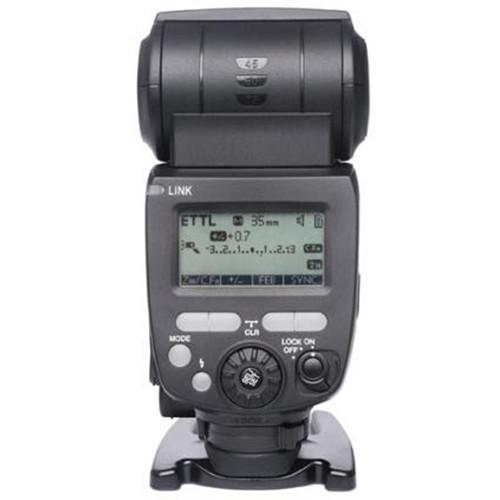

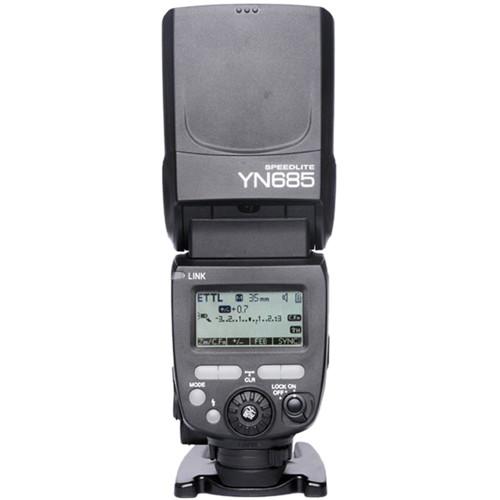

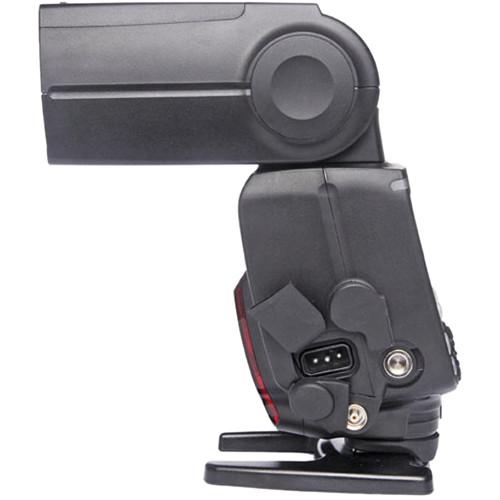

Operation is simplified with a clear LCD screen on the back, a dial, and a selection of buttons. The head also offers a pull-out bounce panel for reflecting some light forward when using the tilt functionality. Full sync options are available as well, with high-speed, 1st & 2nd curtain sync. It runs conveniently on 4 AA batteries, has a recycle time of three seconds at full power, and includes an HV power port for battery packs. Additionally, it has a PC sync port. - Compatible with YN-622C, YN-622C-TX, YN560 IV flash, YN560-TX, RF-605, RF-603 III, and RF-603 transmitter systems
- High-speed sync to 1/8000 second
- Flash exposure compensation and bracketing in 1/3 EV increments from -3 to +3 EV
- Manual power output from 1/128 to 1/1
- Custom functions and auto save settings
In the Box Yongnuo YN685 Wireless TTL Speedlite for Canon Cameras Mini Stand Protecting Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN685 Wireless TTL Speedlite for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN685 Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 20 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash Duration | 200 to 20,000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m | | Wireless Communication Channels | 7 Channels | | Wireless Groups | 6 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 3.0 x 8.3" / 67.0 x 77.0 x 210.0 mm | | Weight | 15.03 oz / 426 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.7 x 4.1 x 3.8" |
