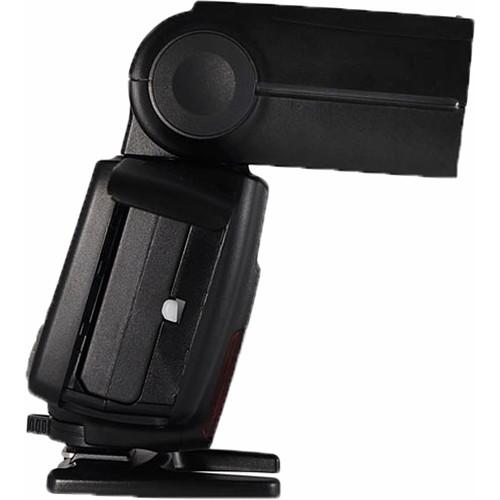

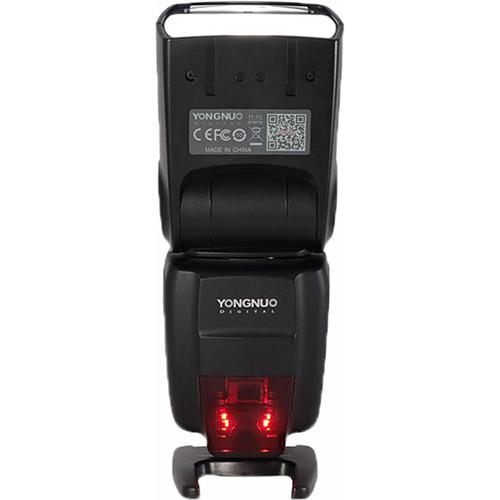

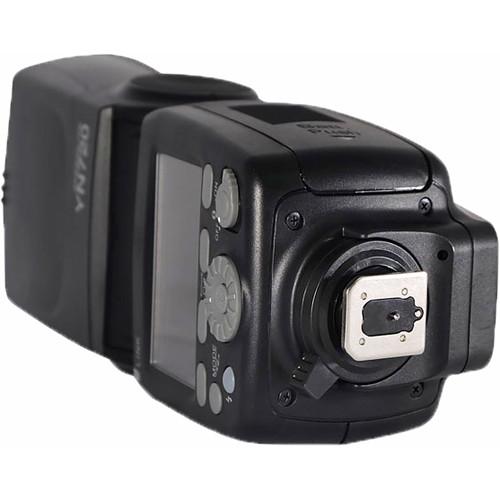

User Manual for Yongnuo YN720 Lithium Speedlite Click to enlarge the picture
Contents of the user manual for the Yongnuo YN720 Lithium Speedlite
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo YN720 Lithium Speedlite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More With a guide number of 60' at ISO 100 and 200mm, this YN720 Lithium Speedlite from Yongnuo is a portable lighting option for those that do not require TTL functionality. Built into it is a 2.4 GHz wireless transceiver, allowing it to be fired remotely at distances of up to 328' or used as a master to directly control the mode and output of compatible flashes. Additionally, it can also be used as an optical slave for multi-flash setups without radio transmission. The speedlight offers a wide zoom range of 20 to 200mm, and can have its panel configured to reach 14mm if a wider spread is needed. The YN720 runs on a high-capacity 2000mAh lithium-ion battery, lending it a fast recycle time of 1.5 seconds at full power as well as the ability to shoot up to 750 times per charge. High-speed continuous shooting is supported, as well as front and rear curtain sync, and the flash also boasts a multi mode for configuring a stroboscopic effect. The entire unit rotates 180° to each side and tilts 90° for easy bouncing in nearly any direction. Flash durations from 1/200 to 1/20,000 are possible depending on settings. - Wireless Features
-
- When used as a master, can directly control the flash mode, flash output, and focal length of YN720, YN560 III, YN560 IV, YN660, or YN685
- When used as slave, can receive triggering signal from any unit with 602/603 master control function (RF602, RF603, YN560-TX, YN560 IV, YN660, etc.)
- 16 channels and 6 groups for multi-flash programming
- Other Features
-
- Eight power levels, from 1/1 to 1/128

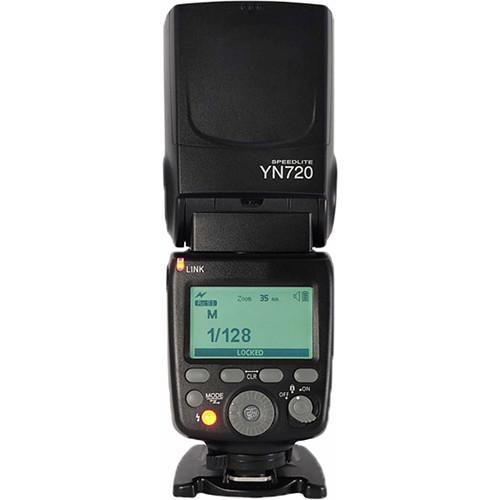

- Large dot-matrix LCD for viewing settings, controlled via dial and six buttons
- Two optical slave modes: S1 for synchronous firing, S2 to skip pre-flash
- Color temperature of 5600K, can be used outdoors in daylight without creating notable color casts
- Overheat protection to keep equipment safe during heavy use
- Firmware upgrades available by connecting to computer via USB port
- Protecting bag and mini stand included for ease of use

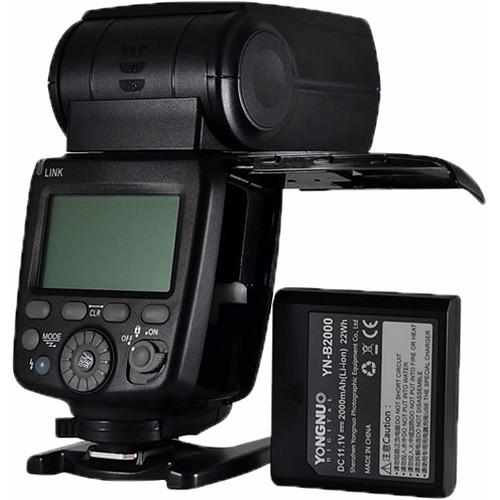

In the Box Yongnuo YN720 Lithium Speedlite Protecting Bag Mini Stand YN-B2000 Rechargeable Li-Ion Battery (11.1V, 2000mAh) Charger AC Adapter Power Cord Limited 1-Year Warranty User Manual PDF 7.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN720 Lithium Speedlite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN720 Specs | Mount | Shoe | | Guide No. | 60' / 18.29 m ISO 100 at 200 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -7 to +90° | | Swivel Head | Yes, 360° | | Coverage | 20 - 200 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0 to 1.5 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in .3 and .5 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Master, Slave
Method: Optical Pulse
Distance: Up to 82.02' / 25 m
Mode: Optical Slave | | Wireless Communication Channels | 16 Channels | | Wireless Groups | 6 Groups | | Power Source | 1 x Proprietary Rechargeable Li-Ion Battery | | Dimensions (W x H x D) | 2.5 x 8.3 x 3.1" / 6.4 x 21.0 x 7.8 cm | | Weight | 14.71 oz / 417 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.3 x 7.0 x 3.9" |
