User Manual for Yongnuo YN760 Pro LED Video Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN760 Pro LED Video Light
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
 |
User manual for the Yongnuo YN760 Pro LED Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

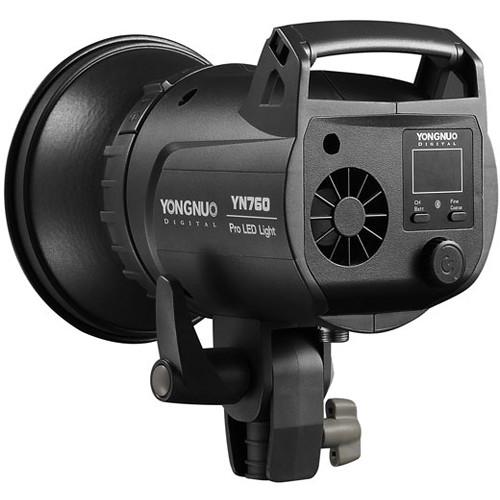

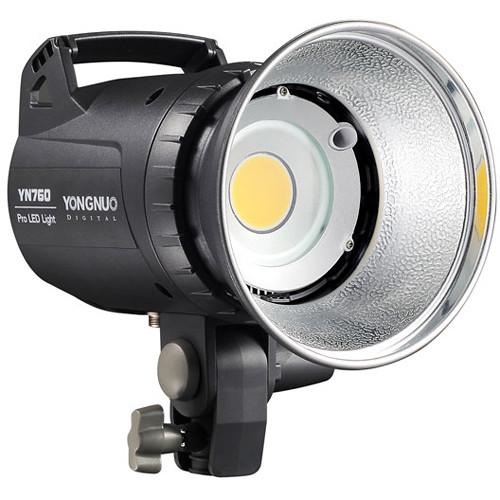

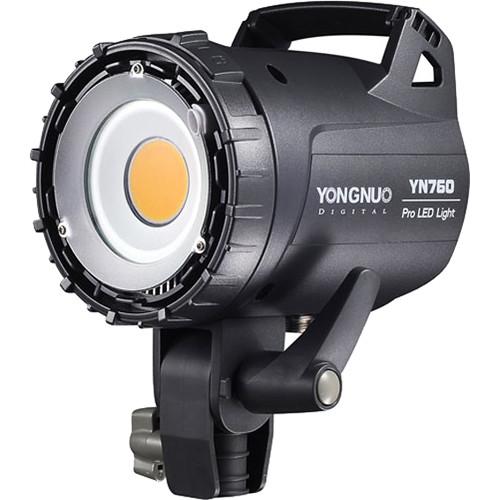

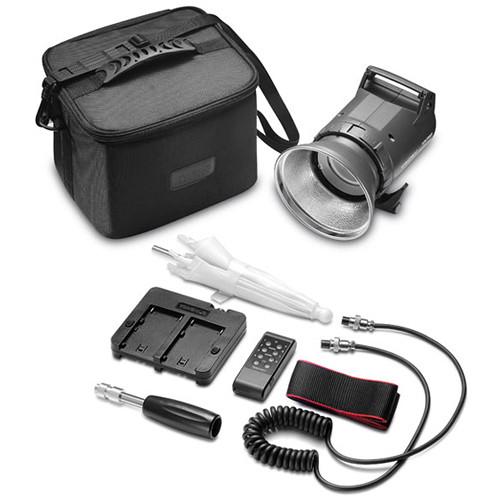

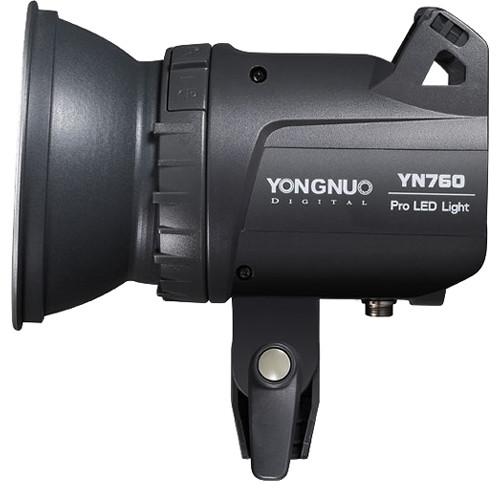

Product description The YN760 Pro LED Video Light from Yongnuo has a user-friendly monolight form factor that is light-stand-mountable via its 180-degree tiltable receiver or can be handheld with the purchase of an optional handle. While it consumes just 80W of current, it outputs many times that in tungsten equivalency. The daylight-balanced fixture has a 5500K color temperature with a high CRI of 95 for accurate color rendering while dimming is adjustable from 1-100% in Fine Mode and 10-100% in Coarse Mode. You can make light intensity changes locally on the unit but the YN760 has a built-in wireless receiver and comes with a wireless remote that can control dimming and on/off functions at distances up to 49'. The light has a receptacle that accepts the included white translucent umbrella for a softer quality of light. The AC/DC YN760 can run on AC power with separate purchase of an adapter but it can also be powered by 2 or 4 NP-F750 batteries for on-location shooting without access to mains current. A carrying case is also included. In the Box Yongnuo YN760 Pro LED Video Light Remote Control Reflector Carrying Case Translucent Umbrella Battery Pack Battery Pack Braces Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN760 Pro LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN760 Pro Specs | | | Beam Angle | 110° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan | | Dimming | Yes, 1 to 100% (Continuous, Stepped) | | Display | None | | Lumens | 8000 | | Expected Lamp Life | 3600 Hours | | Fixture Dimensions | 10.0 x 9.0 x 8.6" / 255.0 x 230.0 x 220.0 mm | | Fixture Weight | 4.4 lb / 2 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Remote Control Type | Bluetooth | | Wireless Range | 49' / 15 m | | Wireless Channels / Groups | 8 / 8 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 19 VDC at 5 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 80 W | | | | Package Weight | 5.09 lb | | Box Dimensions (LxWxH) | 11.75 x 10.25 x 8.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
