User Manual for Yongnuo YN860Li Lithium Speedlite Click to enlarge the picture
Contents of the user manual for the Yongnuo YN860Li Lithium Speedlite
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo YN860Li Lithium Speedlite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

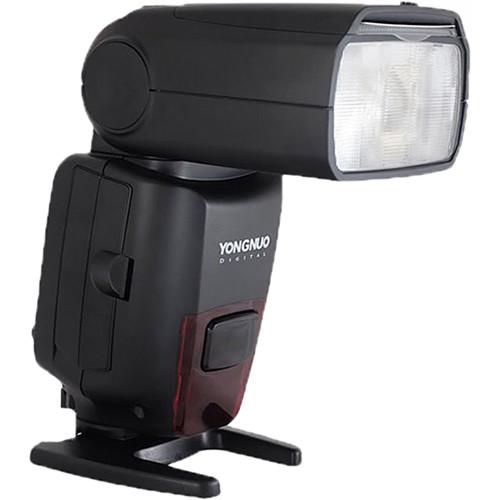

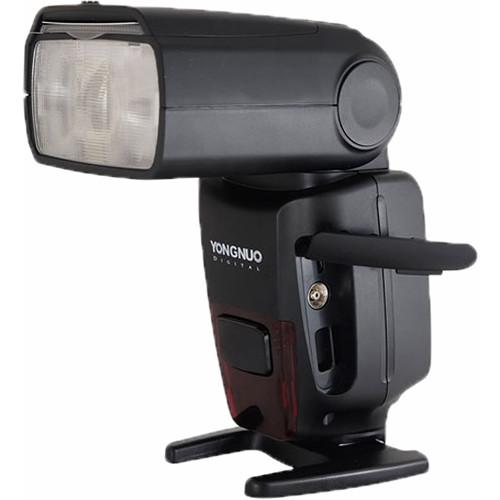

Product description A Guide to On-Camera Flash Read More With a guide number of 60' at ISO 100 and 200mm, this YN860Li Lithium Speedlite from Yongnuo is a portable lighting option for those that do not require TTL functionality. Built into it is a wireless transceiver, allowing it to be fired remotely at distances of up to 328' or used as a master to directly control the mode and output of compatible flashes. Additionally, it can also be used as an optical slave for multi-flash setups without radio transmission. The speedlight offers a wide zoom range of 24 to 200mm, with the ability to have its wide panel pulled out for an ever wider spread and softer light quality. The YN860Li runs on a rechargeable 1800mAh lithium-ion battery, lending it a fast recycle time that does not exceed 1.5 seconds as well as the ability to fire 700 full-power pops per charge. High-speed continuous shooting is supported, and the flash also boasts a multi mode for configuring a stroboscopic effect. The entire unit rotates 270° horizontally and tilts 90° up for easy bouncing in nearly any direction. Flash durations from 1/200 to 1/20,000 are possible depending on settings. - Wireless Features
-
- When used as a master, can directly control the flash mode, flash output, stroboscopic settings, and focal length of YN860Li, YN660, YN560IV, YN560III, or YN968N
- When used as a slave, can receive triggering signal from YN860Li, YN560IV, YN660, YN560-TX II, RF605, RF603 II, and RF-602
- 16 channels and 6 groups for multi-flash programming
- Other Features
-
- Eight power levels, from 1/1 to 1/128

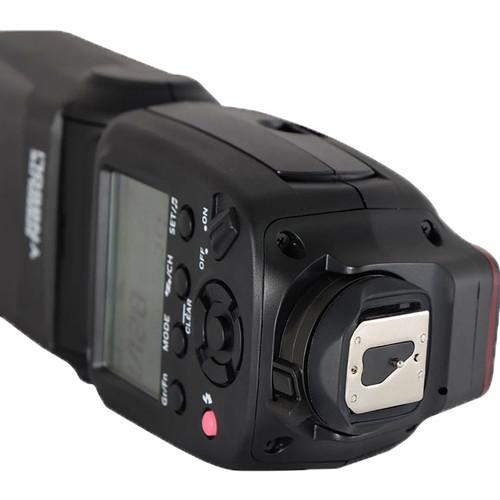

- LCD panel for viewing settings, controlled via dial and six buttons
- Two optical slave modes: S1 for synchronous firing, S2 to skip pre-flash
- Color temperature of 5600K, can be used outdoors in daylight without creating notable color casts
- Standard PC port for wired connection
- Overheat protection to keep equipment safe during heavy use
- Firmware upgrades available by connecting to computer via USB port
- Protecting bag and mini stand included for ease of use

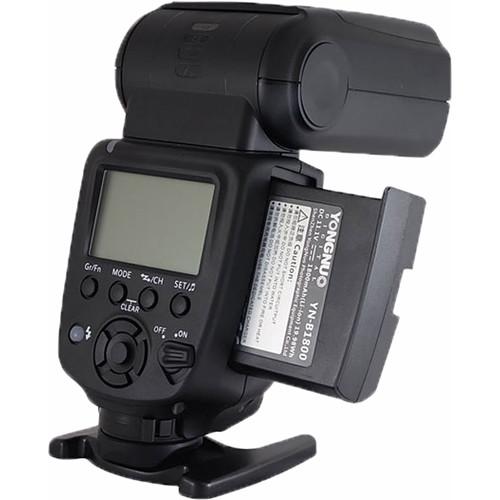

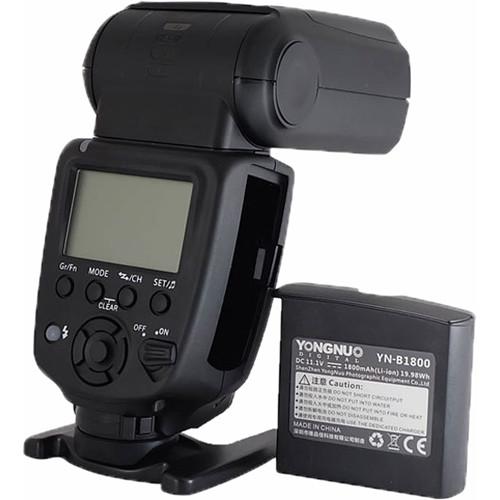

In the Box Yongnuo YN860Li Lithium Speedlite Protecting Bag Mini Stand YN-B1800 Rechargeable Li-Ion Battery (11.1V, 1800mAh) Battery Protective Case Charger AC Adapter Limited 1-Year Warranty User Manual PDF 9.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN860Li Lithium Speedlite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN860LI Specs | Mount | Shoe | | Guide No. | 60' / 18.29 m ISO 100 at 200 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -7 to +90° | | Swivel Head | Yes, 270° | | Coverage | 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0 to 1.5 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Master, Slave
Method: Optical Pulse
Distance: Up to 82.02' / 25 m
Mode: Optical Slave | | Wireless Communication Channels | 16 Channels | | Wireless Groups | 6 Groups | | Power Source | 1 x Proprietary Rechargeable Li-Ion Battery | | Dimensions (W x H x D) | 3.0 x 8.1 x 2.2" / 7.5 x 20.6 x 5.6 cm | | Weight | 14.25 oz / 404 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.7 x 6.1 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
