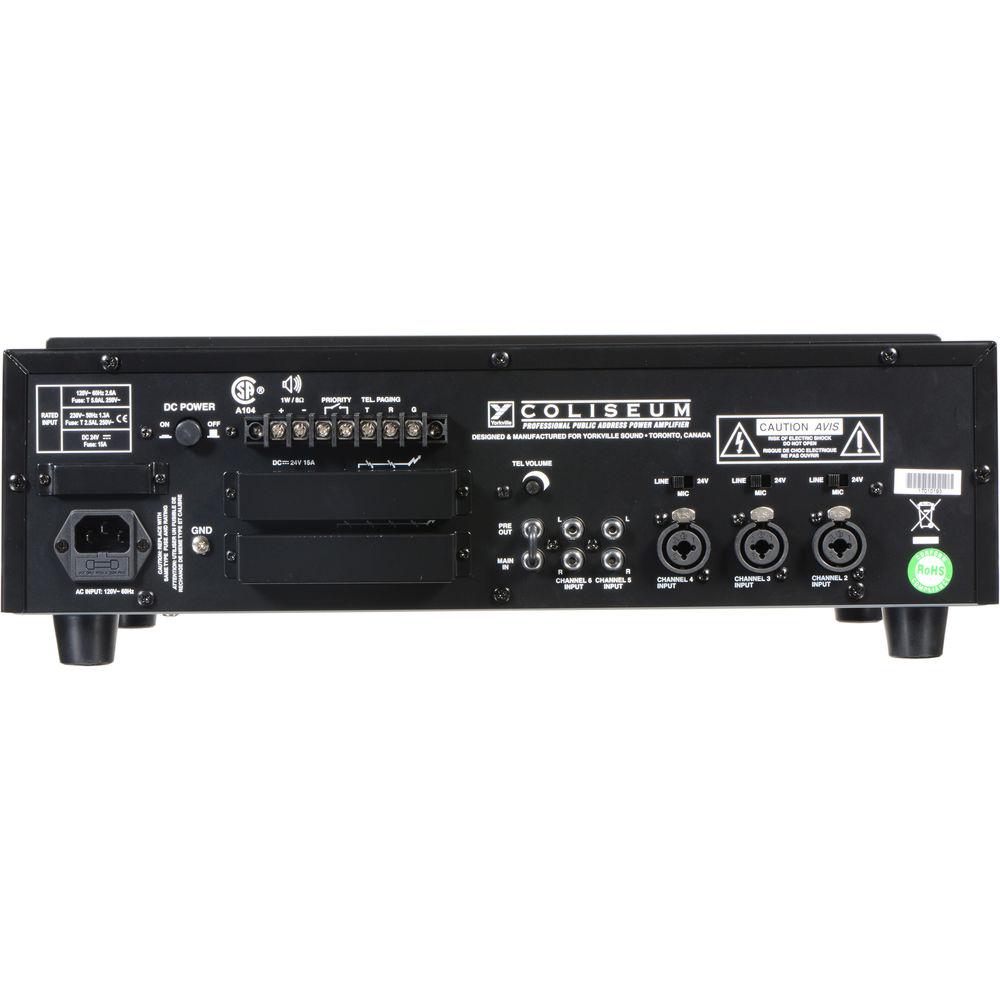

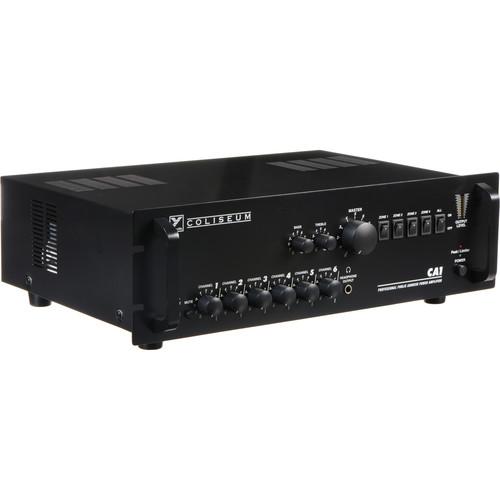

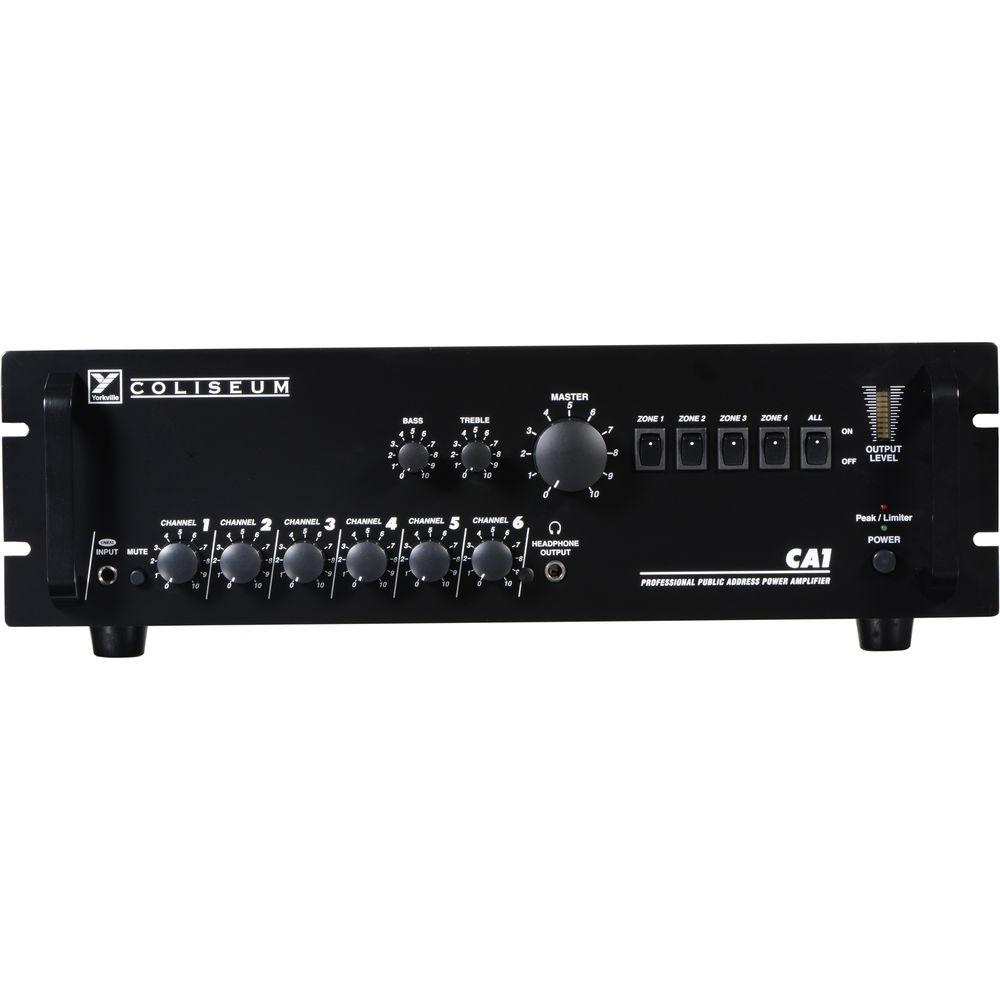

User Manual for Yorkville Sound Coliseum CA1 70V Installation Amplifier Click to enlarge the picture
Contents of the user manual for the Yorkville Sound Coliseum CA1 70V Installation
- Product category: 70-Volt Amplifiers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound 70-Volt Amplifiers
 |
User manual for the Yorkville Sound Coliseum CA1 70V Installation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The Coliseum CA1 Installation Amplifier from Yorkville is suitable for restaurants, small clubs, offices, and retail environments where a simple and reliable system capable of servicing multiple paging zones with music playback is required. Multiple inputs for microphone or source material and voice activated paging from either a microphone or telephone matrix allows the CA1 to be used in virtually any application.
XLR / TRS balanced combination jack inputs and attenuated RCA unbalanced inputs ensure the CA1 system can interface with most sources (CD, cassette, satellite tuner, DVD, or video system). Capable of driving a 4-ohm speaker load or four separate 70V speaker systems (one system per zone), the CA1 system delivers 180W (mono) power output. A pre-amp output is available to feed an auxiliary power amplifier or active subwoofer to enhance the system, or to feed video or audio recording equipment. - 70V or 4-ohm output configuration
- Versatile input mixing capabilities
- XLR / TRS balanced combination jack and attenuated RCA unbalanced inputs
- Individual volume control, clip, and activity LED's per channel
- User selectable phantom power (available on three channels)
UPC: 840402011187 In the Box Yorkville Sound Coliseum CA1 70V Installation Amplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound Coliseum CA1 70V Installation Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound CA1 Specs | Number of Channels | 6 | | Inputs | 3 x 1/4" / XLR combination
2 x RCA (unbalanced) | | Signal to Noise Ratio | > 55 dB | | Frequency Response | 50 to 150 kHz | | Power Output | 4 Ohms, 180 WA
180 W, 70 V | | THD | 1 kHz (dB): Less than 1% | | Cooling | Passive | | Chassis | Construction: Steel | | Dimensions (D x W x H) | 12 x 19 x 6" (30 x 48 x 15 cm) | | Weight | 24 lb (11 kg) | | | | Package Weight | 29.3 lb | | Box Dimensions (LxWxH) | 21.8 x 16.9 x 9.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
