User Manual for Yorkville Sound EF10P Elite Series 10" Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yorkville Sound EF10P Elite Series 10"
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
 |
User manual for the Yorkville Sound EF10P Elite Series 10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|

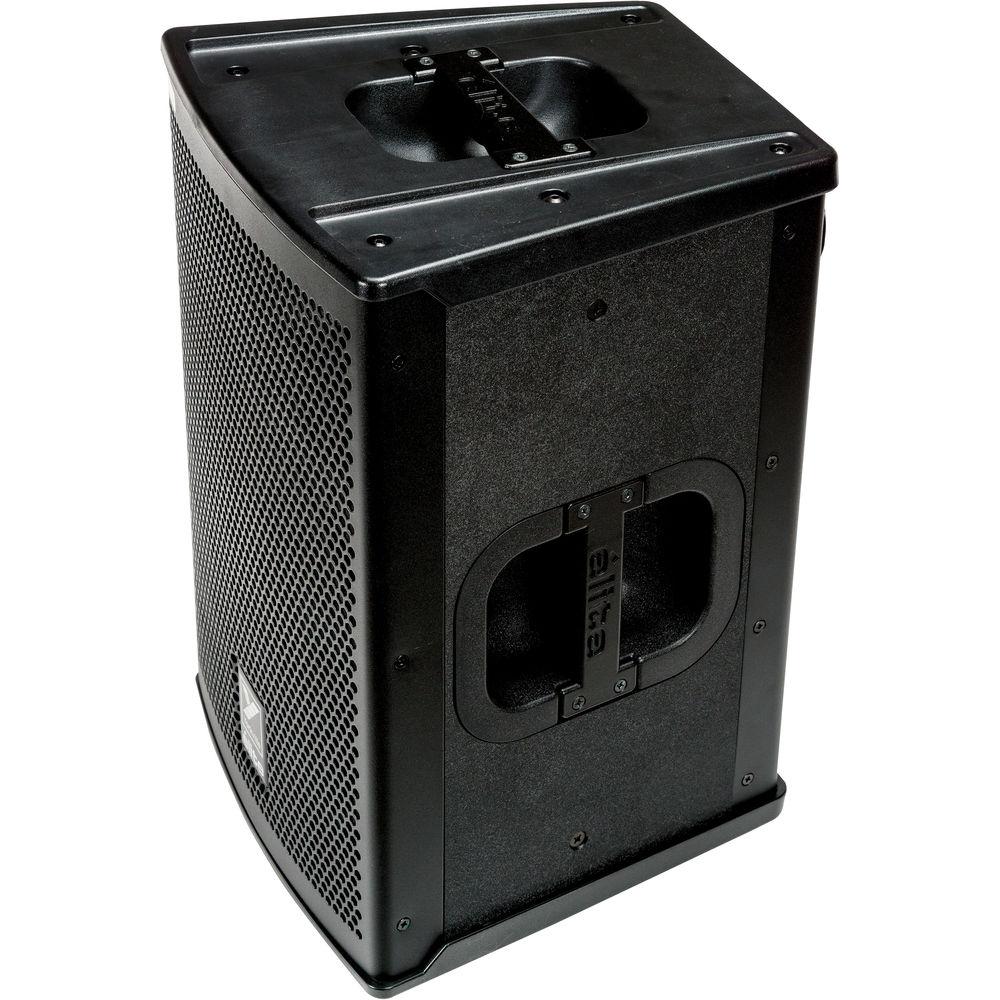

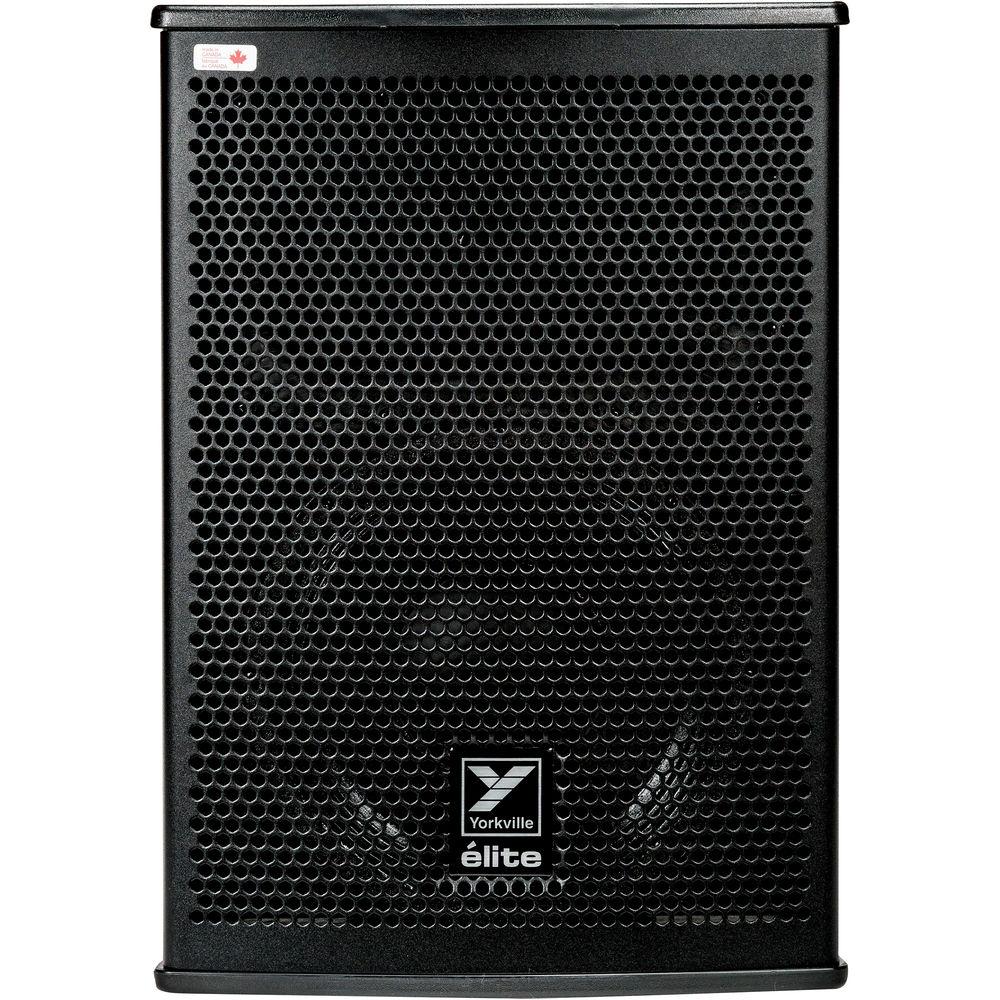

Product description Building upon the success of the original Elite series, the Yorkville EF10P is a powered, full-range loudspeaker with an integrated mixer, DSP, and Bluetooth control app. The unit utilizes a bi-amp module which delivers 500W to the 10" neodymium woofer and 100W to the 1.5" titanium compression driver; combined, they deliver a frequency response of 48 Hz to 20 kHz with a maximum SPL of 129 dB peak.

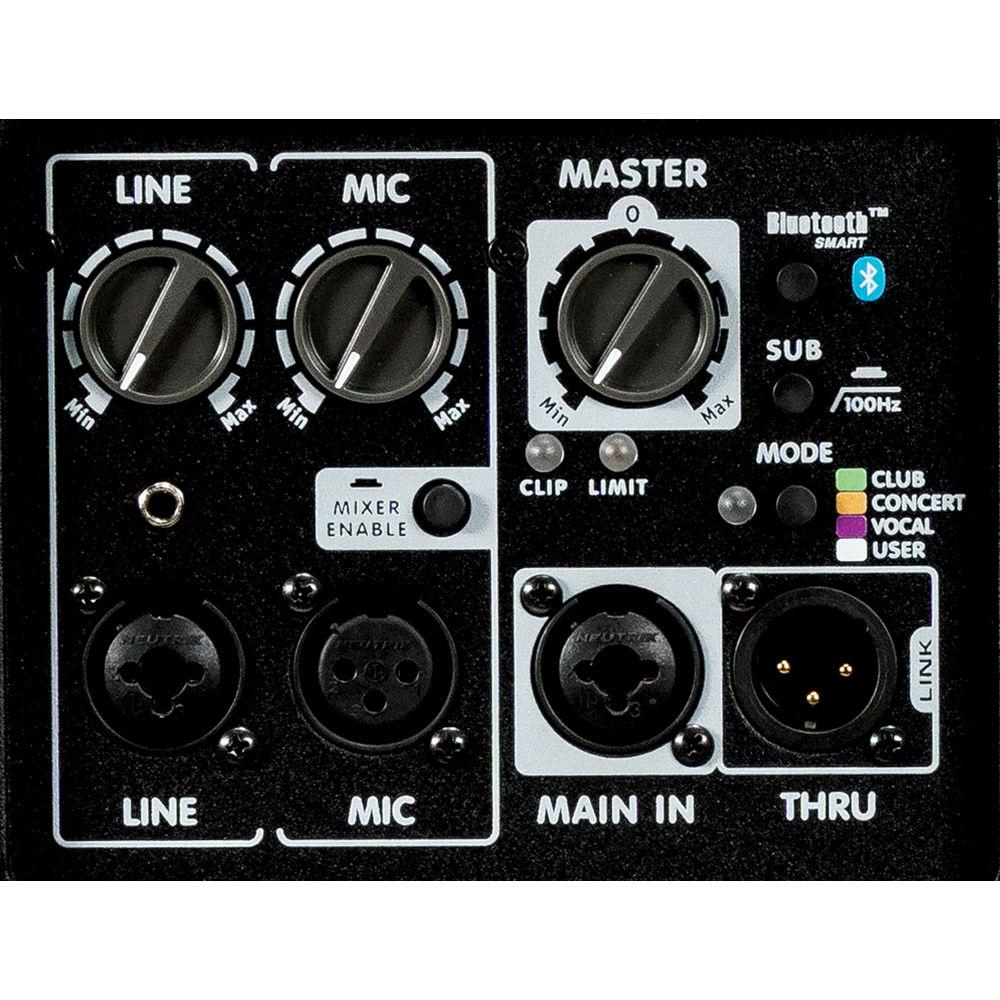

The rear panel offers a variety of inputs and outputs including a combination XLR-1/4" line input, an 1/8" TRS line input, and an XLR mic input. Additionally, there is a combo XLR-1/4" main input and an XLR thru output for connecting additional loudspeakers (up to 16). The built-in DSP offers four voice modes including club, concert, vocal, and user which is accessed and controlled via the free Yorkville control app available for iOS and Android. The Yorkville EF10P includes a 25' IEC power cord. -
- Redesigned Elite 600W front of house loudspeaker
- ABS-coated birch plywood cabinet construction
- Multiband DSP limiting with four playback performance modes
- 100 Hz HPF for use with subwoofer
- 1.5" titanium-diaphragm compression driver
- 10" neodymium woofer with 2.5" voice coil
- iOS and Android app for added cabinet control
- Connectors
- Mic Input: XLR
- Line Input: XLR-1/4" combo + 1/8" TRS
- Main Input: XLR
- Main Thruput: XLR
- Made in Canada
UPC: 840402043447 In the Box Yorkville Sound EF10P Elite Series 10" Powered Loudspeaker (600W) Power Cable Limited 2-Year Warranty (10-Year Warranty on Wooden Enclosure Elements) Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound EF10P Elite Series 10" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound EF10P Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 600 W
1200 W Peak | | Amplifier Power Rating | HF:
100 W
LF:
500 W | | Amplifier Class | LF:
Class-D | | | | HF Driver | Titanium | | HF Voice Coil | 1.5" / 38.1 mm | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 2.5" / 63.5 mm | | Magnet | LF:
Neodymium | | | | Frequency Response | 48 Hz to 20 kHz ±3 dB | | Maximum SPL | 129 dB (Peak)
123 dB (Continuous) | | Coverage Angle | 90° H x 30° V | | Input Sensitivity | +4 dBu | | I/O Impedance | Input:
95 kOhms (Balanced)
90 kOhms (Unbalanced) | | | | Audio I/O | 1 x Combo XLR / 1/4" Line Input
1 x 1/8" / 3.5 mm TRS Line Input
1 x XLR Mic Input
1 x Combo XLR / 1/4" Input
1 x XLR Male Thru/Output | | | | Crossover | 1.4 kHz | | Filters | High-Pass:
100 Hz | | | | Mounting | 2 x (Top)
2 x (Bottom)
2 x (Each Side)
1 x (Rear)
1 x 1.38" / 3.5 cm Pole Socket | | Handles | 1 x Side
1 x Top | | Construction Material | ABS, Plywood | | Dimensions | 13.7 to 11.1 x 13.0 x 20.0" / 34.8 to 28.2 x 33.0 x 50.8 cm | | Weight | 43 lb / 19.5 kg |
