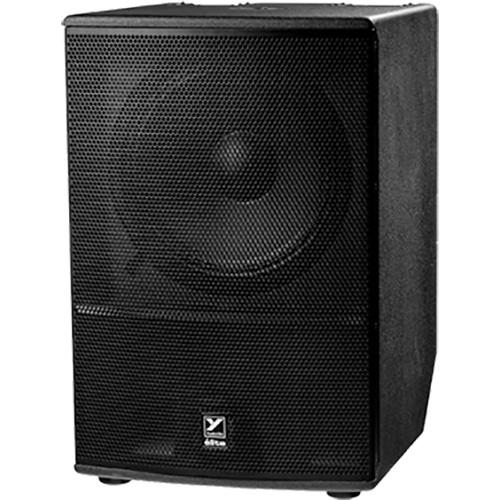

User Manual for Yorkville Sound Elite Series ES18P 18" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound Elite Series ES18P 18"
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound Elite Series ES18P 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The black Elite Series ES18P 18" Powered Subwoofer from Yorkville Sound features three DSP-based preset modes for increased flexibility in any live sound or club application. It features an 18" driver with a 4" voice coil. The subwoofer offers a peak power output of 3200W and peak SPL of 140 dB. UPC: 840402044826 In the Box Yorkville Sound Elite Series ES18P 18" Powered Subwoofer Limited 2-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound Elite Series ES18P 18" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound ES18P Specs | System Type | Rear horn-loaded subwoofer | | Active or Passive | Active | | Frequency Response | 43 to 150 Hz (±3 dB) | | Power Capacity | 1600 W (3200 W peak) | | Maximum Sound Pressure Level (SPL) | 140 dB peak (134 dB continuous) | | Nominal Sensitivity | Not specified by the manufacturer | | Impedance | Not specified by the manufacturer | | Low-Frequency Driver | 18" (457.2 mm) cast frame woofer with 4" (101.6 mm) voice coil | | Enclosure Material | 0.6" (15 mm) 11-ply Russian birch | | Input Connections | 1 x XLR input
1 x XLR mono blend input
1 x 1/4" link input
1 x 1/4" link output
1 x XLR link output | | Power Consumption | Typical/Maximum: 120 VAC (4 A /4.5 A), 230 VAC (2 A / 2.3 A) | | Level Controls | Master | | LED Indicators | Power, Activity, Protection (Clip, X-Max, Temp) | | Modes | Mode 1: Punchy
Mode 2: Smooth
Mode 3: Deep
High-Frequency Roll-Off: 80 to 150 Hz | | Handles | Bar Handles: 2 x top, 2 x bottom | | Adapter | Pole Mount (Top): 1-3/8" / 3.5 cm | | Dimensions | 24.1 x 22.84 x 34.65" / 61 x 58 x 88 cm | | Weight | 137 lb (62 kg) | | | | Package Weight | 140.0 lb | | Box Dimensions (LxWxH) | 36.0 x 24.0 x 24.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
