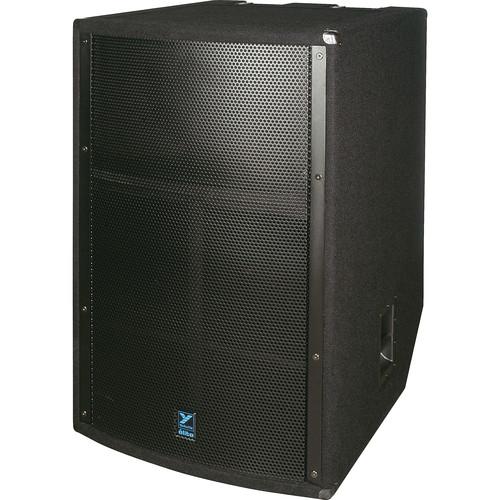

User Manual for Yorkville Sound LS1208 18" Elite Series Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound LS1208 18" Elite Series
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound LS1208 18" Elite Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The LS1208 18" Elite Series Passive Subwoofer from Yorkville Sound with a bass-pipe design, featuring an 18" subwoofer handling 2,000W program, and suitable for touring or fixed installations. The cabinet is constructed of 15mm 11-ply Baltic Birch with heavy internal bracing for reduced resonance and durability. The enclosure is covered in a black carpet covering and incorporates metal corner protectors, rugged curved anti-resonant metal grilles, and 1/4" or Speakon input connectors. Additionally, the Speakon connectors feature a configuration switch which allows instant reversal of Speakon jack pinouts for easy single wire hook-up using optional four wire Speakon cables. The LS1208 is equipped with tilt-back wheels and top/rear mounted corner handles for better maneuverability and stacking. - Max SPL 139dB Peak (136dB continuous)
- Horn-loaded bass-pipe cabinet design
- 8Ω Design for easy amplifier configuration
- Supports a frequency response of 35Hz - 200Hz
- Two Speakon and two 1/4" parallel inputs
- Solid 5/8" Birch plywood construction
UPC: 840402003182 In the Box Yorkville Sound LS1208 18" Elite Series Passive Subwoofer (2000W) Unlimited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound LS1208 18" Elite Series Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound LS1208 Specs | System Type | Horn loaded subwoofer | | Active or Passive | Passive | | Power Capacity | 2000 W (4000 peak / 1000 continuous) | | Nominal Impedance | 8 Ω | | Sensitivity | 105 dB @1W/1m | | Max SPL Level | 139 dB Peak (136 dB continuous) | | Frequency Response | 35 Hz - 200 Hz | | Driver | 18" (46 cm) Ceramic Magnet
4" (10 cm) Voice coil | | Input Connections | 2 x 4-pin, Speakon
2 x 1/4" Jack | | Switch | Configuration switch for Speakon jack pinouts | | Wheels | 2 x Rear | | Handles | 2 x Top
2 x Side | | Color / Finish | Black Ozite (carpet) | | Enclosure Material | 5/8" (15 mm) 11-ply Russian Birch | | Grille | Heavy gauge perforated metal | | Dimensions (D x W x H) | 33.0 x 28.0 x 43.5" (83.8 x 71.0 x 110.5 cm) | | Weight | 181.7 lb (82.4 kg) | | | | Box Dimensions (LxWxH) | 46.0 x 34.0 x 29.0" |
