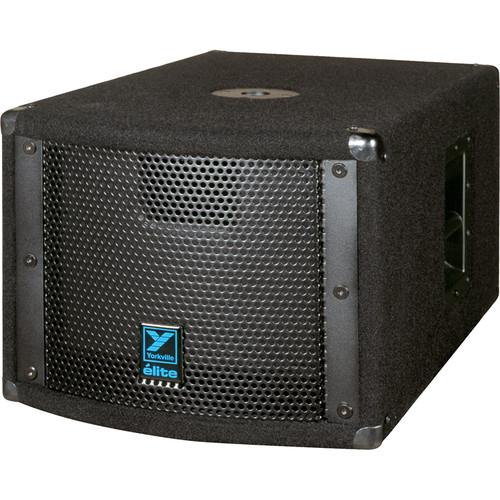

User Manual for Yorkville Sound LS200P 10" Elite Series Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound LS200P 10" Elite Series
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound LS200P 10" Elite Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The LS200P 10" Elite Series Powered Subwoofer from Yorkville Sound is an ultra-compact powered subwoofer that features a single 10" speaker and a built in 600W (Peak) power module. The tuned band-pass enclosure of the LS200P provides rock-solid low frequency output. This unit has 1/4" TRS inputs which can handle either line-level or speaker-level signals so it can simply be connected to any full-range speaker for quick and easy setup. Advanced sensing circuitry offers sonically transparent limiting and thermal driver protection for maximum reliability. - Integrated 600W amplifier (200W program)
- 10" High efficiency woofer
- Max SPL 130dB peak (125dB continuous)
- 50Hz - 110Hz Frequency response
- Paralleled 1/4" selectable line or speaker level inputs
- Excursion, peak and thermal woofer protection
- Integrated all metal speaker pole mount adapter
- Solid 5/8" (15mm) birch plywood construction
UPC: 840402014676 Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound LS200P 10" Elite Series Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound LS200P Specs | System Type | Subwoofer | | Active or Passive | Active | | Power | 200 W (600 W peak) | | Max SPL Level | 130 dB Peak (125 dB continuous) | | Frequency Response | 50 Hz - 110 Hz | | Driver | 10" (25 cm) Long excursion woofer | | Inputs | 2 x 1/4" phone jack, balanced input/ parallel thru | | Controls | Main Volume
Selectable line or speaker level input
Ground lift switch | | Feet | Plastic glides | | Handles | 1 x Side mounted bar handle | | Enclosure Material | 5/8" (15 mm) 11-ply Russian Birch | | Grille | Heavy gauge perforated metal | | Finish | Black Ozite (carpet) | | Dimensions (D x W x H) | 27.0 x 17.5 x 14.0" (69.0 x 44.0 x 36.0 cm) | | Weight | 55.1 lb (25 kg) | | | | Package Weight | 64.0 lb | | Box Dimensions (LxWxH) | 27.5 x 19.2 x 14.75" |
