User Manual for Yorkville Sound LS2100P 21" Elite Series Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound LS2100P 21" Elite Series
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
 |
User manual for the Yorkville Sound LS2100P 21" Elite Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|

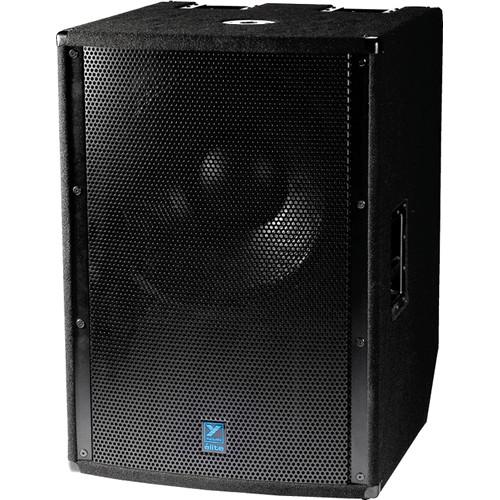

Product description The LS2100P 21" Elite Series Powered Subwoofer from Yorkville Sound delivers solid deep bass and solid punch sound. The integrated amplifier delivers 3600W (peak) into a 21" long excursion neodymium woofer with 6" voice coil. The XLR and 1/4" TRS inputs are capable of handling line or speaker level so the LS2100P can be easily integrated into virtually any medium to large scale PA system. The subwoofers enclosure is covered in rugged black carpeting. - Integrated 2,400W amplifier (peak 3,600W program)
- Max SPL 144dB peak (135dB continuous)
- High performance mid-sized subwoofer design
- 33Hz - 150Hz with adjustable HF roll-off
- 45Hz - 90Hz Variable boost frequency
- Paralleled 1/4" selectable line or speaker level inputs
- Excursion, peak and thermal woofer protection
- Integrated all metal speaker pole mount adapter
- All-metal grille and integrated bar handles
- Solid 5/8" (15mm) birch plywood construction
UPC: 840402023432 In the Box Yorkville Sound LS2100P 21" Elite Series Powered Subwoofer (2400W, Black Ozite Carpet) Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound LS2100P 21" Elite Series Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

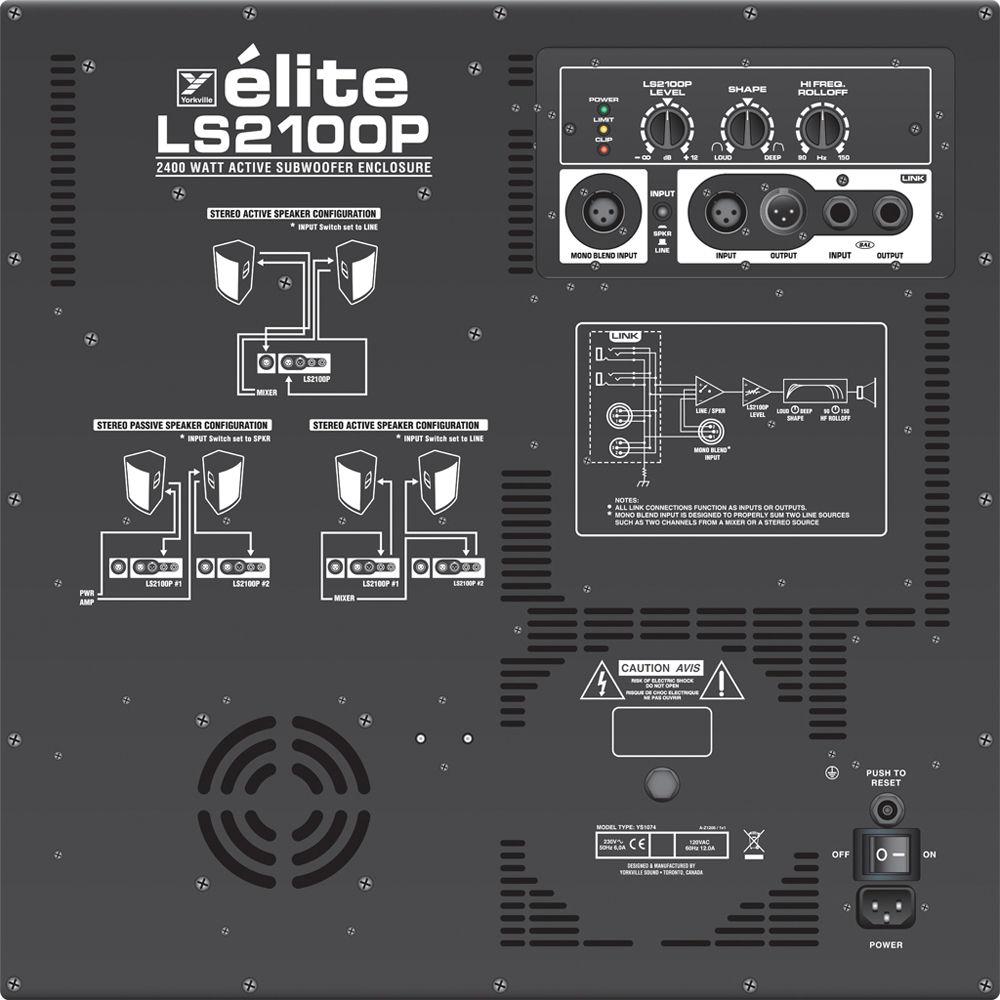

Technical parametersYorkville Sound LS2100P Specs | System Type | Rear horn-loaded subwoofer | | Active or Passive | Active | | Power | 2,400 W (3,600 W peak) | | Max SPL Level | 144 dB Peak (135 dB continuous) | | Frequency Response | 32 - 200 Hz | | Driver | 21" (53 cm) Woofer
6" (15 cm) Voice coil | | Connectors | 2 x 1/4" phone jack, line input
2 x 1/4" phone jack, link (input/output) | | Controls | Master
Level
Low pass filter frequency

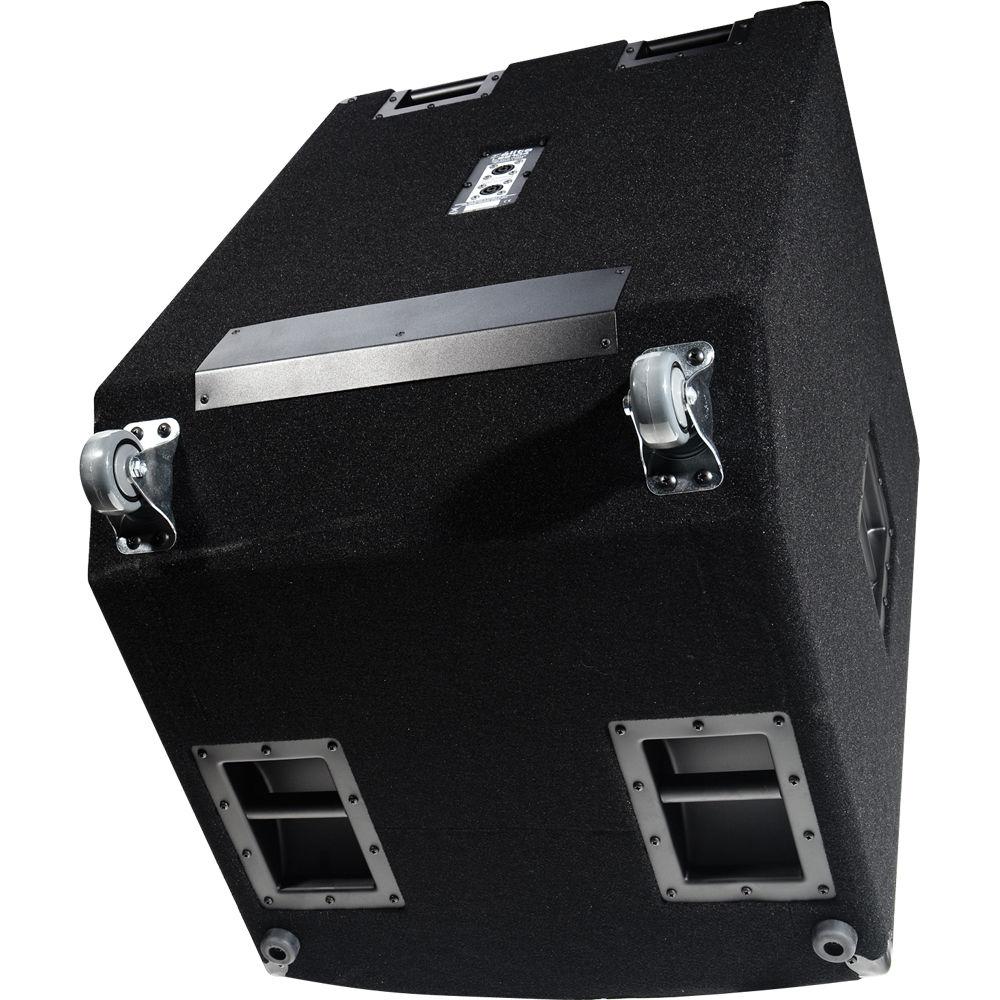

Bass boost level | | Feet | Rubber | | Wheels | Rear tilt-back | | Handles | 6 x Side bar handles 2 x Top bar handles | | Enclosure Material | 3/4" (1.9 cm) 7-ply Spruce | | Grille | Perforated metal | | Finish | Black Ozite Carpet | | Dimensions | 31.0 x 25.25 x 36.0" (78.7 x 64.1 x 94.1 cm) | | Weight | 203.0 lb (92.1 kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
