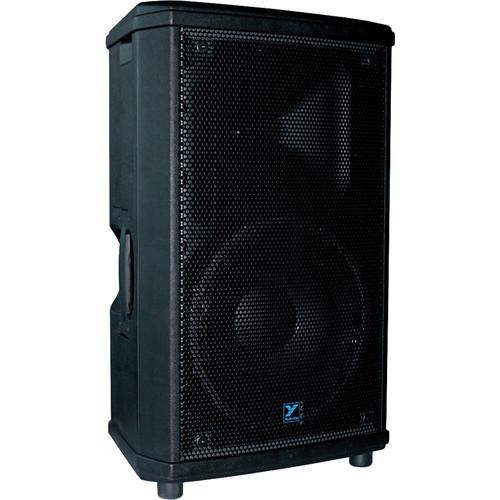

User Manual for Yorkville Sound NX25P-2 12" NX Series 2-Way Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yorkville Sound NX25P-2 12" NX Series
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
 |
User manual for the Yorkville Sound NX25P-2 12" NX Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|

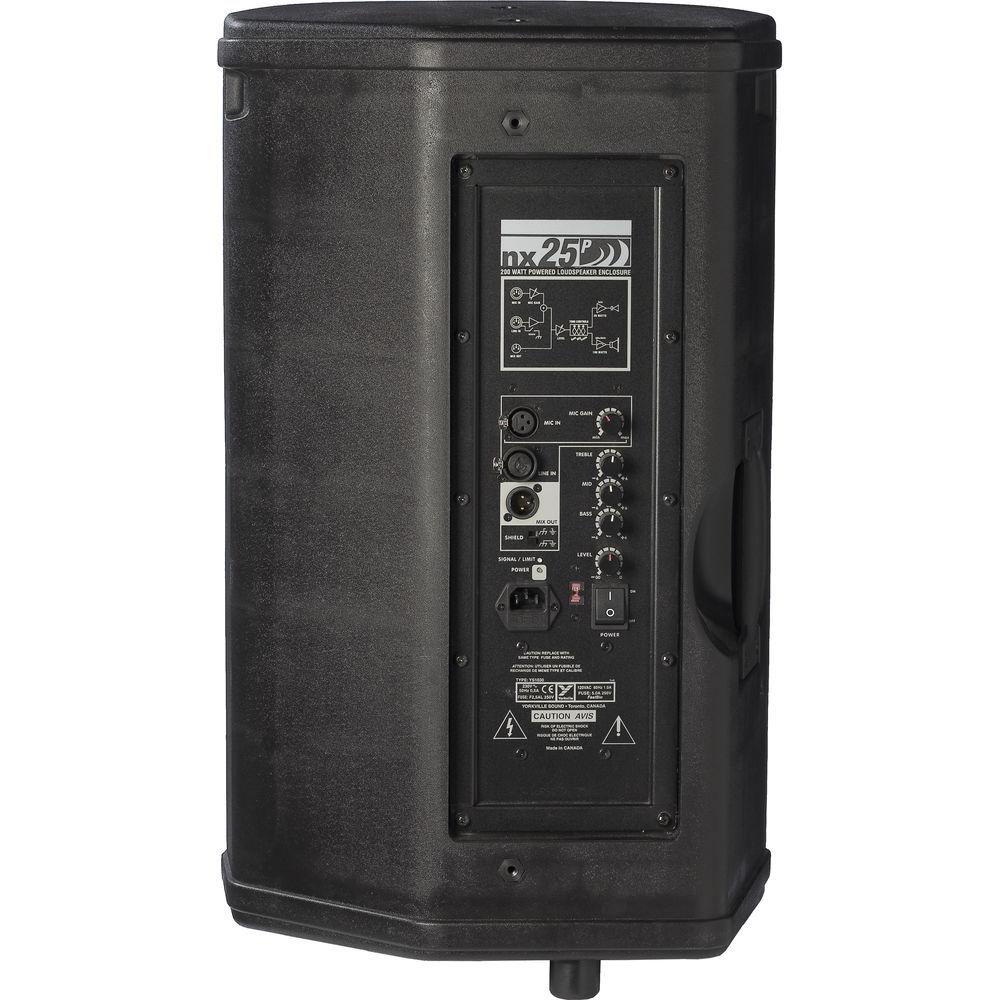

Product description The NX25P-2 12" NX Series 2-Way Powered Loudspeaker from Yorkville Sound is a 12" and horn active loudspeaker cabinet. The bi-amped 300W (Program) power module has minimum controls yet provides maximum versatility . Two-band EQ, XLR balanced microphone input as well as balanced combi-jack line input on the power module allows the NX25P-2 to be easily connected to any source and quickly EQ balanced for the room. An XLR balanced line output allows multiple cabinets to be linked together for use in an array or for easy distribution around a large room when used as repeater cabinets.
The horn amplifier produces loud clean transients to keep up with the high output of the Class-H two-tier amplifier driving the woofer. The high efficiency Class-H topology delivers higher headroom and lower operating temperature. The NX25P-2 enclosure, has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor cabinet with well-protected inputs and controls. The NX25P-2 can easily be used in any orientation, and close to walls, floors and in close arrays with multiple cabinets. - 12" Ceramic magnet woofer
- High quality 1" high frequency driver
- Integrated 300W (Program) amplifier
- Max SPL 124dB Peak (120dB continuous)
- XLR Microphone input with gain control
- Combi-jack XLR and 1/4" TRS lne input with gain control
- Dual purpose cabinet design (front-of house or monitor orientation)
- Integrated flying points for installation applications

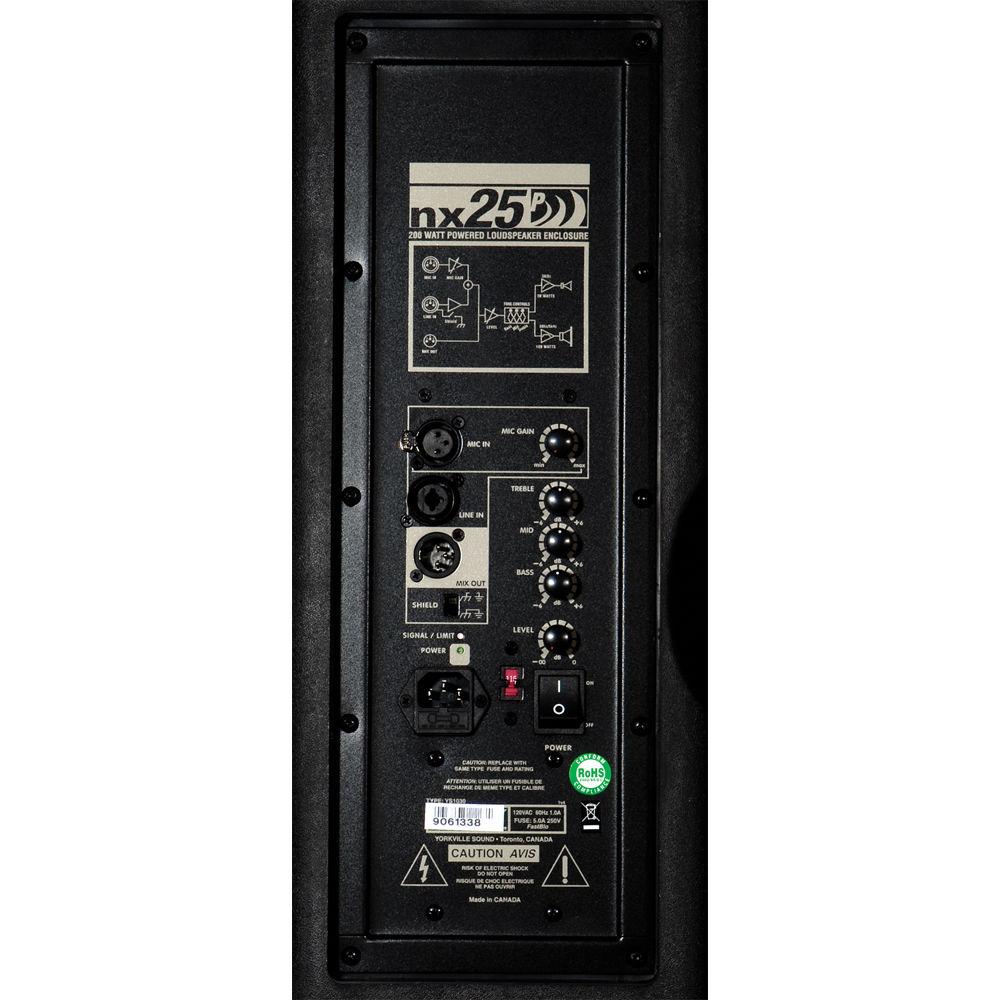

- Recessed control and input panel
UPC: 840402034339 In the Box Yorkville Sound NX25P-2 12" NX Series 2-Way Powered Loudspeaker (300W) Power Cable Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound NX25P-2 12" NX Series 2-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound NX25P-2 Specs | System Type | 2-Way | | Active or Passive | Active | | Power | 300 W (600 W peak) | | Max SPL Level | 124 dB peak (120 dB continuous) | | Frequency Response | 55 Hz - 18 kHz (+/- 3dB) | | Crossover Frequency | 3 kHz | | Driver | 12" (30 cm) Woofer
1.0" (2.5 cm) Horn | | HF Driver Size | 1.4" (3.5 cm) coil
1.0" (2.5 cm) exit PETP driver | | Dispersion | 80° H x 50° V | | Protection | Peak limiter | | LF Driver Size | 12" (30 cm) Ceramic magnet | | HF Amplifier | Class A/B | | LF Amplifier | Two tier class H | | Power Consumption | 120 / 310 VAC | | Connectors | 1 x 1/4" phone jack, line
1 x 1/4" phone jack, microphone | | Controls | Mic Gain
Line Input Gain
Low and Hi EQ | | LED Indicators | Power
Activity
Limit | | Mounting | 5 x 1/4"-20 threaded holes; 2 (Top), 2 (Bottom), 1 (Pullback) | | Enclosure Material | Molded Polypropylene | | Grille Material | Perforated metal | | Dimensions (D x W x H) | 12.25 x 16.0 x 26.5" (31.12 x 40.6 x 67.3 cm) Back: 9.0" (22.9 cm) | | Weight | 39.0 lb (17.6 kg) | | | | Box Dimensions (LxWxH) | 28.0 x 17.0 x 13.0" |
