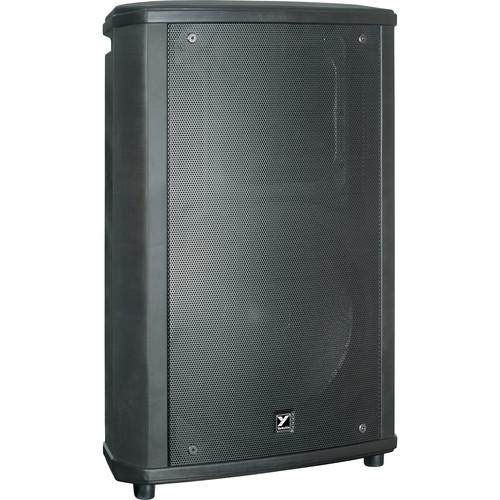

User Manual for Yorkville Sound NX300-2 15" NX Series 2-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yorkville Sound NX300-2 15" NX Series
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound NX300-2 15" NX Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The NX300-2 15" NX Series 2-Way Passive Loudspeaker from Yorkville Sound is a 15" and horn injection-molded loudspeaker. The NX300-2 offers a trapezoidal shape allowing the cabinet to be used as effectively as a monitor or front-of-house loudspeaker. The cabinet shape makes it ideal for mounting in tight arrays, or in multiple cabinet clusters.
The rotatable 80° x 50° custom ABS waveguide horn used in the NX300-2 allows the loudspeaker to be flown either horizontally or vertically, or close to walls and ceilings making an ideal fill cabinet for installations. Integrated flypoints in the NX300-2 ensure this injection-molded loudspeaker can be easily adapted for installation without modification to the cabinet. The loudspeaker features rugged bar handles and integrated stand mount adapter to ensure maximum mobility and easy set-up in live PA applications. - 600W Full range loudspeaker (300W program)
- Max SPL 125dB peak (122dB continuous)
- Light injection molded Polypropylene construction
- Dual purpose full range and wedge monitor format enclosure
- Clear reproduction throughout bandwidth
- High efficiency performance requires less power for more output
- High quality 1.5" (1" throat) high frequency driver
- Integrated flypoints for flyware
- Dual bulb CTL high frequency protection
UPC: 840402034445 In the Box Yorkville Sound NX300-2 15" NX Series 2-Way Passive Loudspeaker (300W) Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound NX300-2 15" NX Series 2-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound NX300-2 Specs | System Type | 2-Way | | Active or Passive | Passive | | Power | 300 W (600 W program) | | Nominal Impedance | 8 Ω | | Sensitivity | 97 dB (@ 1 W / 1 m) | | Max SPL Level | 125 dB (122 dB continuous) | | Frequency Response | 60 Hz - 18 kHz (+/- 3 dB) | | Crossover Frequency | 1500 Hz | | Driver | 15" (38 cm)
1.5" (3.8 cm) | | HF Driver Size | 1" (2.5 cm) Throat neo magnet
1.5" (3.8 cm) aluminum diaphragm | | Dispersion | 80° H x 50° V rotatable | | Protection | Dual bulb CTL, HF | | LF Driver Size | 15" (3.8 cm) woofer
2" (5 cm) Voice coil | | Impedance | 8 Ω | | Connectors | 2 x 1/4" phone jack
2 x 4-pin Speakon | | Mounting | 5 x 1/4"-20 threaded holes; 2 (Top), 2 (Bottom), 1 (Pullback) | | Handle | 1 x Side bar handle | | Enclosure Material | Injection molded Polypropylene | | Grille Material | Perforated metal | | Dimensions (D x W x H) | 15 x 22 x 32" (38 x 56 x 84 cm)
Back: 9.5" (24.0 cm) | | Weight | 49.8 lb (22.6 kg) | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 32.4 x 21.8 x 15.0" |
