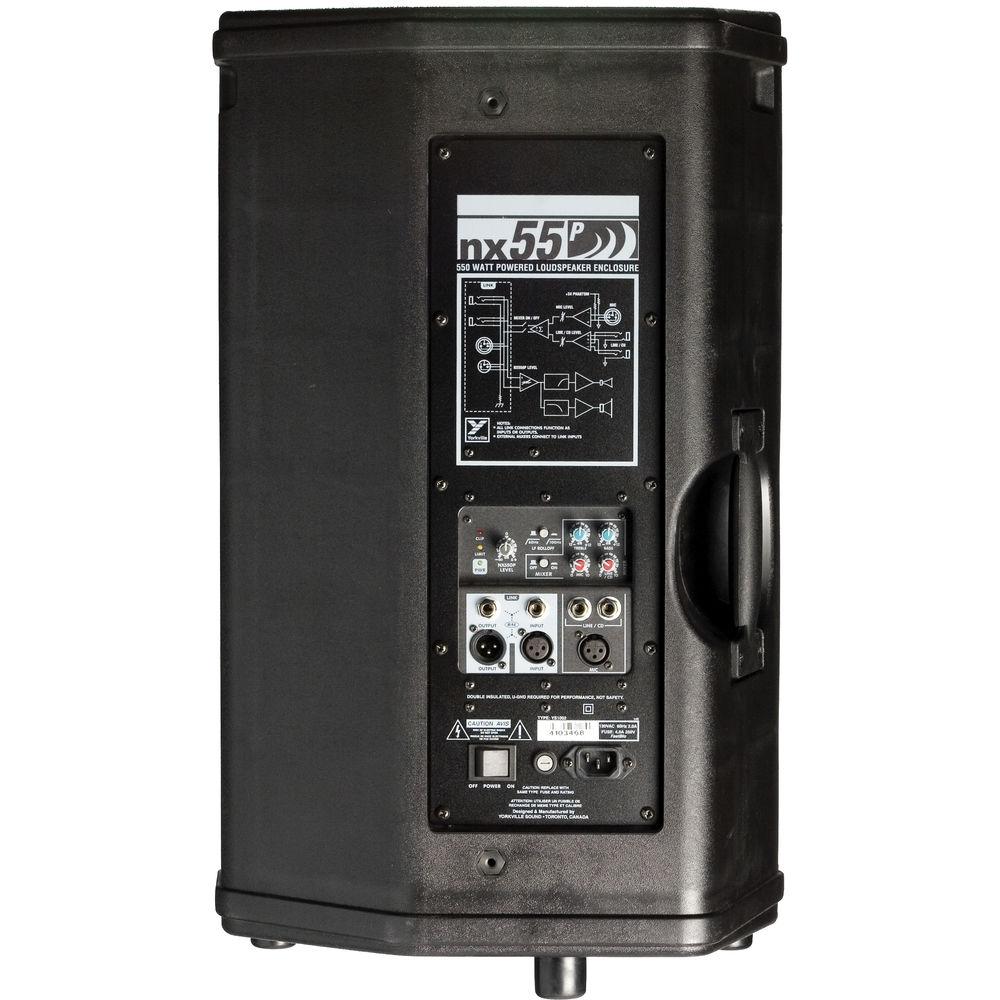

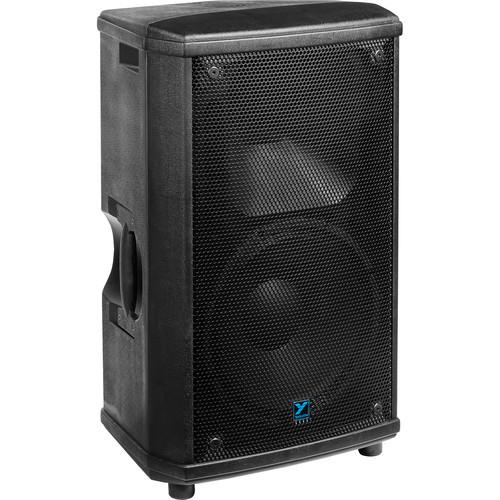

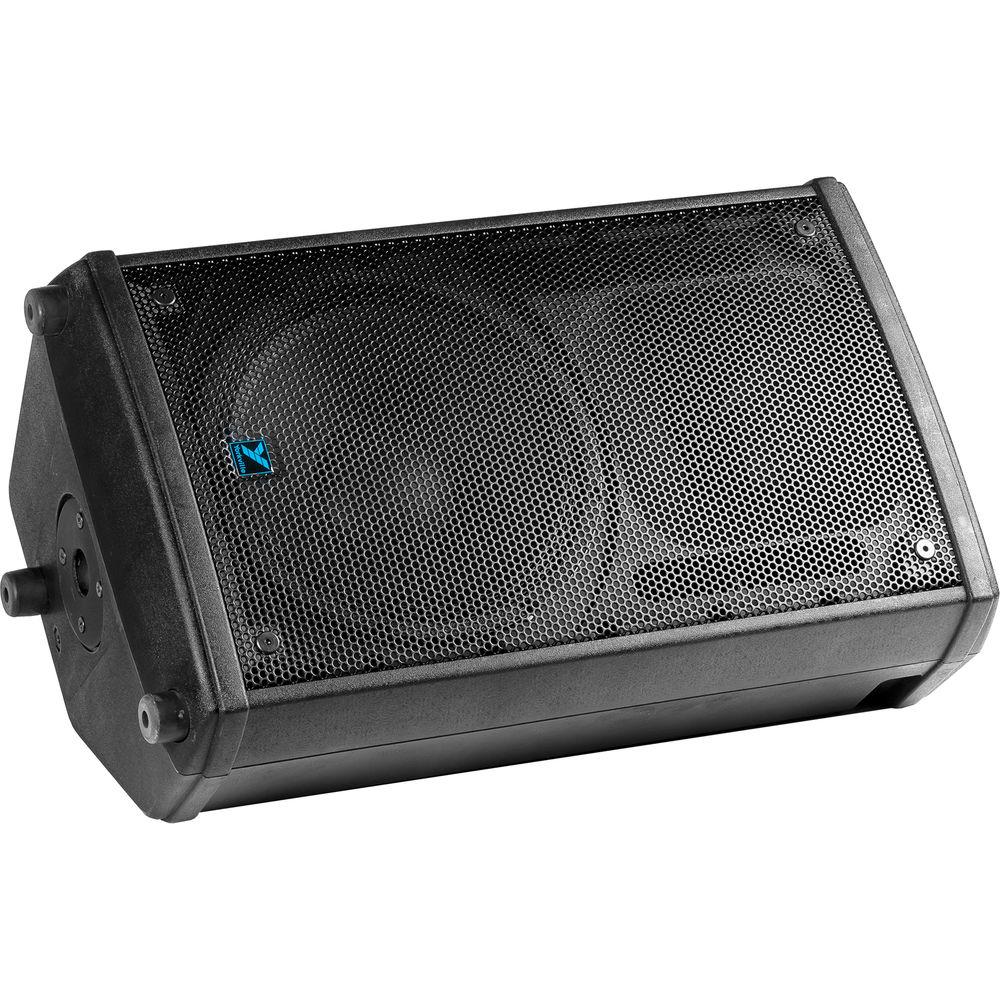

Product description The NX55P-2 NX Series 2-Way Powered Loudspeaker from Yorkville Sound power amplifier design delivers 1000W program (2000 watts peak for maximum headroom). The NX55P-2 features a trapezoid box, ideal for mounting in arrays, or for use as a monitor cabinet with inputs and controls. Designed for maximum versatility, the NX55P-2 can be used in any orientation, including close to walls, floors and in close arrays with multiple cabinets.
The NX55P-2 has a versatile direct input system and built-in mixer. The mixer allows the loudspeaker to be used directly with a microphone and / or line source. The loop output allows additional active cabinets to be driven from one cabinet's mixer stage, or a series of cabinets to be driven from one source. If desired, the end user can combine multiple NX55P-2's using the mixer inputs on each cabinet and coupling the loop outputs. In this configuration you would have the ideal presentation system with two microphone inputs, two line inputs.
The microphone input has equalization and high pass filtering appropriate for vocal applications. The trim control allows looped cabinets to be individually adjusted in level. The NX55P-2 has a built in mixer that allows the loudspeaker to be used directly with a tuned microphone and / or line sources such as mixer, CD player or laptop computer. The loop output allows additional powered cabinets to be driven from one cabinet's mixer stage, or a series of cabinets to be driven from one source. Multiple NX55P-2's can be linked together but a maximum of three "mixers" can be active at any one time. The microphone input has equalization and high pass filtering appropriate for vocal applications. The trim control allows looped cabinets to be individually adjusted in level.
The NX55P-2 has a selectable two position high-pass filter to limit extraneous low frequency rumble, or to crossover at the input so the loudspeaker can easily and effectively be used with subwoofers from a single full range source. The NX55P-2 is an ideal loudspeaker for mobile presentation PA where high volume and superior sound quality is required. - Integrated 2,000W amplifier (1,000W program)
- Max SPL 134 dB peak (128 dB continuous)
- Dual purpose full range and wedge monitor format enclosure
- Lightweight, high efficiency, high tech bi-amped power module
- +/- 6dB Input trim control for individual cabinet level adjustment
- XLR and TRS inputs / outputs for easy connection and looping
- Multi-input source mixer for direct inputs
- Direct microphone input with level control
- Two-way overall EQ controls
- High quality 1" high frequency driver
- Integrated flying hardware
UPC: 840402032076 In the Box Yorkville Sound NX55P-2 NX Series 2-Way Powered Loudspeaker (1000W) Power Cable Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound NX55P-2 NX Series 2-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound NX55P-2 Specs | System Type | 2-Way | | Active or Passive | Active | | Power | 1,000 W (2,000 W peak) | | Max SPL Level | 134 dB (128 dB continuous) | | Frequency Response | 45 Hz - 18 kHz (+/- 3 dB) | | Crossover Frequency | 2 kHz | | Driver | 12" (30 cm) and 1" (3.8 cm) | | HF Driver Size | 1.4" (3.5 cm) Aluminum diaphragm
1" (2.5 cm) Exit | | Dispersion | 80° H x 50° V (HF) | | HF Amplifier | Two Tier Class H | | LF Amplifier | Class D | | Protection | Thermal
Peak Limiter | | Power Consumption | 60 Hz 2.0 A / 50 Hz 1.0 A | | Connectors | XLR female microphone input
XLR female line input
XLR male line output
2 x 1/4" phone jack line/CD input
1/4" phone jack, link output
1/4" phone jack, link input | | Controls | Microphone Input
Line input gain bass/treble
Main volume +/- 6 dB | | LED Indicators | Power
Limit
Clip | | Hardware | 2 (Top), 2 (Bottom), 1 (Pullback) | | Handle | 1 x Side bar handle | | Enclosure Material | Injection molded Polypropylene | | Grille Material | Perforated metal | | Dimensions | 31.12 x 40.6 x 67.3" (79 x 103 x 171 cm)
Back: 22.9" (58 cm) | | Weight | 41 lb (18.6 kg) | | | | Box Dimensions (LxWxH) | 28.0 x 17.0 x 13.0" |
