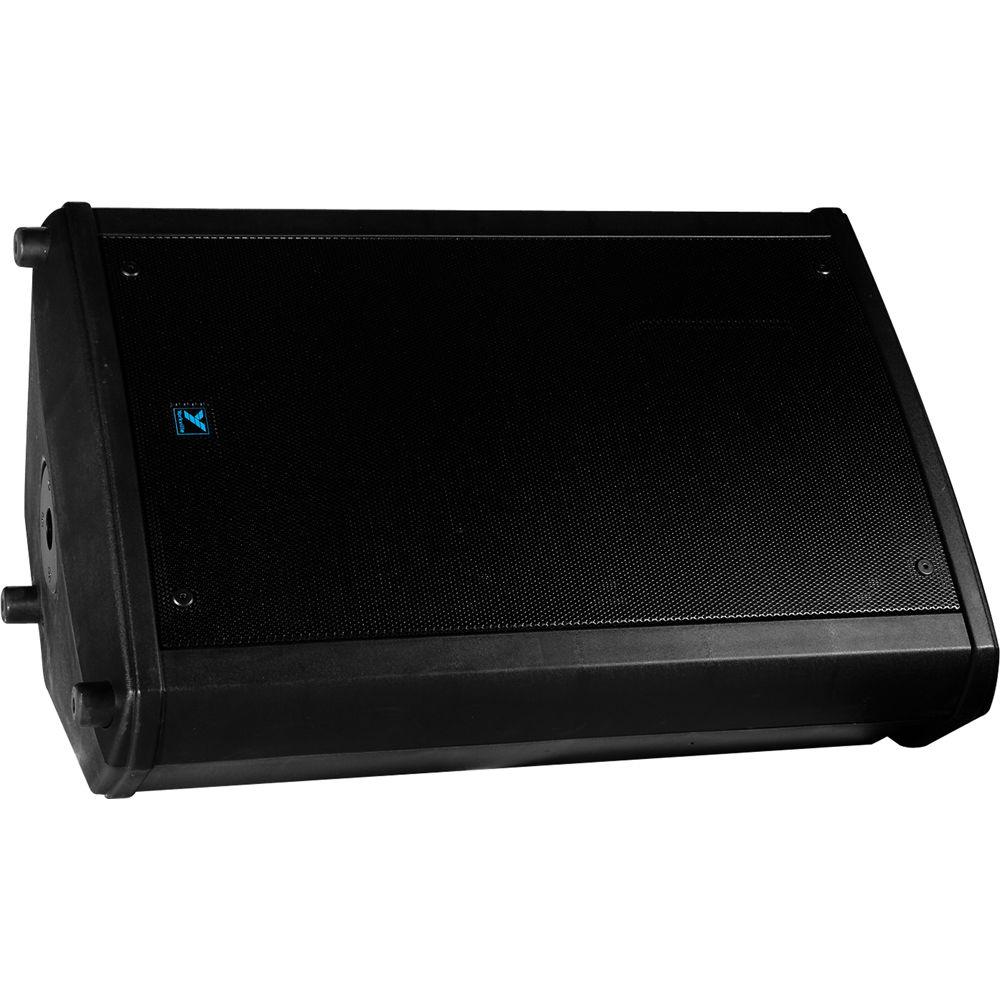

Product description The NX750P-2 15" NX Series 2-Way Powered Loudspeaker from Yorkville Sound is an active speaker made of injection molded, internally multi-fin-braced enclosure that supports a high-performance 15" high-powered woofer and rotatable 80° x 50° custom ABS waveguide horn, all protected by a perforated metal grill. The NX750P-2 is equipped with a rugged carrying handle, speaker stand socket and reinforced threaded flypoints.
Innovative bi-amplified power module uses a two-tier class H linear technology to produce loud clean transients to match the high output of the woofer. The amplifier uses Class D switching technology. The NX750P-2 can easily be used in any orientation - vertical or horizontal (stand-mounted or as a floor monitor), close to walls in installations, or in arrays with multiple NX750P-2s. There is also a versatile direct input system and built-in mixer. The mixer allows the NX750P-2 to be used directly with a microphone and/or a line source.
A "loop" output allows multiple NX750P-2s to be interconnected with mic or patch cables and controlled by one cabinet's mixer stage or direct line input. Two NX750P-2's can be combined using the mixer inputs on each cabinet and coupling the loop outputs to provide a complete, easy-to-use PA with its own microphone inputs and line inputs for background music or other audio. It's ideal for duos in small clubs, also presentations or teaching applications. Many NX750P-2's can be linked together but a maximum of three "mixers" can be active at any one time making three mic sources and six line sources available in any three-or-more-cabinet arrays. The trim control allows looped cabinets to be individually adjusted in level. The microphone input has bass and treble equalization and a 100Hz selectable high-pass filter appropriate for vocal-only applications or to let you add NX or Elite powered subwoofers, without a crossover. - Integrated 1600W amplifier (750W program)
- Max SPL 133dB peak (127dB continuous)
- Light injection molded Polypropylene construction
- Dual purpose full range and wedge monitor format enclosure
- Clear reproduction throughout bandwidth
- Proven TX style processing and component protection
- +6dB/- infinity input trim control for individual cabinet level adjustment
- XLR and TRS inputs and outputs for easy connection and looping
- Multi-input source mixer for direct inputs
- Direct microphone input with level control
- Two-way overall EQ controls
- High quality 1.5" high frequency driver
- Integrated flying hardware (1/4-20 threaded holes)
UPC: 840402034841 In the Box Yorkville Sound NX750P-2 15" NX Series 2-Way Powered Loudspeaker (750W) Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound NX750P-2 15" NX Series 2-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound NX750P-2 Specs | System Type | 2-Way | | Active or Passive | Active | | Power | 750 W (1,600 W peak) | | Max SPL Level | 133 dB Peak (127 dB continuous) | | Frequency Response | 50 Hz - 26 kHz (+/- 3dB) | | Crossover Frequency | 1,400 | | Driver | 15" (38 cm)
1.5" (3.8 cm) | | High Frequency Driver | 1.5" (3.8 cm) Polyester voice coil
1" (2.5 cm) Throat | | Low Frequency Driver | 15" (38 cm)

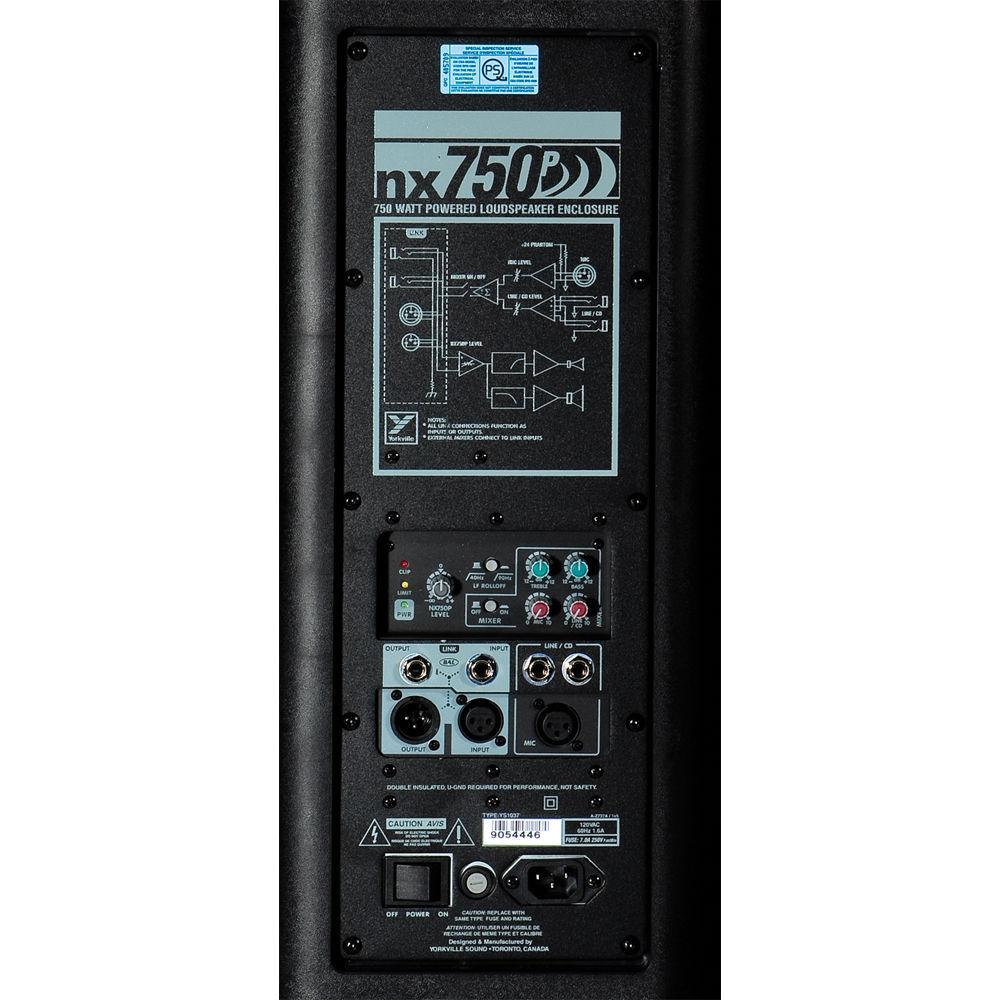

3" (7.6 cm) voice coil | | Dispersion | 80° H x 50° V rotatable | | HF Amplifier | Two Tier Class H | | LF Amplifier | Class D | | Connectors | 2 x 1/4" phone jack, line input
2 x 1/4" phone jack, link input/output
1 x XLR, microphone input
1 x XLR, line input
1 x XLR, line output | | Controls | Mixer on/off switch Mic Gain Line/CD Gain
Treble/Bass Tweak
Main Volume +6dB/-infinity
EQ 100Hz HP Filter (LF Roll-off) | | LED Indicators | Power
Clip
Limit | | Mounting | 5 x 1/4"-20 threaded holes; 2 (Top), 2 (Bottom), 1 (Pullback) | | Handle | 1 x Side bar handle | | Enclosure Material | Injection molded Polypropylene | | Grille Material | Perforated metal | | Dimensions (D x W x H) | 15 x 22 x 32" (38 x 56 x 84 cm)
Back: 9.5" (24 cm) | | Weight | 62 lb (28 kg) | | | | Box Dimensions (LxWxH) | 33.0 x 22.0 x 16.0" |
