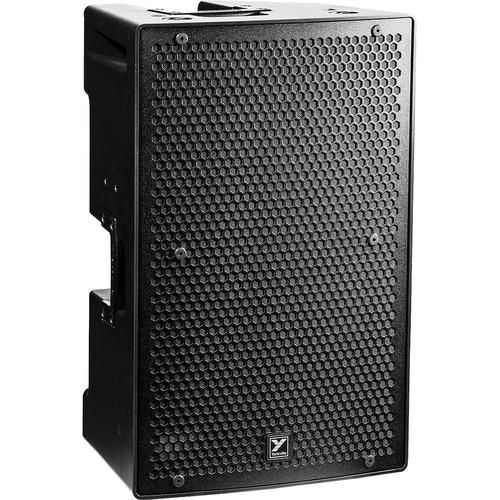

User Manual for Yorkville Sound PS12P 12" Parasource Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yorkville Sound PS12P 12" Parasource Powered
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound PS12P 12" Parasource Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The rugged yet lightweight ABS PS12P Parasource Powered Loudspeaker from Yorkville Sound is designed to be a Front-of House cabinet, side fill cabinet or floor monitor. The PS12P provides an integrated 1400W amplifier and uses a high power 12" woofer, with a 3" voice coil to deliver maximum tone and low frequency response. Multi-band limiting allows the cabinet to deliver maximum output. Integrated DSP enables the PS12P to operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS12P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers improved bottom end response from the PS12P without cluttering midrange program or affecting the cabinet's overall.
The cabinet features a passive cooling scheme, allowing the PS12P to operate without need of noisy internal dust collecting fans. Integrated reinforced flypoints enables the PS12P to be transported quickly and easily in any fixed installation. - Designed for front-of-house or monitor applications
- Integrated 4,400W amplifier (peak power - 1400W program)
- 12" Woofer with 3" voice coil
- 85° x 50° Horn with thermal and peak protection
- 38mm Compression driver with 1" exit
- Maximum SPL 133dB peak (128dB continuous)
- High efficiency bi-amplified class-D power module
- Passive cooling scheme (no loud fans required)
- Integrated 2 channel mini mixer with XLR microphone, 1/4" and RCA line inputs
- Ergonomic all metal handles
- Integrated all metal speaker standmount adapter
UPC: 840402031628 In the Box Yorkville Sound PS12P 12" Parasource Powered Loudspeaker (1400W) Power Cable Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound PS12P 12" Parasource Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound PS12P Specs | System Type | Active loudspeaker | | Active or Passive | Active | | Woofer | 12" (30 cm) | | Voice Coil | 3.0" (7.6 cm) | | Frequency Response | 45 Hz - 26 kHz | | Crossover Frequency | 1.25 kHz | | Power | 1400 W (4400 W peak) | | High Frequency Driver | 1.5" (3.8 mm) Voice coil with 1.0" (2.5 cm) Exit | | Connectors | 1 x 1/4" input
1 x XLR link
1 x RCA input
2 x 1/4" jack input
2 x XLR input | | Input Sensitivity | 1.23 Vrms +4 dBu | | Controls | Level Controls:
Master Level
Mic Level
Line Level
Mix Controls:
Sub Mode HPF
Bass Boost
Mixer Enable | | LED Indicators | 1 x Power
1 x Limit
1 x Clip | | Power Consumption | 2.4 A/3.0 A @ 120 VAC 1.2/2.5 A @ 230 VAC | | Power Cable | Detachable IEC | | Enclosure Material | ABS | | Baffle Material | ABS | | Dimensions (D x W x H) | 13.5 x 16.7 x 26.5" (34.3 x 42.5 x 66.7 cm) | | Weight | 60.0 lb (26.3 kg) | | | | Package Weight | 59.3 lb | | Box Dimensions (LxWxH) | 30.25 x 20.5 x 16.5" |
