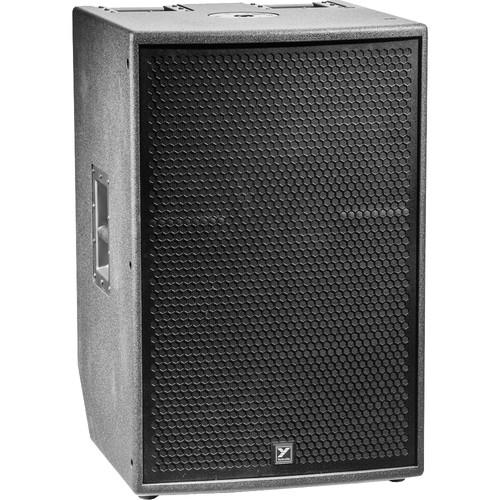

User Manual for Yorkville Sound PS18S 18" Parasource Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound PS18S 18" Parasource Powered
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound PS18S 18" Parasource Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The PS18S 18" Parasource Powered Subwoofer (1200W) from Yorkville Sound is an 18" active bass reflex subwoofer. The solid 15mm birch plywood cabinet construction and an efficient 1200W Class-D power amplifier design subwoofer can be easily integrated into PA application because of its cable direct connection to any audio source. The unit is equipped with metal handles and a pole mount adapter. - Compact high performance active subwoofer
- Maximum SPL 135dB peak (129dB continuous)
- Handles line or speaker level (powered) input sources
- XLR and 1/4" inputs and link outputs
- Solid 15mm birch cabinet construction
- Integrated pole mount adapter and all metal handles
UPC: 840402035817 In the Box Yorkville Sound PS18S 18" Parasource Powered Subwoofer (1200W) Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound PS18S 18" Parasource Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound PS18S Specs | Active or Passive | Active | | Power | 1200 W program (2400 W peak) | | Frequency Response | 45 Hz - 100 Hz | | Max SPL Level | 135 dB Peak (129 dB continuous) | | Crossover Frequency | Fixed @ 100 Hz | | Driver | 18.0" (45.7 cm) | | Low Frequency Driver | 18.0" (45.7 cm) ceramic with 4" (10 cm) Voice coil | | Connectors | XLR balanced line level input
1/4" line or speaker level input
XLR balanced link output
1/4" link output | | Controls | Output Level
Line/Speaker Level Switch | | LED Indicators | Power
Limit
Clip | | Enclosure Material | 0.6" (1.5 cm) Birch | | Baffle Material | 0.6" (1.5 cm) Birch | | Dimensions | 32.5 x 20.9 x 22.0" (82.6 x 53.0 x 55.9 cm) | | Weight | 111.0 lb (50.5 kg) | | | | Package Weight | 123.0 lb | | Box Dimensions (LxWxH) | 34.5 x 23.0 x 22.0" |
