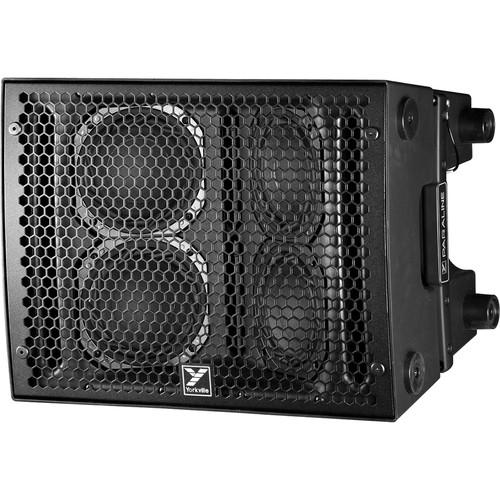

Product description The PSA1 Paraline Series 46" Compact Array Loudspeaker from Yorkville Sound is a 700W active full range loudspeaker system which uses Paraline high frequency lens technology (pioneered in the VTC Elevation Series line array cabinets).

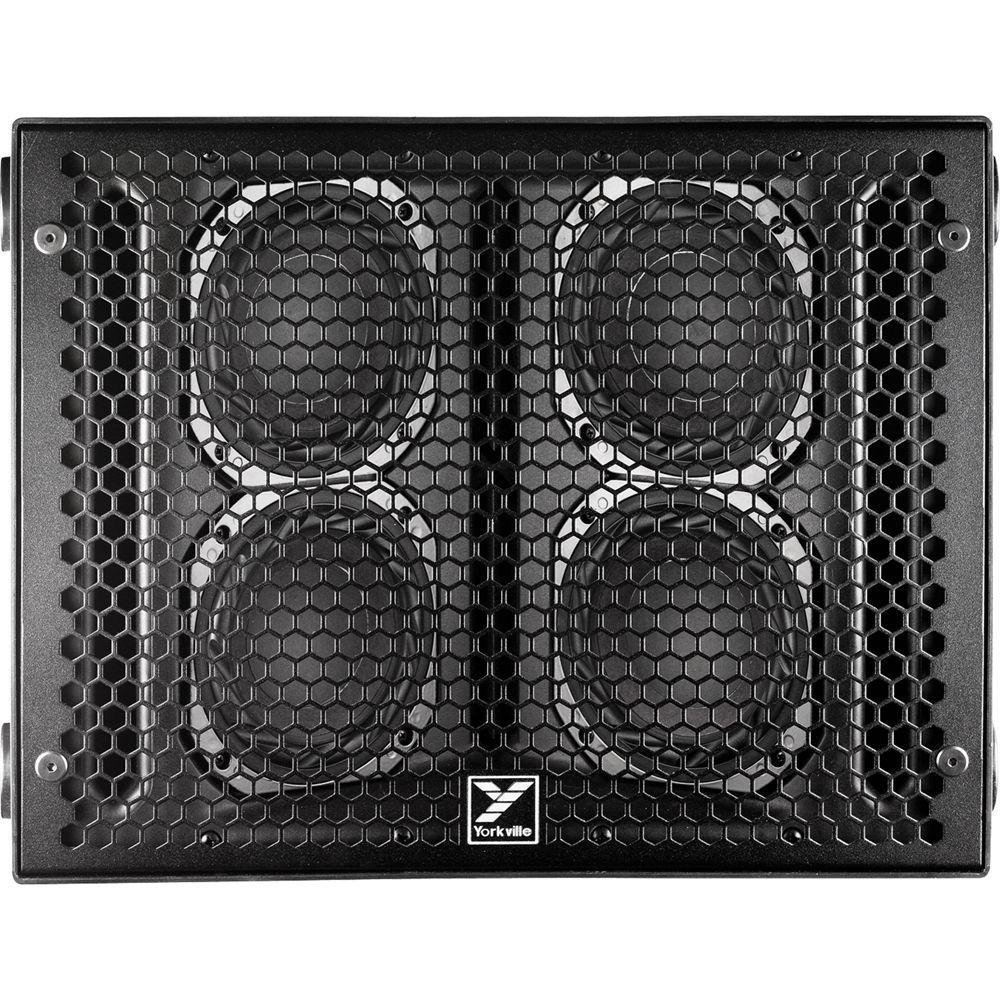

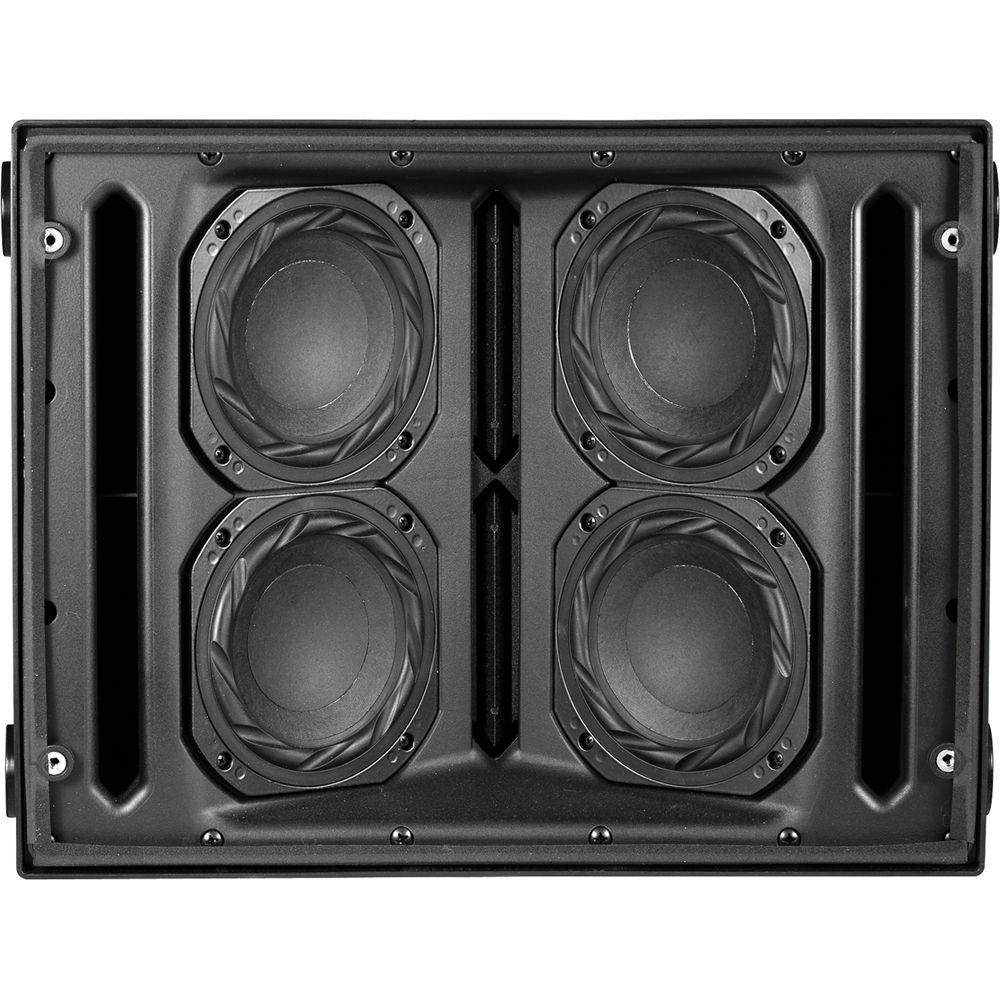

Two BMS 1.75" compression drivers mounted to the Paraline lens deliver a focused 15° vertical dispersion and wide 110° horizontal coverage. Four 6" Celestion woofers provide a tight low-frequency program.

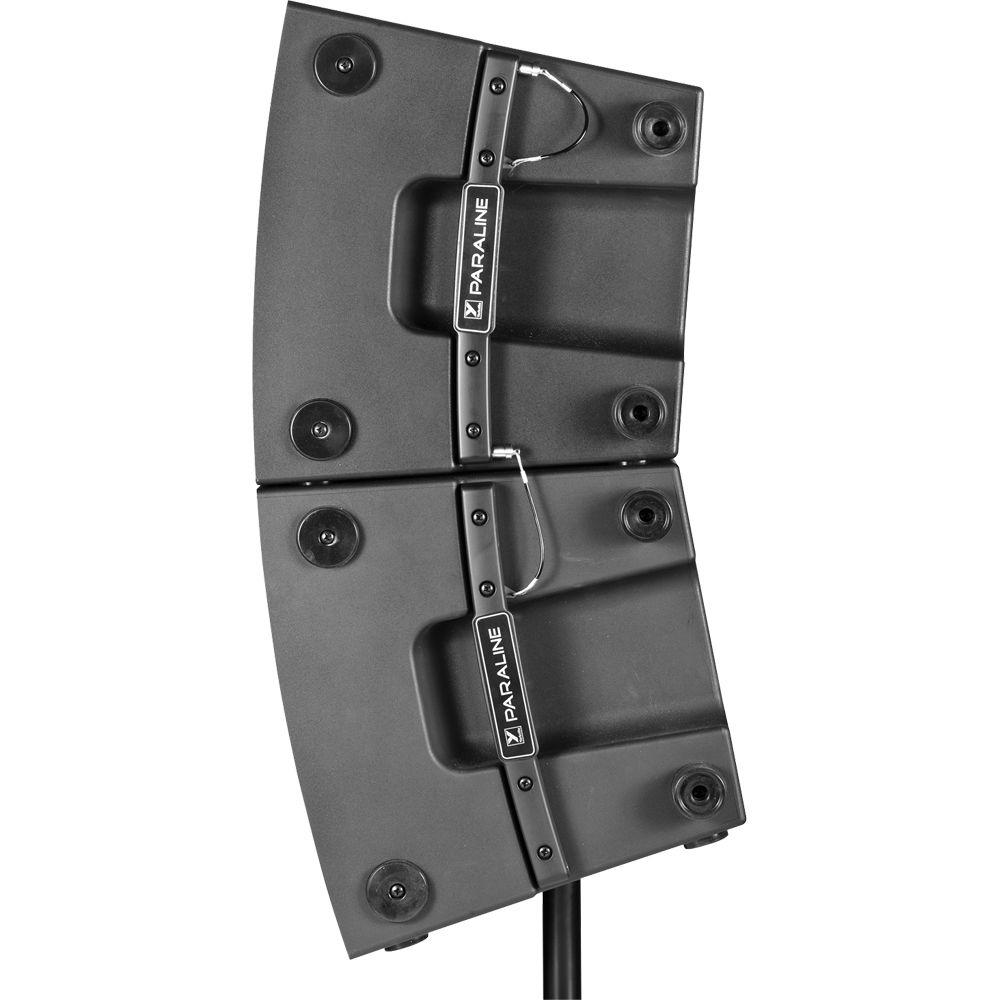

Ideal for mobile PA applications in venues where access to complex trussing or roof hangs isn't practical, the PSA1 cabinet mounts quickly and securely on a typical speaker stand. A dual-position stand mount adapter allows for two cabinet-angle options. Up to two PSA1 cabinets can be stacked safely and securely on a single traditional stand.
The PSA1 cabinets can be flown using the optional flying hardware (PSA1RIGKIT) and bumper (PSA1FRAME). Using the flying hardware, up to four cabinets can be arrayed at fixed splay angles for vertical coverage. A system comprised of two PSA1 cabinets delivers 30°V x 110°H coverage while three cabinets provide 45°V x 110°H. A maximum of four cabinets can be configured for a 60°V x 110°H array. - Includes Celestion 6" woofers and BMS compression drivers
- Focused 15° vertical dispersion for minimum interference between arrayed cabinets
- Wide 110° horizontal dispersion pattern
- Manufactured using light-weight, strong ABS cabinet material
- Stacks using standard speaker stand on integrated dual angle stand mount adaptor (maximum of two cabinets per stand)
- Optional installation hardware available
- Up to four PSA1 cabinets can be easily powered on one 15A circuit
UPC: 840402030010 In the Box Yorkville Sound PSA1 Paraline Series 46" Compact Array Loudspeaker (700W) Unlimited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound PSA1 Paraline Series 46" Compact Array Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

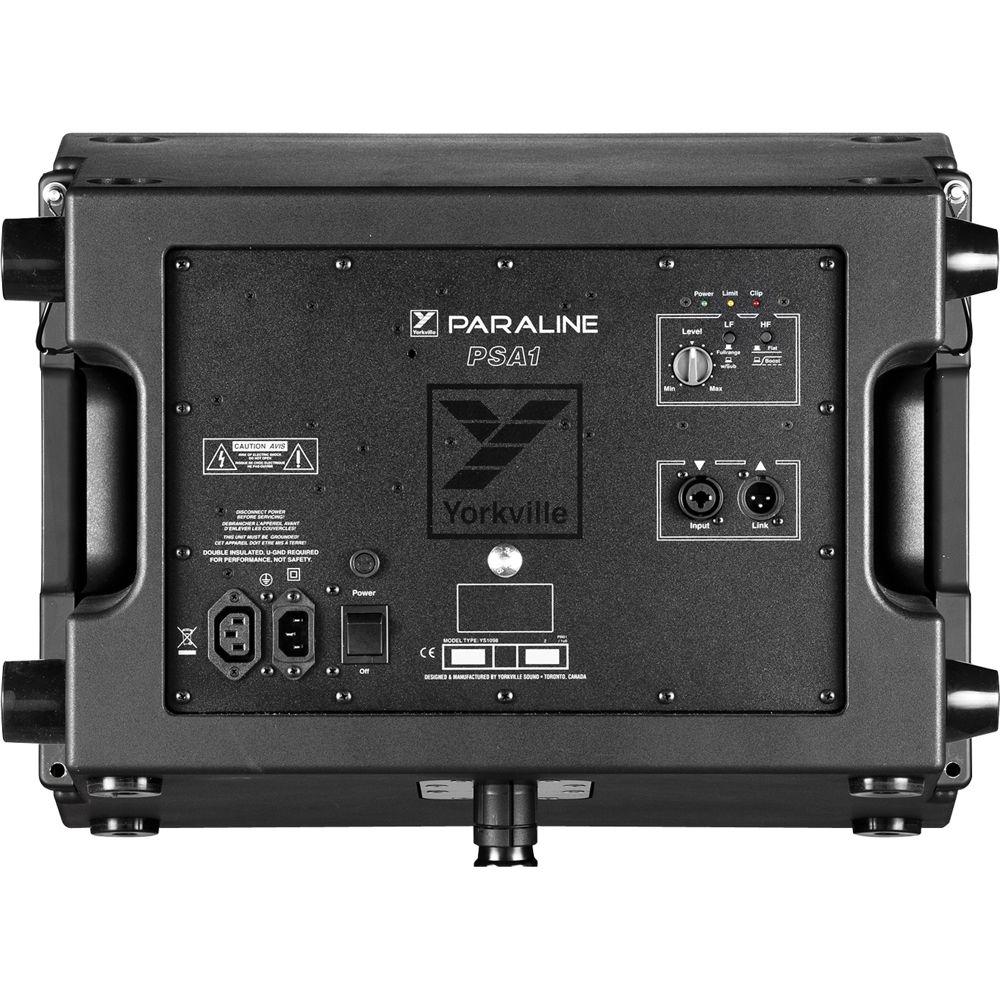

Technical parametersYorkville Sound PSA1 Specs | Active or Passive | Active | | Power Capacity | 1200 W peak (700 W program) | | Impedance | Low Frequency: 2 Ω Load | | Maximum Sound Pressure Level (SPL) | 128 dB Peak (125 dB continuous) | | Frequency Response | 75 Hz to 20 kHz, ± 3 dB | | Crossover | 1.2 kHz | | Driver | Low Frequency: 4 x 6" neo with 45 mm VC
High Frequency: 2 x 1" ceramic with 45 mm VC | | Input Connections | 1 x Combijack, XLR 1/4" | | Enclosure Material | Injection molded ABS | | Color / Finish | Paint | | Dimensions | 14.5 x 20.5 x 16" (36.8 x 52.1 x 40.6 cm) | | Weight | 47 lb (21.4 kg) | | | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 17.0" |
