User Manual for Yorkville Sound PSA1S Paraline Series 12" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Yorkville Sound PSA1S Paraline Series 12"
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
 |
User manual for the Yorkville Sound PSA1S Paraline Series 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|

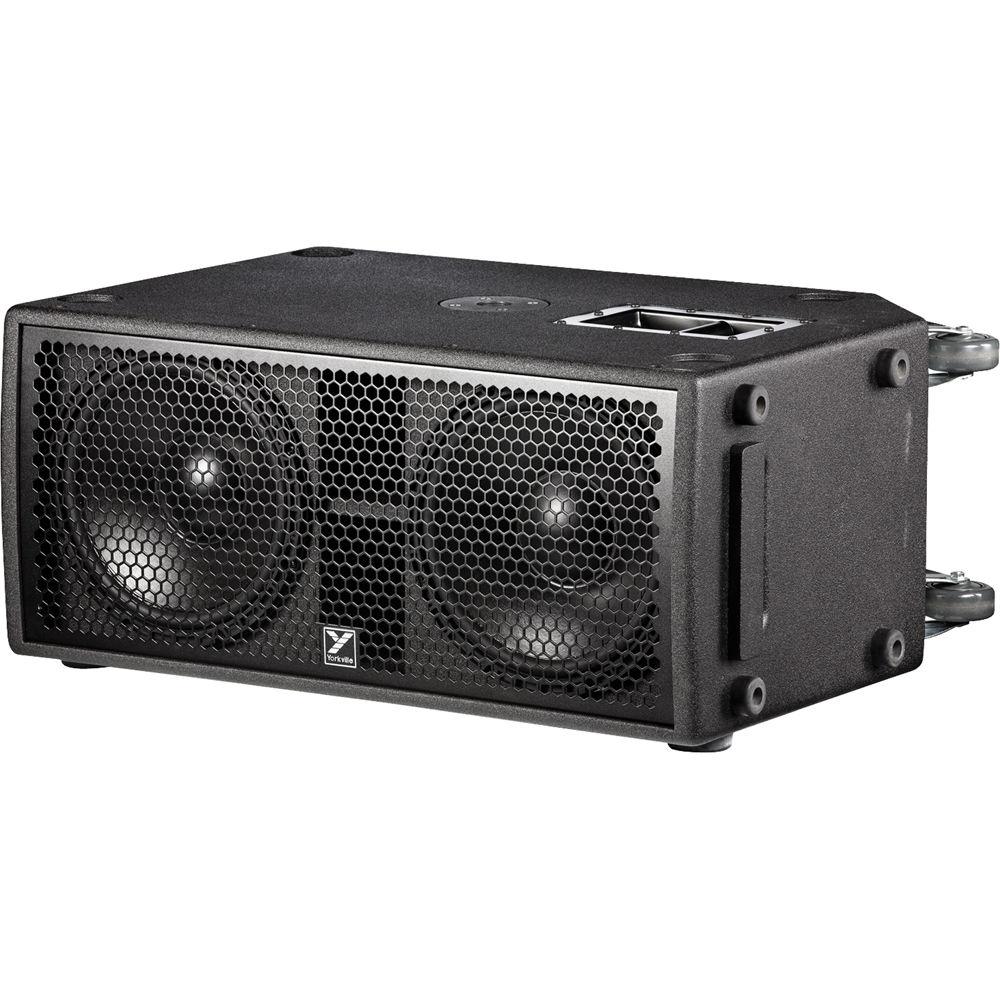

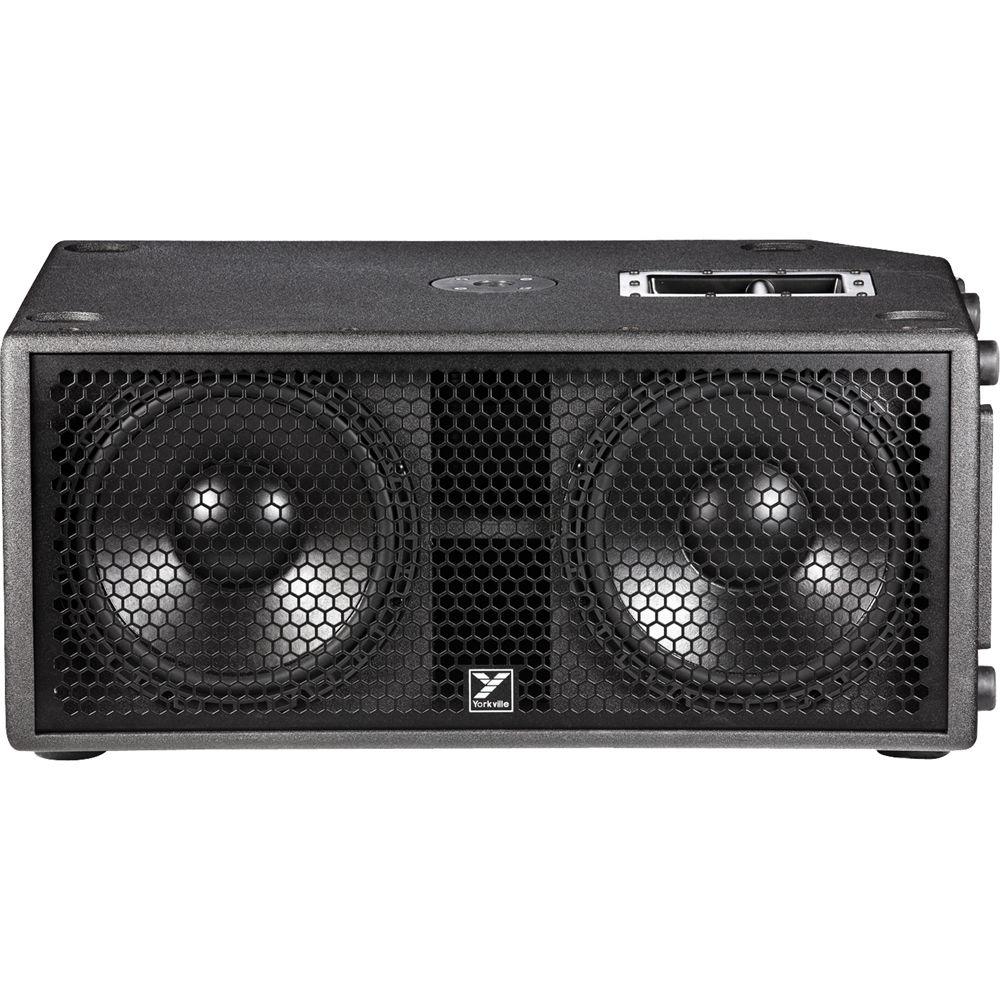

Product description The 1400W PSA1S Paraline Series 12" Active Subwoofer from Yorkville Sound is a dual 12" bass reflex subwoofer that is best paired with the PSA1 full range loudspeaker system (sold separately). Its solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA1S an ideal platform for stacking PSA1 cabinets in a scalable array system. Compact design and heavy-duty wheels & handles ensure the PSA1S can easily be handled by a single operator for economical system set-up.

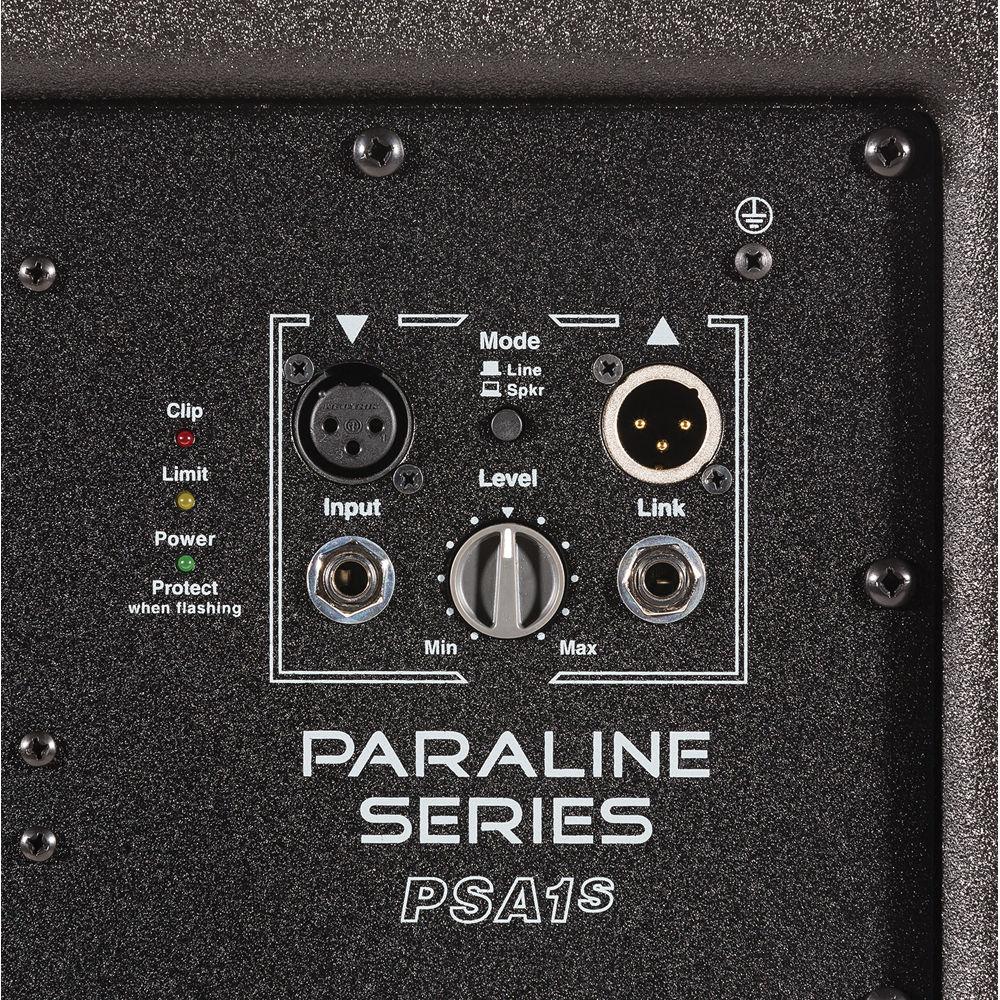

Efficient Class-D power amplifier design provides long-term reliability. Capable of direct connection to any audio source (including speaker level input) the PSA1S can be easily integrated in to virtually any PA application, making it very versatile.

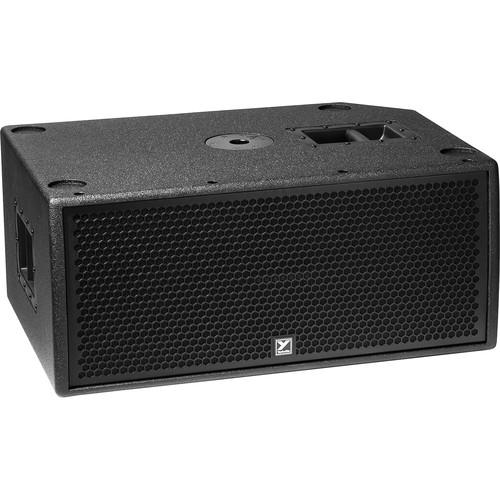

The PSA1S Subwoofer uses Yorkville Sound's Heavy Duty Precision Stand Adaptor. In order to minimize top cabinet sway and provide an improved standmount platform for multiple PSA1 cabinets, the PSA1S subwoofer standmount adapter uses a thick-walled cast aluminum stand receiver with a wide mounting plate.
Precision machining after casting allows high tolerances, improving the stand adaptor and providing a more stable and secure pole mount system for mobile Paraline systems when used in combination with the Yorkville SW-TUBEHD Heavy Duty all-steel subwoofer tube (not included). - Ideal companion subwoofer for the PSA1 System
- Solid 15mm birch cabinet construction
- Integrated pole mount adaptor and heavy duty wheels
UPC: 840402029687 In the Box Yorkville Sound PSA1S Paraline Series 12" Active Subwoofer (1400W) Unlimited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound PSA1S Paraline Series 12" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound PSA1S Specs | Active or Passive | Active | | Frequency Response | 37 Hz - 100 Hz, ± 3 dB | | Power Capacity | 1400 W Program (2800 W peak) | | Maximum Sound Pressure Level (SPL) | 135 dB Peak (129 dB continuous) | | Impedance | Low Frequency: 2 x 4 Ω load | | Crossover | Fixed @ 100 Hz | | Low Frequency Driver | 2 x 12" ceramic with 3" voice coil | | Color / Finish | Paint | | Enclosure Material | 15mm birch | | Dimensions | 22.8 x 14 x 32" (57.75 x 35.6 x 81.3 cm) | | Weight | 120 lb (54.4 kg) | | | | Box Dimensions (LxWxH) | 35.0 x 24.0 x 16.0" |
