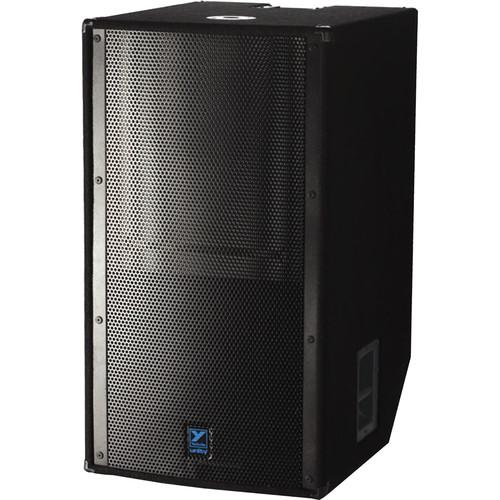

Product description The Black Ozite Carpet finished UCS1P 1500W 15" Horn-Loaded Active Subwoofer from Yorkville Sound is designed for use with the Unity U15, U15P, or U215 loudspeaker systems and is the ideal active subwoofer to match their acoustic parameters. The UCS1 can be employed with any full-range enclosure, especially those with high output.This 1500W unit takes full advantage of its horn-loaded design to deliver fierce bottom end from a compact, single 15" back-loaded subwoofer. The optimized horn flare geometry, careful attention to the front and rear internal chamber dimensions, as well as the use of a high performance long excursion 15" driver, gives the UCS1P high output volume and deep, extended bass response. Added to that, the onboard electronics include a 1500W amplifier, full-time soft limiting, an active, adjustable low-pass filter (HF Rolloff) and an adjustable pre-EQ curve (Shape) for plug-and-play ease of use.The UCS1P is constructed from solid 15mm 11-ply birch and features a heavy gauge perforated metal grill, integrated tilt-back wheels and four strategically placed bar handles to make moving and stacking very easy. - Integrated 2400 W amplifier (1500 W program)
- 15" horn-loaded cabinet design
- Max SPL 139 dB peak (133 dB continuous)
- 37 Hz - 150 Hz with adjustable HF Roll-Off
- Solid 15mm 11-ply birch plywood cabinet
- High-pass output roll-off switch
- Paralleled XLR & 1/4-inch inputs (Selectable Line or Speaker Level)
- Solid 5/8" (15mm) birch plywood construction
In the Box Yorkville Sound UCS1P 1500W 15" Horn-Loaded Active Subwoofer (Black Ozite Carpet) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound UCS1P 1500W 15" Horn-Loaded Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound UCS1P Specs | System Type | Horn Loaded Subwoofer | | Active or Passive | Active | | Max. Program Power | 1500 W (2400 W Peak) | | Max SPL Level | 139 dB Peak (133 dB Continuous) | | Frequency Response | 37 - 150 Hz +/- 3 dB | | Crossover Frequency | 90 - 110 Hz | | LF Driver Size | 15", Ceramic Magnet, 3" voicecoil | | Protection | Thermal / Overcurrent / Clip | | Amplifier | Type 3 tier class G | | Cooling | Dual speed controlled fans | | Power Consumption | Typical /max: 792/960 VA (8 A @ 120 VAC, 4 A @ 230 VAC) | | Inputs | Line and Speaker
1/4" Jacks: Combi-jack
XLR: 1 line/speaker level Combi-jack input | | Input Impedance | Balanced | | Input Sensitivity | 0.775 VRMS | | Level Controls | Volume | | EQ Controls | Boost / Low Pass | | Limiter | Peak / Average | | LED Indicators | Clip / Limit | | Other Controls | Active Controls: Master Level, Bass Boost Level, HF Rolloff Frequency (80-150 Hz), Hi-Pass Output Roll-off Switch (90 Hz, 100 Hz, 110 Hz), Hi-Pass XLR Output, Speaker / Line level input switch | | Material | Metal (corners) | | Feet | Rubber | | Wheels | 2 x Rear | | Handles | 2 x top, 2 x side, 1 x bottom bar handles | | Pole Mount | 1-3/8" (3.5 cm), Yes - Top | | Enclosure Material | 5/8" (15 mm) 11-ply Russian Birch | | Grille | Heavy gauge perforated metal | | Finish | Black Ozite Carpet | | Dimensions (D x W x H) | 27 x 22.25 x 41" (68.6 x 56.5 x 104 cm) | | Weight | 155 lb (70.3 kg) |
