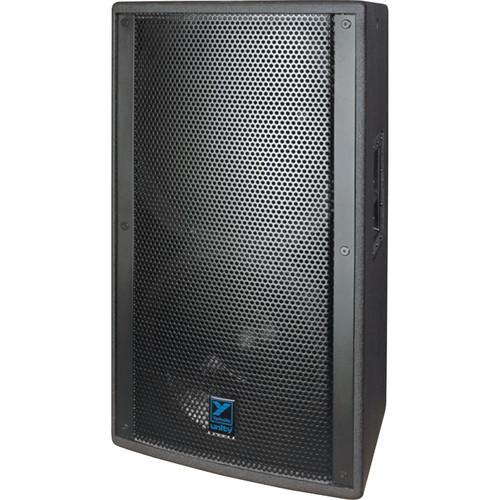

User Manual for Yorkville Sound Unity Passive Series U15 3-Way 1000W Bi-Amp Full Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Yorkville Sound Unity Passive Series U15
- Product category: PA Speakers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound PA Speakers
|
User manual for the Yorkville Sound Unity Passive Series U15 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The black ozite Passive Series U15 3-Way 1000W Bi-Amp Full Range Loudspeaker from Yorkville provides high/mid frequency distribution from its 60° x 60° horn assembly. The horn combines a single 1” throat (1.75" diaphragm) compression driver with three 5” ceramic magnet midrange drivers firing through time-aligned slots in the horn-wall. This seamlessly blends the mid and high frequencies while providing power capacity and clarity from 300 Hz to 20 kHz.
The U15 Loudspeaker comes with an HD 3-way passive crossover featuring PTC non-interruptive horn protection. It can be easily bi-amplified by way of a switch on the rear jackplate, and using the UP15 Unity processor (sold separately), designed specifically to optimize the sonic characteristics of the loudspeaker. It has been developed to ensure trouble free, plug-and-play operation and further offers a subwoofer output. The compact U15 loudspeaker is a trapezoidal cabinet with a crossover point to seamlessly match the directivity characteristics of the conical horn to the neodymium woofer. The unparalleled sonic clarity and smooth frequency response also makes it ideal for music playback.
With pre-recorded music, this loudspeaker is capable of putting out a high-efficiency 1000W power output at 4Ω. The trapezoidal shape was designed with multi-box, tight pack arraying. Furthermore, due to the nature of the conical horn, the polar pattern remains quite constant regardless of any vertical or off-axis rotation put upon it. It acts the same on all vertical axes, making it suitable for use upright or on its side, without the need to ever rotate the horn. - 1000W program (2000W peak) 3-way full range loudspeaker
- Maximum SPL 131 dB peak (128 dB continuous)
- Unique 60° x 60° Unity horn assembly (combines mid and high frequency drivers on conical horn)
- Four component drivers mounted in a Unity horn are mechanically time-aligned to measure and act like a single point source
- No self-interference between individual components
- Nine rigging points and internal stand mount adapter allows all possible mounting and flying configurations
- 15mm 11-ply birch cabinet construction
In the Box Yorkville Sound Unity Passive Series U15 3-Way 1000W Bi-Amp Full Range Loudspeaker (Black Ozite) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound Unity Passive Series U15 3-Way 1000W Bi-Amp Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound U15 Specs | System Type | 3-way | | Max. Program Power | 1000 W Program (2000 W Peak) | | Bi-Amp Capability | Yes | | Nominal Impedance | 4 Ohms | | Sensitivity | 98 dB @ 1 W / 1 m | | Maximum SPL | 131 dB peak (128 dB continuous) | | Frequency Response | 50 Hz to 20 kHz +/- 3 dB | | Crossover Frequency | 300 / 1250 Hz | | Configuration | Driver: 15" / 3x 5" / 1.75" | | Driver | HF: 1.75" polyester
MF: 3 x 5" ceramic, 1" voicecoil
LF: 15" with 3" voicecoil | | Impedance | HF: 8 Ohms
LF: 4 Ohms | | Horn | HF: Conical Unity horn (1" throat)
MF: Conical Unity horn | | Dispersion | HF/MF: 60° x 60° (H x V) | | Inputs | 2 x 1/4" jack
2 x Speakon 4-pin | | Mounting Hardware | Flying Hardware: 9 x 3/8" (all corners)
Bar Handles: 2 side
Pole Mount Adapter: 1 3/8" (3.5 cm) | | Enclosure | 15 mm 11-ply birch | | Grille | Perforated metal | | Finish | Black Ozite (carpet) | | Dimensions | W x D x H: 19.2 x 16.3 x 34" (49 x 41 x 86 cm)
Back W: 9.5" (24.1 cm) | | Weight | 81 lb (37 kg) |
