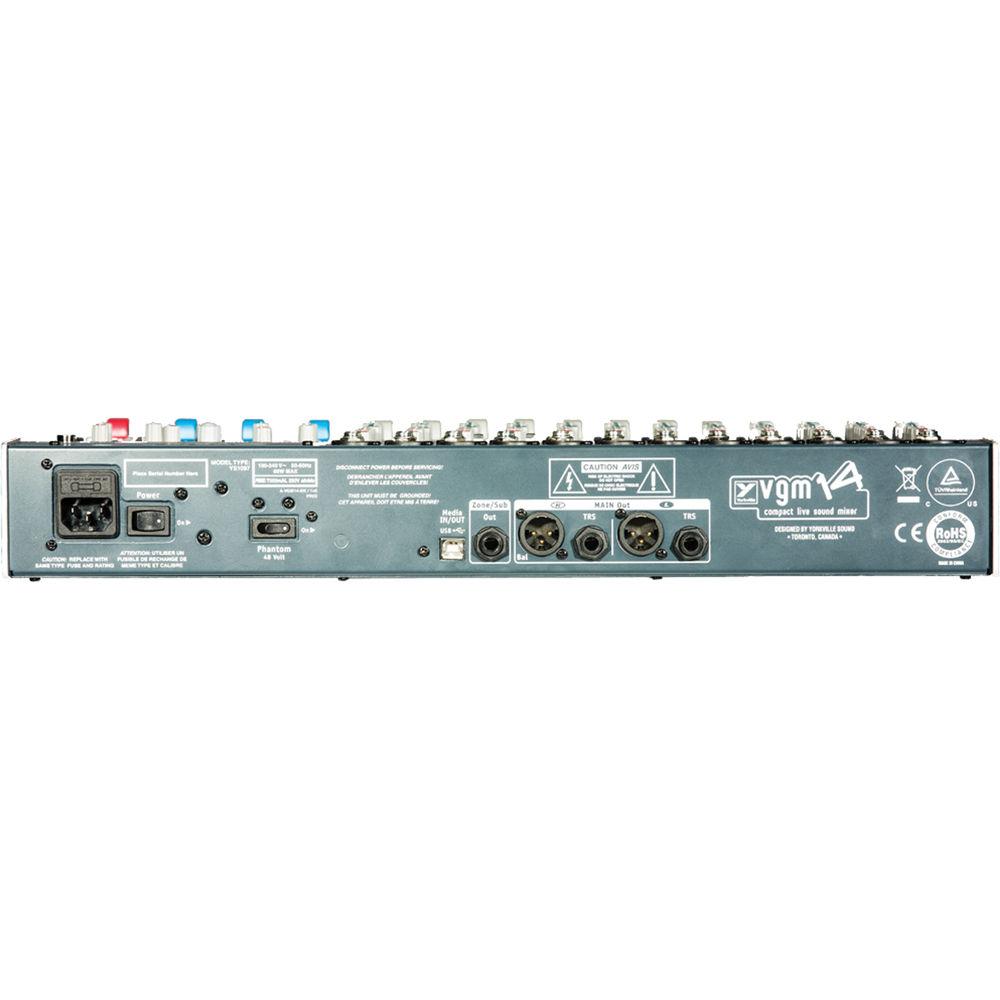

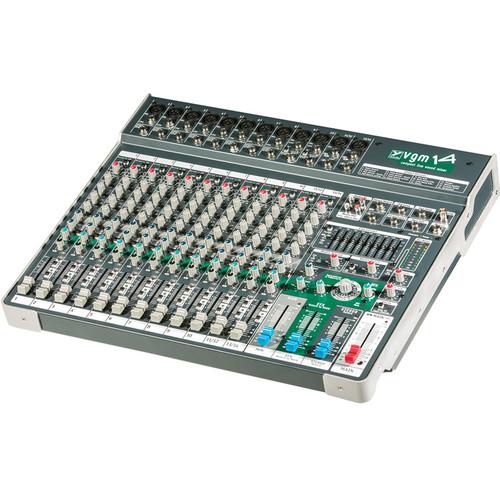

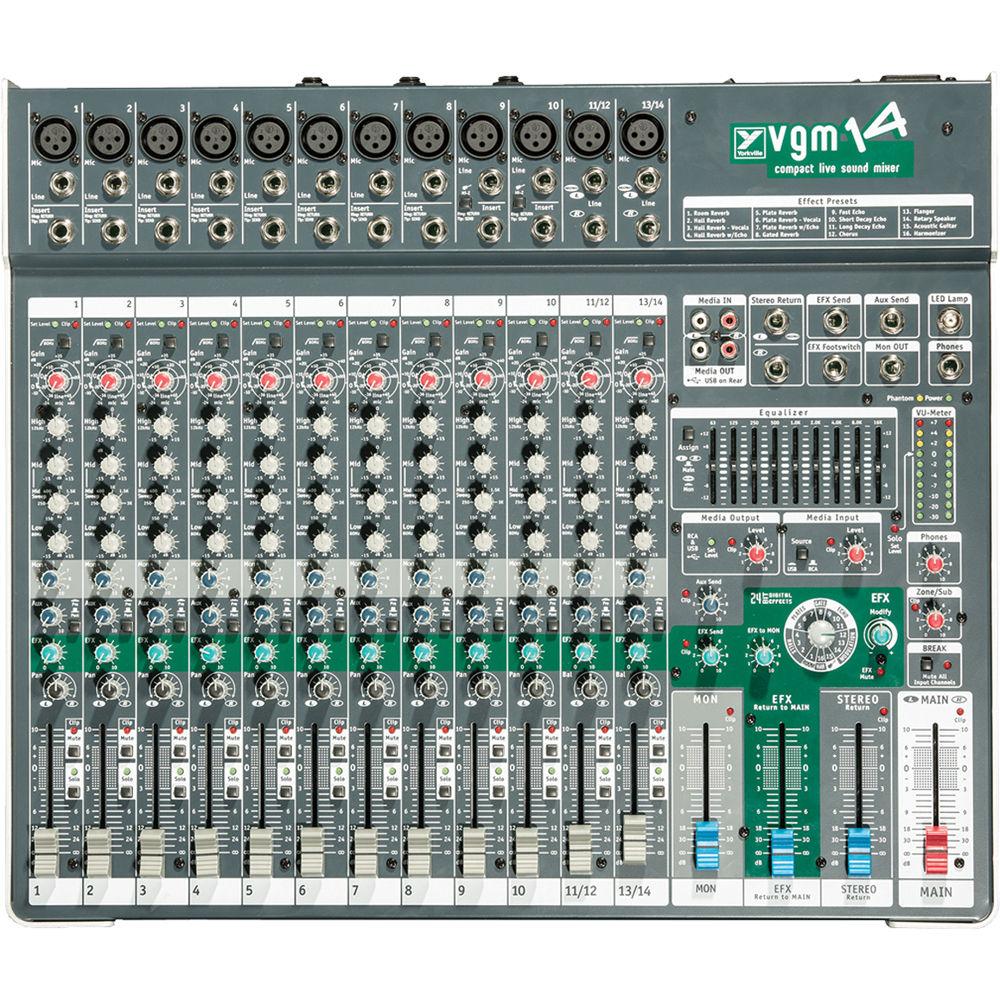

User Manual for Yorkville Sound VGM14 Passive Compact Mixer with 10 Mono XLR & 1 4" Inputs and Global Phantom Power Click to enlarge the picture
Contents of the user manual for the Yorkville Sound VGM14 Passive Compact Mixer
- Product category: Analog Recording Mixers Yorkville Sound
- Brand: Yorkville Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yorkville Sound Analog Recording Mixers
 |
User manual for the Yorkville Sound VGM14 Passive Compact Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yorkville Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yorkville Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yorkville Sound product will considerably shorten its lifespan!
|
Product description The Yorkville Sound VGM14 Passive Compact Mixer with 10 Mono XLR & 1/4" Inputs and Global Phantom Power is designed for installed and live sound reinforcement applications such as in a club, bar, or music venue. The mixer unit features an all metal chassis, reinforced I/O connectors, 60mm faders, global +48V phantom power, sixteen 24-bit digital effects with TRS output and defeat footswitch jack, USB audio I/O, media I/O via RCA connectors, two high impedance instrument level inputs, a stereo 9-band graphic equalizer, XLR and TRS outputs, a separate sub/zone output, and a break switch to simultaneously mute all input channels.
Each input channel of the mixer features a balanced XLR microphone input, a 1/4" line input, a 1/4" insert, a switchable high-pass filter, gain control, 3-band EQ with mid-sweep control, monitor output control, auxiliary output control, EFX control, pan control, solo switch, mute switch, and a 60mm fader. The effect section includes sixteen presets including room reverb, hall reverb, plate reverb, gated reverb, fast echo, chorus, flanger, rotary speaker, harmonizer and more.
The stereo 9-band graphic EQ allows you to adjust the frequency response of your overall mix and a 12 VDC LED lamp BNC connector output allows you to connect an external lamp for viewing the device in low light venues. The mixer is supplied power via a standard IEC AC line cord, eliminating the need for a proprietary adapter or wall-wart. -
- Ten Mono Input Channels with XLR & ¼-inch TRS inputs
- Channel 9 & 10 Mono Inputs have a Hi-Z input switch
- Two Additional stereo line input channels (11/12 and 13/14)
- Additional XLR mono input per stereo channel for maximum 12 Mic inputs
- Input gain level control with Non-defeatable soft multi-slope compressor on every input
- 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
- 60mm Faders Throughout
- Global 48 volt Phantom Power
- Stereo 9-band graphic EQ Assignable Main/Monitor
- Stereo RCA Media Outputs with Level Control
- BREAK Switch (mutes all input channels)
- Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
- USB Audio I/O
- Zone/Sub Output with Level Control
- Main stereo TRS phone and XLR outputs
- Sixteen 24-bit digital audio effects
- Effects TRS output jack
- Effects defeat footswitch jack
- Effects return to Main and Monitor
- Stereo Return TRS jacks with fader
- Headphone Level Control
- Dual 10-segment LED Output Meter
- IEC removable line cord receptacle (No Adaptors)
- Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.
- Effects
-
- Room Reverb
- Hall Reverb
- Hall Reverb - Vocals
- Hall Reverb w/ Echo
- Plate Reverb
- Plate Reverb - Vocals
- Plate Reverb w/Echo
- Gated Reverb
- Fast Echo
- Short Decay Echo
- Long Decay Echo
- Chorus
- Flanger
- Rotary Speaker
- Acoustic Guitar
- Harmonizer
UPC: 840402029946 In the Box Yorkville Sound VGM14 Passive Compact Mixer with 10 Mono XLR & 1/4" Inputs and Global Phantom Power Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yorkville Sound VGM14 Passive Compact Mixer with 10 Mono XLR & 1 4" Inputs and Global Phantom Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYorkville Sound VGM14 Specs | Number of Channels | 14 | | Channel Inserts | 10 | | Equalization | Mono: 3-band with mid sweep
Stereo: 4-band | | Balance Control | Channels: 11/12, 13/14 | | Panning Range | Channels: 1 to 10 | | Overload Protection | Yes | | Inputs | XLR (balanced): 12
1/4": 14
RCA: 1 stereo pair | | Solo/Mute | All channels | | High Pass Filter | All channels | | Solo/Mute | All channels with LED indicator light | | Clip | All channels with LED indicator light | | Phantom Power | +48V with LED indicator light | | Effects Engine | 24-bit stereo / 16 effects with modify control | | Auxiliary Sends | Yes | | Effects Sends | Yes | | Effects Return | Yes
Return to Main: Yes
Return to Monitor: Yes | | Foot Switch | yes | | Record Output | Yes (RCA and USB) | | Maximum Gain | To Line Out-Mic Input (dB): 80 dB
To Line Out-Line Input (dB): 65 dB | | Signal to Noise Ratio | Greater than 100 dB | | Frequency Response | 20 to 20,000 Hz | | Reference Input | -118 dBV (at 150Ω) | | THD | Less than 0.05% | | Crosstalk | Less than -60 dB | | CMRR | 55 dB / 65 dB | | Power Consumption | 26 VAC (typical) | | Cooling | Fan | | Transformer | SMPS | | Chassis | Steel | | Console Light | Connector: 12 VDC (BNC) | | Dimension (DxWxH) | 16.00 x 19.00 x 2.80" (40.60 x 48.30 x 7.10 cm) | | Weight | 13 lb (5.9 kg) | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 22.9 x 20.0 x 6.0" |
