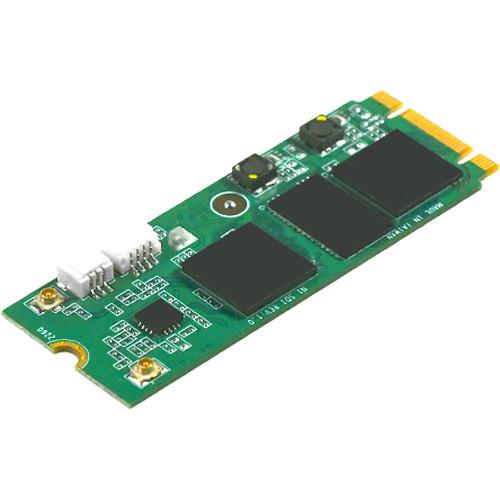

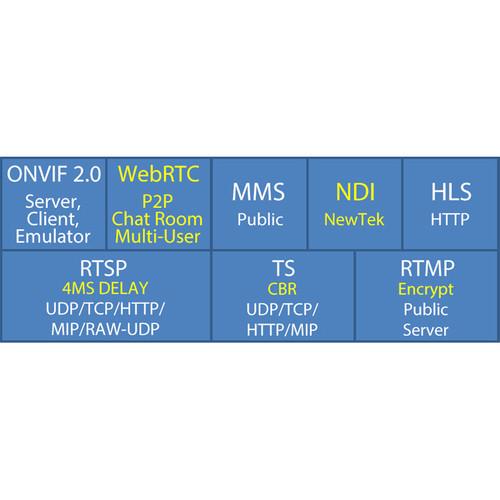

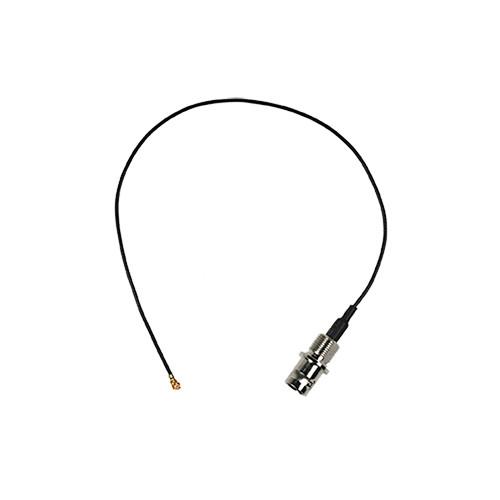

Product description The YUAN SC540N1 1-Channel M.2 SDI Capture Card allows you to connect an SDI source and capture up to 1920 x 1080 resolution with embedded audio. It is compatible with Windows XP, Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, and Linux 2.6.14 or higher operating systems. The card can be installed in your system via an M.2 (PCIe x1) interface. In addition, it also supports YV12, NV12, YUY2, RGB24, and RGB32 video formats. UPC: 653559998788 Table of Contents
|
Upload User Manual
Have you got an user manual for the YUAN SC540N1 1-Channel M.2 SDI Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUAN SC540N1 M2 SDI Specs | Maximum Frame Rates | 1920 x 1080p at 60/50 fps in → 1920 x 1080p at 30/25 fps out | | Recording Modes | Software compression, real-time mode | | Interface | M.2 (PCIe x1) | | Video Input | 1 x SDI | | Video Output | 1 x SDI (loop-through) | | Video Format | Display Video Format: YV12, NV12, YUY2, RGB24, RGB32
Recording: H.264 (software compression) | | Resolution | Video RAW Data/Recording Video
HD-SDI
1920 x 1080p at 30/25/24 fps
1920 x 1080i at 60/50 fps
1280 x 720p at 60/50 fps | | Audio Input | 1 x SDI embedded audio
Audio L/R (through wafer connector) | | Audio Output | 1 x SDI embedded audio | | Audio Format | Stereo / 16-bit / 32,000 to 48,000 Hz | | Multiple Units | ∞ | | SDK | Support API: DirectShow, V4L2, FFmpeg, Gstreamer
Support Languages : C++, C#, .NET, Visual Basic, Qt, Delphi | | OS Supported | Windows XP / Vista / Windows 7
Windows 8 / Windows 8.1 / Windows 10

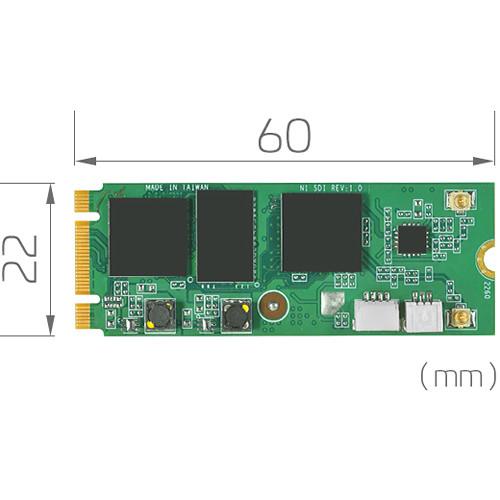

Linux 2.6.14 or higher (32-bit and 64-bit) | | Dimensions | 0.8 x 2.3" (22 x 60 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 9.3 x 5.9 x 1.8" |
