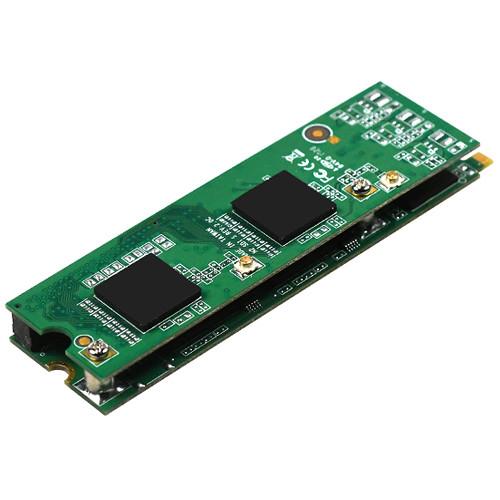

User Manual for YUAN SC550N2 2-Channel M.2 SDI Capture Card Click to enlarge the picture
Contents of the user manual for the YUAN SC550N2 2-Channel M.2 SDI Capture
- Product category: Computer Hardware YUAN
- Brand: YUAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YUAN Computer Hardware
 |
User manual for the YUAN SC550N2 2-Channel M.2 SDI Capture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YUAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YUAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YUAN product will considerably shorten its lifespan!
|
Product description The YUAN SC550N2 2-Channel M.2 SDI Capture Card allows you to connect up to two SDI sources and capture up to 1920 x 1080 resolution with 2-channel embedded audio. It is compatible with Windows XP, Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, and Linux 2.6.14 or higher operating systems. The card can be installed in your system via an M.2 (PCIe x1) interface. In addition, it also supports YV12, NV12, YUY2, RGB24, and RGB32 display video formats. UPC: 653559998771 Table of Contents
|
Upload User Manual
Have you got an user manual for the YUAN SC550N2 2-Channel M.2 SDI Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUAN SC550N2 SDI M.2 Specs | Maximum Frame Rates | 1920 x 1080p at 50/60 fps in → 1920 x 1080p at 50/60 fps out | | Recording Modes | Software compression, real-time mode | | Interface | M.2 (PCIe x1) | | Video Input | 2 x SDI | | Video Format | Display Video Format: YV12, NV12, YUY2, RGB24, RGB32 | | Resolution | Video RAW Data/Recording Video
3G-SDI
1920 x 1080p at 50/60 fps
HD-SDI
1920 x 1080p at 30/25/24 fps
1920 x 1080i at 50/60 fps
1280 x 720p at 50/60 fps
SD-SDI
720 x 480i at 60 fps
720 x 576i at 50 fps | | Recording Video Format | H.264 (software compression) | | Audio Input | 2 x SDI embedded audio | | Audio Format | Stereo / 16-bit / 32,000 to 48,000 Hz | | Multiple Units | ∞ | | SDK | Supported API: DirectShow, V4L2, FFmpeg, Gstreamer
Supported Languages: C++, C#, .NET, Visual Basic, Qt, Delphi | | OS Supported | Windows XP / Vista / Windows 7
Windows 8 / Windows 8.1 / Windows 10

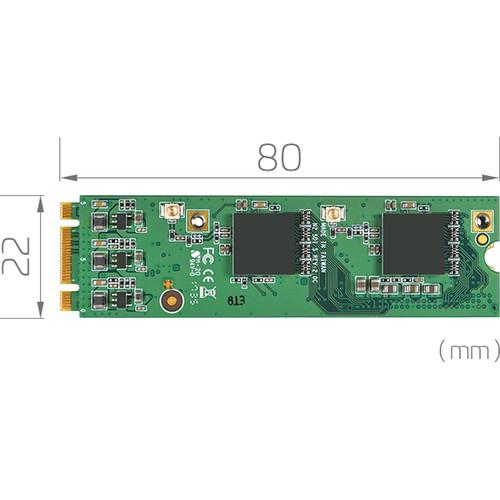

Linux 2.6.14 or higher (32-bit and 64-bit) | | Dimensions | 0.8 x 3.1" (22 x 80 mm) | | Weight | Not specified by the manufacturer |
