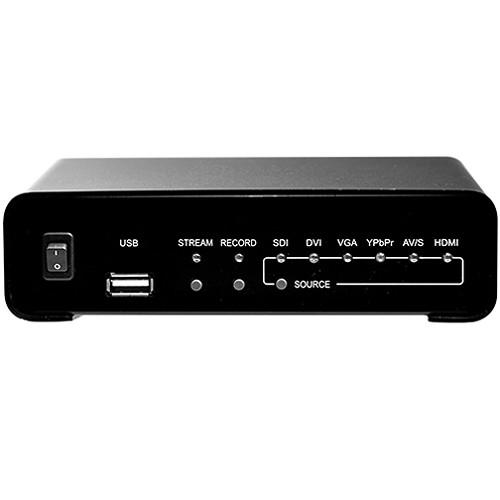

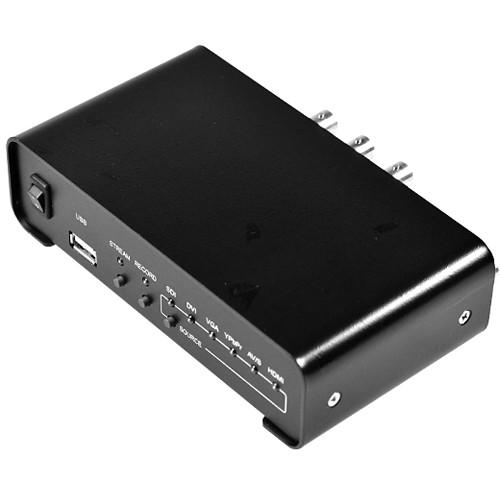

Product description The YUAN SC6C0N1 AIO Streaming Server can save an input source to a local USB disk with H264 hardware compression. It also features a RS-485 port for controlling peripherals and RJ45 port for Ethernet connectivity. The streaming server supports TS Over TCP/UDP (Unicast and Multicast), RTSP Over HTTP/TCP/UDP (RTSP Elementary Stream), RTMP (Publish), and HLS protocols. In addition, the server supports resolutions up to 1920 x 1080 at 60/50 fps. - Dynamic parameter settings
- Web UI for system configuration
- Status with power recycle
UPC: 653559998801 Table of Contents
|
Upload User Manual
Have you got an user manual for the YUAN SC6C0N1 AIO Streaming Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

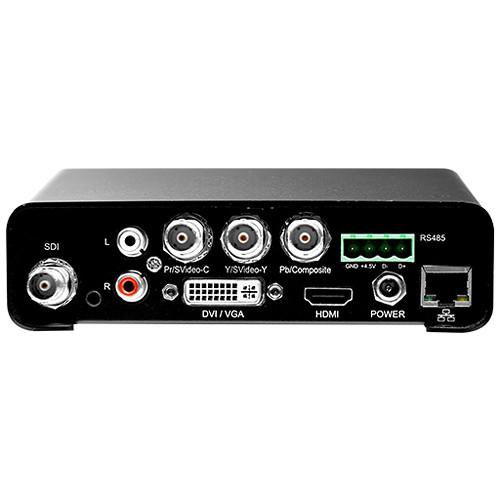

Technical parametersYUAN SC6C0 N1 AIO Specs | Maximum Frame Rate | 60/50 fps at 1920 x 1080p | | Recording Modes | Hardware compression, real-time mode | | Input Interfaces | Video
1 x BNC for 3G/HD/SD-SDI
3 x BNC for YPbPr /CVBS/S-Video
1 x DVI-I for DVI-D/HDMI and DVI-A/VGA
1 x HDMI
Audio
1 x stereo audio through
1 x RCA for analog L/R audio
SDI/HDMI/DVI-D embedded audio
1 x 3.5 mm phone jack | | Video | H.264/AVC, Baseline/Main/High Profile
Configurable bitrate up to 10 Mbps | | Supported Resolutions | Input
1920 x 1080p 60/50/30/25/24
1920 x 1080i 60/50
1280 x 720p 60/50
1280 x 1024p 60
1280 x 960p 60
1024 x 768p 60
800 x 600p 60
720 x 576p 50
720 x 576i 50
720 x 480p 60
720 x 480i 60
640 x 480p 60
Output
Resize Range from 128 x 128 to 1920 x 1080p 60
Note: Outputs include down scaling | | Audio | AAC-LC
Configurable bitrate range from 32 to 384 Kbps
Sample Rate: 48 KHz, 16-bit | | Network | 1 x RJ45 for 10/100 Mbps Ethernet
DHCP client | | Streaming Protocols | TS Over TCP/UDP (Unicast & Multicast)
RTSP Over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP (Publish)

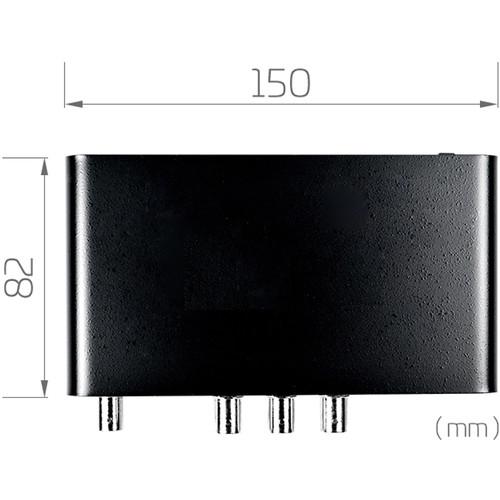

HLS | | USB | 1 x USB 2.0 host for USB storage | | Control | RS-485 | | Record Format | MP4 | | Power Supply | 12 VDC | | Dimensions | 3.2 x 5.9" (82 x 150 mm) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.5 x 5.4 x 3.8" |
