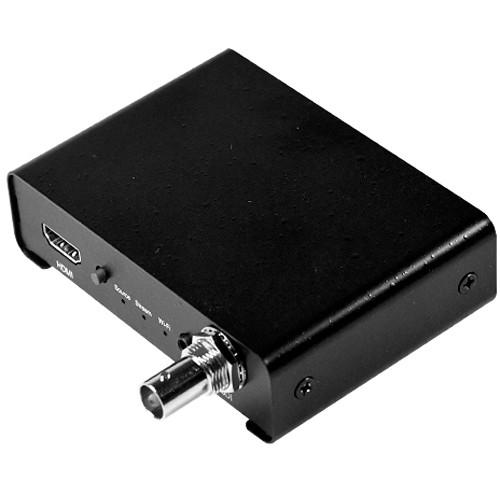

User Manual for YUAN SC6C0N1 Mini Wi-Fi Streaming Server Click to enlarge the picture
Contents of the user manual for the YUAN SC6C0N1 Mini Wi-Fi Streaming Server
- Product category: Streaming Media Solutions YUAN
- Brand: YUAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YUAN Streaming Media Solutions
 |
User manual for the YUAN SC6C0N1 Mini Wi-Fi Streaming Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YUAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YUAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YUAN product will considerably shorten its lifespan!
|
Product description The YUAN SC6C0N1 Mini Wi-Fi Streaming Server supports HDMI/SDI signal streaming and features an RJ45 port for Ethernet connectivity. It supports 802.11b/g/n Wi-Fi standards and offers a PHY rate of up to 150 Mb/s. The streaming server supports TS over TCP/UDP (Unicast and Multicast), RTSP over HTTP/TCP/UDP (RTSP Elementary Stream), RTMP (Publish), and HLS protocols. In addition, the server supports resolutions up to 1920 x 1080 at 50/60 fps. - Dynamic parameter settings
- Web UI for system configuration
- Status with power recycle
UPC: 653559998795 Table of Contents
|
Upload User Manual
Have you got an user manual for the YUAN SC6C0N1 Mini Wi-Fi Streaming Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUAN SC6C0 N1 LITE Specs | Maximum Frame Rate | 50/60 fps at 1920 x 1080p | | Recording Modes | Hardware compression, real-time mode | | Input Interfaces | Video
1 x HDMI
1 x SDI
Audio
1 x 3.5 mm stereo analog audio
SDI/HDMI embedded audio
| | Video | H.264/AVC, Baseline/Main/High Profile
Configurable bit rate up to 10 Mb/s | | Supported Resolutions | Input
1920 x 1080 (P60/P50/P30/P25/P24/i60/i50)
1280 x 720 (P60/P50), 1280 x 1024 (P60), 1280 x 960 (P60)
1024 x 768 (P60), 800 x 600 (P60), 720 x 480 (P60/i60)
640 x 480 (P60), 720 x 576 (P50/i50)
Output
Resize Range from 128 x 128 to 1920 x 1080 (P60)
Note: Outputs include down scaling | | Audio | AAC-LC
Configurable bit rate range from 32 to 384 kb/s
Sample Rate: 48 kHz, 16-bit | | Network | 1 x RJ45 for 10/100Mb/s Ethernet
DHCP client | | Wi-Fi | 802.11b/g/n
Supports 150 Mb/s PHY rate | | Streaming Protocols | TS over TCP/UDP (Unicast & Multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP (Publish)
HLS | | Power Supply | 12 VDC | | Dimensions | 2.5 x 3.9" / 65.6 x 100 mm | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.3 x 5.9 x 1.8" |
