Product description The YUAN vMix Bundle includes the vMix Live Production Software HD (Download Only) and SC542N4 4-Channel PCIe x4 SDI Capture Card. - SC542N4 4-Channel PCIe x4 SDI Capture Card The YUAN SC542N4 4-Channel PCIe x4 SDI Capture Card allows you to connect up to four SDI sources and capture up to 1920 x 1080 resolution with 4-channel embedded audio. It is compatible with Windows XP, Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, and Linux 2.6.14 or higher operating systems. The card can be installed in your system via a PCIe x4 (Gen2) interface. In addition, it also supports YV12, NV12, YUY2, RGB24, and RGB32 display video formats. UPC: 653559998597
In the Box Bundle Items

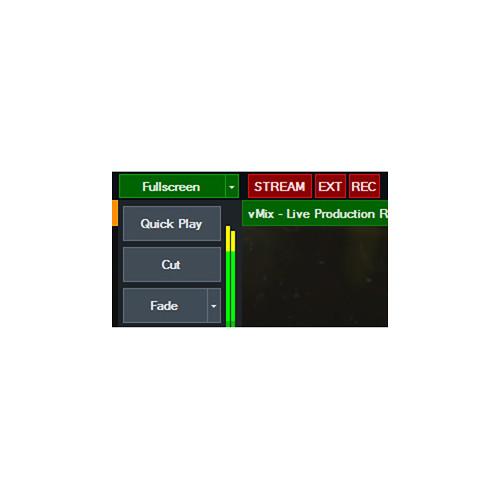

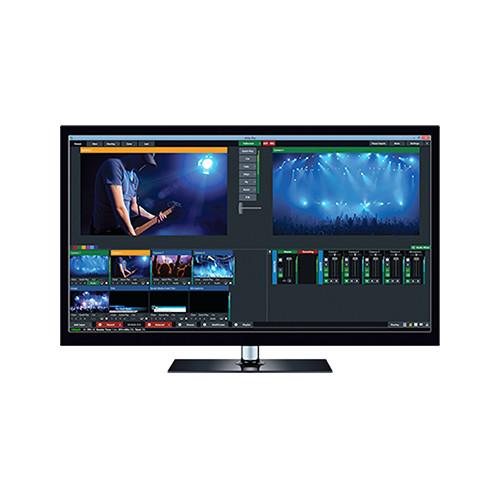

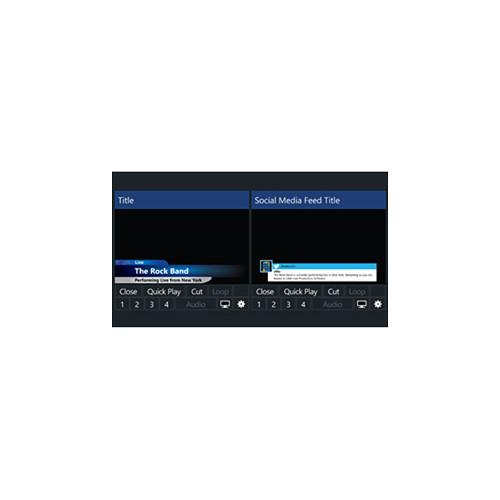

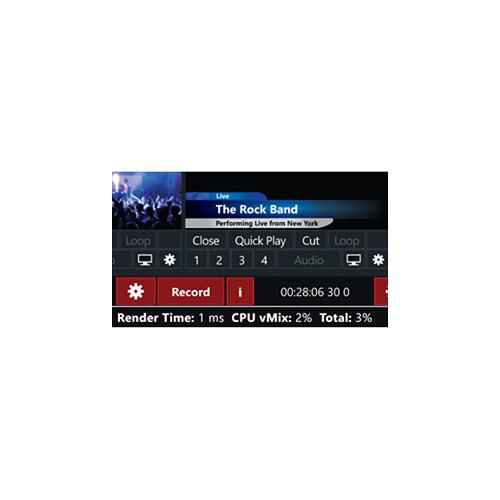

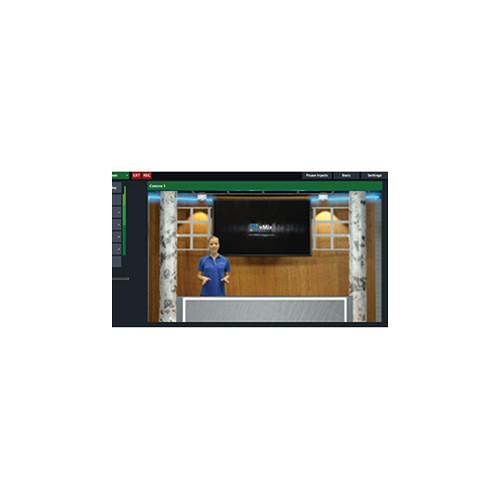

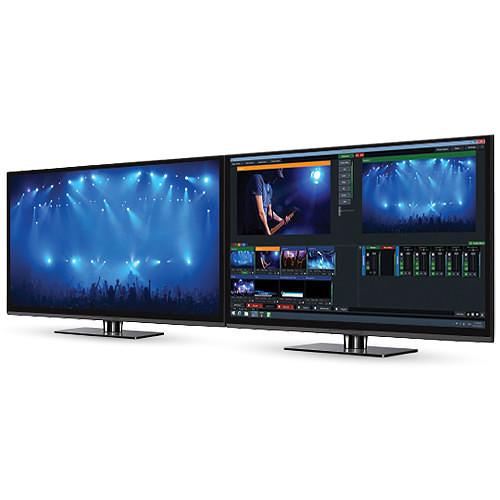

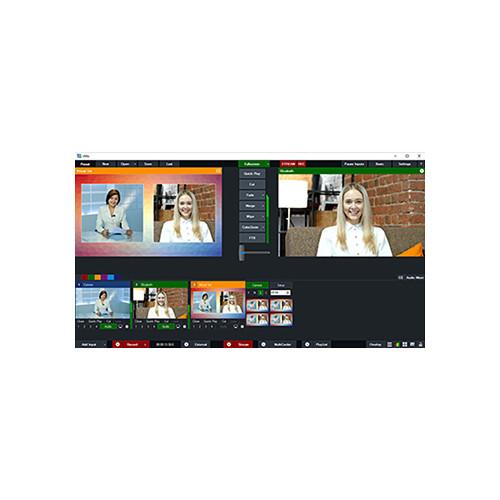

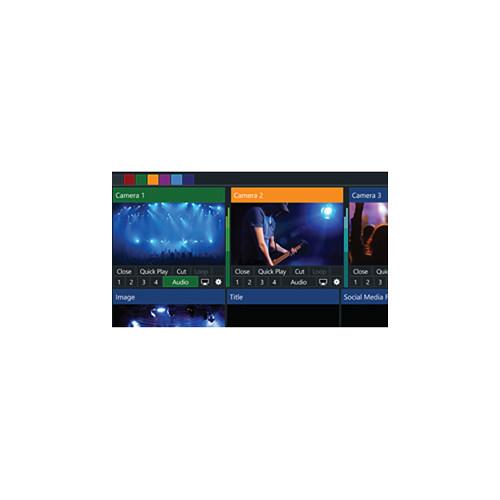

Also Includes - vMix Live Production Software HD (Download Only)
SC542N4 4-Channel PCIe x4 SDI Capture Card Table of Contents
|
Upload User Manual
Have you got an user manual for the YUAN vMix Software HD and SC542N4 4-Channel PCIe x4 SDI Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SC542N4 4-Channel PCIe x4 SDI Capture Card
| Maximum Frame Rates | 1920 x 1080p at 50/60 fps in → 1920 x 1080p at 50/60 fps out | | Recording Modes | Software compression, real-time mode | | Interface | PCIe x4 (Gen2) | | Video Input | 4 x SDI | | Video Format | Display Video Format: YV12, NV12, YUY2, RGB24, RGB32 | | Resolution | Video RAW Data/Recording Video
3G-SDI
1920 x 1080p at 50/60 fps
HD-SDI
1920 x 1080p at 30/25/24 fps
1920 x 1080i at 50/60 fps
1280 x 720p at 50/60 fps
SD-SDI
720 x 480i at 60 fps
720 x 576i at 50 fps | | Recording Video Format | H.264 (software compression) | | Audio Input | 4 x SDI embedded audio
2 x 3.5 mm audio | | Audio Format | Stereo / 16-bit / 32,000 to 48,000 Hz | | I/O | 16 | | Watchdog Function | V | | Multiple Units | ∞ | | SDK | Supported API: DirectShow, V4L2, FFmpeg, Gstreamer
Supported Languages: C++, C#, .NET, Visual Basic, Qt, Delphi | | OS Supported | Windows XP / Vista / Windows 7
Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or higher (32-bit and 64-bit) | | Dimensions | 3.9 x 5.53" (101.01 x 140.51 mm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 9.2 x 5.9 x 1.7" |
