User Manual for YUNEEC H520 Commercial Hexacopter Click to enlarge the picture
Contents of the user manual for the YUNEEC H520 Commercial Hexacopter
- Product category: See All Drones YUNEEC
- Brand: YUNEEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YUNEEC See All Drones
 |
User manual for the YUNEEC H520 Commercial Hexacopter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YUNEEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YUNEEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YUNEEC product will considerably shorten its lifespan!
|

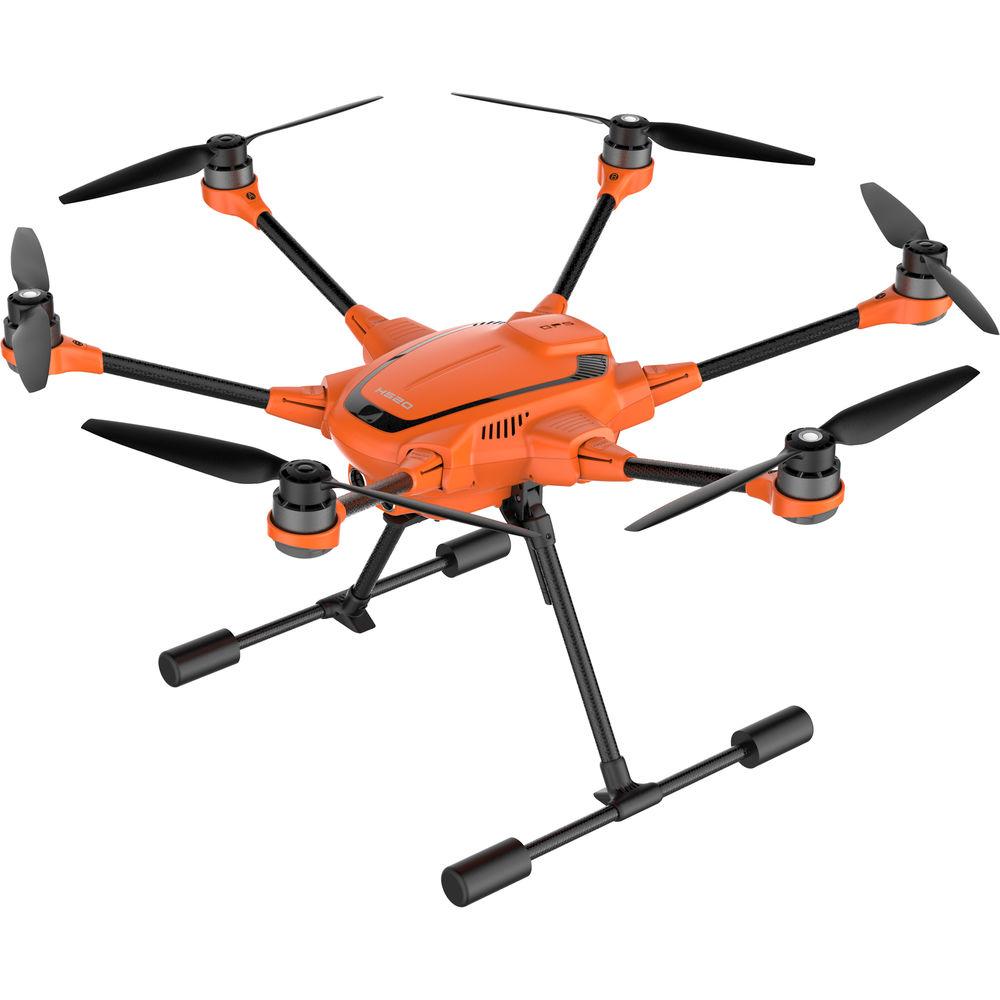

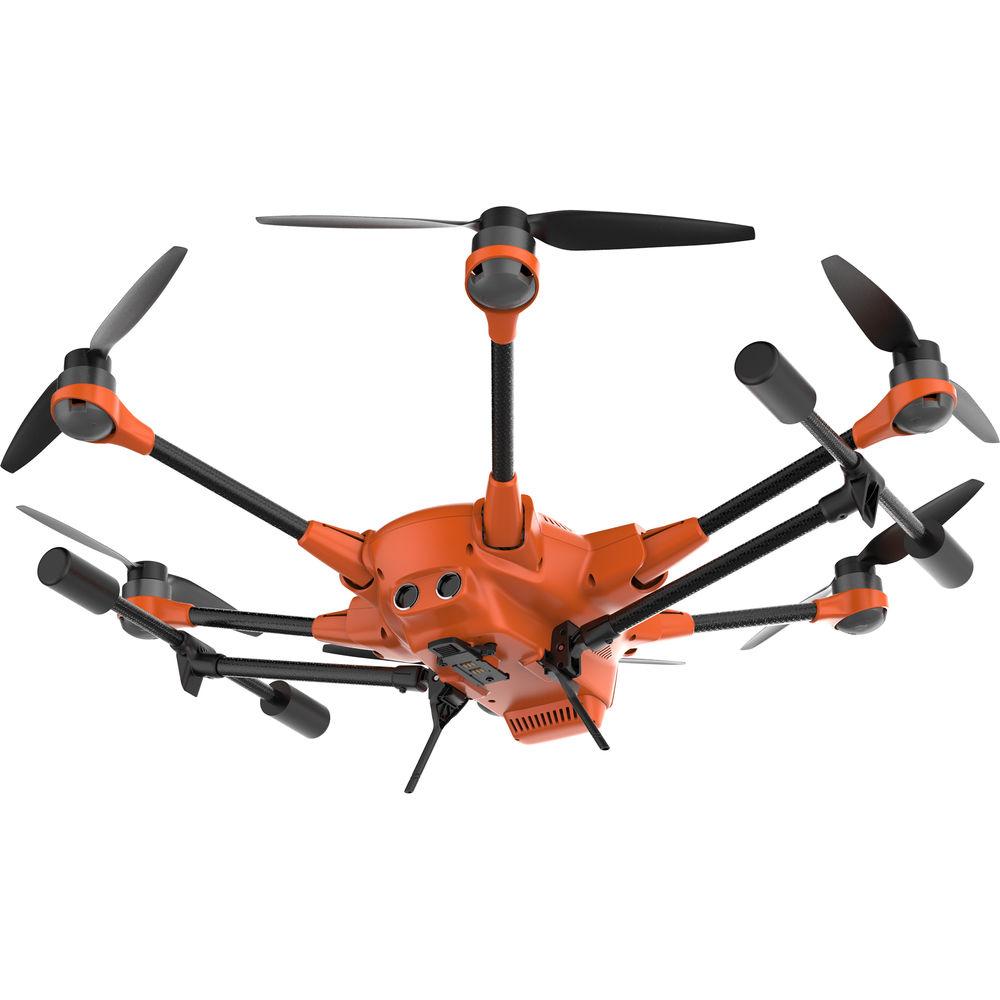

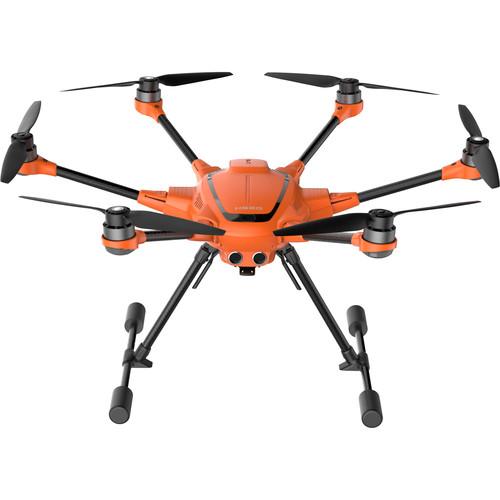

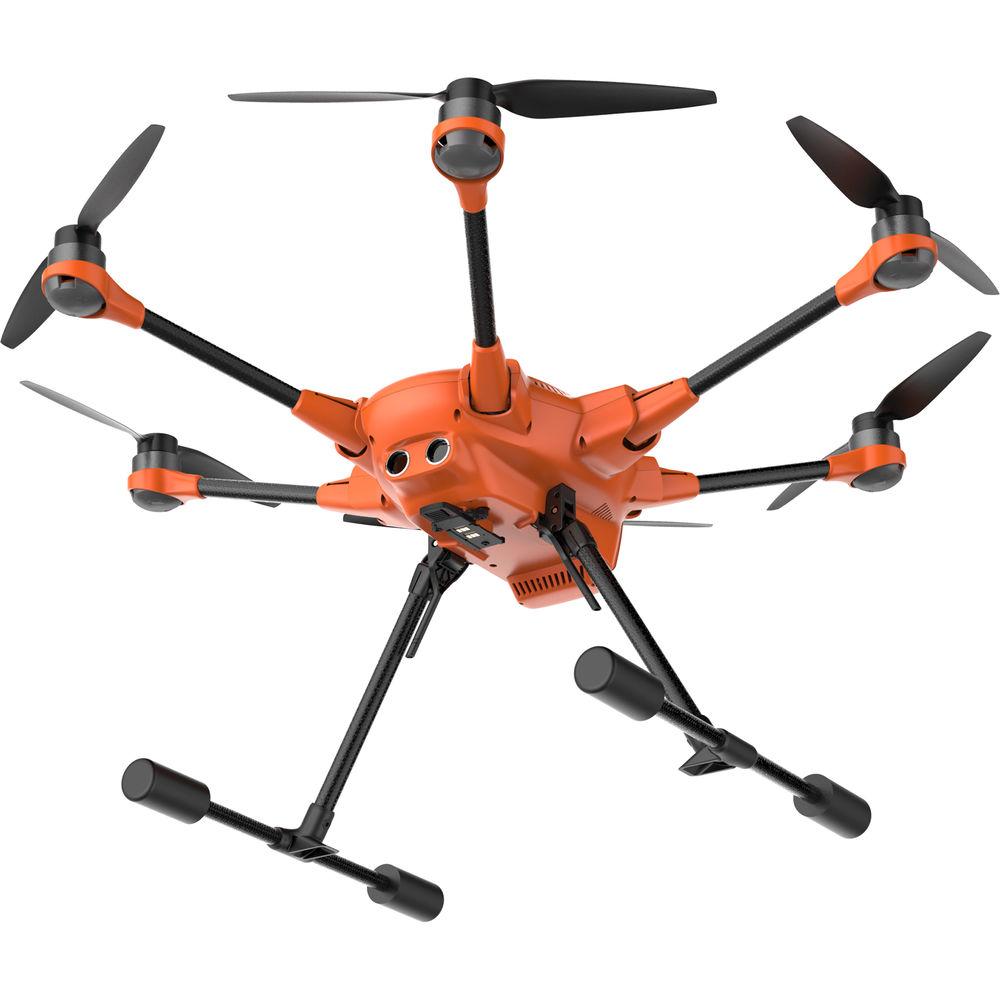

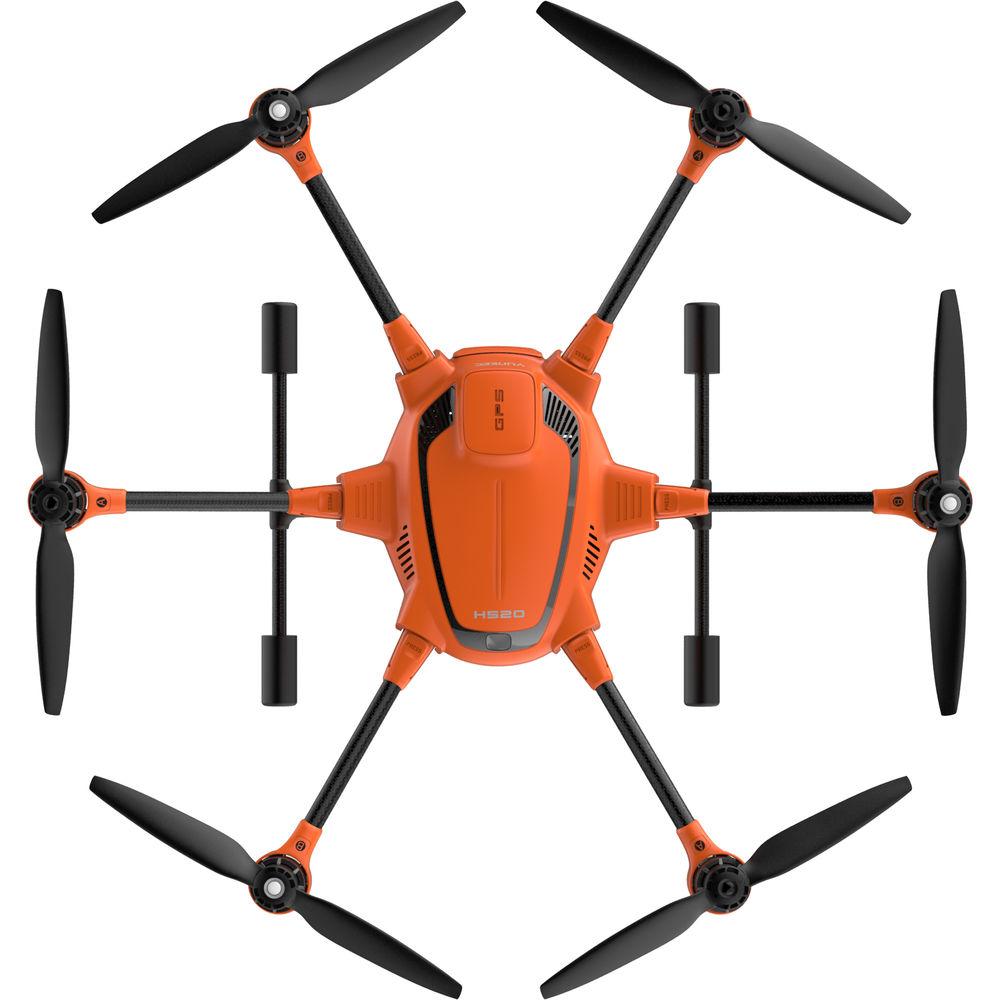

Product description Aerial Photography and Drone Glossary Read More fbqdfttweufzyf The H520 Commercial Hexacopter from Yuneec has been designed to withstand the rigors of jobsite use in a variety of industries, such as law enforcement, construction, mapping, and surveying. The hot-swappable payload system lets you match the H520 frame with the camera of your choice. You can attach a camera that's capable of hi-res video and imaging or a camera that's capable of capturing thermal images (both are not included). With six strong rotors, the H520 has been engineered to help keep your images and video crisp, clear, and stable, even in high wind environments.
The included ST16S Ground Station gives you control of the H520 and whatever gimbal camera you attach to it. This Android-based all-in-one controller is both a transmitter and receiver, letting you pilot the drone and record footage from up to 1 mile away. The built-in 7" touchscreen lets you live stream all of the action as well as map out new destinations using Yuneec's Data Pilot software. It's integrated with the hardware and software control systems of the H520, letting you set waypoint-based flight plans for the H520 to carry out. - Retractable Landing Gear
- The H520's landing gear retracts out of the way to give you a continuous 360-degree view of the world to capture important data in the field. This function also allows smoother and more efficient flight control.
- 28 Minute Flight Time with Ground Tethering
- Depending on the payload, the H520 UAV is capable of up to 28 minutes of flight time per full battery charge. If your needs require longer flight times, you can always tether the drone to power on the ground. This can give you the ability to capture timelapse footage or maintain a constant live video feed.

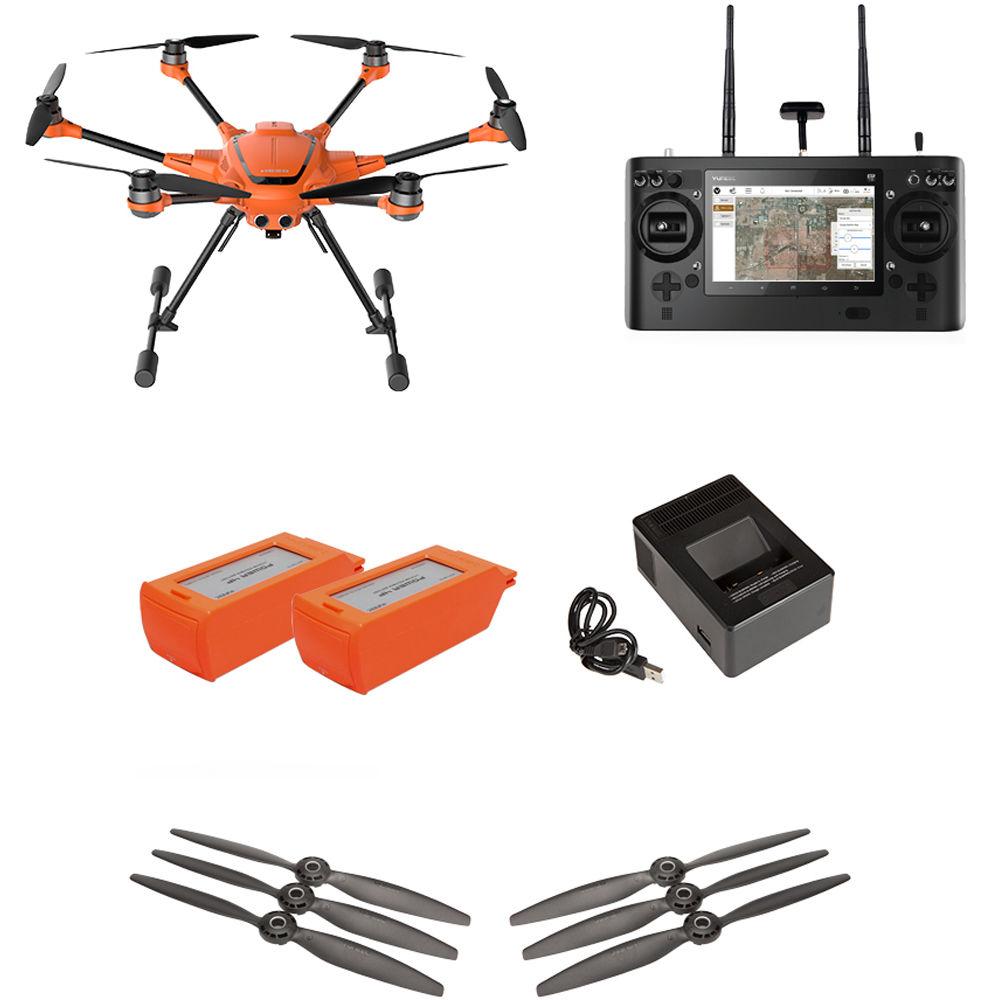

In the Box YUNEEC H520 Commercial Hexacopter ST16S Ground Station Controller 2 x Rechargeable Batteries Battery Charger 10 x Extra Propeller Blades Yuneec Data Pilot software Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 fbqdfttweufzyf Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the YUNEEC H520 Commercial Hexacopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUNEEC TYPHOON H520 Specs | | | Maximum Horizontal Speed | 38 mph / 17 m/s (Manual)
30 mph / 13.5 m/s (Angle) | | Maximum Ascent Speed | 13.1 ft/s / 4 m/s | | Maximum Descent Speed | 8.2 ft/s / 2.5 m/s | | Flight Ceiling | 1640' / 500 m | | Maximum Flight Time | 28 Minutes | | | | GNSS Support | None | | Vision System | None | | | | Operating Frequency | 5.8 GHz | | Maximum Operating Distance | 1 mi / 1.61 km at 5.8 G | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion | | Battery Capacity | 8700 mAh | | Battery Configuration | 1 S / 3.7 V | | Built-In Display Size | 7" | | Display Resolution | 1280 x 720 | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 5250 mAh / 79.8 Wh | | Battery Configuration | 4 S / 15.2 V | | | | Number of Rotors | 6 | | Overall Dimensions | 20.5 x 12.2 x 18.0" / 520.0 x 310.0 x 457.0 mm (Folded) | | Weight | 58.03 oz / 1645 g (Including Battery) |
