User Manual for YUNEEC Mantis Q Drone Click to enlarge the picture
Contents of the user manual for the YUNEEC Mantis Q Drone
- Product category: See All Drones YUNEEC
- Brand: YUNEEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YUNEEC See All Drones
 |
User manual for the YUNEEC Mantis Q Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YUNEEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YUNEEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YUNEEC product will considerably shorten its lifespan!
|

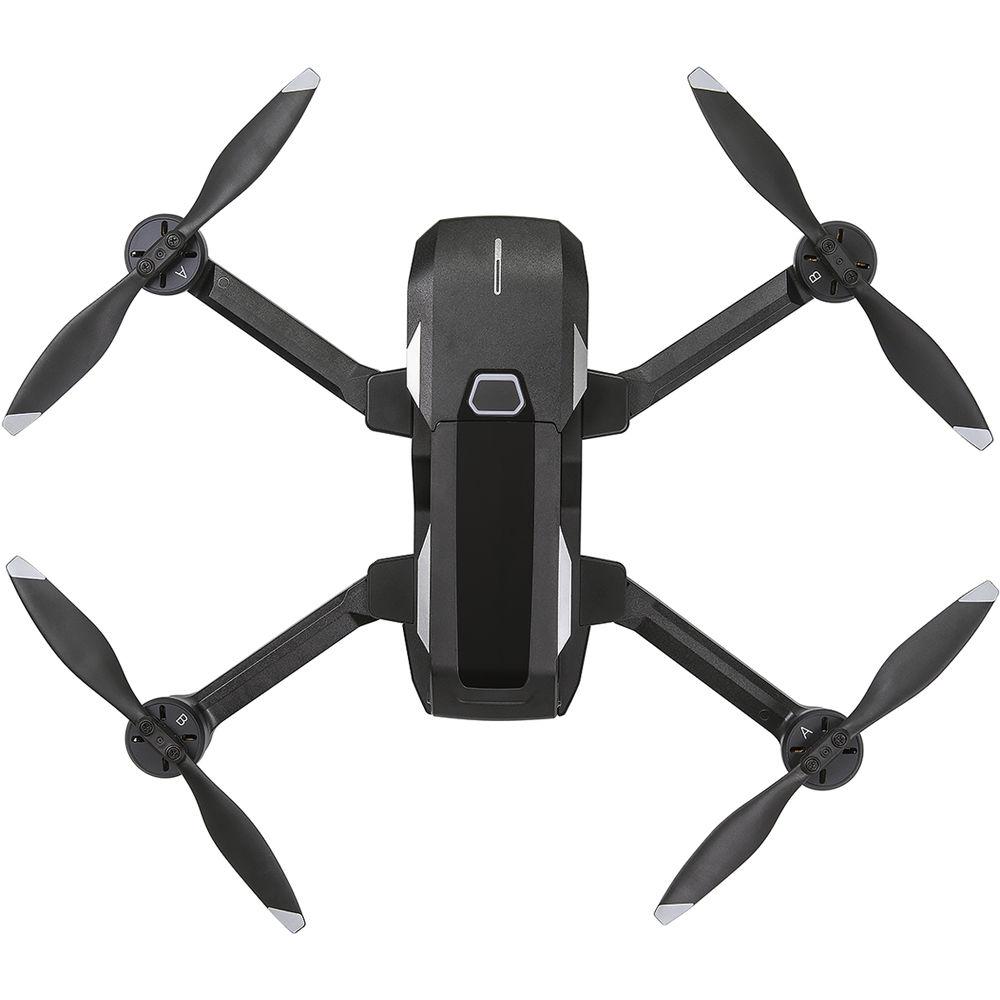

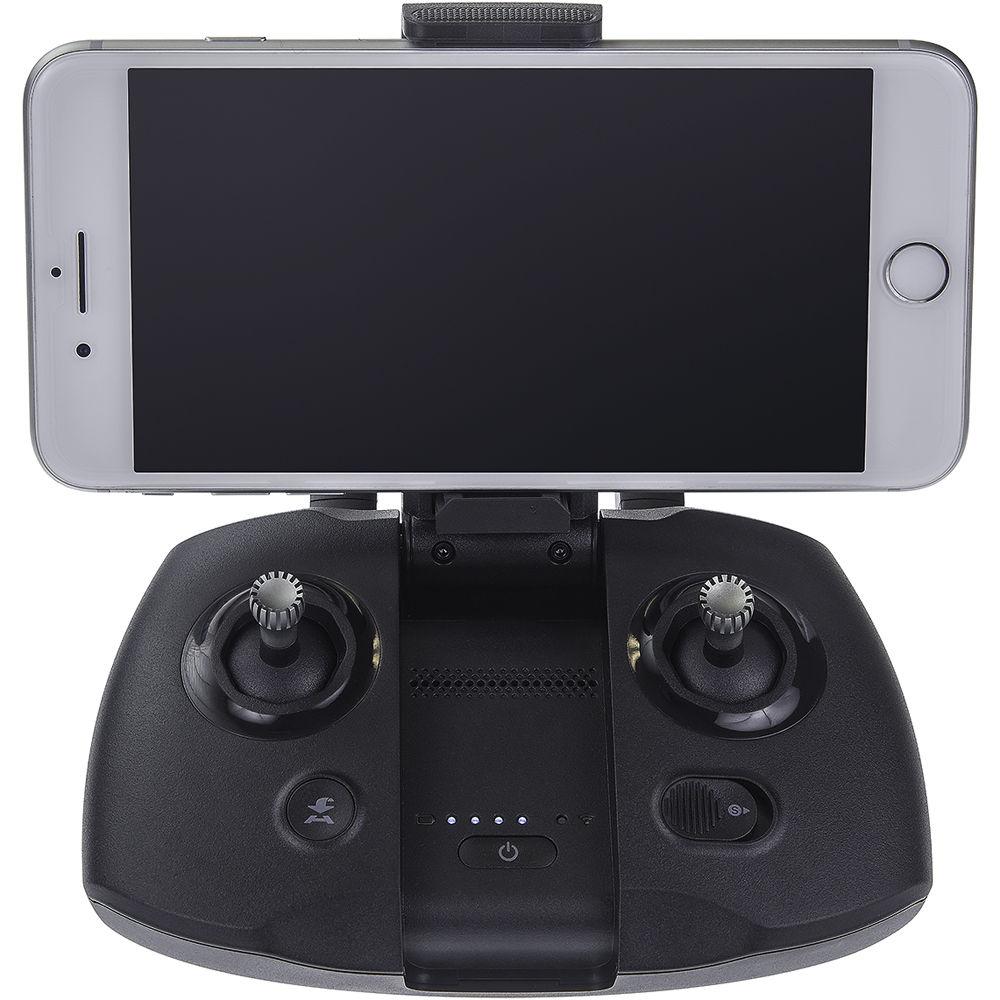

Product description Aerial Photography and Drone Glossary Read More The Mantis Q Drone from Yuneec features a built-in camera that can capture UHD 4K video and high-resolution 16:9 or 4:3 still images. With intelligent flight modes, you can give your 4K footage a professional and cinematic feel; but that's not the only way to control the Mantis Q. A remote controller is included with a built-in smartphone holder, letting you pair an iOS or Android device for standard piloting. In addition, voice and gesture commands can be given for common functions, such as saying "Take a Selfie" or waving your hands to snap a picture.

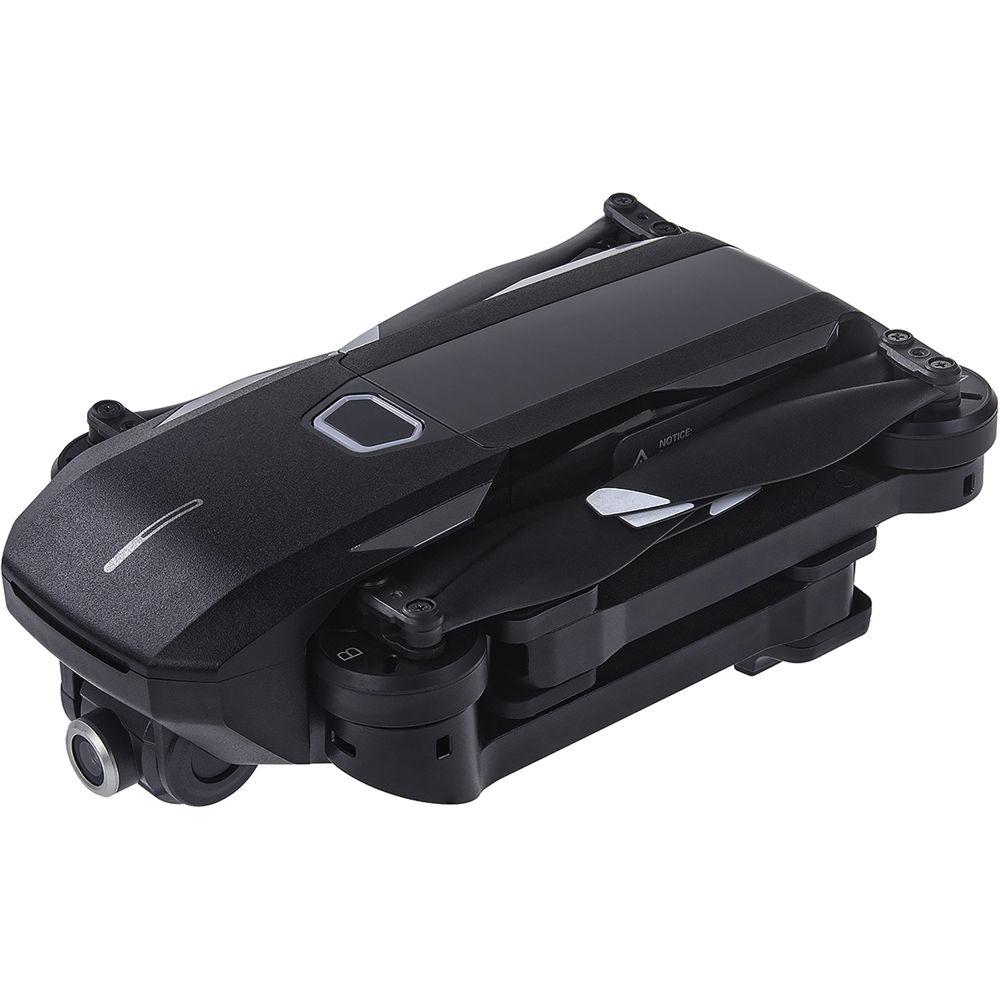

The Mantis Q has been engineered to travel and operate almost anywhere. Yuneec has provided the Mantis Q with advanced stabilization technology, down-facing dual sonar sensors, and infrared detection so it can be flown both indoors and outdoors. When heading outside you can take advantage of the Mantis Q's compact and foldable design which makes it easy to throw into a backpack or bag.
With a top speed of 44.7 mph, you can experience the thrill of racing your Mantis Q quadcopter in sport mode while watching the footage on your smartphone. Video is wirelessly transmitted with a latency up to 200ms. Or you can choose to conserve battery life for aerial photography and videography, flying the Mantis Q for up to 33 minutes on a single battery charge. - Intelligent Flight Modes
- Journey: This customized setting will fly up on a linear path and then return automatically.
Point of Interest: Select an object on your display while in POI (Point of Interest) mode and the Yuneec Mantis Q will automatically circle it while filming.
Visual Follow: Follows a selected target.
Return Home: With the push of a button, the Mantis Q will automatically return to a point near where it took off from. - Gesture and Voice Control
- The Mantis Q can both see and hear you, allowing you to capture footage and take pictures without the need of the remote controller. Simply smile at the drone or wave your arms to tell the Mantis to take a selfie or group shot from up to 13' away. For complete hands-free operation, you can use your voice to tell the Mantis Q quadcopter to "Wake Up" (power on), "Take a Picture", "Record a Video", or "Take a Selfie".
UPC: 817206022794 In the Box YUNEEC Mantis Q Drone Remote Controller Battery 16GB MicroSD Card 4 x Propeller 3-Port Battery Dock Charger USB Type-C Cable Power Supply and Adapter Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the YUNEEC Mantis Q Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the YUNEEC Mantis Q Drone can be downloaded in PDF format at the link stated below.
Technical parametersYUNEEC MANTIS Q Specs | | | Maximum Takeoff Weight | 16.9 oz / 479 g | | Maximum Horizontal Speed | 44.7 mph / 71.9 km/h (Sport)
13.4 mph / 21.6 km/h (Angle/Manual)
8.9 mph / 14.3 km/h (IPS/Phone) | | Maximum Ascent Speed | 8.9 mph / 14.3 km/h | | Maximum Descent Speed | 6.7 mph / 10.8 km/h | | Maximum Flight Time | 33 Minutes | | | | GNSS Support | GPS, GLONASS | | | | Vision System | Downward, Forward | | | | Operating Frequency | 5.8 GHz | | Maximum Operating Distance | 4921' / 1499.92 m at 5.8 G | | Connectivity | 1 x USB Type-C | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion | | Battery Capacity | 3000 mAh | | App Operating System Requirements | Android 5.0 and later
iOS 9.0 and later | | | | Sensor | 1/3" CMOS | | Effective Pixels | 13 MP | | Lens Field of View | Horizontal: 117° | | Photo ISO Range | 100 - 3200 (Auto) | | Video ISO Range | 100 - 3200 (Auto) | | Electronic Shutter Speed | 8 - 1/8000 Second | | Photo Resolution | 16:9: 4800 x 2700
4:3: 4160 x 3120 | | Photo Format | JPEG, DNG | | Video Format | 3840 x 2160p at 30 fps
1920 x 1080p at 30/60 fps
1280 x 720p at 60 fps | | Photo Modes | Single Shot | | | | Number of Axes | 1 (Pitch) | | Control Range | Pitch: -90 to 20° | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 2800 mAh | | Battery Configuration | 3 S / 11.4 V | | | | Number of Rotors | 4 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Overall Dimensions | 7.4 x 2.3 x 9.8" / 18.8 x 5.8 x 24.9 cm (Unfolded)
3.8 x 2.3 x 6.6" / 9.7 x 5.8 x 16.8 cm (Folded) | | Weight | 1 lb / 454 g (Including Camera) | | | | Package Weight | 3.72 lb | | Box Dimensions (LxWxH) | 10.75 x 6.25 x 5.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to YUNEEC Mantis Q Drone
| Subject: Ik bediening via controller. | | Date: 21.10.2022 17:14:03 | Name: Frans Jacobs | | Ik kan nu mijn drone alleen bedienen via mijn i phone. Waar vind ik de instelling naar het bedienen via de joysticks op de controller.Ik kan nu de joysticks niet gebruiken. | | Post reply |
