Product description Aerial Photography and Drone Glossary Read More - Typhoon H - 4K UHD Camera Drone

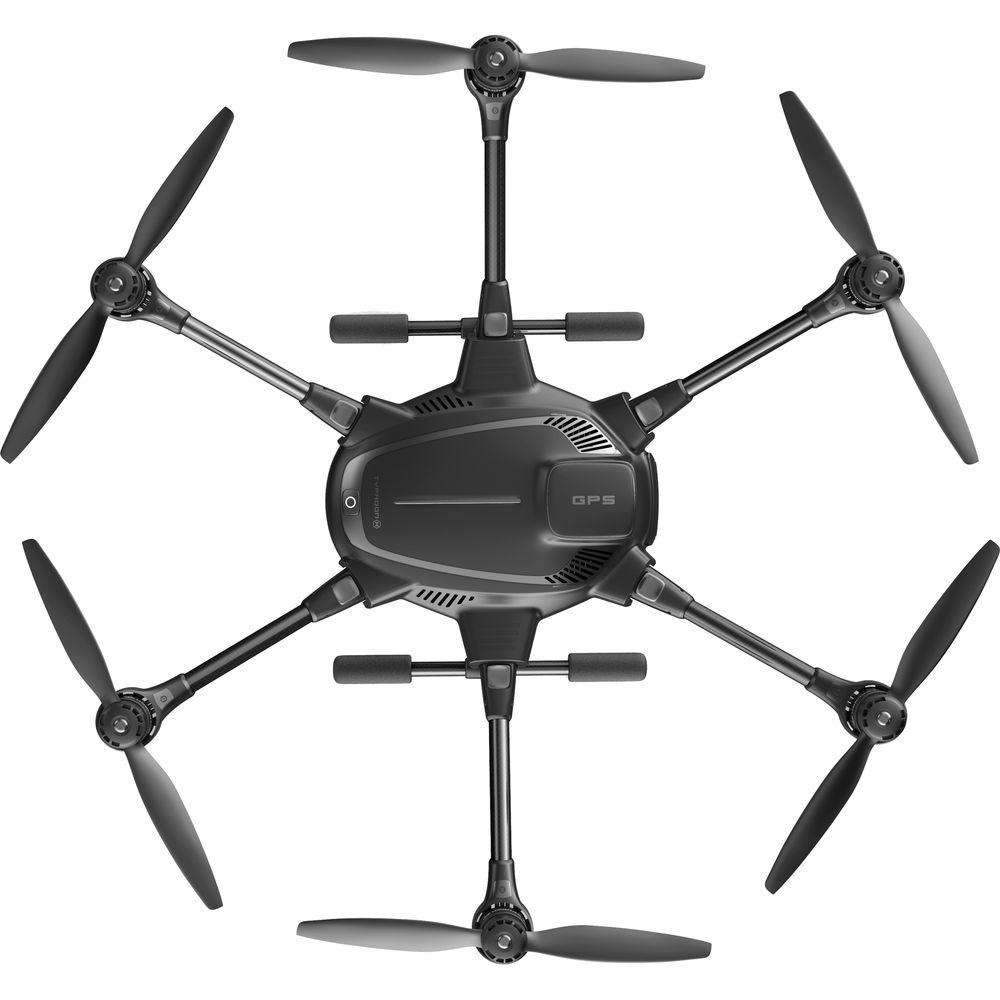

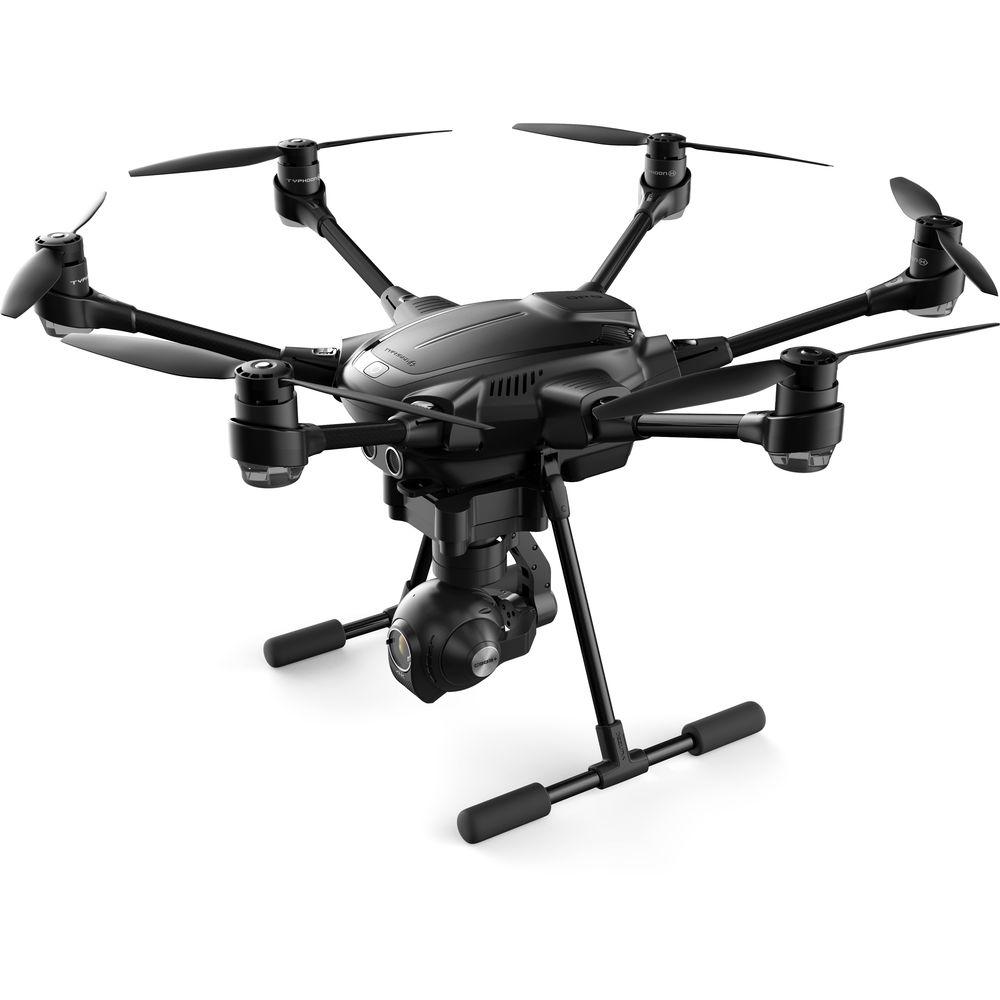

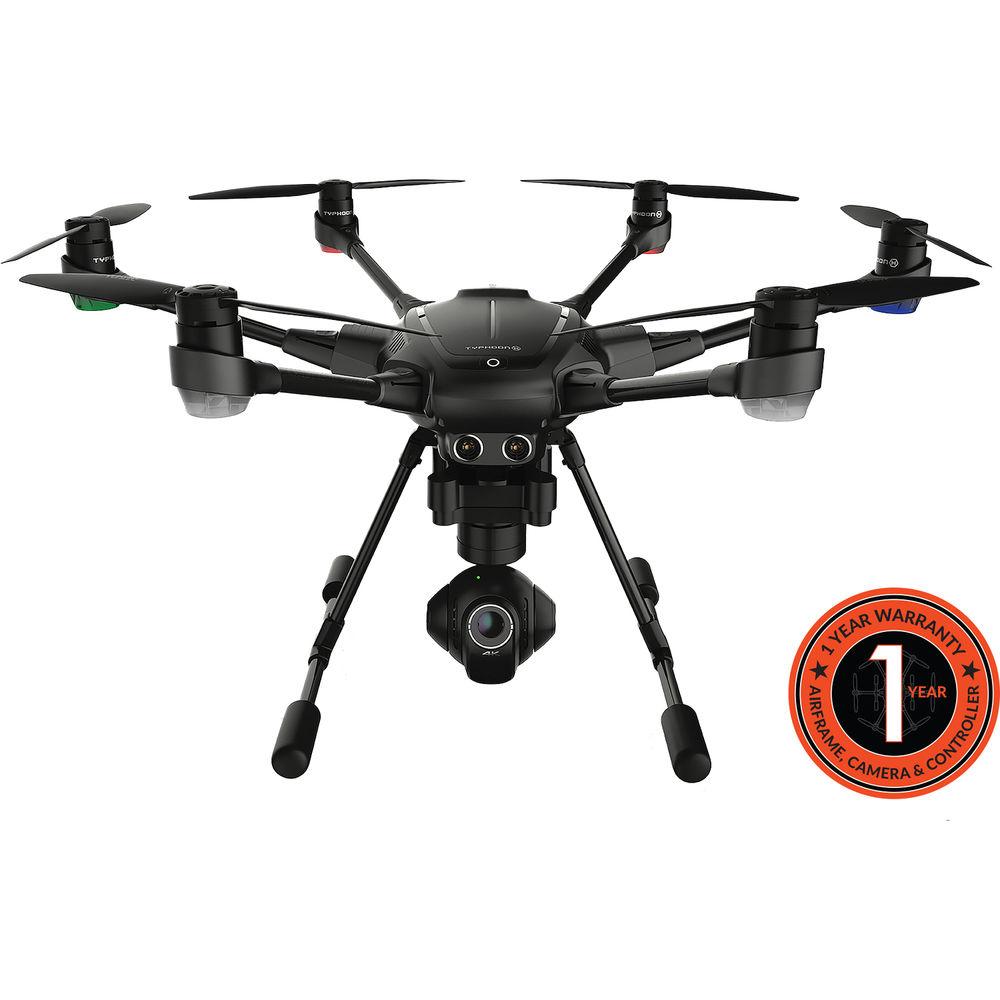

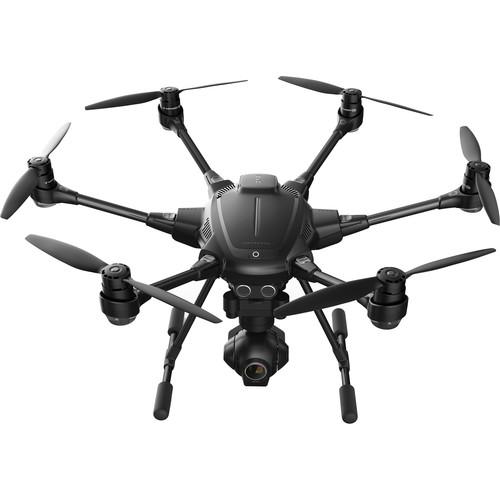

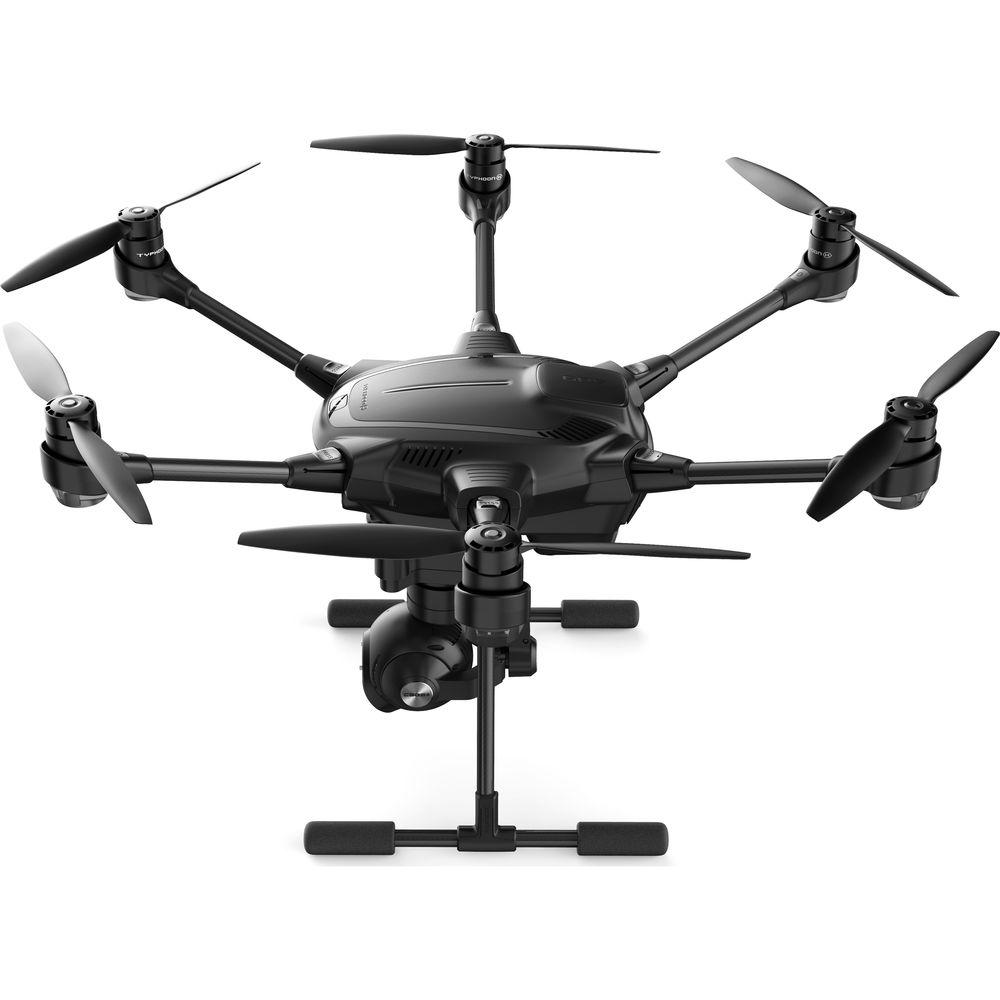

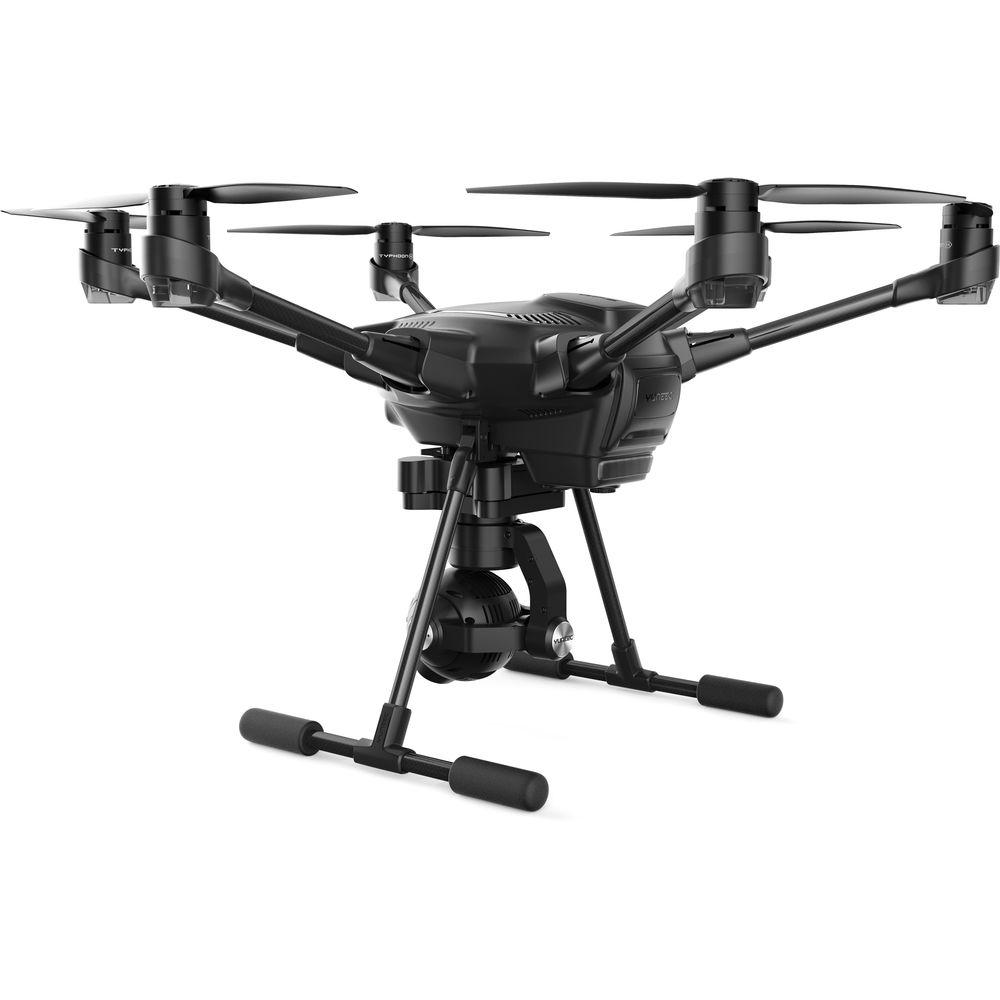

The Typhoon H from YUNEEC hexacopter features the GCO3+ gimbal-stabilized, 4K camera with 12MP stills mode, making it a great choice for aerial imaging of all types. The Typhoon H's hexa-rotor design offers better flight stability and more precise control compared to four-rotor systems – plus, it means failure of a single motor will not be fatal. The landing gear retracts in-flight, offering an unobstructed 360 degrees of shooting. Carbon fiber parts and folding motor arms reduce the Typhoon H's weight and profile for easy transport – even to the remotest of locations.
This version of the Typhoon H features a smaller box that the original. The foam that comes in this box is compatible with the separately available YUNTYHBP002 backpack. Flight Control System - No Fly Zones
- The No Fly Zone preset locks the Typhoon H's flight ceiling at 400' above ground level at the takeoff point. This feature helps ensure compliance with FAA sUAS operational guidelines. In addition, Geo-Fencing can be enabled to further restrict possible flight patterns, locking the hexacopter within a user-defined radius of the pilot
- Dynamic Return to Home
- Simply switch to Home Mode and Typhoon H will return and land within 26' of you
- Point-of-Interest (POI)
- Locks the hexacopter in a circular orbit pattern around the takeoff point. This mode is especially useful for creating a circular "tracking" shot with a bird's eye view. In this mode the camera can still be moved independently
- Orbit Me
- The Typhoon H flies a circular path around you, keeping the camera trained on you the whole time. This is similar to Point-of-Interest, except locking onto the pilot rather than an arbitrary object
- Journey
- The Typhoon H will fly up and out, as far as 150', and capture the perfect aerial selfie
- Curve Cable Cam
- Program an invisible route for Typhoon H to fly along. Typhoon H will fly between pre-set coordinates while independently controlling camera position
- Watch Me / Follow Me
- Watch Me ensures Typhoon H will stay in one place and always point the camera at you wherever you go. Follow Me tells Typhoon H to keep the camera pointed at you as it moves along with you

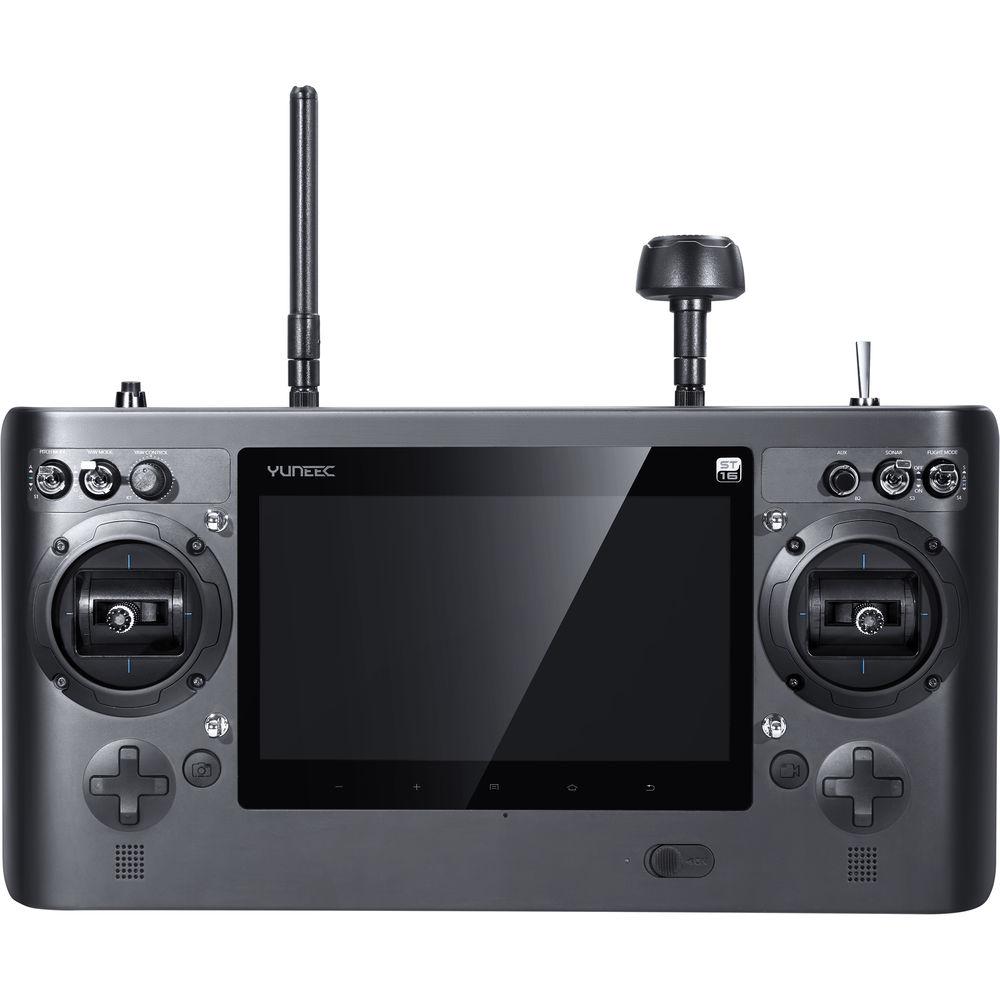

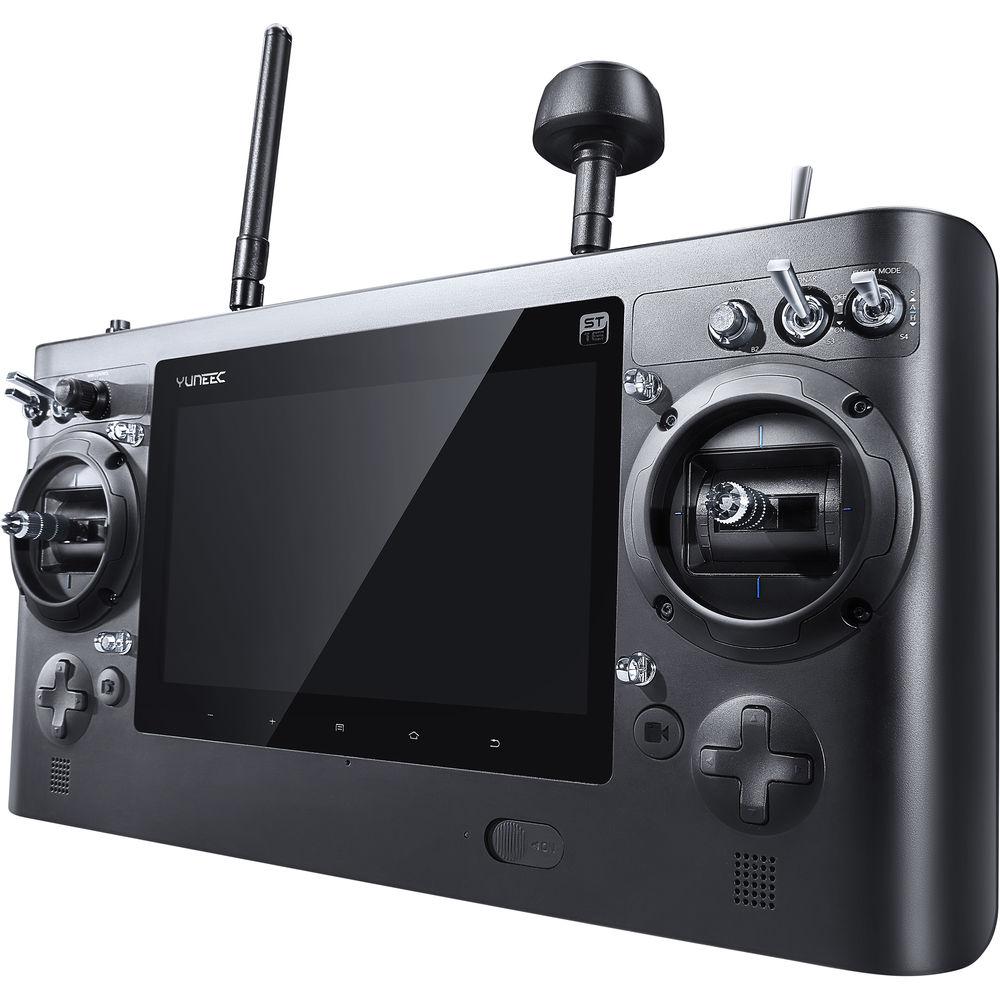

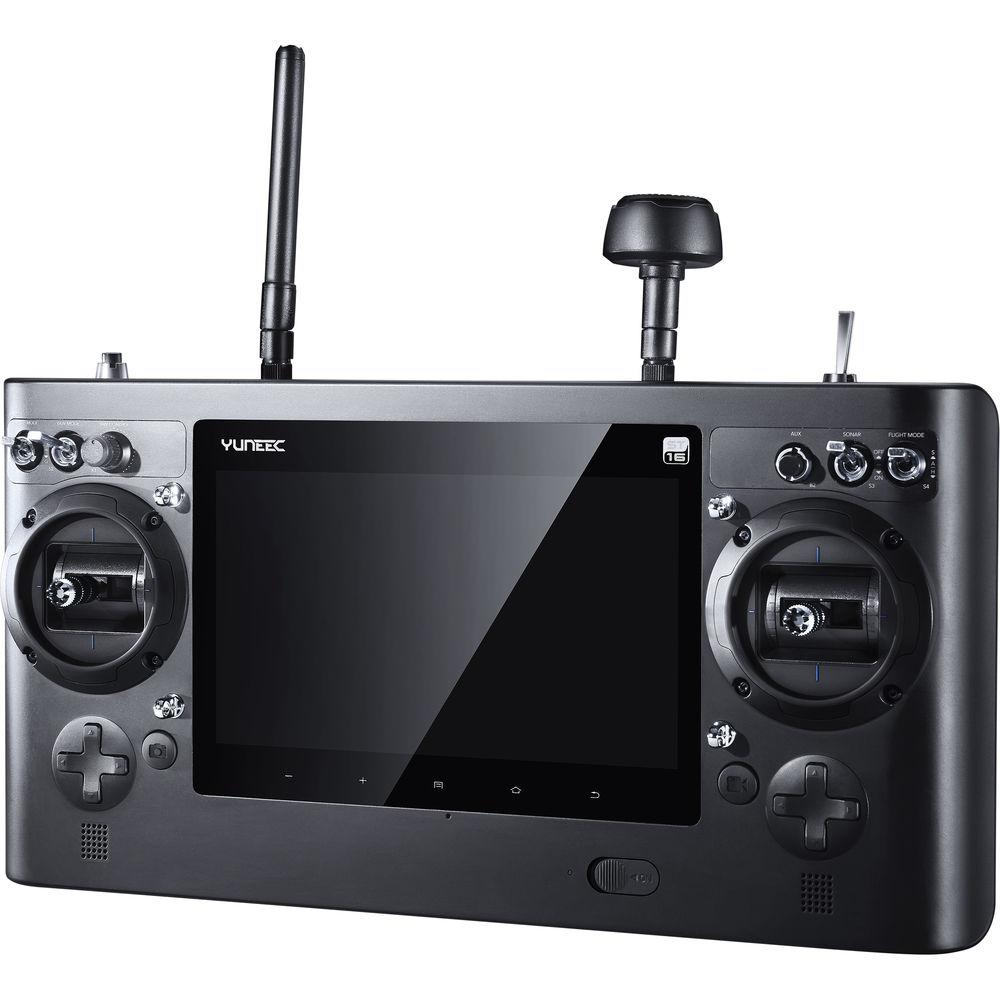

ST16 Personal Ground Station - Transmitter (handheld radio controller) and ground station system are combined into one device with the included 16-channel ST16. It features a 2.4 GHz transmitter for joystick operation of the quadcopter. In addition, there is a 5.8 GHz-range receiver for the video feed from the camera plus telemetry data. For ground station functions, it features a built-in Android device with 7" touchscreen
- 7" Built-In FPV Display
- View a live feed on the ST16's 7", 720p resolution display. In addition, it can show telemetry data from the flight controller, such as altitude, GPS coordinates, and remaining battery life. Settings can be accessed via its touchscreen interface
CGO3+ 4K Camera with 3-Axis Gimbal - The included CGO3+ combines a 12-megapixel, 4K camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. For live view and remote operation, the camera features an integrated 5.8 GHz video downlink that enables operation and viewing from the 7" touchscreen on the ST16 Personal Ground Station. You can also pair with a mobile device using the free mobile app – available at Google Play and iTunes app stores
Airframe Design - One Motor Failure Survivability
- A benefit of six rotors is that one can fail without stalling the aircraft. When the flight controller detects a motor failure, it adjusts its parameters to compensate. Maneuverability and performance will be greatly reduced; however, it gives you the chance to safely land the aircraft
- Retractable Landing Gear
- The landing gear retracts during flight to provide the camera an unobstructed 360° of shooting
- Collapsible Design
- The Typhoon H features quick-disconnect propellers for speedy breakdown. Additionally, each rotor arm folds down to a resting position against the drone for a more compact profile that is easier to transport
- Carbon Fiber Parts
- Carbon fiber components are used extensively to decrease weight and increase durability
UPC: 813646028013 In the Box YUNEEC Typhoon H Hexacopter with GCO3+ 4K Camera CGO3 4K 3-Axis Gimbal Camera for Typhoon Q500 4K Quadcopter atufyaqwubduxyqcveddcufsfxa ST16 Personal Ground Station / 16-Channel Transmitter 5400 mAh LiPo Battery for Typhoon H Hexacopter AC / DC Flight Battery Charger with Car Adapter USB Adapter Cord 2 x Quick Release Propeller Set Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 11.1mb More info from YUNEEC Table of Contents
|
Upload User Manual
Have you got an user manual for the YUNEEC Typhoon H Hexacopter with GCO3 4K Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUNEEC Typhoon H Specs | | | Flight Time | Up to 22 minutes | | Maximum Flying Height | 400' / 122 m above takeoff elevation (software enforced) | | Maximum Rotational Velocity | 85 degrees/second | | Maximum Roll Angle | 35° | | Maximum Horizontal Speed | Angle Mode: 32.8 fps / 10 m/s | | Maximum Climb Rate | 16.4 fps / 5 m/s | | Maximum Descent Rate | 8.2 fps / 2.5 m/s | | Takeoff Weight | 4 lb / 1.8 kg | | | | Model | CGO3+ | | Lens | Focal Length: 14mm (35mm equivalent)
Aperture: f/2.8
FOV: 115°
Focus: Fixed | | Resolution | Video:
UHD 4K (3840 x 2160): 30p
Photo: 12 MP | | Shutter Speed | 1/30 to 1/8000 second | | Power Consumption | 10 W | | Weight | 8.8 oz / 250 g | | | | Control Angle Accuracy | Yaw (Pan): 360° | | | | Frequency | 5.8 GHz (5.2 to 5.8 GHz) | | Range | Up to 1400' / 400 m line-of-sight | | | | Capacity | 5400 mAh
79.9 Wh | | Chemistry | Lithium-ion polymer (LiPo) | | Voltage | 4S (14.8 V) | | | | Model | ST16 | | Operating System | Android | | Range | Control: 3000' / 1000 m | | FPV Display | Size: 7"
Resolution: 720p | | Charger | 5 V USB charging (AC adapter included) | | | | Stator Size | 22 x 13 mm | | Motor Velocity Constant | 850 Kv | | Maximum Power | 200 W | | | | Working Current | ≤15 A | | Working Voltage | 12 to 25 V | | Signal Frequency | 50 to 400 Hz | | Drive PWM Frequency | 16 kHz | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 18.9 x 17.1 x 11.3" |
