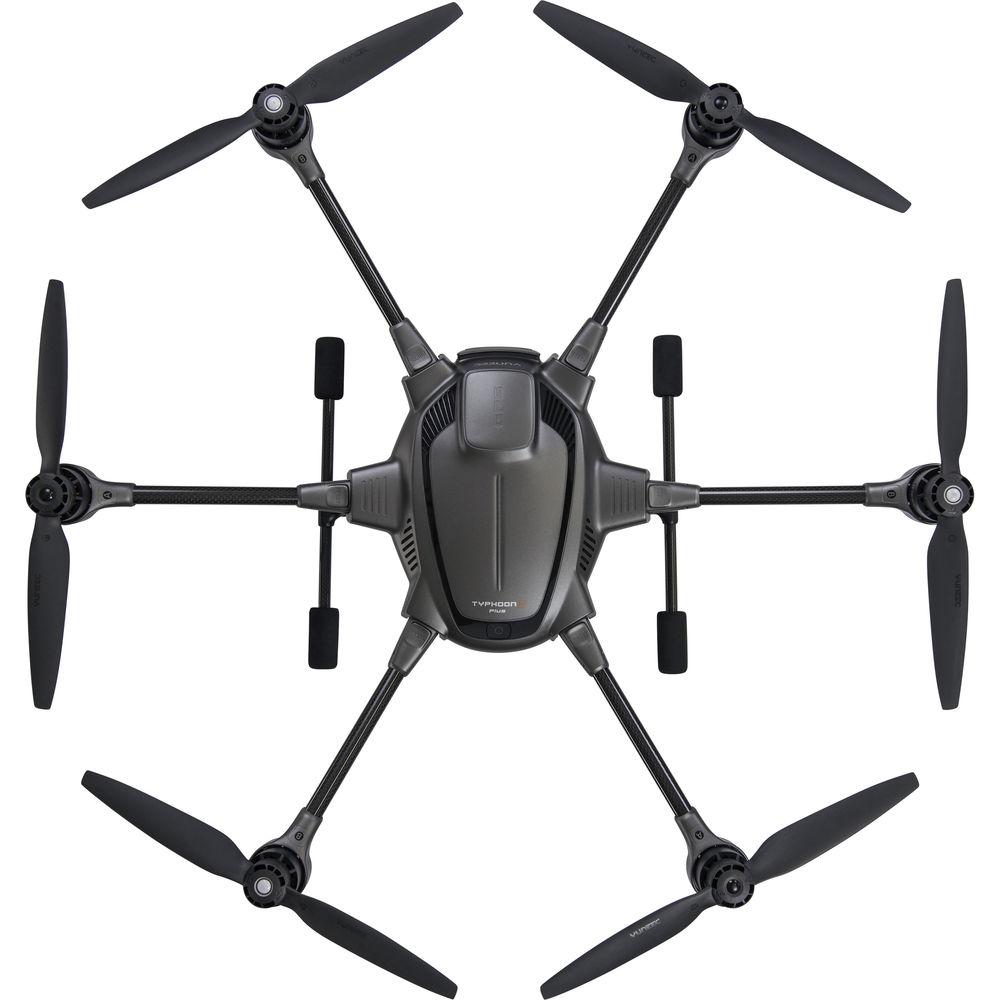

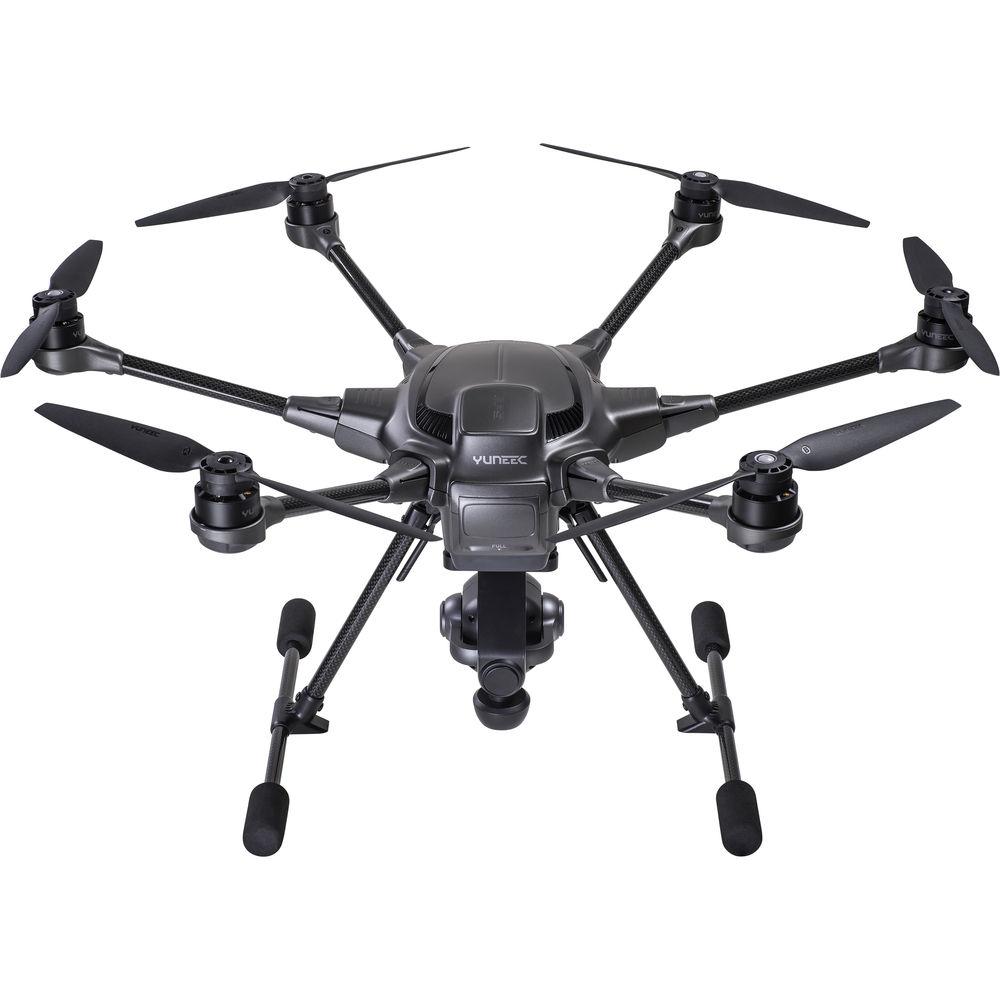

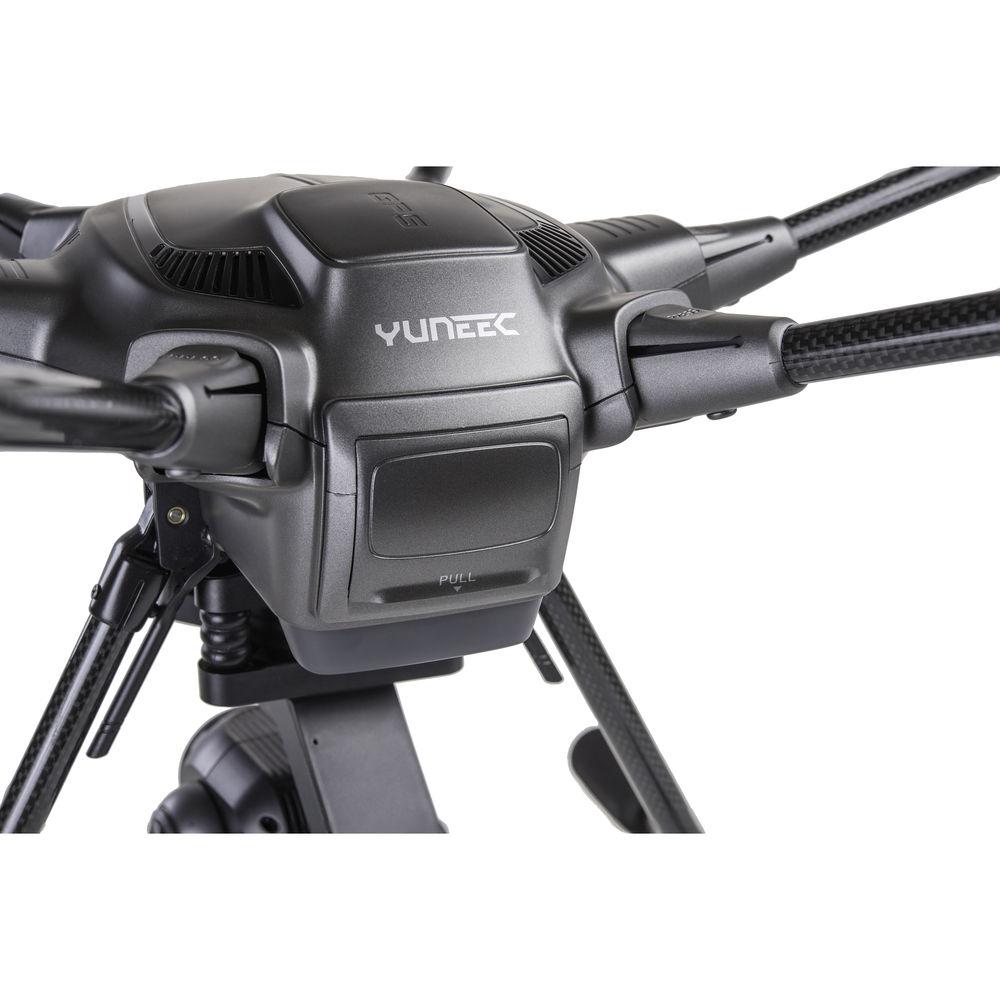

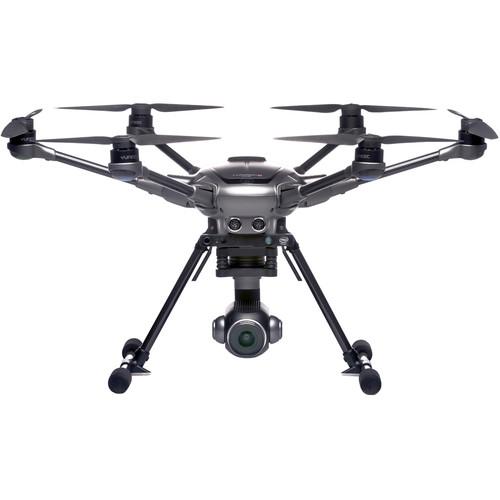

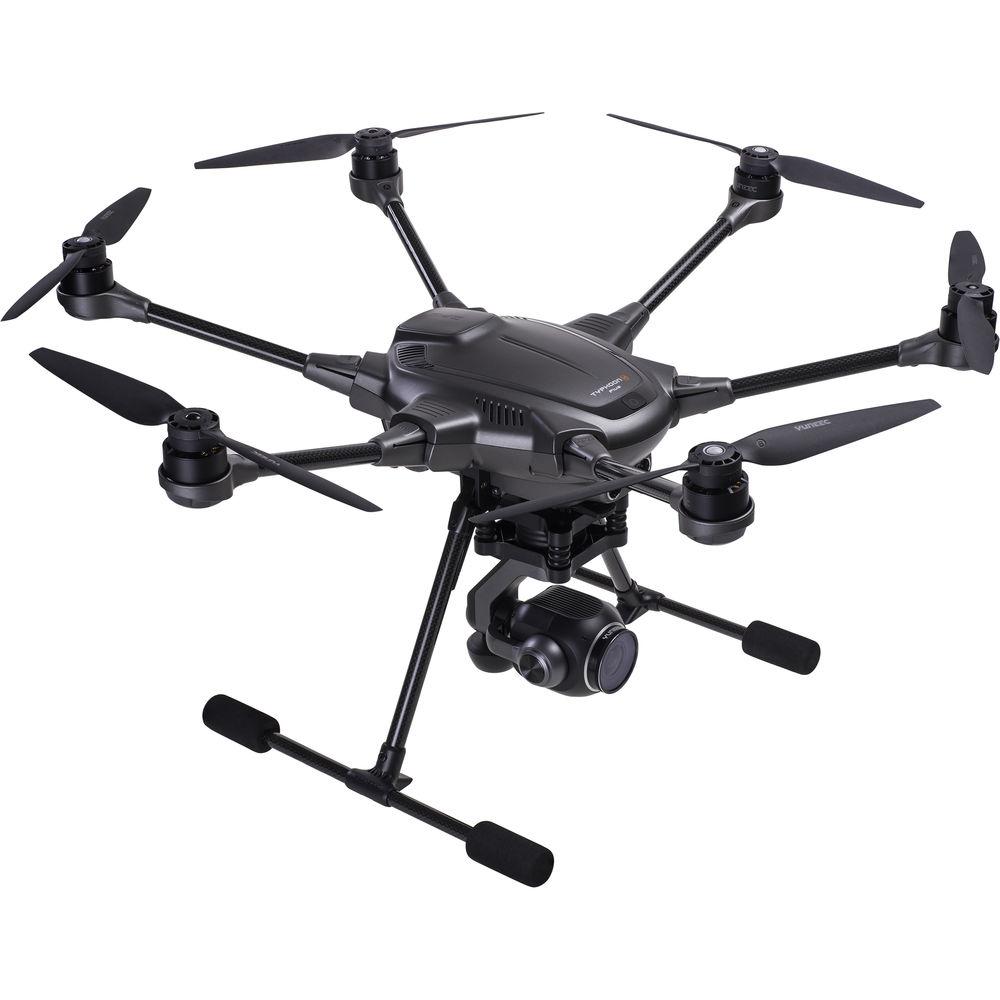

User Manual for YUNEEC Typhoon H Plus Pro Hexacopter Click to enlarge the picture
Contents of the user manual for the YUNEEC Typhoon H Plus Pro Hexacopter
- Product category: See All Drones YUNEEC
- Brand: YUNEEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YUNEEC See All Drones
 |
User manual for the YUNEEC Typhoon H Plus Pro Hexacopter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YUNEEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YUNEEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YUNEEC product will considerably shorten its lifespan!
|

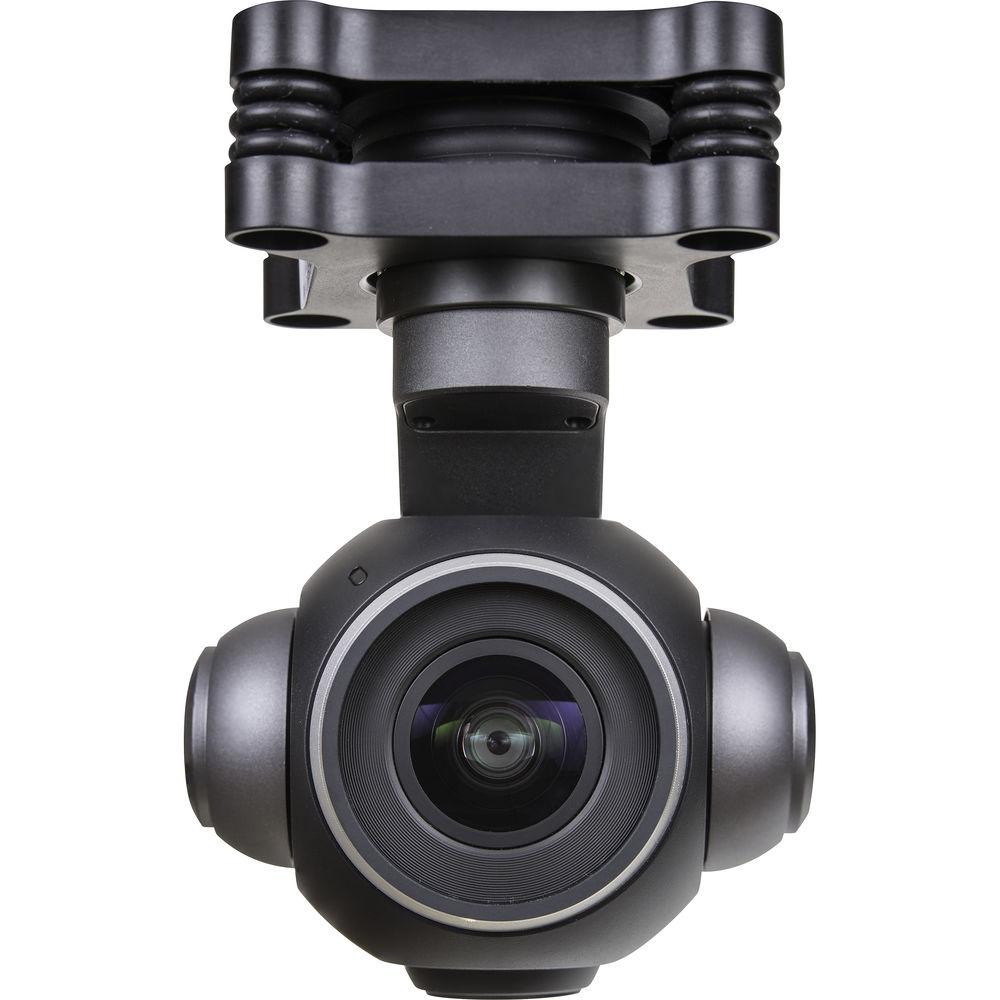

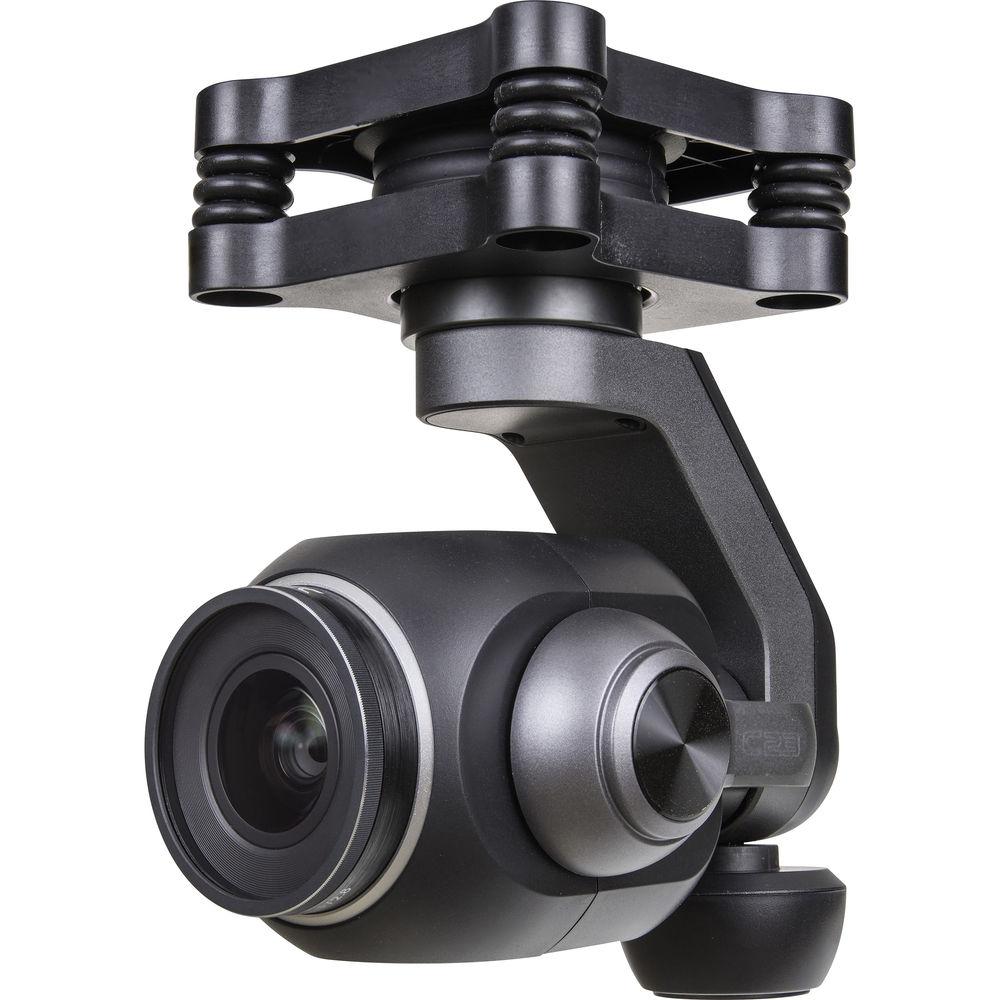

Product description Aerial Photography and Drone Glossary Read More Sacrifice nothing with the Typhoon H Plus Pro Hexacopter from Yuneec. The Typhoon H Plus represents the best of both worlds in a UAV with its stability and image quality. The Typhoon H Plus features a 3-axis gimbal-mounted camera with a C23 1" sensor that's capable of capturing 20MP still photos and Ultra HD 4K video at 60 fps. The 3-axis gimbal is capable of continuous rotation for 360-degree image capture.

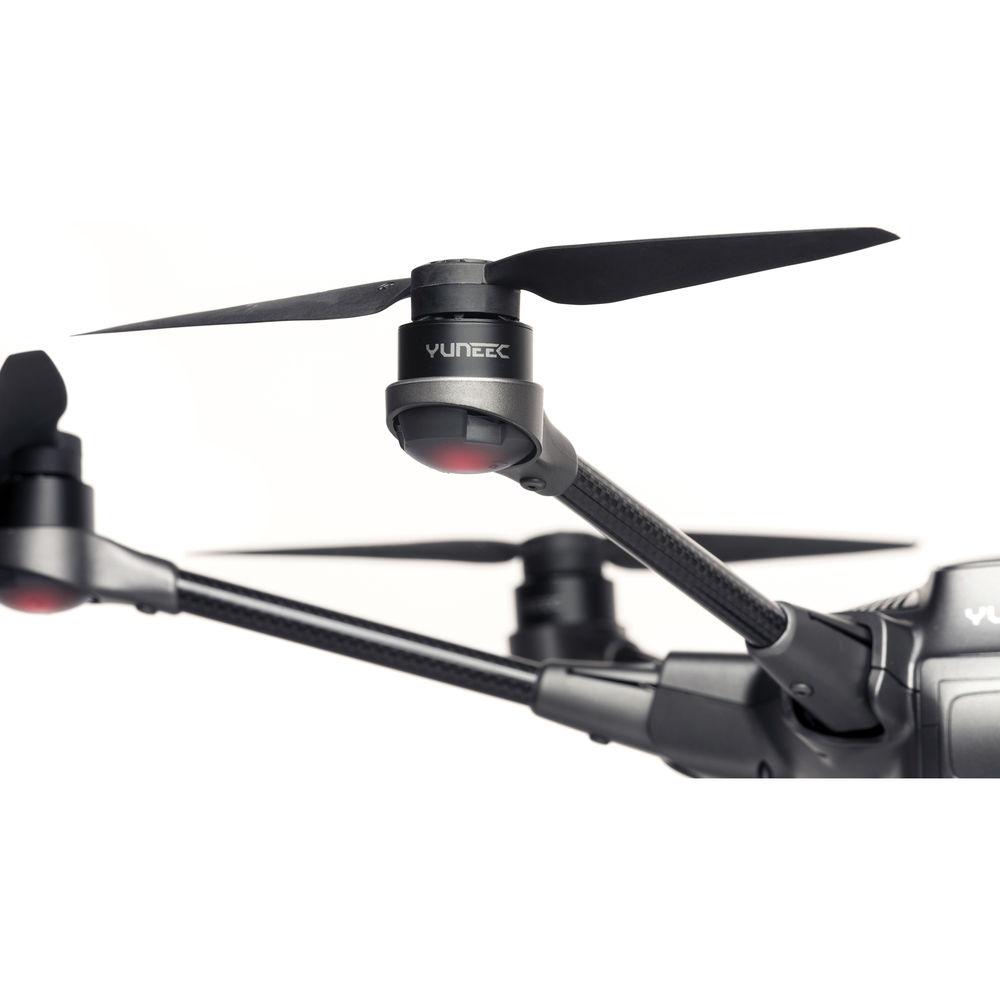

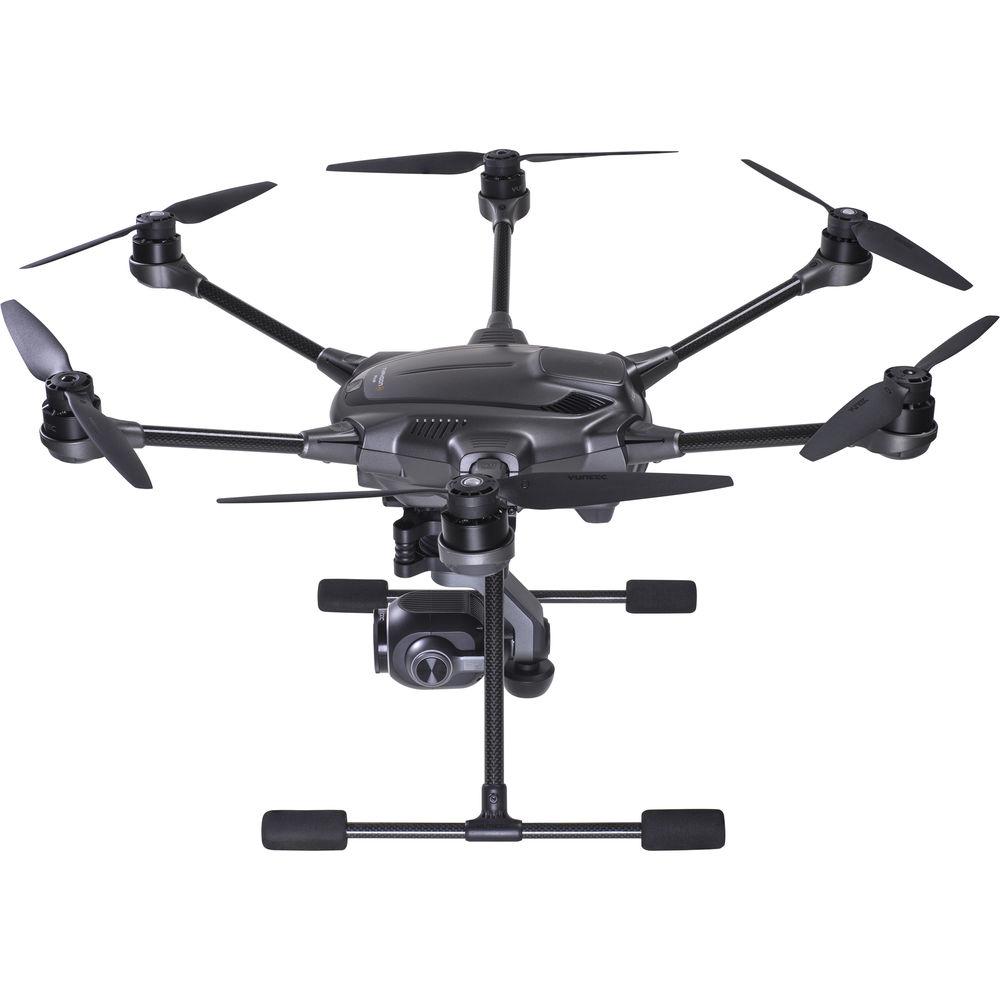

This camera comes attached to a large, six-rotor airframe that has been designed to provide stable footage, even in winds exceeding 35 mph. Compared to its predecessor, the Typhoon H Plus can manage such feats along with a 40% reduction in noise. A tough and durable drone, the Typhoon H Plus can even withstand the loss of a rotor, remaining in flight to land safely using just five rotors.
To help avoid such a fate and keep the Typhoon H safe is Intel's RealSense Technology, which is integrated into the Typhoon H to provide object detection and collision avoidance. Full control of everything the Typhoon H has to offer is in your hands with the included ST16S Ground Station remote controller. The Android-powered transmitter/receiver features a large, 7" built-in touch screen that's capable of activating intelligent flight modes or full manual operation. Intelligent Flight with Intel - Intel RealSense Technology

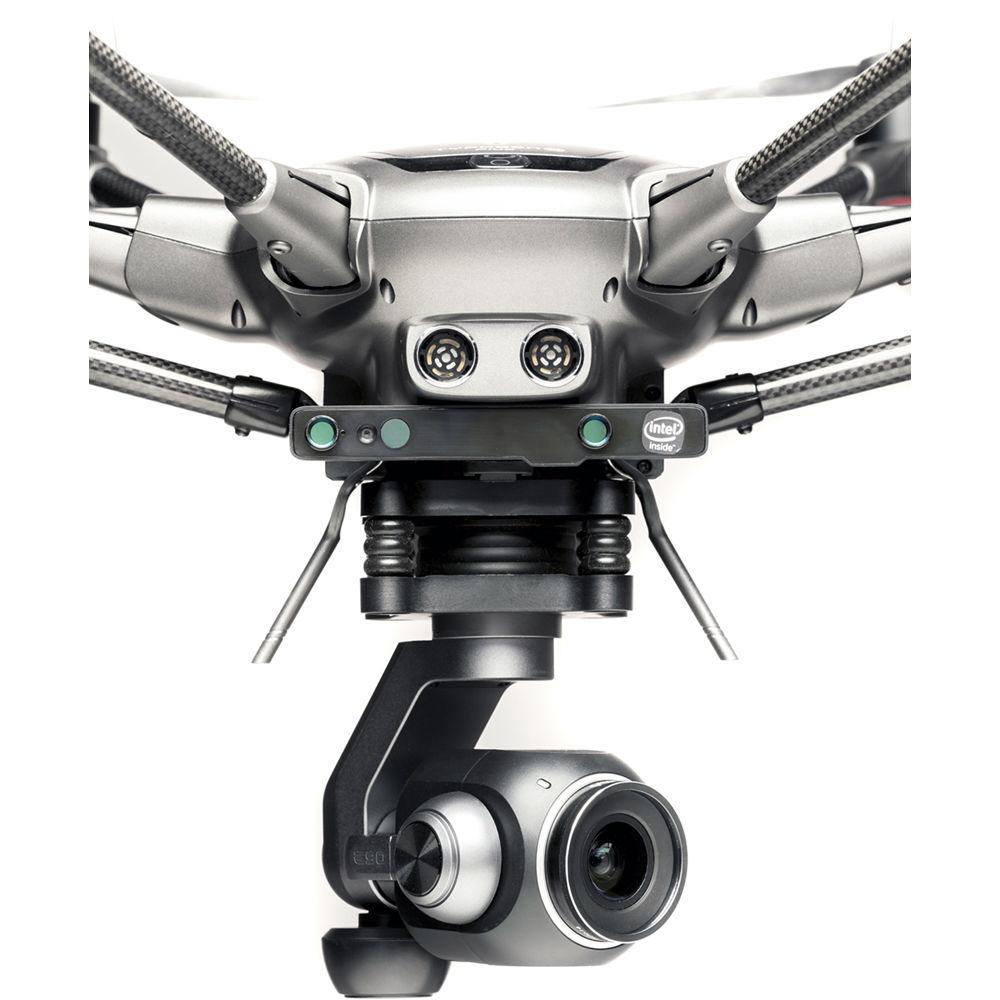

- The Typhoon H Plus utilizes Intel's RealSense R200 camera and an Intel Atom processor to build a 3D model of the Typhoon's surroundings in real-time while in flight. Intel's RealSense Technology uses this 3D data to detect obstacles and navigate around them, keeping the Typhoon safe and providing you with increased filmmaking freedom. Intel RealSense is also programmed to work seamlessly with the Follow Me mode, keeping the main camera trained on the action, while the R200 avoids any hazards along the way.
Smart Control Included - ST16S Ground Station
- Keep your smartphone in your pocket and use the Android-powered controller to pilot the Typhoon and display real-time footage on its built-in 7" touch screen. You can use the ST16S to activate autonomous flight modes, take full manual control, access flight telemetry, and even browse the internet.
Intelligent Flight Modes - Orbit Me
- Typhoon H Plus flies a circular path around you, keeping the camera trained on you the whole time.
- Point of Interest
- Select a subject and Typhoon H Plus will orbit that subject autonomously.
- Journey
- Typhoon H Plus will go up and out, as far as 150', and capture the perfect aerial selfie.
- Curve Cable Cam
- Easily program an invisible route for Typhoon H Plus to fly along. Typhoon H will fly between pre-set coordinates while independently controlling camera position.
- Follow Me / Watch Me
- Follow Me ensures Typhoon H Plus moves along with you, while Watch Me tells Typhoon H to follow you while always pointing the camera at you wherever you go. When in Follow Me mode, Intel's R200 camera and RealSense Technology keeps track of the environment and will actively avoid any obstacles.
UPC: 817206022633 In the Box YUNEEC Typhoon H Plus Pro Hexacopter ST16S Ground Station Flight Controller Travel Backpack 2 x Battery 16GB microSD Card Charging Accessories Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 xwyddsdbzuvfybvtuabfwaywytxxdcesb Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the YUNEEC Typhoon H Plus Pro Hexacopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYUNEEC Typhoon H Plus Specs | | | Maximum Takeoff Weight | 73.6 oz / 2.09 kg | | Maximum Horizontal Speed | 30 mph / 48.3 km/h | | Maximum Ascent Speed | 9 mph / 14.5 km/h | | Maximum Descent Speed | 5 mph / 8.1 km/h | | Maximum Wind Resistance | 35 mph / 56.3 km/h | | Flight Ceiling | 16,404' / 4999 m | | Maximum Flight Time | 30 Minutes | | Maximum Tilt Angle | 35° | | | | Model | ST16S Ground Station | | GNSS Support | GPS | | | | Vision System | Downward, Forward, Backward, Left, Right | | Maximum Altitude | 1640' / 499 m | | Obstacle Sensory Range | 1.6 to 30.0' / 0.5 to 9.1 m | | Forward Field of View | ±91° (Horizontal) | | | | Operating Frequency | 2.4 GHz
5.8 GHz | | Maximum Operating Distance | 1 mi / 1.61 km | | Connectivity | 1 x HDMI
1 x Micro-USB | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Battery Capacity | 8700 mAh | | Battery Configuration | 1 S / 3.6 V | | Built-In Display Size | 7" | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Sensor | 1" CMOS | | Effective Pixels | 20 MP | | Lens Field of View | Horizontal: 91° | | Aperture | f/2.8 | | Photo ISO Range | 100 - 6400 (Auto) | | Video ISO Range | 100 - 6400 (Auto) | | Electronic Shutter Speed | 4 - 1/8000 Second | | Photo Resolution | 16:9: 5472 x 3080
4:3: 4864 x 3648
3:2: 5472 x 3648 | | Photo Format | JPEG, DNG | | Video Format | 4096 x 2160p at 24/25/30/48/50/60 fps (MP4 via H.264)
3840 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.264)
2720 x 1530p at 24/25/30/48/50/60 fps (MP4 via H.264)
1920 x 1080p at 24/25/30/48/50/60/120 fps (MP4 via H.264)
1280 x 720 at 24/25/30/48/50/60/120 fps (MP4 via H.264)
4096 x 2160p at 24/25/30 fps (MP4 via H.265)
3840 x 2160p at 24/25/30 fps (100 Mb/s MP4 via H.265)
2720 x 1530p at 24/25/30/48/50/60 fps (MP4 via H.265)
1920 x 1080p at 24/25/30/48/50/60/120 fps (MP4 via H.265)
1280 x 720p at 24/25/30/48/50/60/120 fps (MP4 via H.265) | | Recording Media | microSD (Up to 128 GB) | | Photo Modes | Burst Shooting, Interval, Single Shot | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 15° | | Angular Speed | Pitch: 30°/s | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 5250 mAh | | Battery Configuration | 4 S / 15.2 V | | Weight | 20.46 oz / 580 g | | | | Type | Brushless | | Velocity Constant | 730 Kv | | | | Number of Rotors | 6 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Weight | 3.62 lb / 1645 g
4.39 lb / 1995 g (Including Camera) | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 12.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
