User Manual for Z CAM E2 Professional 4K Cinematic Camera Click to enlarge the picture
Contents of the user manual for the Z CAM E2 Professional 4K Cinematic
- Product category: Digital Cine Cameras Z CAM
- Brand: Z CAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Z CAM Digital Cine Cameras
 |
User manual for the Z CAM E2 Professional 4K Cinematic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Z CAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Z CAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Z CAM product will considerably shorten its lifespan!
|

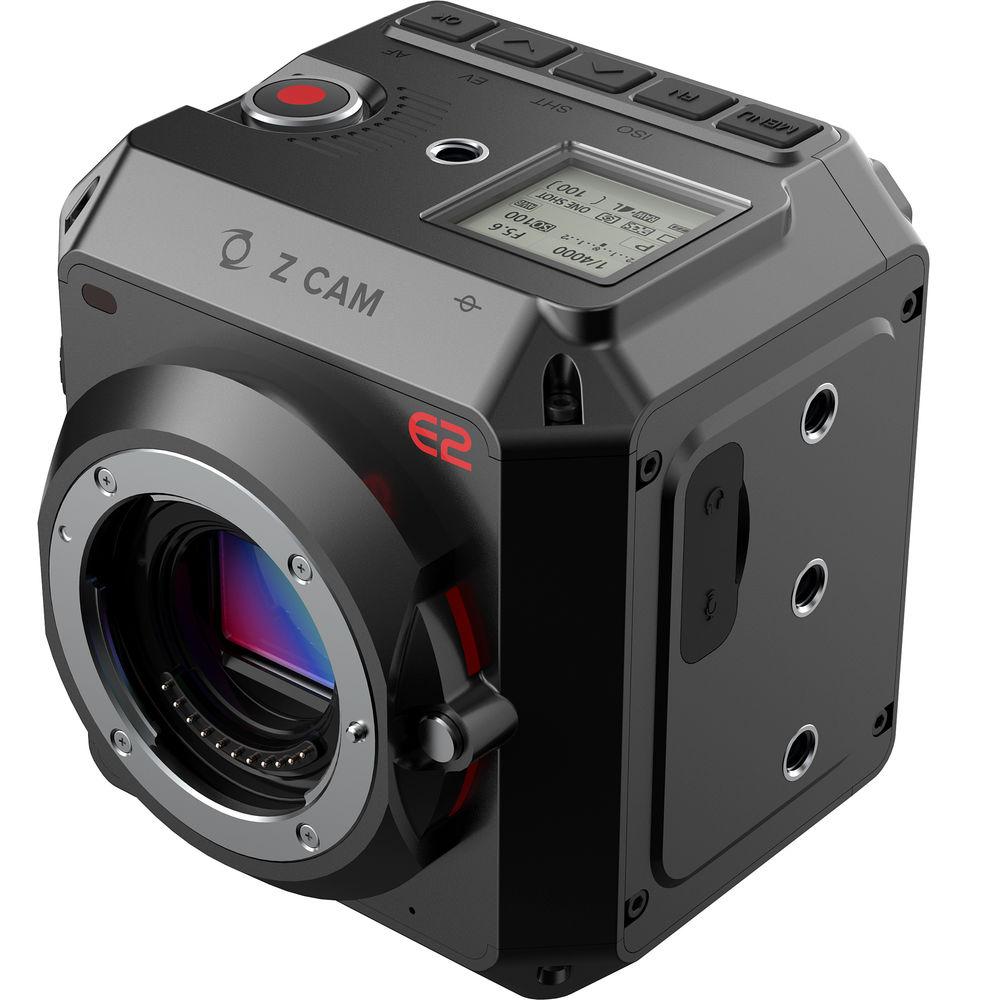

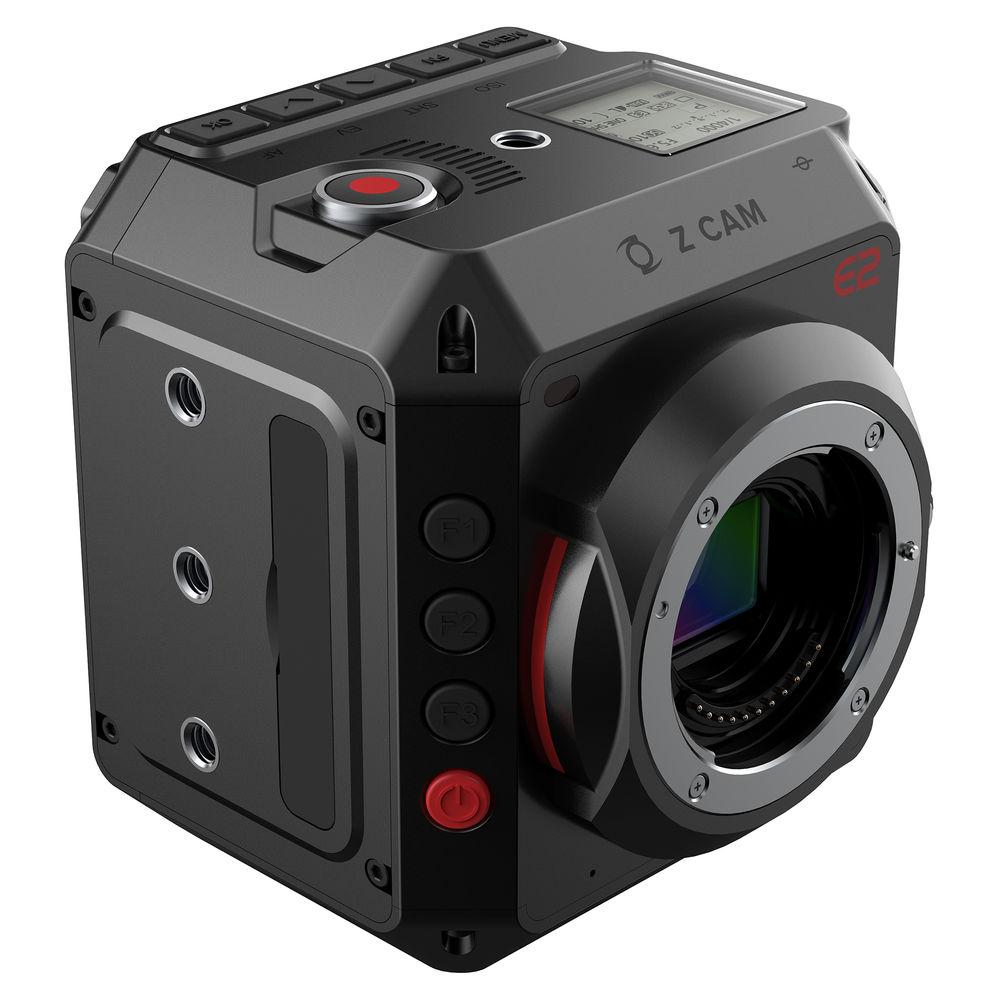

Product description The Z CAM E2 Professional 4K Cinematic Camera shoots DCI and UHD 4K at up to 120 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). An optional cable enables syncing two E2 cameras together, and the system supports syncing up to 100 cameras. The camera features a 4/3" sensor with 10-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.

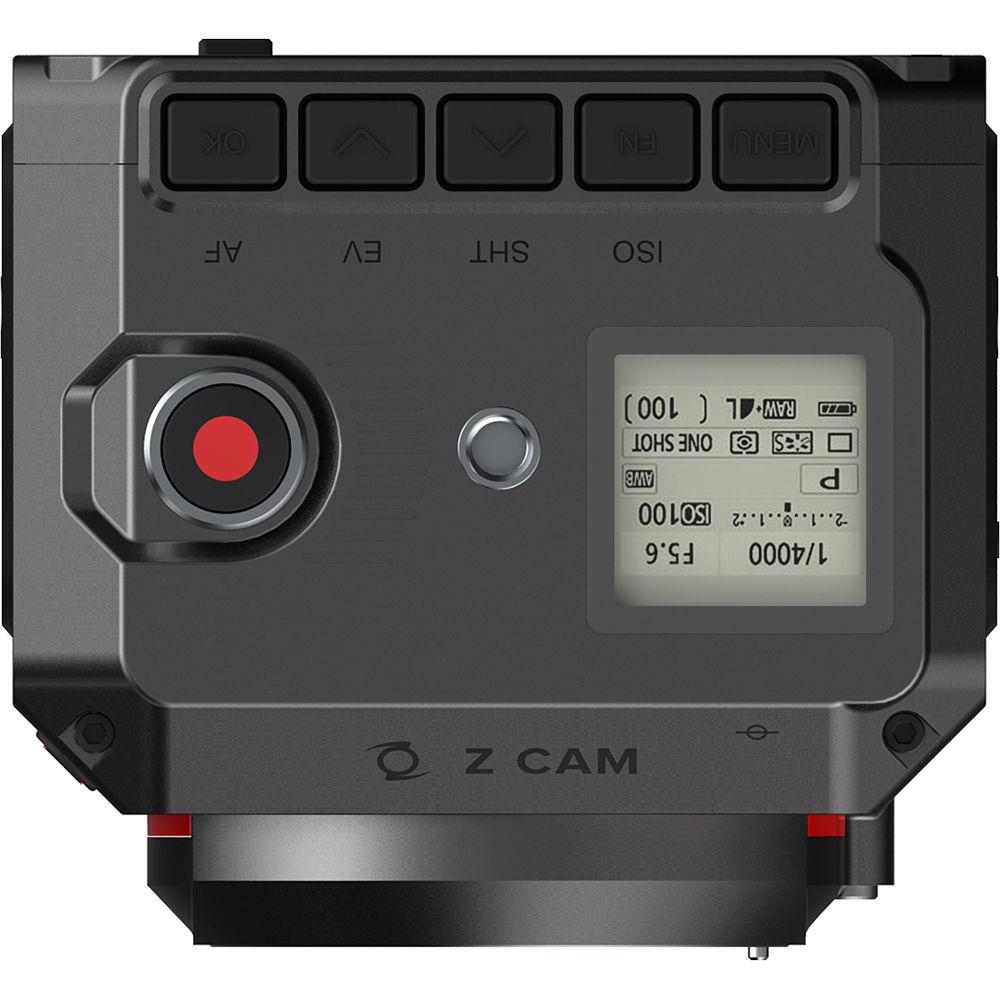

An included Gigabit connector provides data transfer and control of the camera, and you can also use an available iOS app to control the camera and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers from an L-series battery (not included) or via the included AC adapter. - 4K Capture and Recording
-
- Unburdened by a recording time limit, you can record DCI/UHD 4K at up to 120 fps or 1080p at up to 240 fps, for up to the limit of your recording media's capacity
- Triple native ISO 80 / 160 / 800
- 13 stops of dynamic range using ZLog, and 16 stops of dynamic range in WDR mode
- Built in multi-frame noise reduction technology to produce clean footage
- H.265 (10-bit color) internal recording on CFast 2.0 card
- 10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
- Video output through HDMI 2.0 is supported (up to DCI 4K @ 60 fps, 10-bit color, YUV 422)
- Full metal housing for efficient heat dissipation
- Interfaces and Expandability
-

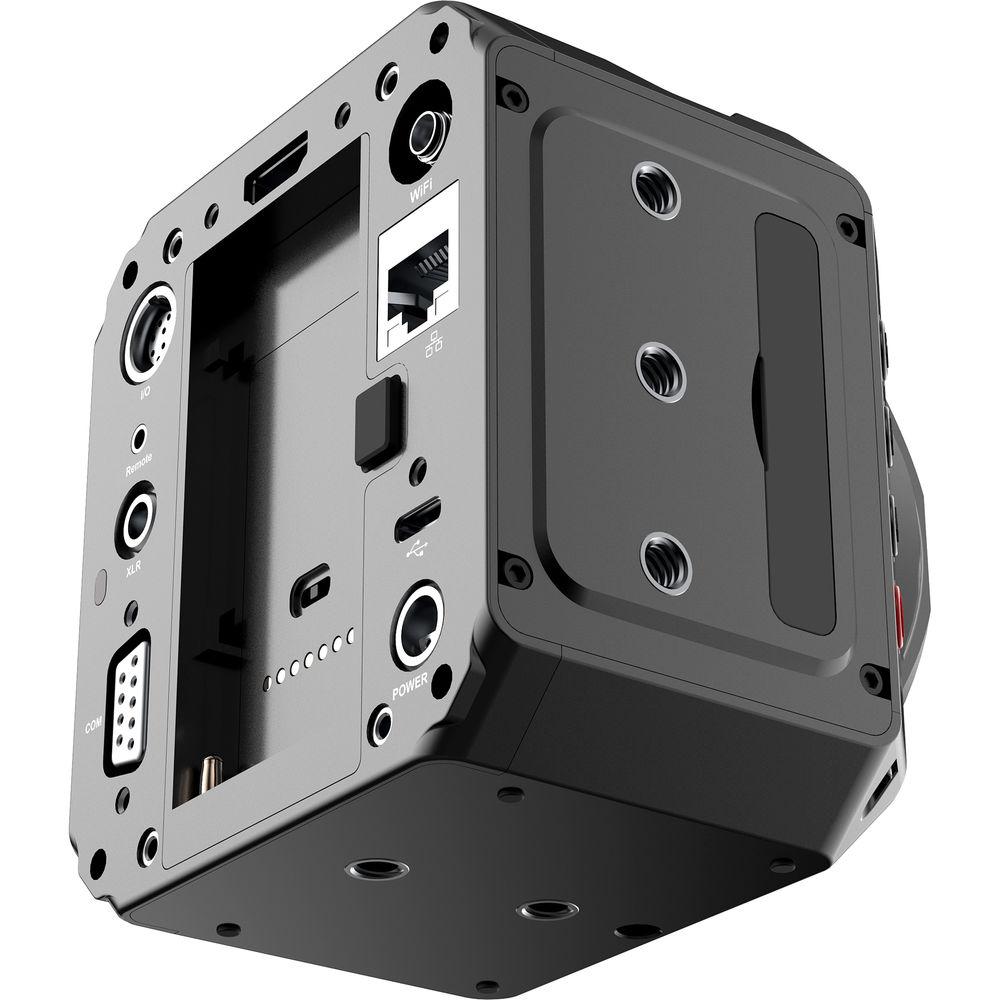

- USB Type-C port for live view and control via iOS device with Z Camera app installed
- The USB Type-C port can also be used for external SSD recording
- Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
- HTTP API and SDK are also available
- COM (RS232) port supports UART protocol
- LANC port for remote control including power on/off
- Pixel-level multicamera sync can be achieved for up to 100 devices—requires optional cable(s)
- iOS App
- Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview. It can be downloaded from the Apple App Store.
- Camera Body
-
- Made from aluminum for strength and heat dissipation

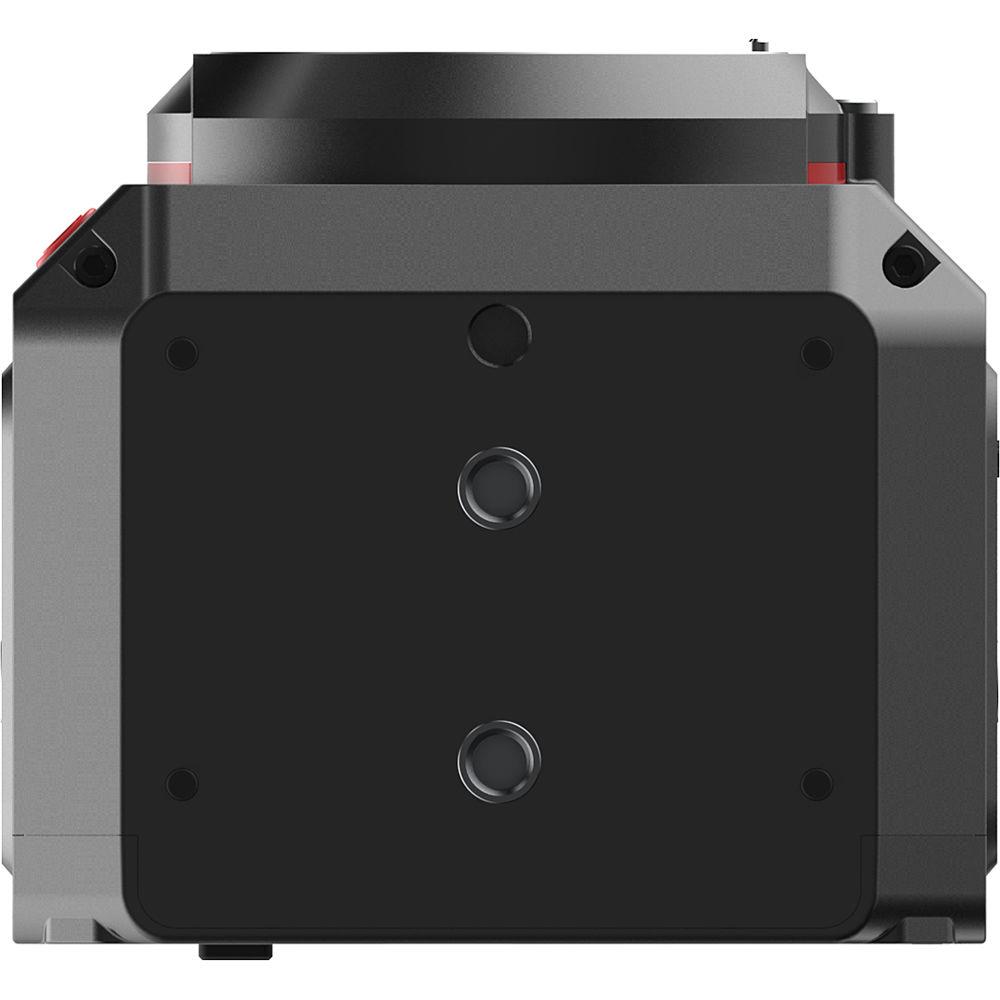

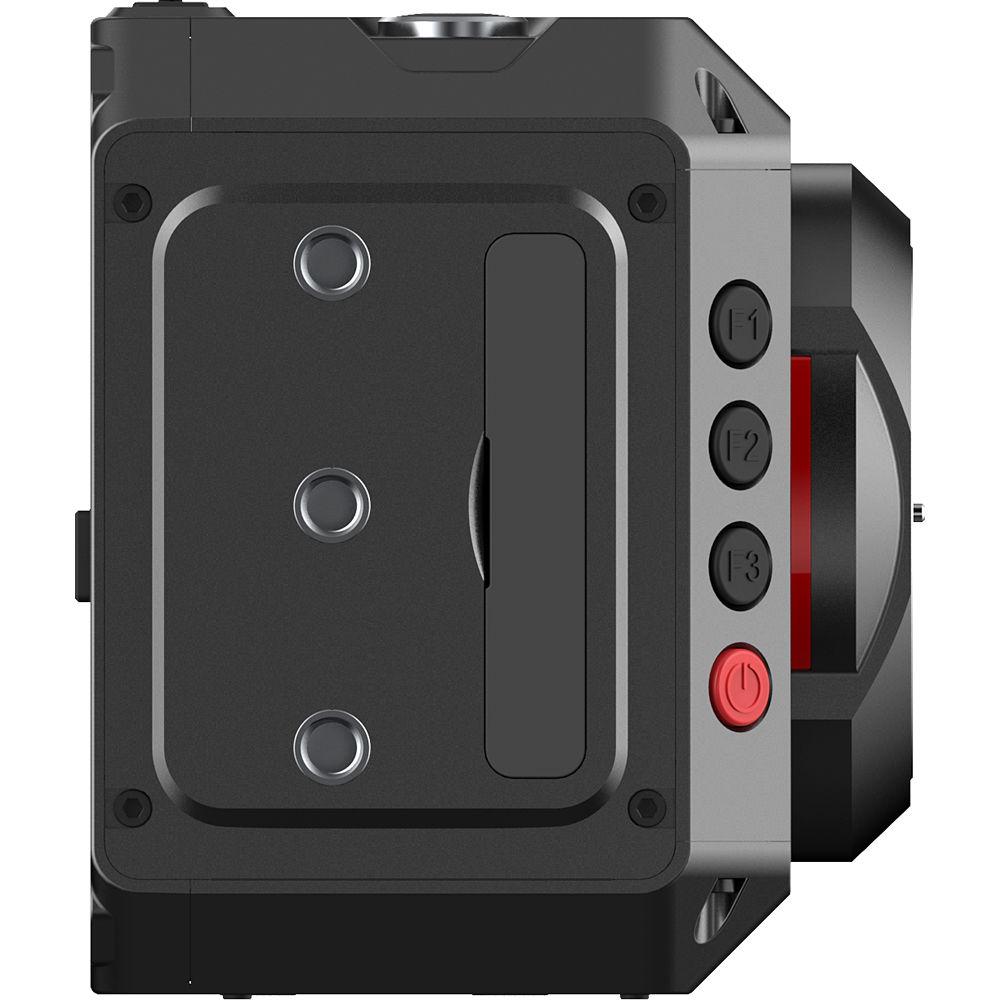

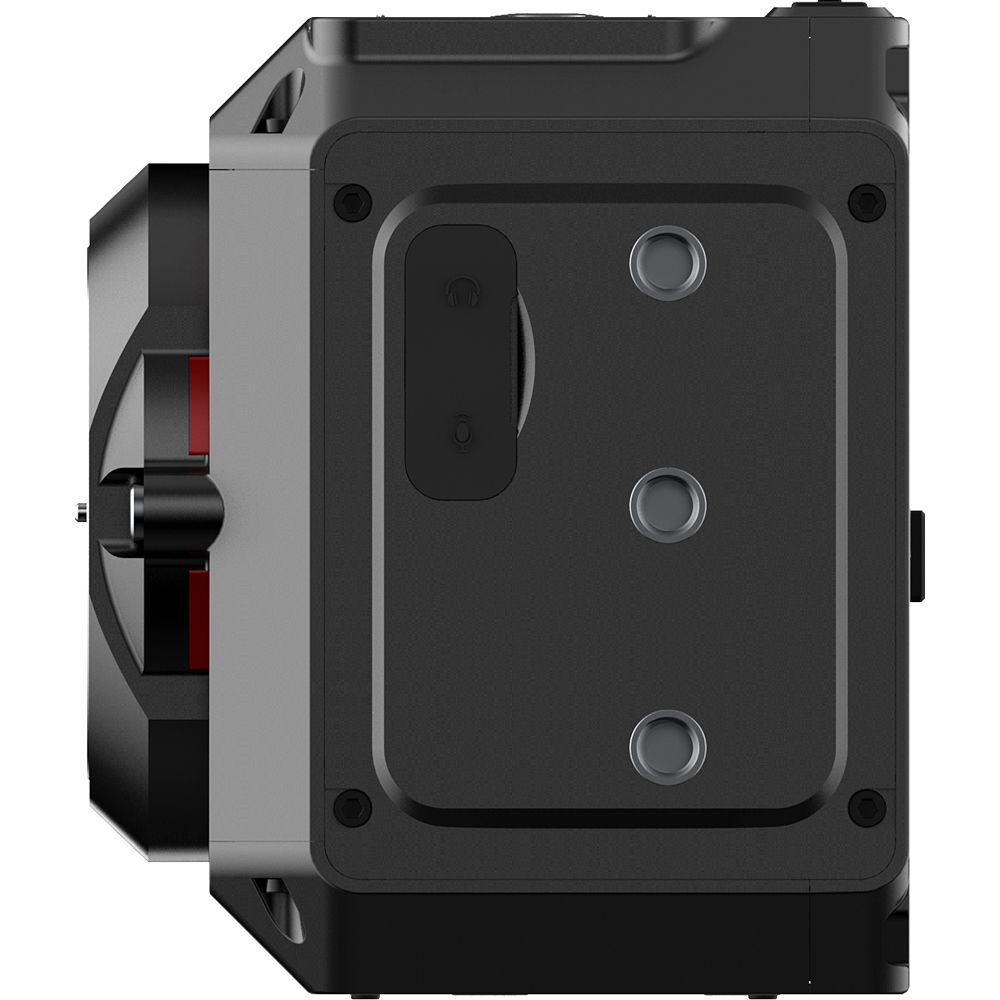

- Nine threaded mounting holes around the outside chassis
- Sensor plane marking for accurate distance measurements
- Powers from included AC/DC adapter or optional L-series batteries
- Active MFT mount
UPC: 841687100061 In the Box Z CAM E2 Professional 4K Cinematic Camera LEMO Power Cable with D-Tap Plug D-Tap Connector AC/DC Power Adapter Power Cables (US/EU/UK) Lens Mount Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Z CAM E2 Professional 4K Cinematic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZ CAM E2 Specs | | | Image Sensor Size | 17.3 x 13 mm (4/3") | | Sensor Type | CMOS | | Effective Sensor Resolution | 10.28 MP | | Shutter Type | Rolling Shutter | | ISO | 160 to 25,600 (Native)
80 to 12,800 (Expanded) | | | | Lens Mount | Micro Four Thirds | | Built-In ND Filter | None | | Built-In Microphone Type | Stereo | | Recording Media | 1 x CFast 2.0 Card Slot | | | | Recording Modes | ProRes 422HQ 4:2:2 10-Bit:
4096 x 2160p up to 30 fps
3840 x 2160p up to 30 fps
3696 x 2772 up to 30 fps
1920 x 1080 up to 100 fps
ProRes 422 4:2:2 10-Bit:
4096 x 2160p up to 48 fps
3840 x 2160p up to 60 fps
3696 x 2772 up to 48 fps
1920 x 1080 up to 120 fps
ProRes 422LT 4:2:2 10-Bit:
4096 x 2160p up to 60 fps
3840 x 2160p up to 60 fps
3696 x 2772 up to 60 fps
1920 x 1080 up to 120 fps
ProRes 422 Proxy 4:2:2:
4096 x 2160p up to 60 fps
3840 x 2160 up to 60 fps
3696 x 2772 up to 60 fps
1920 x 1080 up to 120 fps
H.265 10-Bit:
4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3840 x 2160p up to 24/25/29.97/50/59.94/120 fps (230 Mb/s)
2696 x 2772p at 23.98/24/29.97/50/59.94 fps (230 Mb/s)
1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)
H.264 8-Bit:
4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3840 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3696 x 2772p at 23.98/24/25/29.97/50/59.94 fps (230 Mb/s)
1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s) | | | | Video Connectors | 1 x HDMI (HDMI 2.0) Output | | Audio Connectors | 1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Output
1 x 5-Pin LEMO Mic Level Input | | Other I/O | 1 x USB Type-C
1 x 10-Pin LEMO Sync
1 x 9-Pin D-Sub RS-232
1 x 2.5 mm LANC Control
1 x RJ45 LAN | | Wireless Interfaces | 2.4 GHz Wi-Fi | | | | Battery Type | Sony L-Series | | Power Connectors | 1 x 4-Pin LEMO (12 VDC at5 A) Input | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 8 x 1/4"-20 Female | | Tripod Mounting Thread | 1/4"-20 Female | | Material of Construction | Aluminum | | Dimensions | 3.59 x 3.91 x 3.51" / 91.2 x 99.2 x 89.1 mm (Without Protrusions) | | Weight | 1.7 lb / 757 g | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 9.7 x 9.0 x 4.5" |
