User Manual for Z CAM K1 Pro Cinematic VR180 Camera Click to enlarge the picture
Contents of the user manual for the Z CAM K1 Pro Cinematic VR180
- Product category: All 360 Video Cameras Z CAM
- Brand: Z CAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Z CAM All 360 Video Cameras
 |
User manual for the Z CAM K1 Pro Cinematic VR180 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Z CAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Z CAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Z CAM product will considerably shorten its lifespan!
|

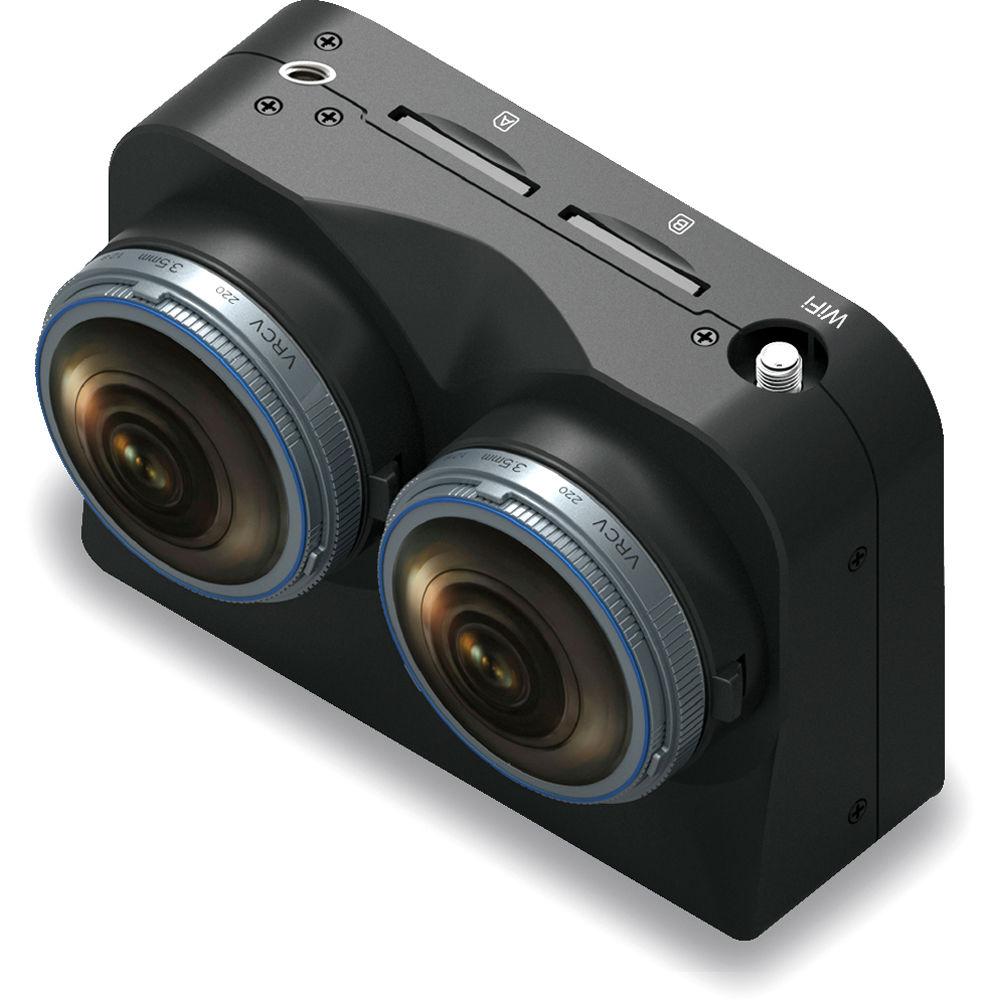

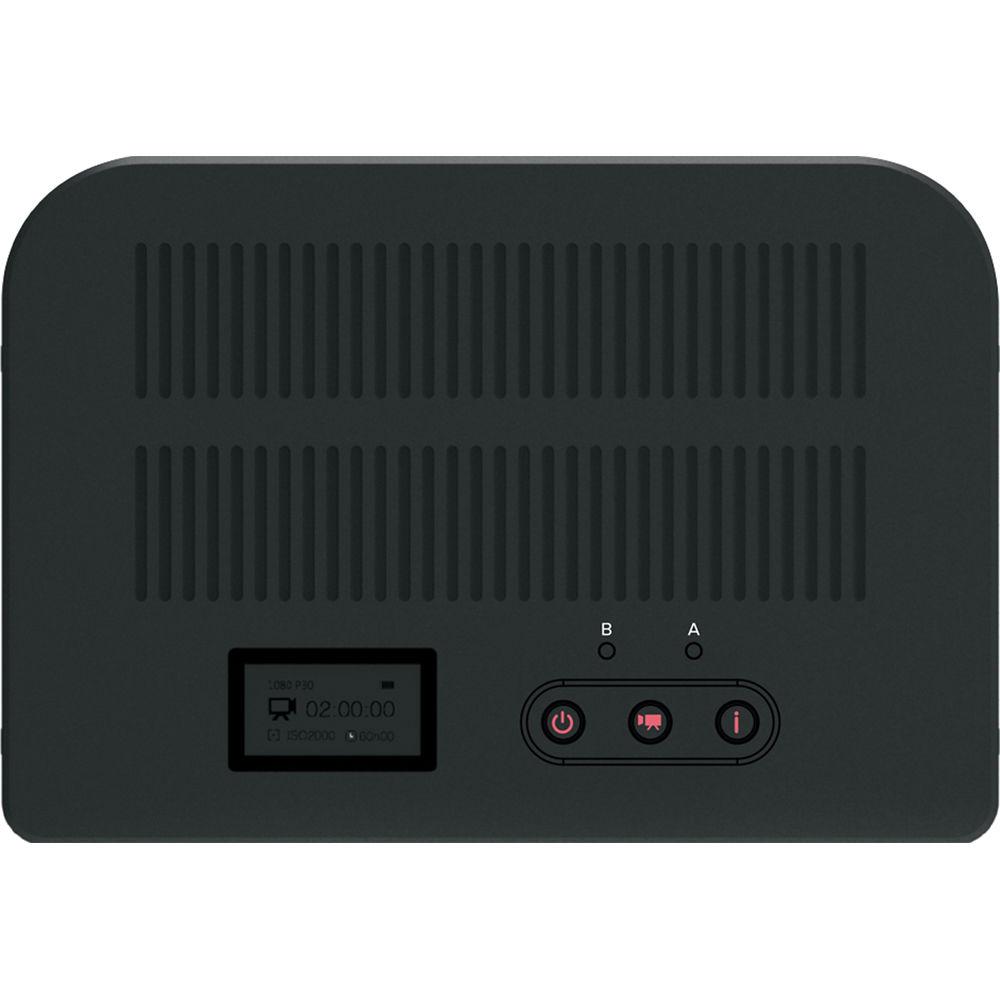

Product description The Z Cam K1 Pro Cinematic VR180 Camera captures 180° video with two fisheye lenses to dual SDXC cards. In addition to the two f/2.5 fisheye lenses, the camera supports an external stereo microphone and records audio using the AAC format. The captured footage can be used for stereoscopic 3D effects or can be stitched to create an image compatible with the VR180 format.
The camera features a built-in Ethernet port that supports PoE (Power over Ethernet) and has built-in Wi-Fi. WonderLive software (Windows) is downloadable, and it allows you to live stream your footage. The Z CAM Controller software (Windows or Mac) allows you to control the K1 Pro from your computer via the camera's Ethernet connector. - VR180 cameras capture photos and video in 3D, but can be viewed and shared in either 2D or 3D.
- A VR headset is required to experience your images in VR.
- Your footage can be imported into an edit system that supports stereoscopic video.
- The camera supports the following:
- Timelapse
- Photo snap
- Built-in Z CAM sync
- AAC audio encoding
- Auto, manual, and coordinated exposure
- Auto, manual, and coordinated white balance
- Z-Log gamma setting
- External microphone via built-in 3.5mm jack
- 802.11 Wi-Fi antenna port (antenna not included)
- Ethernet port
UPC: 841687102119 In the Box Z CAM K1 Pro Cinematic VR180 Camera AC/DC Power Adapter and Power Cables with US, EU, and UK Plugs Power Cable with LEMO and D-Tap Plug D-Tap Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Z CAM K1 Pro Cinematic VR180 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZ CAM K1 Pro Cinematic Specs | | | Stitching Resolution | 6K
4K | | Internal/External Stitching | External Stitching | | 360 Stitched Video Format | Internal:
2880 x 2880 at 30 fps
2120 x 1344 at 60 fps | | Number of Lenses | 2 | | | | Sensor | 1-Chip 4/3" CMOS | | Sensor Resolution | 2.88 MP | | | | Video Format | 2880 x 2880 at 30 fps
2120 x 1344 at 60 fps | | | | Recording Media | 2 x SDXC (128 GB Maximum) | | Audio Format | AAC | | | | Video ISO Range | 100 - 3200 (Manual) | | | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | | | Inputs | 1 x 1/8" (3.5 mm) Stereo Mini Jack
1 x RJ45 | | Microphone Input | Yes | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 9.2 x 9.0 x 6.0" |
