Product description

  • Z CAM S1 Fruh_am_Dom Footage (auto stitched)

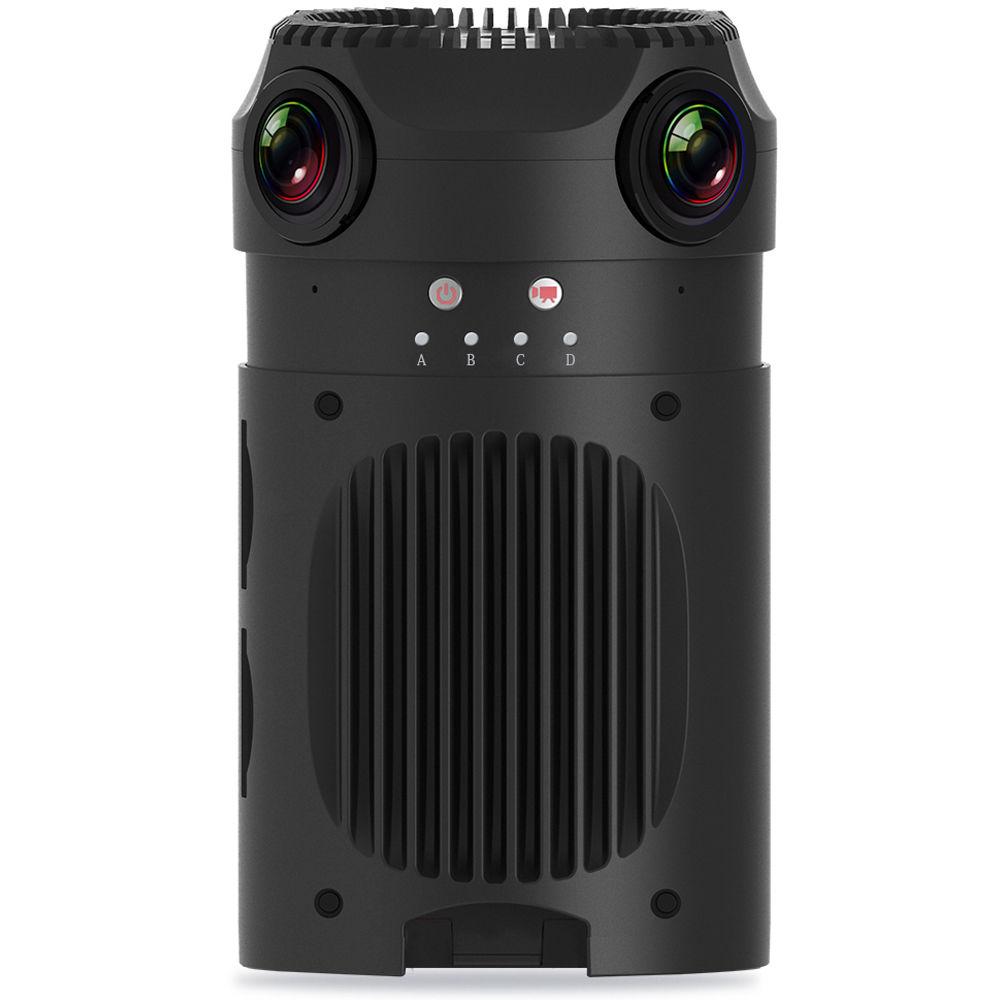

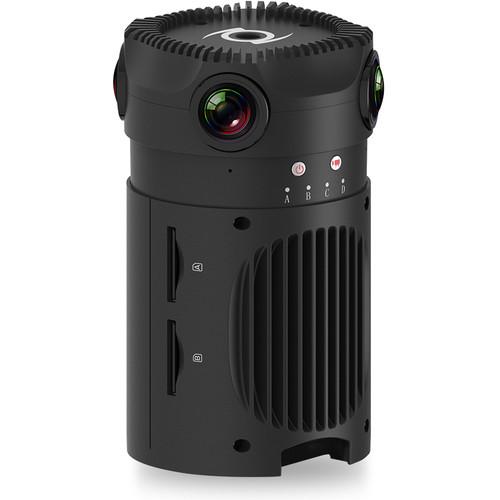

The compact S1 Professional VR Camera from Z CAM employs four Sony CMOS image sensors to capture high-quality spherical VR video at 6K30 or 4K60 fps. Use the included Z CAM's WonderLive and WonderStitch software downloads for live streaming and offline stitching of 4K60 fps equirectangular images with your Windows 10-based PC. Each of its four fisheye lenses is constructed with 10-layer, professional-grade optics, minimizing distortion and flare. Unlike rig-based VR systems, the S1's four integrated sensors provide coordinated auto-exposure and white balance functions. The built-in Z CAM Sync Hardware ensures synchronized recording, and Z-Log gamma enables image fine-tuning and color grading.The S1's compact, cylindrical body measures just over 9.5" high when used with its detachable battery unit. When powered via the included AC adapter, the S1 is under 6" high. With a slim, under 4" diameter form, the camera can be placed 2.6' or closer to subjects. SanDisk Extreme Pro cards are recommended for recording to the S1's four SD card slots. Note: Stitching and live streaming requires a Windows 10 PC with two Ethernet cards; Mac compatibility to be available via a future update.
Four required 18650 lithium-ion batteries and a charger are not included with the camera.
    Features
    • Captures high-quality, spherical VR video at 6K30 or 4K60 fps
    • 4K equirectangular live streaming and offline stitching using a Windows 10 PC
    • Four Sony CMOS image sensors
    • Coordinated auto-exposure and white balance functions
    • Z-Log gamma for image fine-tuning and color grading
    • Record up to two continuous hours to SanDisk Extreme Pro SD cards
    • 10-layer, high-quality, all-glass fisheye lenses

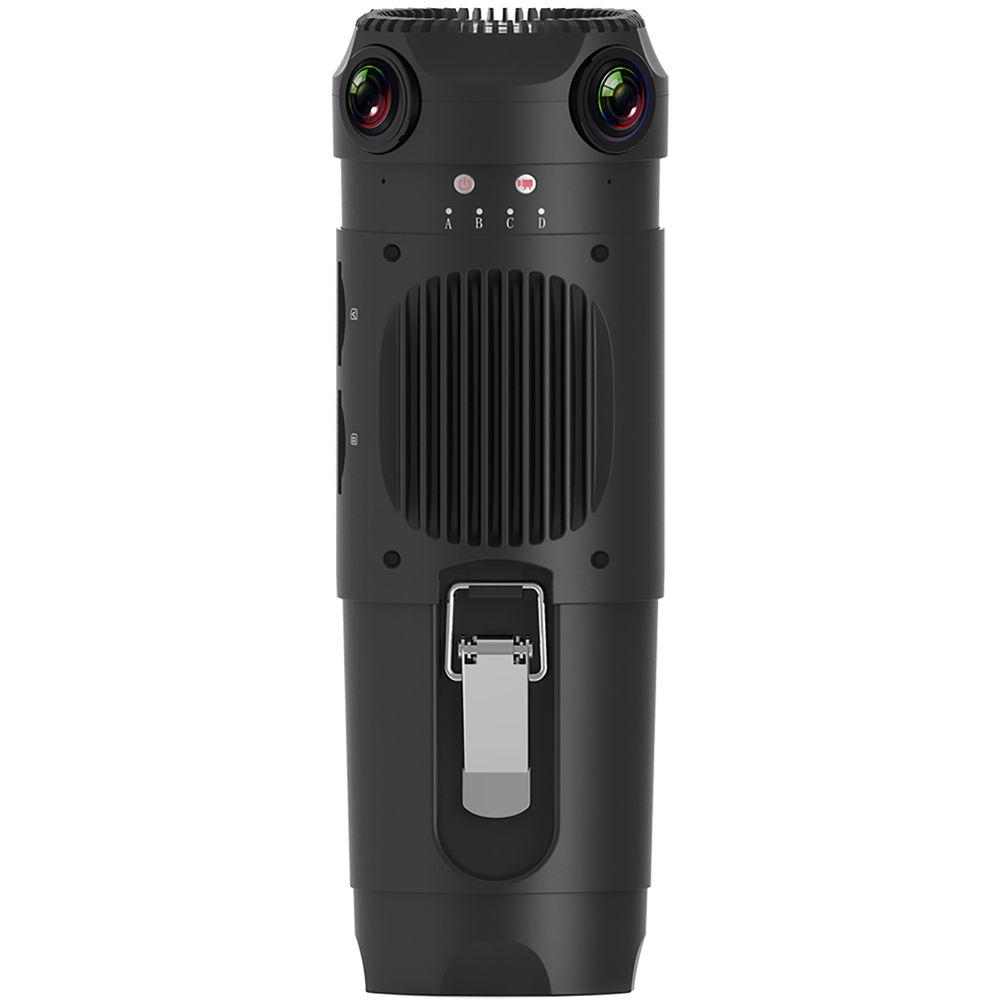

    • Compact cylindrical form measures just over 9.5" high with battery unit
    • 2:1 post-stitching aspect ratio (using the downloadable Z CAM WonderStitch software)
    Z CAM Controller Features
    • Windows, Mac, and iPad-compatible
    • Control the camera and change settings
    • Individual lens preview via Windows, Mac, and iPad
    • Stitched preview via iPad
    1
    Please Note:
    Optional Z CAM Controller software available via download. close
    System Requirements
  • For Z CAM Controller:
    • Windows 10
    • Mac OS 10.11 and higher
    4K live streaming:
    • Windows 10 PC with two Ethernet cards
    • AMD WX7100 or NVIDIA GTX 1070/GTX 1080
UPC: 841687104014 In the Box Z CAM S1 6K Professional VR Camera
  • Lens Cover

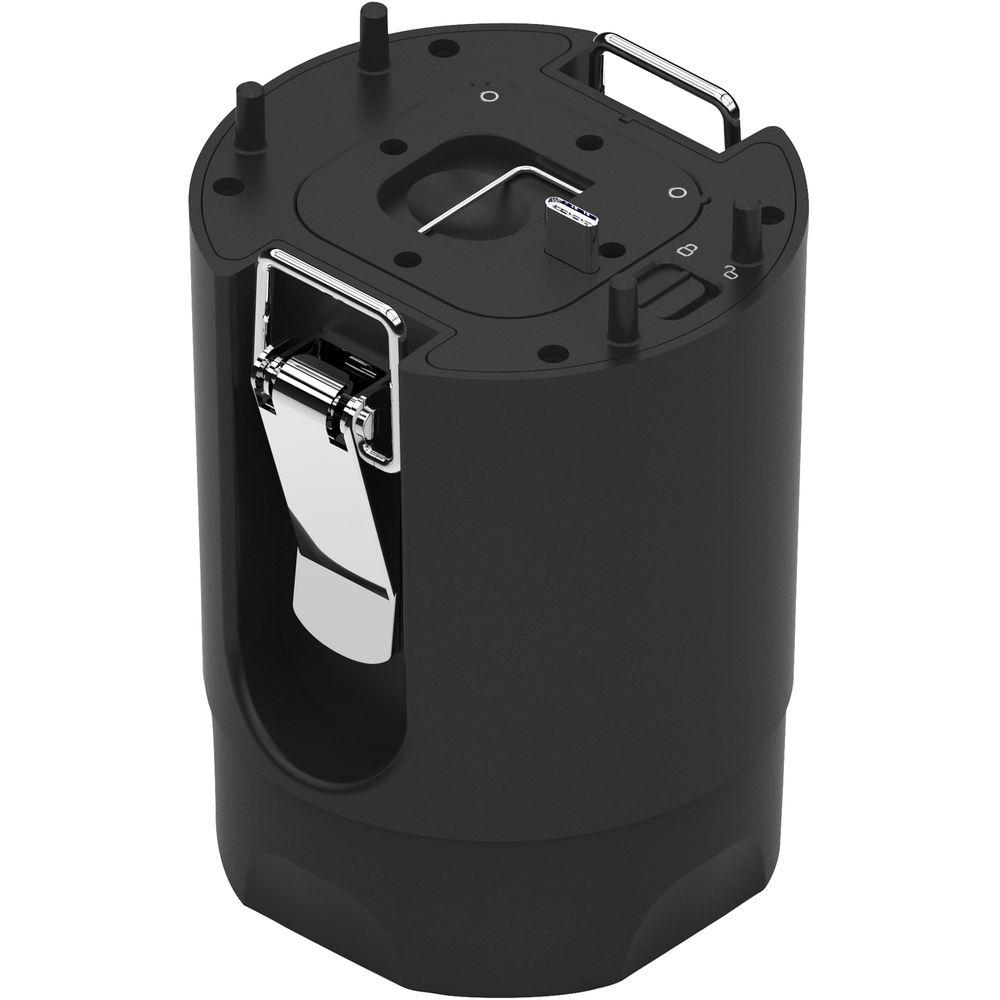

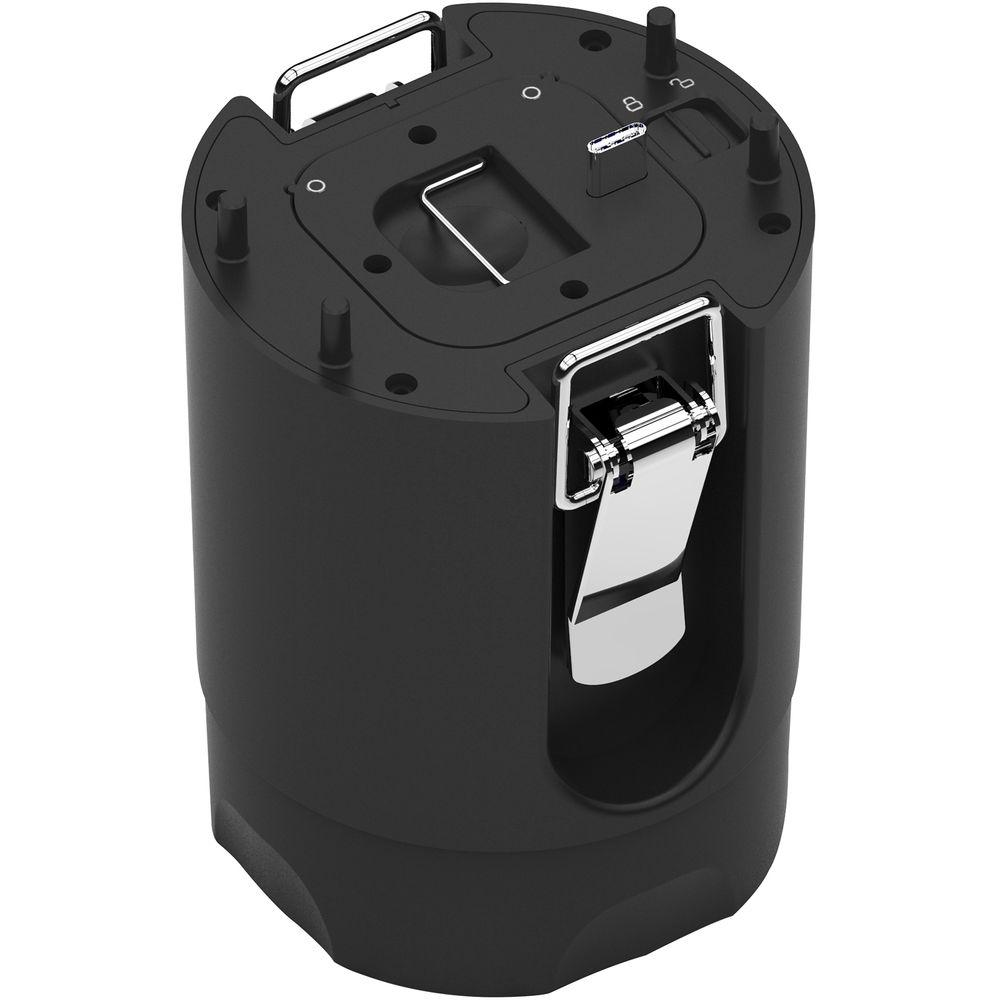

  • Battery Unit
  • AC Adapter
  • US/UK/EU Power Cables
  • Limited 1-Year Warranty
  • Note: Four 18650 battery cells not included. Table of Contents




    Upload User Manual

    Have you got an user manual for the Z CAM S1 6K Professional VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Z CAM S1 Specs

    Internal/External Stitching External Stitching
    Supported Spherical Projection Types Equirectangular
    Still Image Resolution PNG: 6000 x 3000 Post-stitching output, equirectangular
    Number of Lenses 4
    Sensor 1-Chip CMOS 4 x 1-sensor camera modules total
    Lens Elements 10
    Angle of View Wide: 190°
    Video Format 3840 x 2160p at 30 fps
    2704 x 1520p at 60 fps (H.264) Post-stitching output
    Recording Media 4 x SDXC (128 GB Maximum) Class 10; SanDisk Extreme Pro 95 MB/s SD cards are recommended.
    Built-In Mic Yes 4 x directional, mono
    Channels 4.0-Channel Mono
    Audio Format AAC
    Shutter Speed 1/30 - 1/8000 Second (Photo, Video, Streaming)
    Photo ISO Range 100 - 6400 (Manual)
    Video ISO Range 100 - 6400 (Manual) Auto mode also available
    Status Display No
    Wi-Fi None
    Tripod Mount None
    Inputs 1 x RJ45 Ethernet
    Outputs 4 x Mini-HDMI (Type C)
    Microphone Input None
    Headphone Jack None
    Battery 4 x Rechargeable Lithium-Ion Battery Pack, 3400 mAh
    Max Runtime: 2 Hours per Charge Batteries not included.
    Power Adapter 100 - 240 VAC
    Package Weight 5.8 lb
    Box Dimensions (LxWxH) 9.1 x 9.0 x 6.1"
