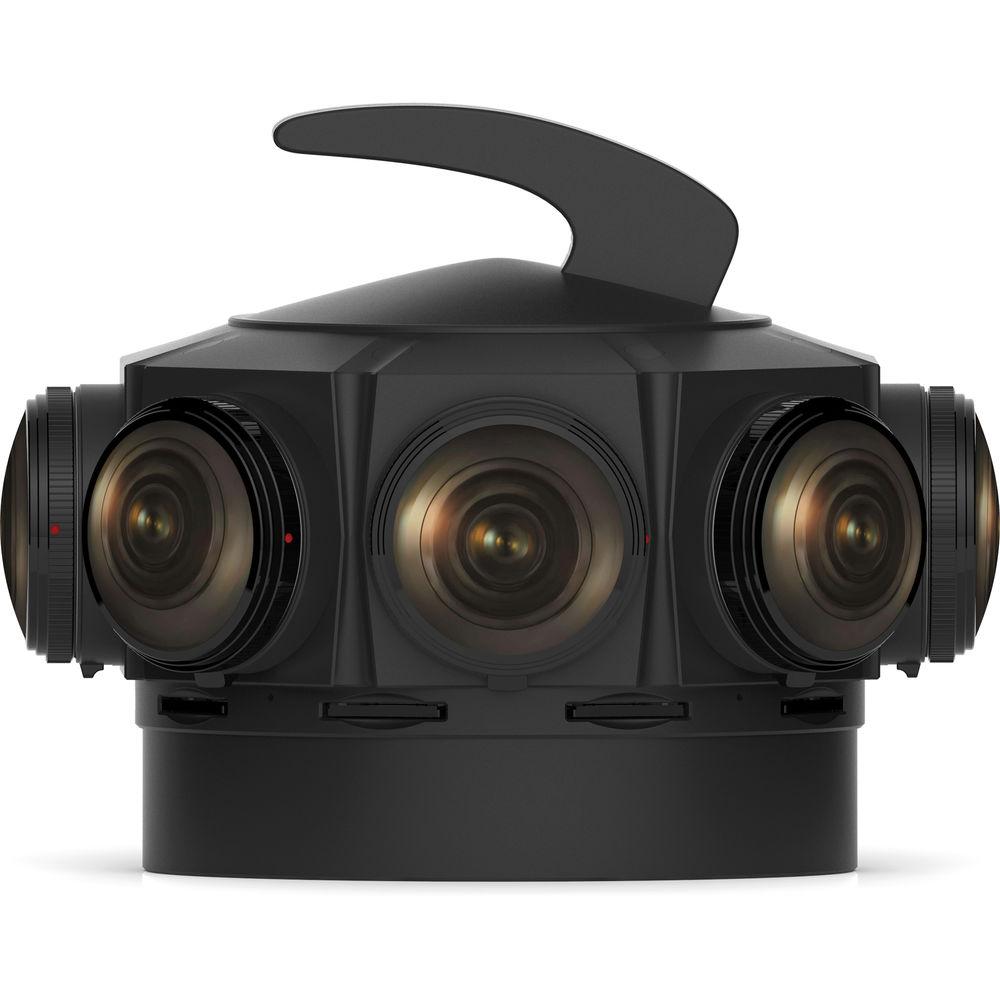

User Manual for Z CAM V1 Pro Cinematic VR Camera Click to enlarge the picture
Contents of the user manual for the Z CAM V1 Pro Cinematic VR
- Product category: All 360 Video Cameras Z CAM
- Brand: Z CAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Z CAM All 360 Video Cameras
 |
User manual for the Z CAM V1 Pro Cinematic VR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Z CAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Z CAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Z CAM product will considerably shorten its lifespan!
|
Product description The Z CAM V1 Pro Cinematic VR Camera features nine MFT-mount lenses (8 + 1 on top) and outputs up to 8K/30 single-eye resolution (mono), 7K/30 dual-eye (stereo), or 4K/60 in either mode. Nine Sony EXMOR 4/3" CMOS sensors record individually to a separate SD card slot (SD cards sold separately) and then all recordings can be transferred to your computer over a single Ethernet cable via the 10Gb Ethernet port on the camera. Once the footage is exported to your computer, the included (free download) Z CAM WonderStitch software will stitch the images together fully automatically. - Post-Stitching Resolution
-
- Mono: 8K at 30 fps
- Stereo: 7K at 30 fps
- 4K at 60 fps (stereo/mono)
- Gigabit Ethernet Port Output
-
- Transfer recorded images to computer
- Control settings and live streaming optional through Z CAM Controller
- Lenses, Sensors, Storage, Processors
-
- Nine (8+1 on top) 190° fisheye f/2.8-11 lenses
- Nine Sony EXMOR 4/3 CMOS image sensors
- Nine SD card slots (SDXC Class 10 SD cards required—sold separately; Z CAM recommends Extreme Pro 95 MB/s SD cards)
- Nine HiSilicon 3519 V101 processors
- ISO, Exposure, WB, Gamma
-
- ISO 100 - 6400 (auto/manual)
- Exposure: Auto, manual, coordinated
- White balance: Auto, manual, coordinated
- Z-Log proprietary gamma setting for expanded color grading
- Audio
-
- Four built-in directional mono microphones
- AAC encoding
- Other
-
- Full metal housing
- Dual LEMO connectors supporting hot swapping
- 12 VDC, 3.8A power adapter unit included
UPC: 841687106117 In the Box Z CAM V1 Pro Cinematic VR Camera LEMO Power Cable D-Tap Cable AC/DC Power Adapter Unit Power Connection Cables (US, UK, EU) Protective Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Z CAM V1 Pro Cinematic VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZ CAM V1 Specs | | | Stitching Resolution | 8K
7K | | Internal/External Stitching | External Stitching | | Number of Lenses | 9 | | | | Maximum Aperture | f/2.8 - f/11 | | Angle of View | Ultra Wide: 190° (fisheye) | | | | Recording Media | x SDXC (128 GB Maximum) | | Built-In Mic | Yes | | Channels | 4.0-Channel Mono | | Audio Format | AAC | | | | Video ISO Range | 100 - 6400 (Auto) Auto and Manual | | | | Touchscreen | No | | Status Display | Yes | | | | Outputs | 1 x RJ45 Gigabit Ethernet Port | | | | Charging Method | AC Adapter |
