Z CAM V1 Spherical VR 360

Search your instruction manual in PDF to download

User Manual for Z CAM V1 Spherical VR 360 Camera

Click to enlarge the picture
Z CAM V1 Spherical VR 360 Camera Contents of the user manual for the Z CAM V1 Spherical VR 360
  • Product category: All 360 Video Cameras Z CAM
  • Brand: Z CAM
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Z CAM All 360 Video Cameras

Z CAM V1 Spherical VR 360 Camera Z CAM V1 Spherical VR 360 Camera Z CAM V1 Spherical VR 360 Camera Z CAM V1 Spherical VR 360 Camera
User manual for the Z CAM V1 Spherical VR 360 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Z CAM product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Z CAM user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Z CAM product will considerably shorten its lifespan!



Product description

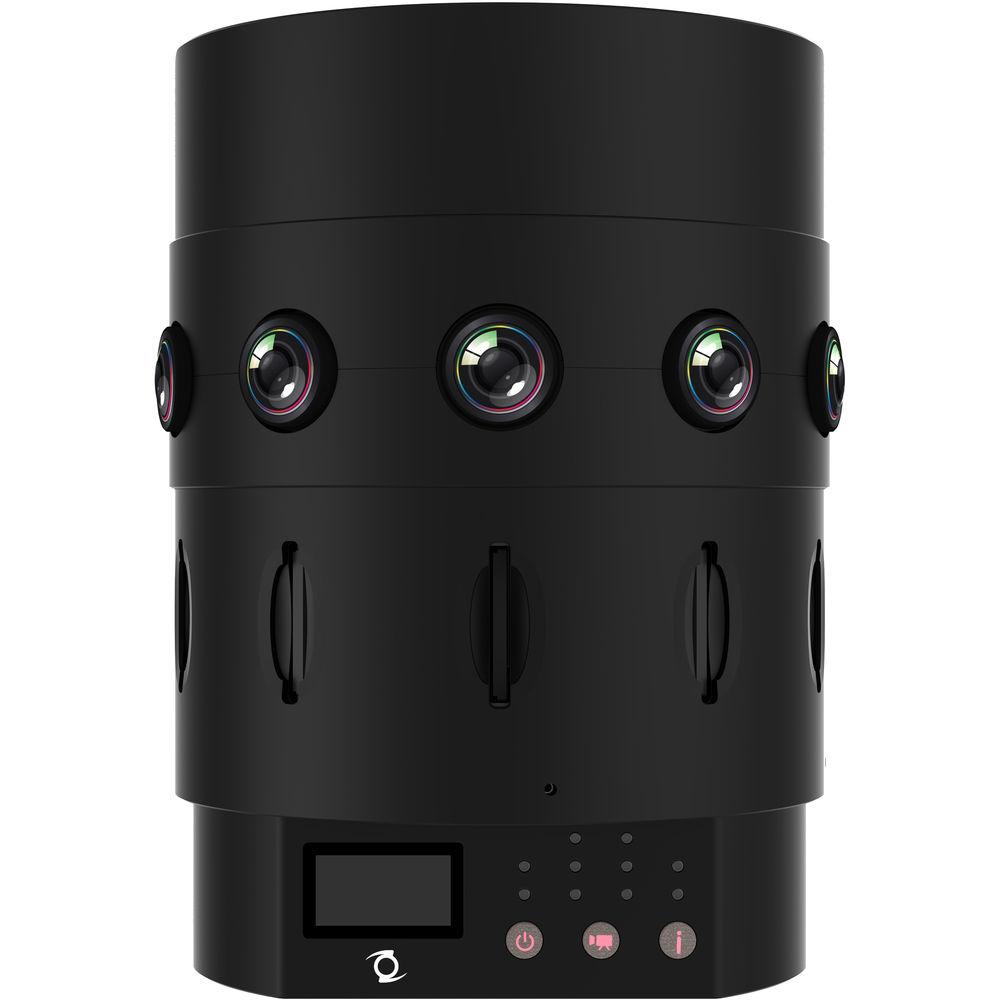

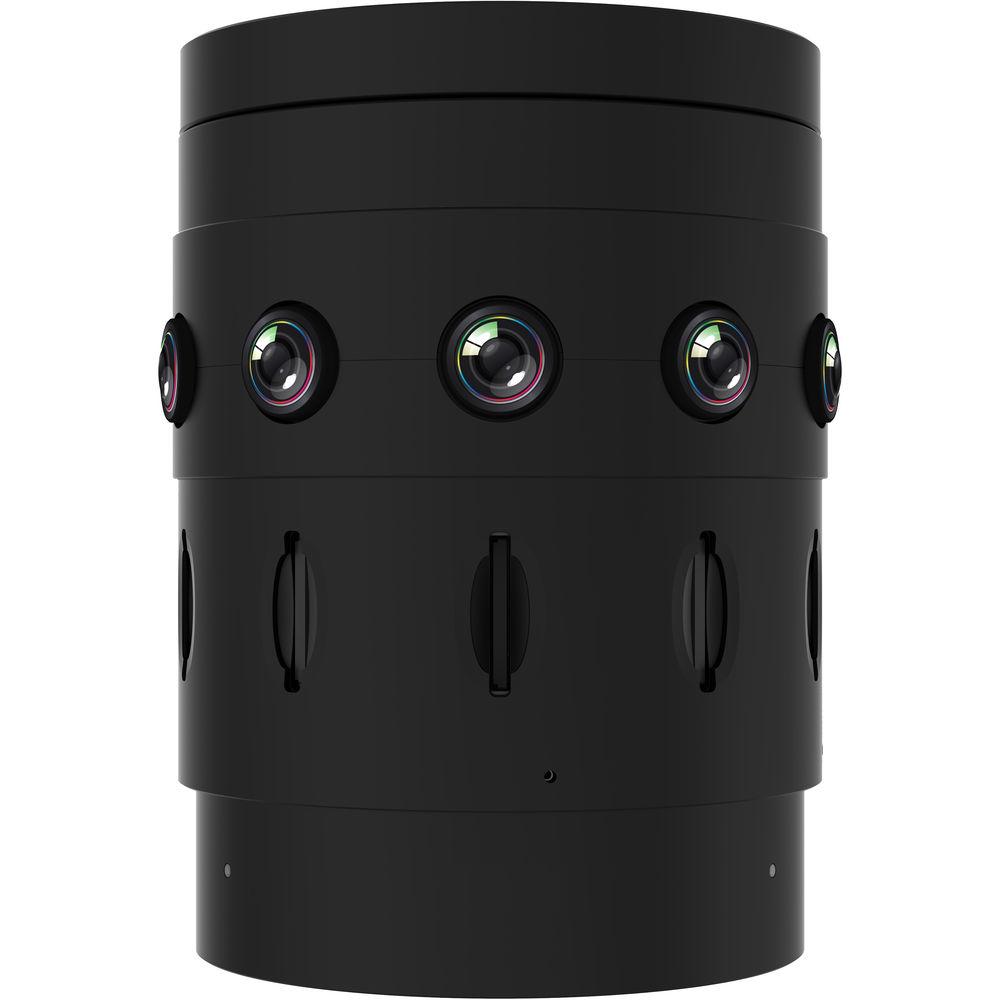

The Z-Cam V1 Spherical VR 360 Camera utilizes 10 built-in camera modules to generate video files up to 7K resolution, post-stitching. Each lens can see 190°, giving great flexibility for stitching. Behind each lens is a Sony 1/2.3" CMOS sensor. All camera units are precisely synced and are coordinated for autoexposure and auto white balance. Audio can be recorded using four built-in microphones, or with 3.5mm mini jack line input. When it comes to stitching, the included WonderStitch software can render out 2D or 3D footage; and with the WonderLive software, a Z-Cam V1 connected to a PC can be used to stream live. Power cables, a power supply, and a protective carrying case are included with the camera. UPC: 841687106018 In the Box Z CAM V1 Spherical VR 360 Camera
  • D-Tap to LEMO Power Cable
  • Power Supply with D-Tap Adapter Cable
  • International Power Cords
  • Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Z CAM V1 Spherical VR 360 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Z CAM V1 Specs

    Stitching Resolution 7K
    Internal/External Stitching External Stitching
    Supported Spherical Projection Types Equirectangular
    360 Stitched Video Format External 2D:
    6720 x 3360 at 30 fps (H.264)
    6144 x 3072 at 60 fps (H.264)
    5760 x 2880 at 60 fps (H.264)
    Number of Lenses 10
    Sensor 1-Chip 1/2.3" CMOS
    Sensor Resolution 9.3 MP
    Maximum Aperture f/2.4
    Angle of View 190°
    Video Format 3376 x 2768 at 30 fps (H.264)
    2880 x 1572 at 60 fps (H.264)
    Recording Media x SD (256 GB Maximum)
    Built-In Mic Yes
    Channels 4.0-Channel Surround
    Audio Format AAC
    Shutter Speed 1/30 - 1/8000 Second (Video)
    Video ISO Range 100 - 3200 (Manual)
    Interval Recording None
    Burst Photo None
    Status Display Yes
    Wi-Fi Yes

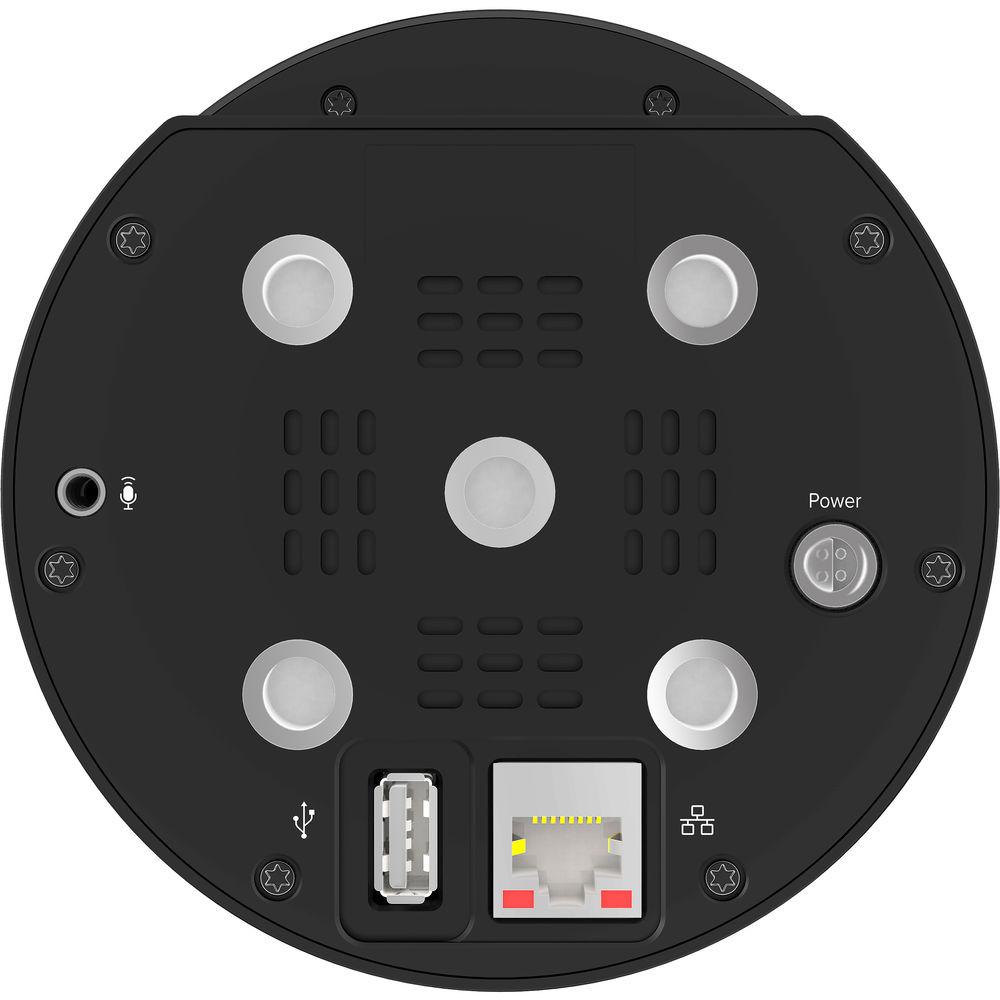

    Inputs 1 x 1/8" (3.5 mm) Mono TRS Mic Input
    1 x RJ45 Gigabit Ethernet
    Outputs None
    Microphone Input Yes
    Headphone Jack No
    Power Adapter 12 VDC
    Package Weight 19.875 lb
    Box Dimensions (LxWxH) 19.1 x 18.9 x 9.7"
