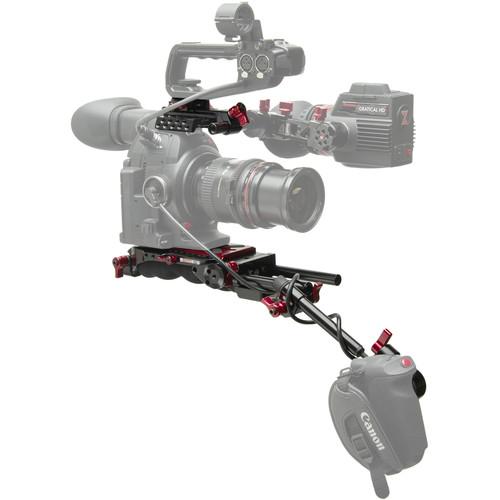

Zacuto C100 Mark II EVF Recoil

User Manual for Zacuto C100 Mark II EVF Recoil Rig

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Universal Baseplate The Zacuto VCT Universal Baseplate features a built-in, curved shoulder pad, a V-lock plate, removable, 15mm LWS spring-loaded rod clamps with 1.6" of vertical adjustment, and rows of 1/4"-20 mounting threads along the sides for accessories. The contoured and cushioned shoulder cavity allows your camera to sit only three quarters of an inch above your shoulder, and you can mount the VCT Universal Baseplate to a tripod with a VCT14 QR plate. The shoulder pad is made of soft-gel polymer and a two-piece shoulder pad accounts for the natural slope in shoulder, and is designed to balance your camera on the operator's right shoulder only. The V-lock tripod connector also incorporates 1/4"-20 and 3/8"-16 threads for direct connection to your tripod quick release plate.

  The spring-loaded rod clamps are set far back in the baseplate. This allows you to position your camera further back on the plate, thus keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 0.87" of vertical adjustment. The riser can also be flipped to offer up to 1.57" of adjustment from the lowest point. The shoulder pad is set as far forward on the plate as possible in order to maximize your accessory capable rod area and help with balance. This baseplate is designed to provide balance and comfort for every camera.
  • Designed to work with virtually any camera
  • Enables you to go from hand held/shoulder shooting to tripod shooting without changing mounting plates
  • Attaches to any VCT14 QR tripod adapter system
  • Vertically adjustable 15mm LWS rod clamps with spring-loaded locking levers
  • Rear mounted screw thread sockets for 15mm rods following the Light Weight Rod Standard (LWS) of 60mm on-center distance between rods
• C100 Mark II Helmet The C100 Mark II Helmet from Zacuto attaches to the top of the Canon C100 Mark II camera body, providing a sturdier connection point for the camera's top handle while adding the ability to slide the handle forward and backward for balancing. It consists of the helmet itself, a 5" Z-rail, and a double-jawed Z-Rail lock for secure attachment of the top handle. The helmet attaches via one screw on top and one on the side, replacing the film plane screw on the left side of the camera. The Z-rail screws to the top of the Helmet and, in addition to the 5" rail, adds a 15mm rod port in the rear for mounting an optional Axis Mini or other 15mm rod accessory. For additional accessory mounting, the helmet features 1/4"-20 threaded holes on all sides.
  Key Features
  • • Helmet with 1/4"-20 accessory threads
    • 5" Z-rail with 15mm rod port
    • Double-sized Z-Rail jaws for secure attachment of C100 Mark II's top handle to the Z-rail
    • Enables forward and backward top handle position adjustment for balancing
    • Spring-loaded ratcheting levers for rod port and Z-rail jaws
• Zgrip Relocator for Canon Cinema EOS C100/300/500 Cameras The Zacuto Zgrip Relocator is a combination of the Grip Relocator for the Canon Cinema EOS C100/300/500 Cameras and Zgrip Z-Mount Zwivel 2. It comes with a 4.5" rod that is attached to one of the Zwivel 2's ports; the other port can be used to attach any 15mm rod. The ports can be rotated up to 365° using pin locking mechanism, allowing you to change the angle between the two 15mm rods at set points. In order to change the angle of the rods, you simply have to loosen either of the levers and the internal spring separates the ports for you to adjust them to the desired angle. The Grip Relocator for the C100/300/500 Cameras features a 24" cable that connects to the port on your camera. Once it is plugged in, you get trigger or on/off control, lens aperture control, and a programmable function button that can be set to a number of things including waveform, 1-to-1 zoom, zebras, my menu, and many other functions. The removable grips that come with the C100/300 cameras attach directly to the Grip Relocator's handle. Note: Removable grip for the Cinema EOS C500 Camera has to be purchased separately.

• Pair of 6.5" 15mm Rods

• Gel Polymer Shoulder Pad

• 1/4"-20 Screw

• 3/8"-16 Screw

• Limited Lifetime Warranty

• 5" Z-Rail with 15mm Rod Port

• Double-Sided Z-Rail Jaws

• Limited Lifetime Warranty

• Limited 1-Year Warranty on Electronic Components

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Universal Baseplate

  Material	Shoulder Pad: Gel Polymer
  Rod Type	15 mm
  Rod Standard	15mm LWS
  Vertical Adjustment	1.6" / 40 mm
  Dimensions	13.5 x 4.25 x 1.75" / 34.3 x 10.8 x 4.4 cm (without rods)
  Weight	2 lb / 0.9 kg (with rods)

  Box Dimensions (LxWxH)	10.8 x 7.4 x 4.7"

• C100 Mark II Helmet

  Accessory Mount Threads	1/4"-20
  Rail Length	5" (12.7 cm)

  Box Dimensions (LxWxH)	1.7 x 1.3 x 0.3"

• Zgrip Relocator for Canon Cinema EOS C100/300/500 Cameras

  For Use with	Canon Cinema EOS C100/300/500 Cameras
  Rod Length	4.5" (11.4 cm)
  Rod Support	15mm
  Cable Length	24" (61 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	10.0 x 8.0 x 1.0"
