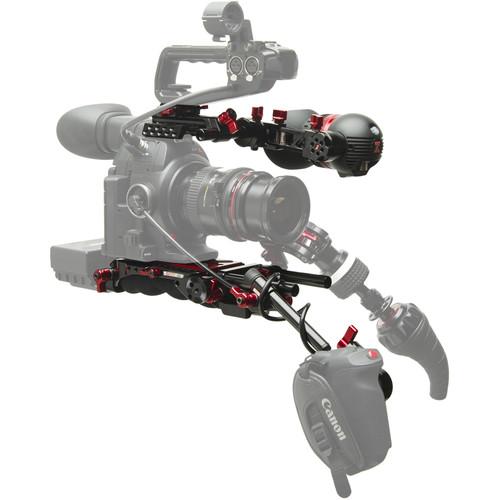

Zacuto C100 Mark II Gratical Eye

User Manual for Zacuto C100 Mark II Gratical Eye Bundle

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Zgrip Relocator for Canon Cinema EOS C100/300/500 Cameras The Zacuto Zgrip Relocator is a combination of the Grip Relocator for the Canon Cinema EOS C100/300/500 Cameras and Zgrip Z-Mount Zwivel 2. It comes with a 4.5" rod that is attached to one of the Zwivel 2's ports; the other port can be used to attach any 15mm rod. The ports can be rotated up to 365° using pin locking mechanism, allowing you to change the angle between the two 15mm rods at set points. In order to change the angle of the rods, you simply have to loosen either of the levers and the internal spring separates the ports for you to adjust them to the desired angle. The Grip Relocator for the C100/300/500 Cameras features a 24" cable that connects to the port on your camera. Once it is plugged in, you get trigger or on/off control, lens aperture control, and a programmable function button that can be set to a number of things including waveform, 1-to-1 zoom, zebras, my menu, and many other functions. The removable grips that come with the C100/300 cameras attach directly to the Grip Relocator's handle. Note: Removable grip for the Cinema EOS C500 Camera has to be purchased separately.
• C100 Mark II Helmet The C100 Mark II Helmet from Zacuto attaches to the top of the Canon C100 Mark II camera body, providing a sturdier connection point for the camera's top handle while adding the ability to slide the handle forward and backward for balancing. It consists of the helmet itself, a 5" Z-rail, and a double-jawed Z-Rail lock for secure attachment of the top handle. The helmet attaches via one screw on top and one on the side, replacing the film plane screw on the left side of the camera. The Z-rail screws to the top of the Helmet and, in addition to the 5" rail, adds a 15mm rod port in the rear for mounting an optional Axis Mini or other 15mm rod accessory. For additional accessory mounting, the helmet features 1/4"-20 threaded holes on all sides.
  Key Features
  • • Helmet with 1/4"-20 accessory threads
    • 5" Z-rail with 15mm rod port
    • Double-sized Z-Rail jaws for secure attachment of C100 Mark II's top handle to the Z-rail
    • Enables forward and backward top handle position adjustment for balancing
    • Spring-loaded ratcheting levers for rod port and Z-rail jaws
• Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
  Features
  • • 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
    • 3G-SDI input (optional converter for HDMI)
    • Supports resolutions up to 1080p and frame rates up to 60 fps
    • 2-Pin LEMO power input
    • 14 hours of power when used with a separately available 75Wh battery
    • Outboard tally light
    • Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
    • Rosette with 1/4"-20 thread on each side for mounting
    • -1 to +4 adjustable diopter range
    • USB port for firmware updates
  Monitoring & Image Analysis Tools
  • • Custom scaling/user presets
    • RGB, saturation, brightness, and contrast adjustments
    • Zebra with customer wide, color, and thresholds
    • Vectorscope
    • Waveform
    • Histogram (RGB, Luma)
    • Audio meters
    • LUT import and creation
    • Peaking (multiple color options)
    • False color
    • Frame store with transparency
    • Test pattern (color bars and Macbeth)
  UPC: 741459186258
• Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.

  Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Limited 1-Year Warranty on Electronic Components

• 5" Z-Rail with 15mm Rod Port

• Double-Sided Z-Rail Jaws

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Zgrip Relocator for Canon Cinema EOS C100/300/500 Cameras

  For Use with	Canon Cinema EOS C100/300/500 Cameras
  Rod Length	4.5" (11.4 cm)
  Rod Support	15mm
  Cable Length	24" (61 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	10.0 x 8.0 x 1.0"

• C100 Mark II Helmet

  Accessory Mount Threads	1/4"-20
  Rail Length	5" (12.7 cm)

  Box Dimensions (LxWxH)	1.7 x 1.3 x 0.3"

• Gratical Eye Micro OLED EVF

  Type	OLED
  Size	0.61" / 15.1 mm
  Resolution	Full Display: 1280 x 1024 16x9 Area: 1280 x 720
  Total Pixels	5.4 million
  Pixel Density	2687.21 PPI
  Contrast Ratio	10,000:1
  Refresh Rate	60 Hz
  Color Depth	RGB: 24-bit (16.7 million colors)
  Luminance	120 to 250 cd/m2
  Frame Rates Supported	23.98p 23.98PsF 24p 24PsF 25p 25PsF 29.97p 29.97PsF 30p 30PsF 50i 50p 59.94i 60i 60p

  Video Input	3G-SDI (resolution up to 1080p60)
  Power Input	2-pin LEMO (accepts either polarity)
  Firmware Updates	USB (Type A)
  Mounting Options	2 x Rosettes with 1/4"-20 screw thread

  Power Requirements	12 to 16.8 VDC
  Weight	14 oz (397 g)

  Box Dimensions (LxWxH)	7.6 x 4.5 x 3.8"

• Axis Mini EVF Mount

  Box Dimensions (LxWxH)	6.0 x 3.5 x 1.0"
