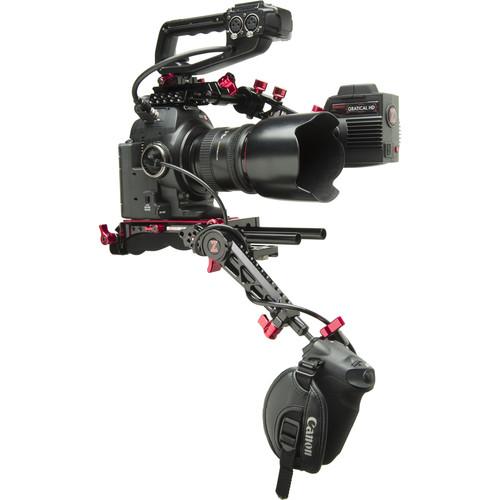

Zacuto C100 Mark II Gratical HD

User Manual for Zacuto C100 Mark II Gratical HD Bundle

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• Gratical HD Micro OLED EVF Rising far above the readily available generic EVF or LCD screen with a loupe magnifier attachment, the Zacuto Gratical HD Micro OLED EVF packs more display features and functions than is found in many much larger EVFs and on-camera monitors. At the heart of the EVF is a micro OLED panel about the size of your thumbnail with 5.5 million dots of resolution that produces an image with true blacks and a 10,000:1 contrast ratio, supporting RGB at 24-bits for vivid color rendition. You can choose to display a 720p image within the full resolution display of the OLED and then display the various scopes and signal displays outside of your picture area, which allows you to have an unobstructed view of your image while being able to see a waveform or histogram display of your image.

  The EVF incorporates both SDI and HDMI loop-through inputs/outputs and can cross convert from HDMI to SDI. It also supports peaking, false color, and test pattern generation as well as LUT creation and import. You can also select to view/display audio meters. The unit features four user-programmable buttons for often-used menu selections, and supports multiple frame rates. Zacuto has designed the entire optical path, providing a diopter that is adjustable from -1 to +4. The optical path includes an automatic light trap that can prevent damage to the EVF from accidental exposure to direct sunlight. Incorporating an ARRI-compatible rosette and a 1/4"-20 mounting hole provides a variety of means to mount the EVF to your camera. The EVF powers from a single LP-E6 type battery, and this 1800mAH battery provides approximately four hours of constant run time.

  General Features

  • The 1280 x 1024 resolution of the OLED allows it to display a 1280 x 720 image and various diagnostic displays without needing to overlay the signals over the image. You can adjust the position of your image and displays to what suits you best, or you can also choose to overlay the diagnostic signals on the image.
  • You can create and store LUTS within the EVF and apply individual LUTS to either or both the EVF display and the downstream video.
  • The OLED display and outputs are independent of each other, which means you can display the video signal with one LUT on the EVF and send the video signal with a different LUT to an external monitor. Likewise, you can display the various test signals and diagnostic signals either on both the EVF on a downstream monitor or either one or the other.
  • Weather resistant covers prevent moisture or debris from getting in open ports.
  • You can choose to display audio meters in the EVF.
  • LUTs, test patterns, scope displays, and other display functions can be displayed in the EVF or simultaneously on the downstream video. You can select to have the EVF and the downstream video display different LUTs and/or display functions as well.

  Test Patterns & Diagnostic Signals

  Scopes
  • • The waveform provides an objective evaluation of your video signal. It displays the brightness of your image on an IRE scale, allowing you to see if your image will clip and where your black levels are.
    • The Vectorscope displays the signal on a graph so you can check the phase of your colors. The Vectorscope function also verifies and checks the overall tint and hue of an image.
    • The Historgram view allows you to see where your pixels are distributed in the spectrum of black to white, providing a quick way to see where your exposure values fall. You can choose to display the Histogram as either RGB or Luma.
  False Color
  • The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
  Peaking
  • Peaking highlights the sharpest (most in focus) areas of the image with a color outline.
  Zebra
  • Provides a crawling black and white pattern overlaying areas that exceed the brightness levels you select.
  Frame Store
  • You can store frames within the EVF to recall them at a later time. You can also adjust the transparency of the frame store and superimpose it on the current view when you need to align shots.
  Test Pattern Generation
  • The EVF can generate color bars and a Macbeth color chart
  UPC: 741459186128
• Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.

  Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting.
• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Zgrip Trigger for Canon C-Series The Zgrip Trigger for Canon C-Series from Zacuto relocates your C-series camera's original Canon handgrip to a more ergonomic operating position, reducing operator fatigue. The Zgrip adjusts up to 6" for a total length of 11", setting your grip at a comfortable distance from the camera. No need to remove the camera from your shoulder when adjusting the Zgrip's angle; a push button enables you to rotate the Zgrip a full 360° with one hand. This grip attaches to your camera body or rig via an integrated ARRI-type (M6) rosette.
• C100 Mark II Helmet The C100 Mark II Helmet from Zacuto attaches to the top of the Canon C100 Mark II camera body, providing a sturdier connection point for the camera's top handle while adding the ability to slide the handle forward and backward for balancing. It consists of the helmet itself, a 5" Z-rail, and a double-jawed Z-Rail lock for secure attachment of the top handle. The helmet attaches via one screw on top and one on the side, replacing the film plane screw on the left side of the camera. The Z-rail screws to the top of the Helmet and, in addition to the 5" rail, adds a 15mm rod port in the rear for mounting an optional Axis Mini or other 15mm rod accessory. For additional accessory mounting, the helmet features 1/4"-20 threaded holes on all sides.
  Key Features
  • • Helmet with 1/4"-20 accessory threads
    • 5" Z-rail with 15mm rod port
    • Double-sized Z-Rail jaws for secure attachment of C100 Mark II's top handle to the Z-rail
    • Enables forward and backward top handle position adjustment for balancing
    • Spring-loaded ratcheting levers for rod port and Z-rail jaws

• LP-E6 (7.8 Volt, 1800mAH) Type Battery

• Charger

• Limited 1-Year Warranty

• Limited Lifetime Warranty

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• 5" Z-Rail with 15mm Rod Port

• Double-Sided Z-Rail Jaws

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Gratical HD Micro OLED EVF

  Display	0.61" / 15.1 mm
  Frame Rate	23.98p 23.98PsF 24p 24PsF 25p 25PsF 29.97PsF 50i 50p 59.94i 60i 60p
  Resolution	Full Display: 1280 x 1024 HD: 1280 x 720
  Contrast Ratio	10,000:1
  Refresh Rate	50/60 Hz
  Color Depth	RGB: 24-bit
  Luminance	120 to 250 nit
  Pixel Density	2687.21 PPI
  Color	16.7 million colors
  Connections	Input HDMI: 1 x HDMI SDI: 1 x BNC Output HDMI: 1 x HDMI SDI: 1 x BNC Upgrades 1 x USB
  Mounting Options	ARRI compatible rosette 1/4"-20

  Box Dimensions (LxWxH)	10.8 x 7.35 x 5.15"

• Axis Mini EVF Mount

  Box Dimensions (LxWxH)	6.0 x 3.5 x 1.0"

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Zgrip Trigger for Canon C-Series

  Length	11.5" (29 cm)
  Adjustable Length	6" (15 cm)
  Rotation Range	360°
  Rosette Type	ARRI (M6)

  Box Dimensions (LxWxH)	10.2 x 3.0 x 2.6"

• C100 Mark II Helmet

  Accessory Mount Threads	1/4"-20
  Rail Length	5" (12.7 cm)

  Box Dimensions (LxWxH)	1.7 x 1.3 x 0.3"
