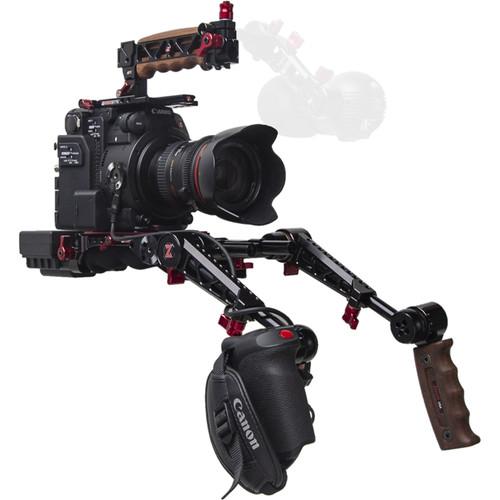

Zacuto C200 EVF Recoil Pro Rig

User Manual for Zacuto C200 EVF Recoil Pro Rig with Dual Trigger Grips

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Rosette Dual Trigger Grips The Zacuto Rosette Dual Trigger Grips are a 15mm LWS rod mount handgrip set featuring one wooden handgrip and one rosette relocator that allows you to attach any ARRI rosette-mount camera or lens grip. Each can be individually rotated a full 360° at the press a dedicated lever — there is no need to screw or unscrew any knob or lever but rather just press it on the fly. Furthermore, the wooden component of the wooden handgrip can also be adjusted forward and backward at the press of another lever, and same goes for your camera/lens grip once you attach it.

  The handgrip and relocator are secured into sleeves and can be adjusted in length within the sleeves by loosening a corresponding lever for each one. They can be adjusted from 13 to 16" in length, measuring from the base to the bottom of the handgrip. Scale markings are available on top to allow you to easily match up the positions of the handgrips. The handgrips are fully removable and you can incorporate a second wooden handgrip at a later time to alternate with the relocator.
  Key Features
  • • 15mm LWS rod mount handgrip set
    • Includes a wooden handgrip and a rosette grip relocator that supports ARRI rosette-mount camera/lens grips
    • 360° rotation at the press of a lever — no screwing/unscrewing
    • Forward/backward adjustment at the press of another lever
    • Length adjustable
    • Scale markings for easily matching the positions of the handgrips
• C200 Top Plate The Zacuto C200 Top Plate is custom-designed for your Canon C200, forming the base for accessorizing your camera without stressing its body. It has a built-in Z-Rail which is perfect for adding the Recoil Handle, or you can attach your Canon Handle to the plate instead. It has a multitude of 1/4"-20 and 3/8"-16 screw holes. At the back of the plate is a 15mm rod clamp with a spring-loaded locking lever, and a grooved mount for the Canon C200 LCD. You can also mount the Canon LCD to the built-in Z-Rail if so desired.
  • The Top Plate features a built-in Z-Rail, 15mm rod clamp, and 51 1/4"-20 and two 3/8"-16 threaded mounting holes, all providing accessory mounting options to extend the ergonomics of your camera.
  • The spring-loaded locking lever allows you to tighten or loosen the clamp, even when you can't rotate the lever completely.
• Recoil Handle The Zacuto Recoil Handle is a maple-wood-lined handgrip that mounts to a Z-Rail or compatible mounting rail. This provides a comfortable yet secure handle for your camera rig, and the rail-style mounting allows you to adjust the handle along the length of the rail to improve your rigs balance. It features two cold shoe mounts (one vertical and one horizontal) and secures both mounts with a single lever. The integrated 1/4"-20 threaded mounting hole, and 15mm rod clamps further expand on the Recoil Handle's usefulness.

  Machined aluminum construction provides a balance of strength and weight, and the unit is anodized for corrosion and wear resistance. Large, spring-loaded locking levers provide a good grip and the capability of tightening the clamps without rotating the levers throughout the entire 360° range.

  Key Features

  • The Recoil Handle clamps securely along the length of a Zacuto Z-Rail, allowing you to adjust the balance of your camera or camera rig. In addition to the Z-Rail, the handle is compatible with a variety of rails including: NATO, SWAT, RED, Picatinny, and Wooden Camera. You can mount the handle with the cold shoes or the rod clamps.
  • The maple-wood grip linings remain cool in hot weather and are generally considered to be more comfortable to hold. The wood is tooled to provide finger slots for increased comfort and grip.
  • The two cold shoes incorporate built-in stoppers and a single lever clamps both shoes simultaneously, securing your accessories. A 1/4"-20 accessory mounting point is threaded into the side of the cold shoe mounts.
  • Two offset 15mm rod clamps allow you to mount rods at right angles to each other. Each rod clamp features its own spring-loaded locking lever.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Dual Trigger Grip Base

• Wooden Handgrip

• Rosette Relocator

• Limited Lifetime Warranty

• 2 x 1/4"-20 Screw

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Rosette Dual Trigger Grips

  Material of Construction

  Aluminum, wood

  Box Dimensions (LxWxH)	11.0 x 8.3 x 2.0"

• C200 Top Plate

  Material of Construction	Anodized 6061 aluminum
  Mounting	Accessory 51 x 1/4"-20 2 x 3/8"-16 1 x 15 mm rod clamp 1 x Z-Rail
  Dimensions	5.89 x 3.9 x 0.37" / 14.96 x 9.91 x 0.94 cm
  Weight	4.8 oz / 136.1 g

  Box Dimensions (LxWxH)	5.8 x 2.5 x 1.6"

• Recoil Handle

  Mounting	Z-Rail NATO SWAT RED Picatinny Wooden Camera
  Accessory Mounting	1 x 1/4"-20 2 x cold shoe 2 x single 15mm rod clamps
  Dimensions	7.5 x 3.0 x 3.0" / 19.1 x 7.6 x 7.6 cm
  Weight	8.0 oz / 226.8 g

  Box Dimensions (LxWxH)	6.1 x 5.0 x 2.5"
