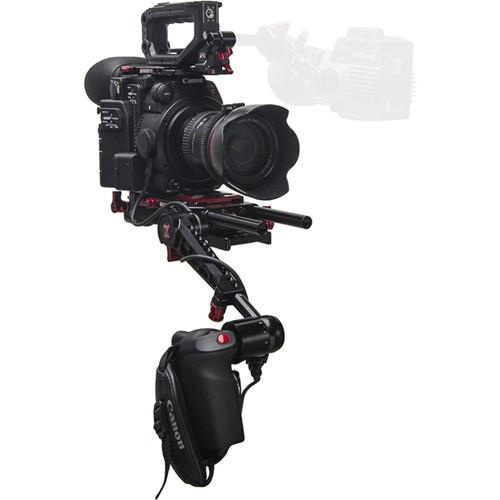

Zacuto C200 Recoil Pro V2

User Manual for Zacuto C200 Recoil Pro V2

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Rosette Trigger Grip The Zacuto Rosette Trigger Grip is an adjustable grip relocator for ARRI rosette-mount camera or lens grips. It's designed to attach to camera supports offering an ARRI rosette, including the Zacuto VCT Pro baseplate. The entire unit can be rotated a full 360° at the quick press of a lever, and the component that holds your grip can be adjusted forward and backward with the press of another lever. Unlike with standard handgrips, these levers don't need to be unscrewed and can just be pressed on the fly. The entire unit can also be adjusted in length by loosening another lever.
• C200 Top Plate The Zacuto C200 Top Plate is custom-designed for your Canon C200, forming the base for accessorizing your camera without stressing its body. It has a built-in Z-Rail which is perfect for adding the Recoil Handle, or you can attach your Canon Handle to the plate instead. It has a multitude of 1/4"-20 and 3/8"-16 screw holes. At the back of the plate is a 15mm rod clamp with a spring-loaded locking lever, and a grooved mount for the Canon C200 LCD. You can also mount the Canon LCD to the built-in Z-Rail if so desired.
  • The Top Plate features a built-in Z-Rail, 15mm rod clamp, and 51 1/4"-20 and two 3/8"-16 threaded mounting holes, all providing accessory mounting options to extend the ergonomics of your camera.
  • The spring-loaded locking lever allows you to tighten or loosen the clamp, even when you can't rotate the lever completely.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• 2 x 1/4"-20 Screw

• Limited Lifetime Warranty
